Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

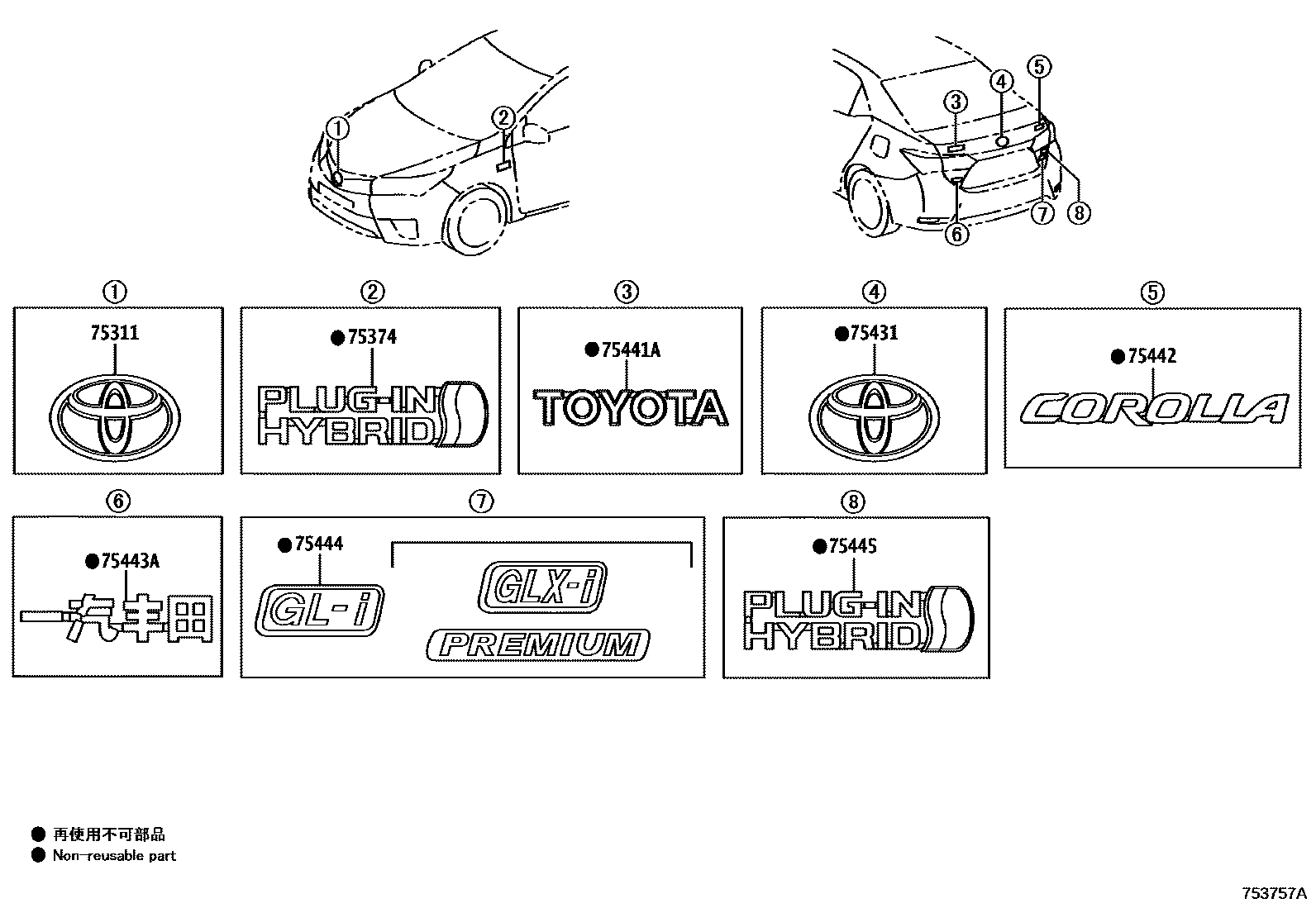

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75310-02020 |
| 75374 | side panel sign | 75374-02130 · 75374-02140 |
| 75431 | luggage compartment door sign | 75403-02020 |
| 75441A | Trunk door No. 1 name plate | 75441-02330 |
| 75442 | Trunk door number plate No. 2 | 75442-02360 |
| 75443A | Trunk door No. 3 nameplate | 75441-02340 |
| 75444 | Trunk door No. 4 nameplate | 75444-02B20 · 75444-02B30 · 75444-02B40 |
| 75445 | Trunk door No. 5 name plate | 75443-02350 |
