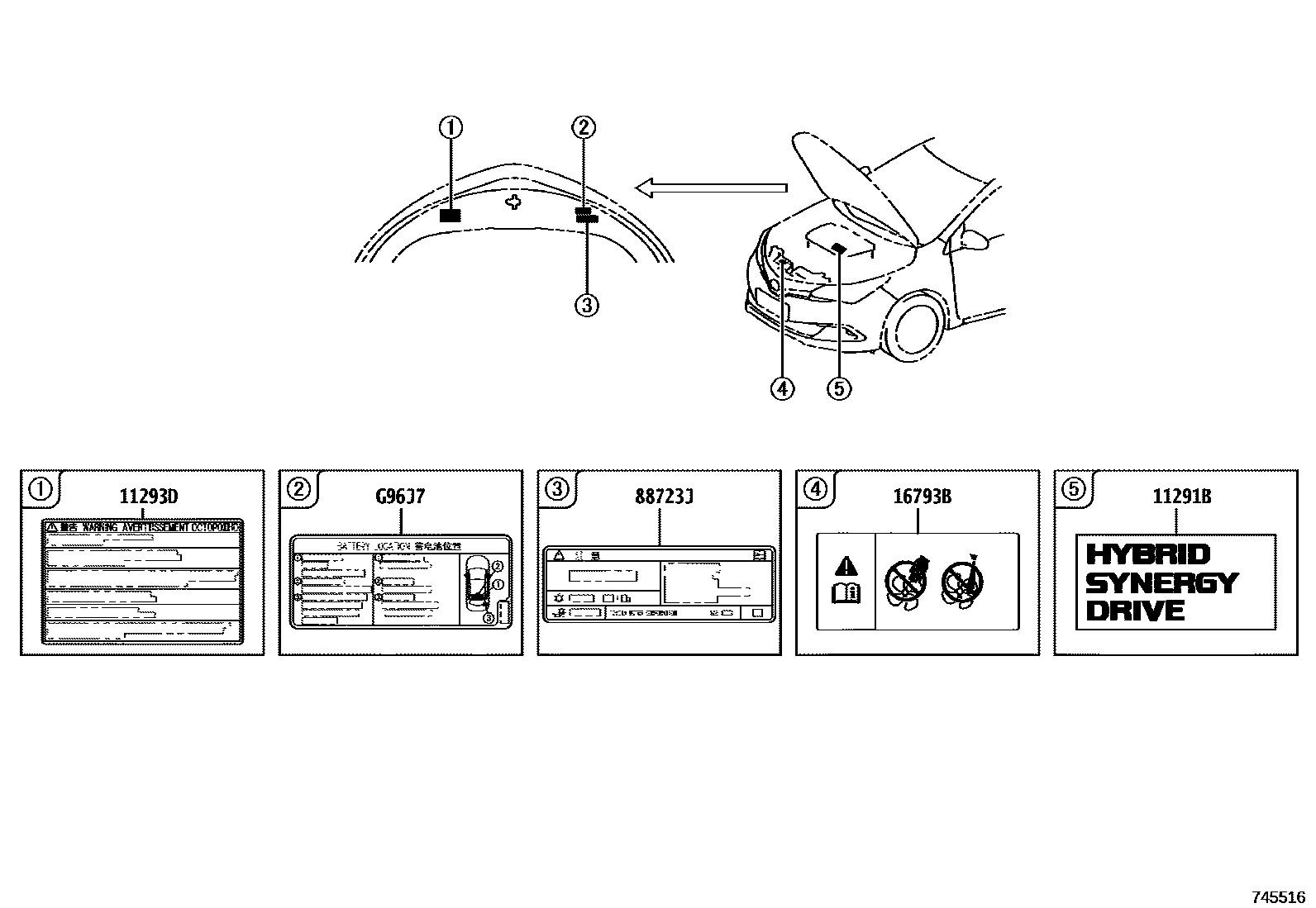

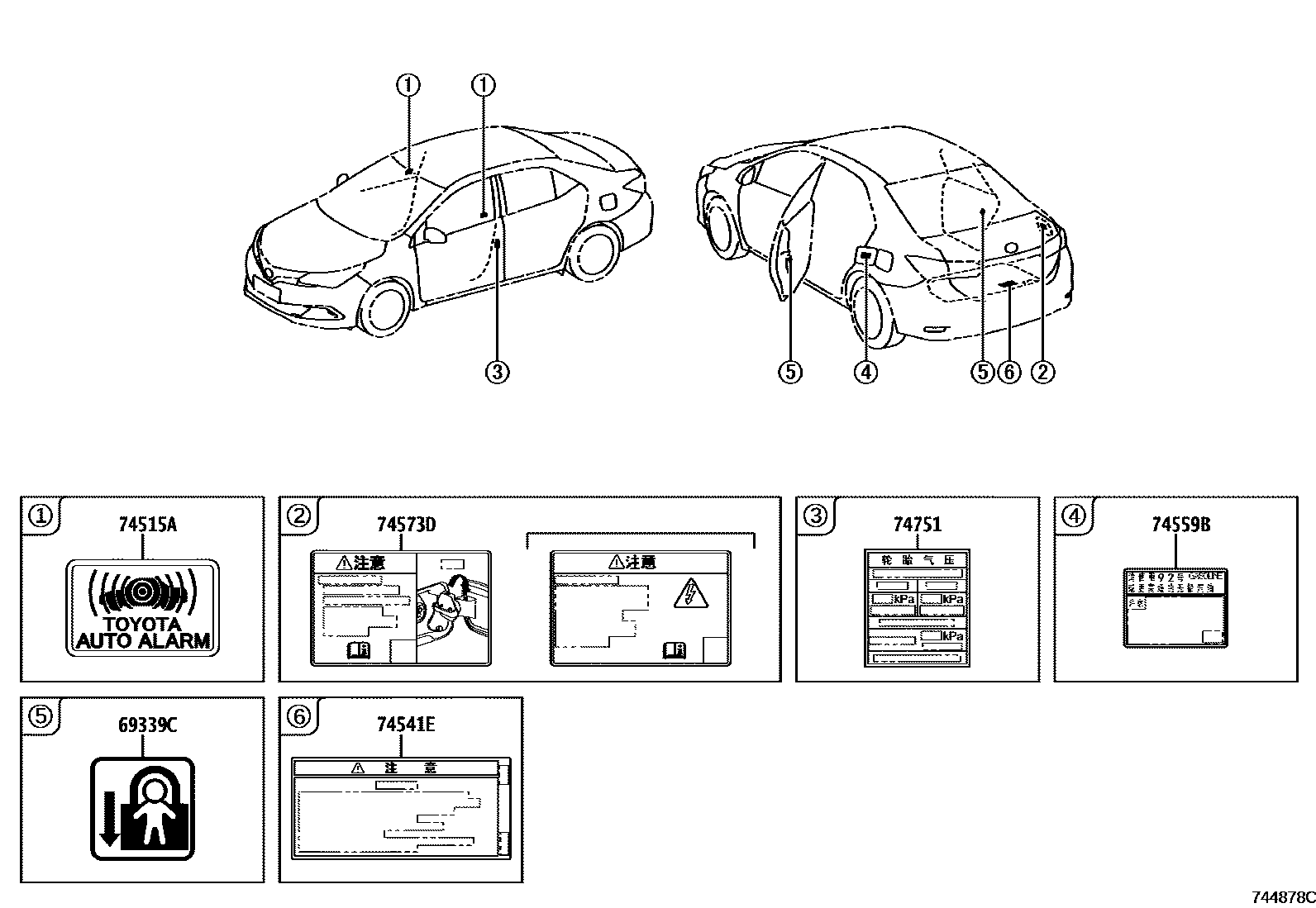

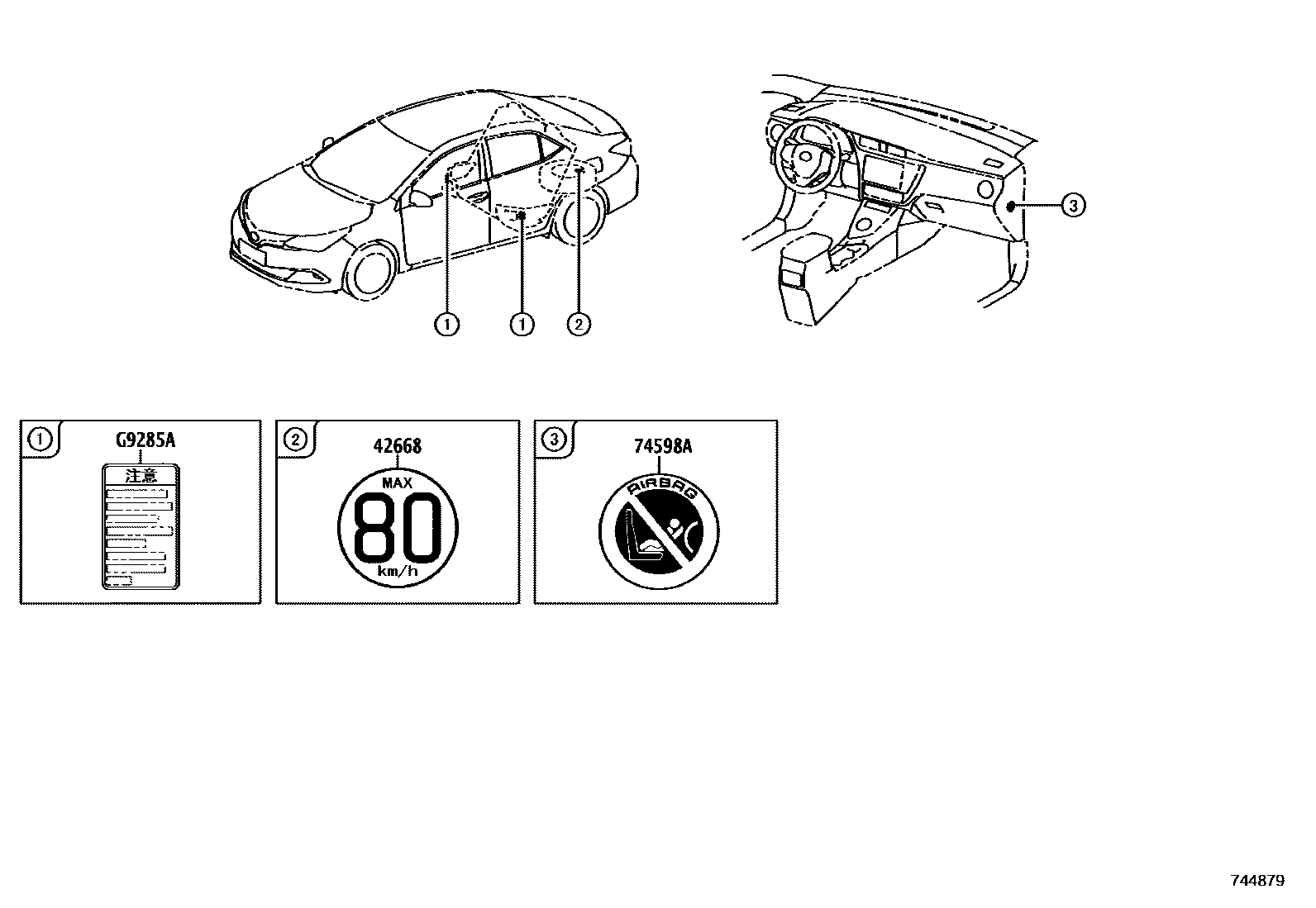

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11291B | Engine name plate | 11291-37060 |
| 11293D | engine warning label | 11293-36070 |
| 16793B | Cooling fan information label | 16793-36050 |
| 42668 | Small spare tire warning label | 42668-20020 |
| 69339C | Child Restraint Information Label | 69339-06080 |
| 74515A | Anti-theft warning nameplate | 74515-06020 |
| 74541E | Small spare tire warning plate | 42668-0N010 |
| 74559B | fuel information label | 74559-33040 |
| 74573D | Electric vehicle battery warning labels | 74573-02010 · 74573-02011 |
| 74598A | Passenger air bag warning label | 74598-06040 |
| 74751 | tire pressure information label | 42661-02P70 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-02380 |
| G9285A | HV Battery No. 1 Warning Label | G928L-02010 |
| G96J7 | Power battery No. 1 information label | G96J7-02010 |
