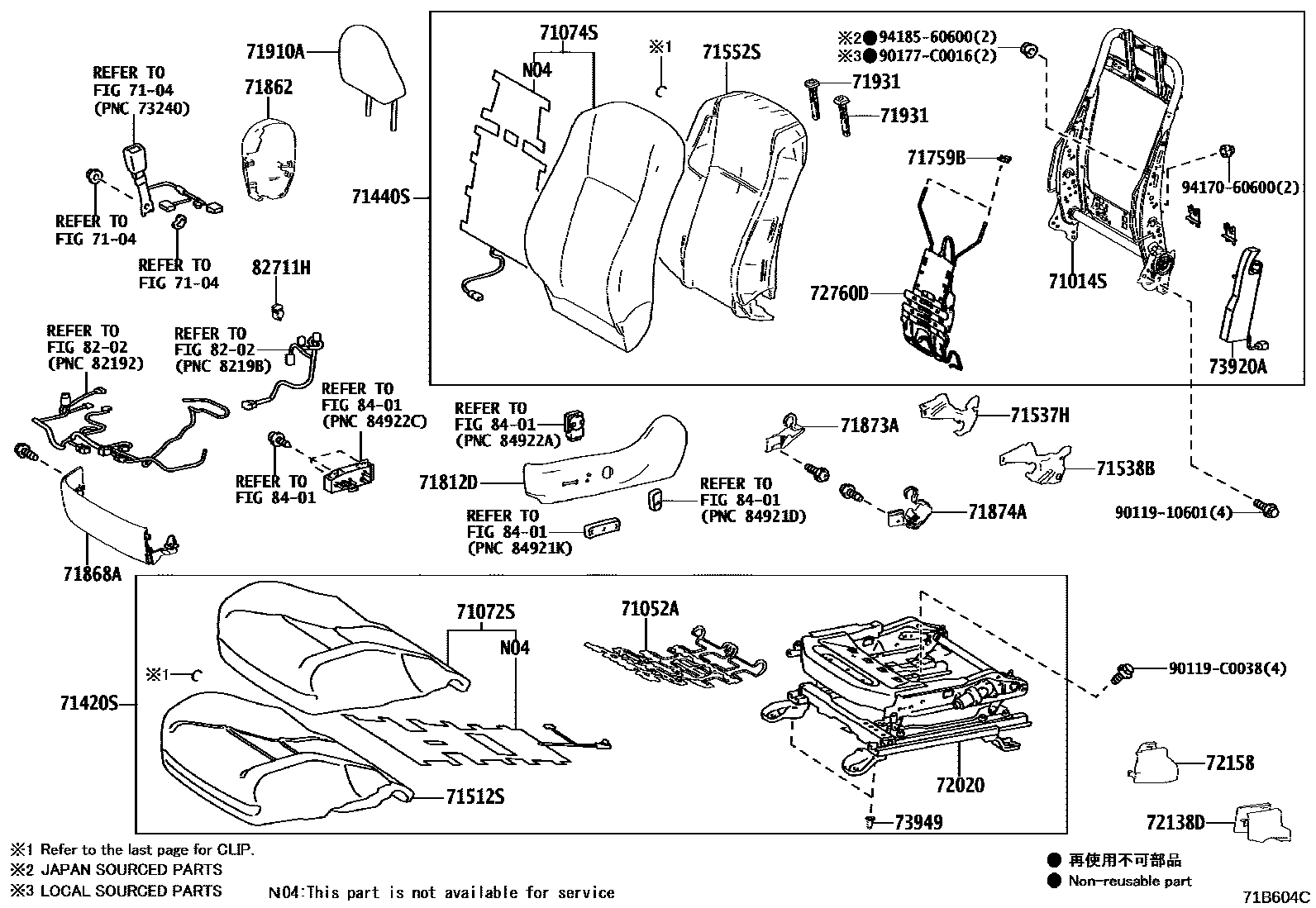

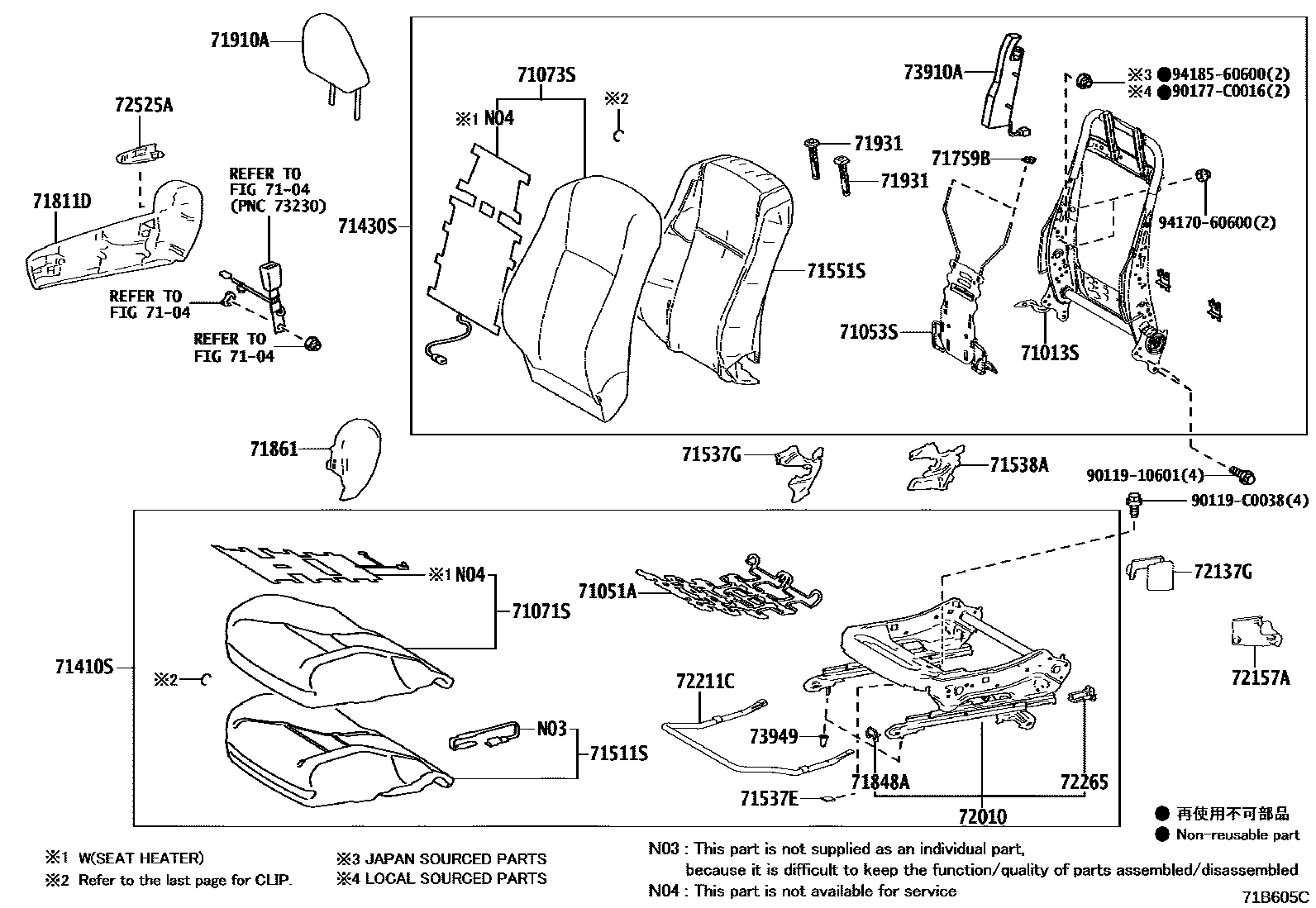

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-02330 |
| 71014S | Front left seat back frame sub-assembly | 71014-02250 · 71014-02260 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-0P030 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-0P030 |
| 71053S | Front right seat back spring sub-assembly | 71053-02240 |
| 71054S | Front left seat back spring sub-assembly | 71053-02240 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02210 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-02750 · 71512-02760 |
| 71537E | Front seat No. 1 seat cushion protective cover | 71537-02340 |
| 71537F | Front seat 2 seat cushion protective cover | 71537-02340 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02B40 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02860 |
| 71759B | Front seat back hook | 71759-47011 |
| 71848A | Right seat adjuster cover | 71848-0D140 |
| 71849 | left seat adjuster cover | 71848-0D140 |
| 71873A | Front seat cushion lower guard | 71873-06440 |
| 71874A | Front left seat cushion lower guard | 71874-06520 |
| 72010 | Front right seat adjuster assembly | 72010-02711 |
| 72020 | Front left seat adjuster assembly | 72020-02731 · 72020-02741 |
| 72211C | Seat slide adjustment handle | 72211-0D200 |
| 72265 | Right seat rail upper rail cover | 72265-0D040 |
| 72266C | Left seat rail upper rail cover | 72265-0D040 |
| 72760D | Left lumbar support adjuster assembly | 72760-06110 |
| 73910A | Front right seat airbag assembly | 73910-02250 |
| 73920A | Front left seat airbag assembly | 73920-02240 |
| 73949 | cover | 71848-02050 |
| 82711H | Wire harness clip | 82711-2B660 |
