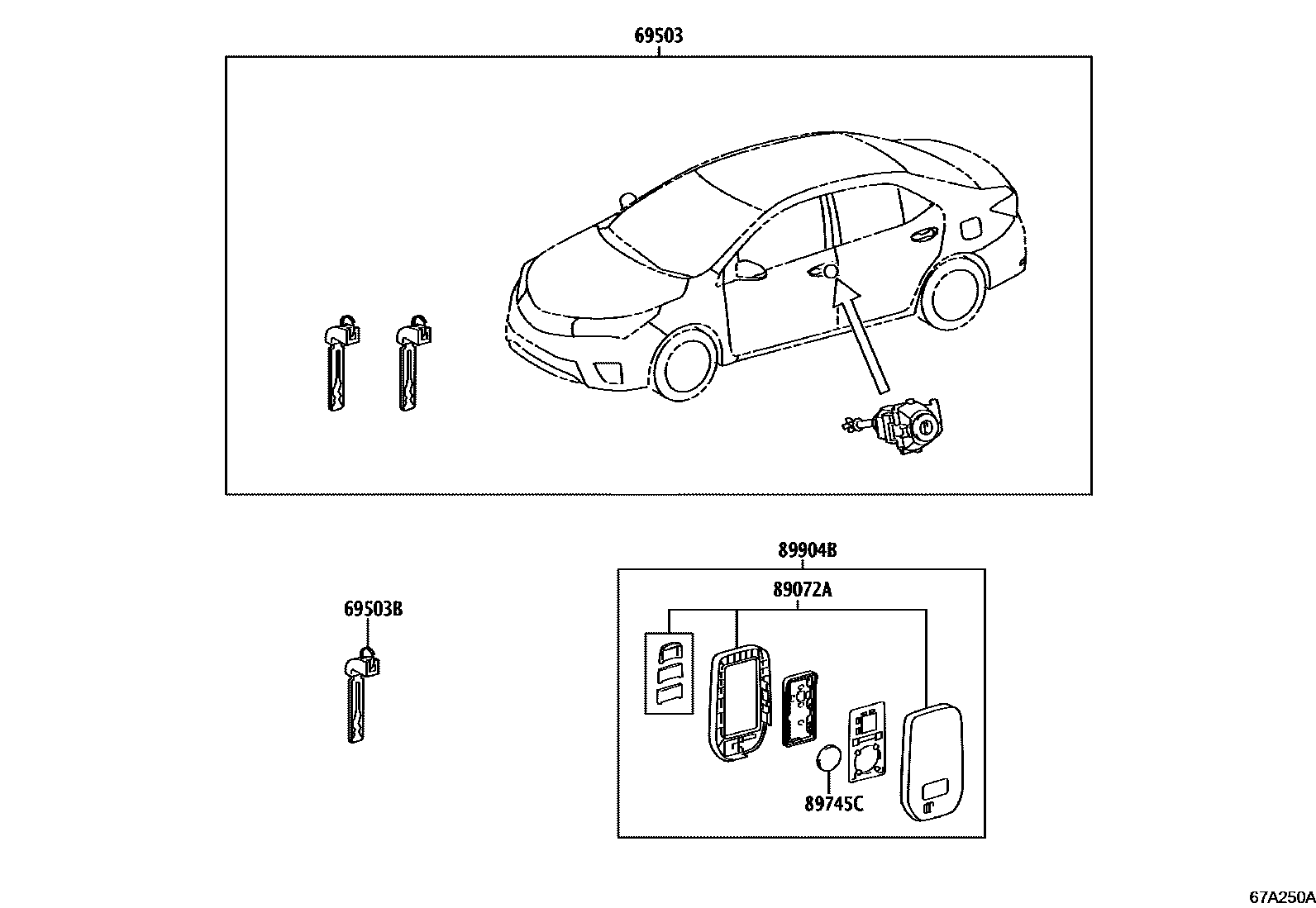

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-02E60 |
| 69503B | internal tooth key | 69515-33110 |
| 89072A | Remote key shell assembly | 89072-02180 |
| 89745C | Transmitter battery | 89745-50020 |
| 89904B | Electronic key transmitter sub-assembly | 89904-02190 |
