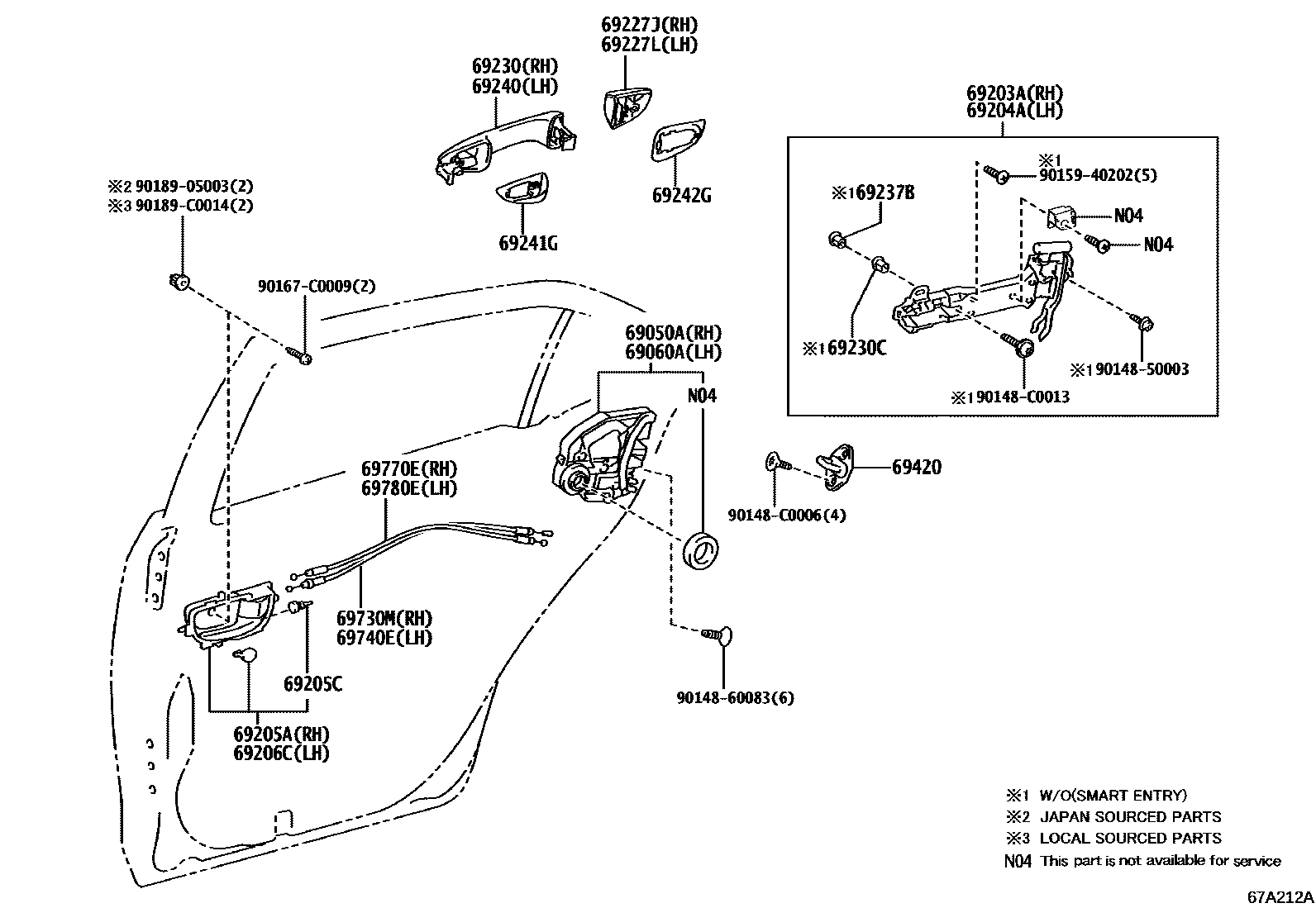

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69050A | Right rear door lock assembly with motor | 69050-06111 |
| 69060A | Left rear door lock assembly with motor | 69060-06111 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02490 · 69203-02500 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02490 · 69204-02500 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69230C | Bushing (for rear door outer handle) | 69239-30010 |
| 69237B | Rear door handle nut | 69237-30010 |
| 69241G | Rear door front exterior handle pad | 69241-02200 · 69242-02190 |
| 69242G | Rear door rear outer handle pad | 69241-02210 · 69242-02200 |
| 69420 | Rear door lock plate assembly | 69410-0D020 |
| 69730M | Right rear door lock remote control cable (for opening lever) | 69730-02440 |
| 69740E | Left rear door lock remote control cable (for opening lever) | 69730-02440 |
| 69770E | Right rear door inner locking cable (for locking/unlocking handle) | 69770-02540 |
| 69780E | Left rear door inner lock cable (for locking/unlocking handle) | 69770-02540 |
