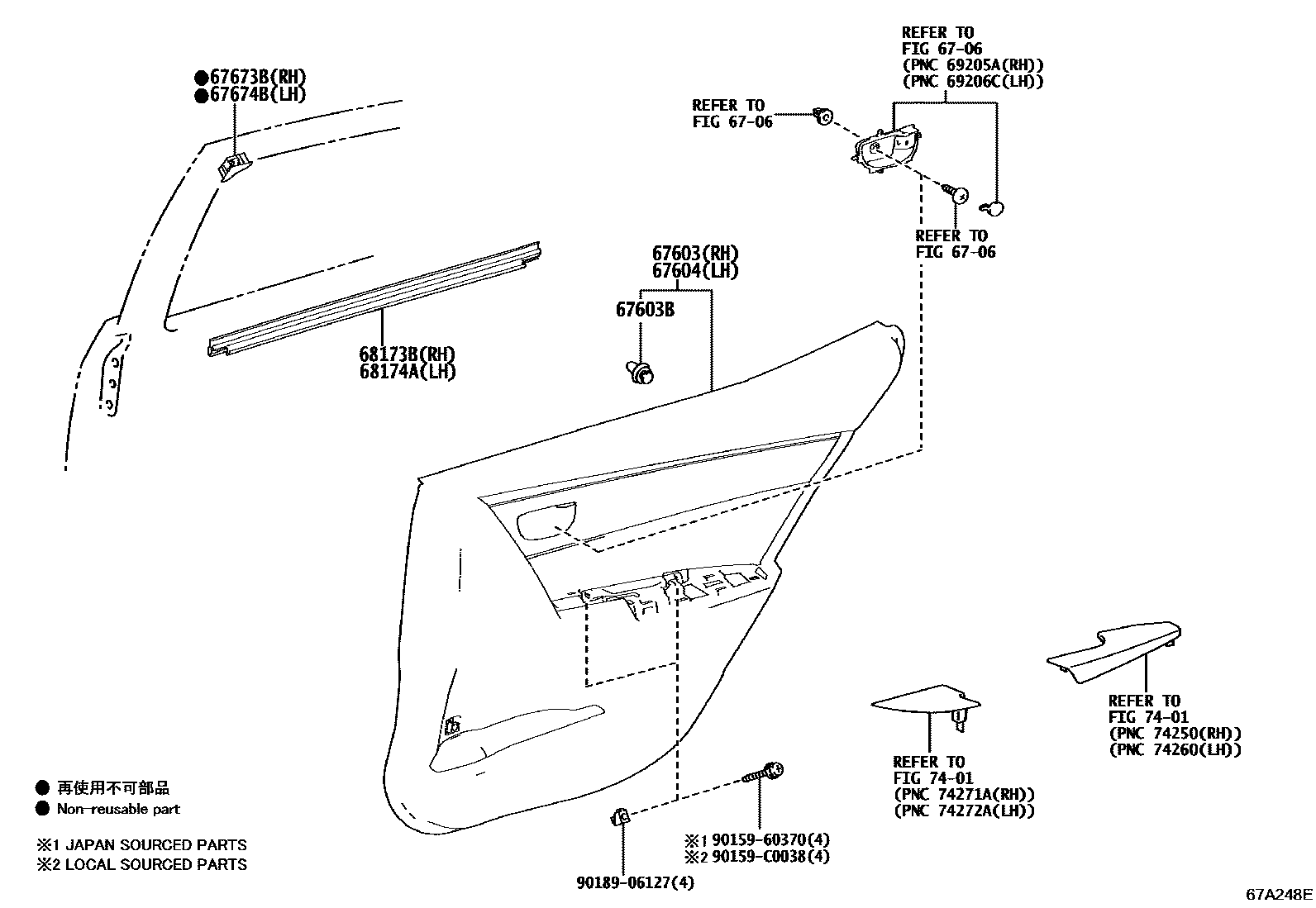

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-02490 · 67003-02500 |
| 67003C | Rear door panel cushion | 90541-09124 · 90541-C0003 |
| 67004 | Left rear door panel sub-assembly | 67004-02490 · 67004-02500 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-02170 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-02170 |
| 67603B | Catch (for rear door trim panel) | 90467-C0033 |
| 67673B | Right rear door frame decorative strip | 67673-0R010 |
| 67674B | Left rear door frame decorative strip | 67674-0R010 |
| 67812 | Rear door silencer pad | 67811-02390 |
| 67837C | Rear door dust seal retainer | 67837-02150 · 67837-48050 |
| 67841B | Rear door access hole cover | 67841-02410 |
| 67842E | Left rear door access hole cover | 67842-02380 |
| 67847B | No. 1 right rear door ventilation device seal | 67847-02080 |
| 67848A | No. 1 left rear door ventilator seal | 67847-02080 |
| 67867D | Right rear door seal strip fixing | 67868-0D030 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-02290 |
| 67872 | Left rear door sealing strip | 67872-02290 |
| 68103 | Right rear door glass sub-assembly | 68103-02520 · 68103-02680 |
| 68104 | Left rear door glass sub-assembly | 68104-02530 · 68104-02680 |
| 68123B | Right rear door corner window glass | 68123-02440 · 68123-02590 |
| 68124B | Left rear door corner window glass | 68124-02440 · 68124-02590 |
| 68142C | Right rear door glass lift slot | 68142-02260 |
| 68152C | Left rear door glass lift slot | 68152-02260 |
| 68173B | Right rear door glass inner sealing strip | 68173-02290 |
| 68174A | Left rear door glass inner sealing strip | 68174-02260 |
| 68188 | Right rear door corner window seal | 68188-02210 |
| 68189 | Left rear door corner window seal | 68189-02210 |
| 68630 | Rear door opening limiter assembly | 68630-02310 |
| 75923C | No. 2 right side light-shielding film | 75923-02270 |
| 75924C | No. 2 left shading film | 75924-02270 |
