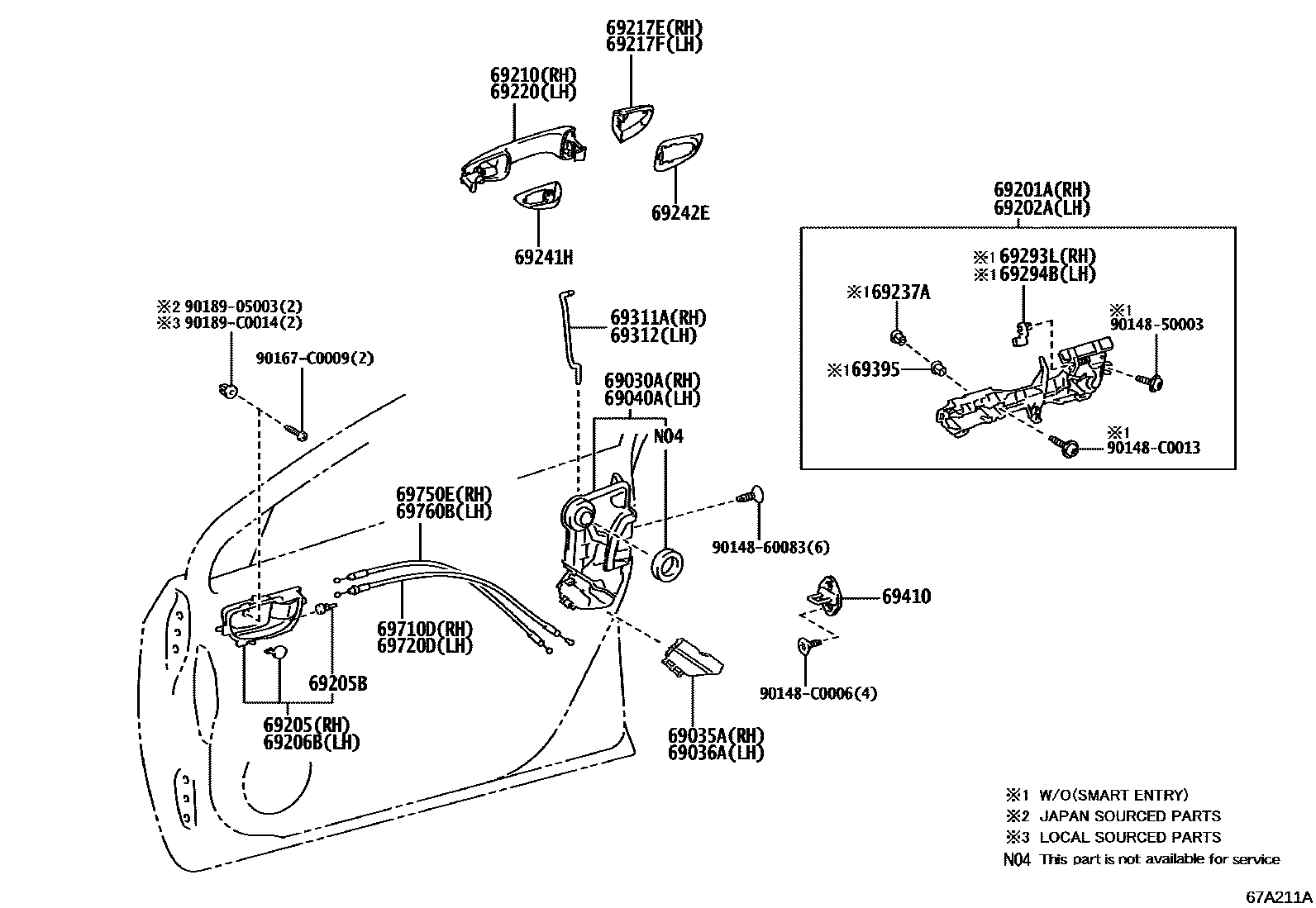

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-02620 |
| 69035A | Right front door lock cover sub-assembly | 69035-02060 |
| 69036A | Left front door lock cover sub-assembly | 69036-02060 |
| 69040A | Left front door door lock assembly with motor | 69040-02590 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-02280 · 69201-0R030 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02220 · 69202-0R030 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69237A | Front door handle nut | 69237-30010 |
| 69241H | Front door exterior handle pad | 69241-02200 · 69242-02190 |
| 69242E | Front door rear outer handle pad | 69241-02210 · 69242-02200 |
| 69293L | Right front door outer handle buckle | 69293-33010 |
| 69294B | Left front door outer handle buckle | 69293-33020 |
| 69311A | Right front door lock opening lever | 69311-02310 |
| 69312 | Left front door lock opening lever | 69312-02310 |
| 69395 | Bushing (for outer door handle) | 69239-30010 |
| 69410 | Front door lock plate assembly | 69410-0D020 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-02310 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-02310 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-02340 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-02340 |
