Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 30 PNC and OE references.

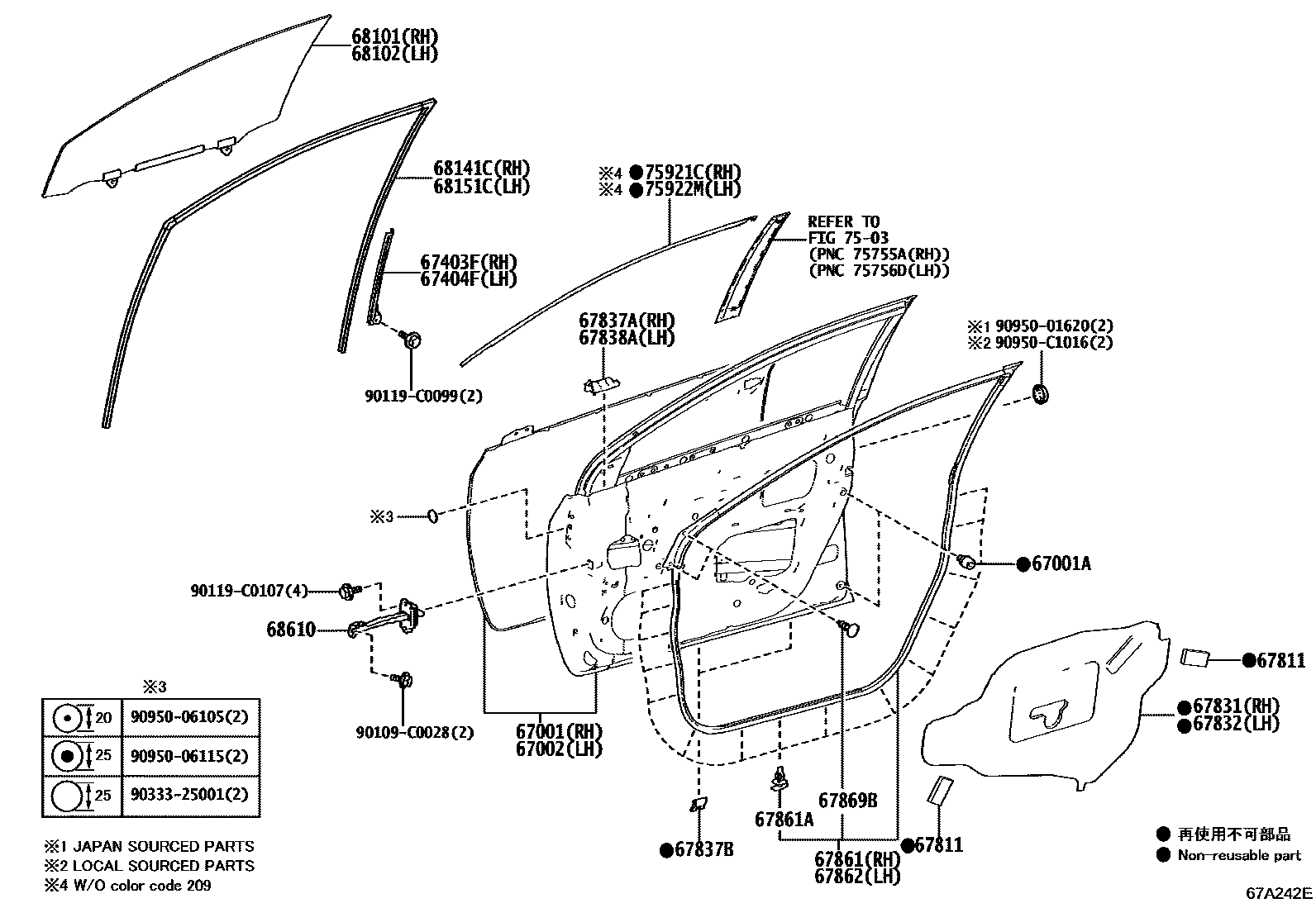

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 67A242E
前门板和前门玻璃 — 67A242E (201903 – 999999)

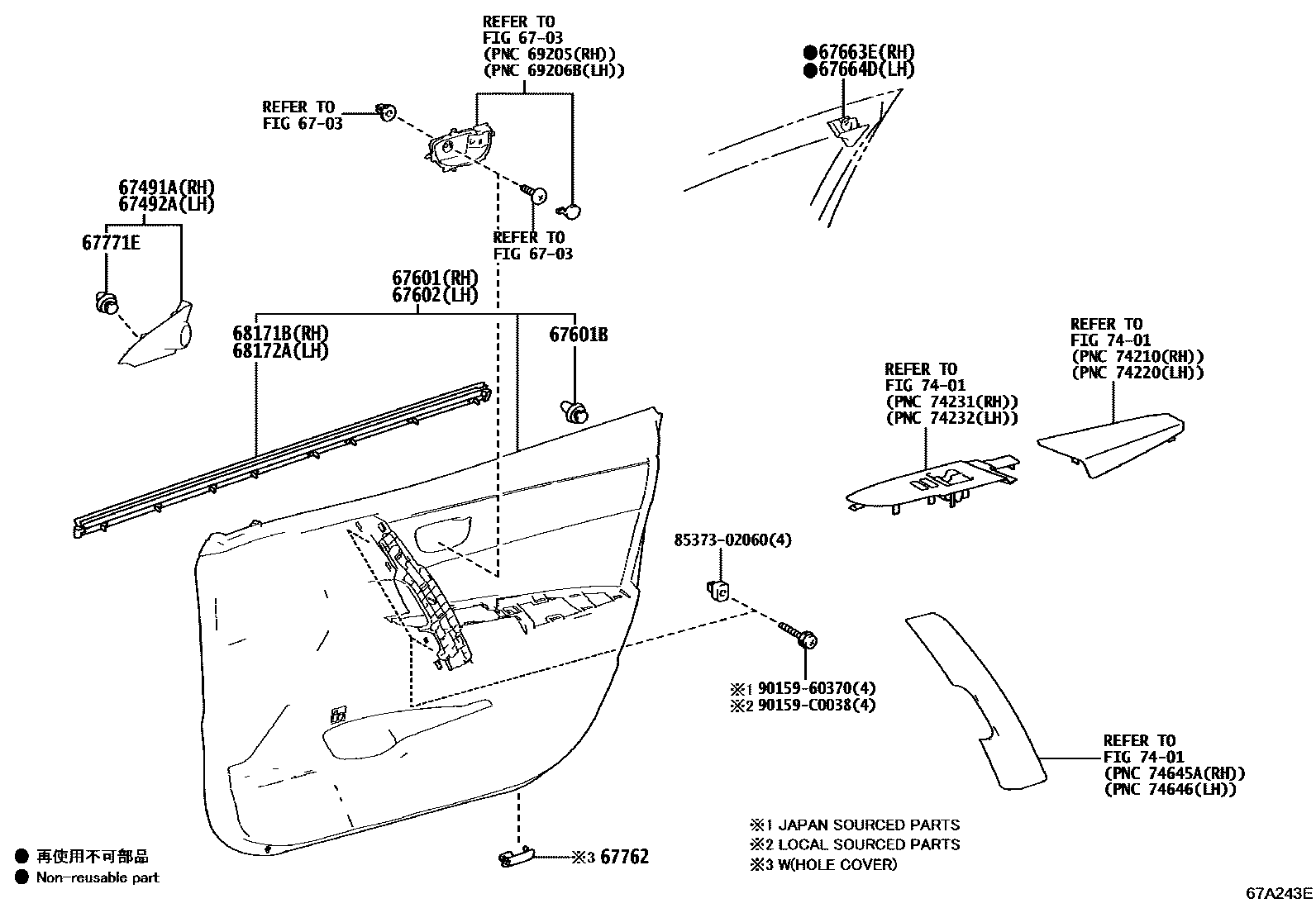

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 67A243E
前门板和前门玻璃 — 67A243E (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-02490 · 67001-02500 · 67001-02520
67001AFront door panel cushion90541-09124 · 90541-C0003
67002Left front door panel sub-assembly67002-02490 · 67002-02500 · 67002-02520
67403FRight front door rear lower door frame sub-assembly67403-02220
67404FLeft front door rear lower door frame sub-assembly67404-02220
67491ARight front door lower door frame bracket decorative strip67491-02590
67492ALeft front door lower door frame bracket decorative strip67492-02590
67601BCatch (for front door trim panel)90467-C0033
67663ERight door frame decorative strip67663-0R020
67664DLeft door frame decorative strip67664-0R020
67771EFixing piece (for front door frame bracket)67771-12060
67811Front door silencer pad67811-02390
67831Right front door access hole cover67831-02440
67832Left front door access hole cover67832-02440
67837ARight front door ventilator seal67837-02100
67837BFront door dust seal retainer67837-02150 · 67837-48050
67838ALeft front door ventilator seal67838-02070
67861Right front door seal67861-02320
67861AFixing piece (for front door sealing strip)67867-12150
67862Left front door seal67862-02320
67869BFront door seal strip clip67869-20030
68101Right front door glass sub-assembly68101-02660
68102Left front door glass sub-assembly68102-02660
68141CRight front door glass lift channel68141-02200
68151CLeft front door glass lift channel68151-02290
68171BRight front door glass inner sealing strip68171-02310
68172ALeft front door glass inner sealing strip68172-02300
68610Front door opening limiter assembly68610-02320
75921CNo. 1 right side light-shielding film75921-02241
75922MNo. 1 left shading film75922-02241
