Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

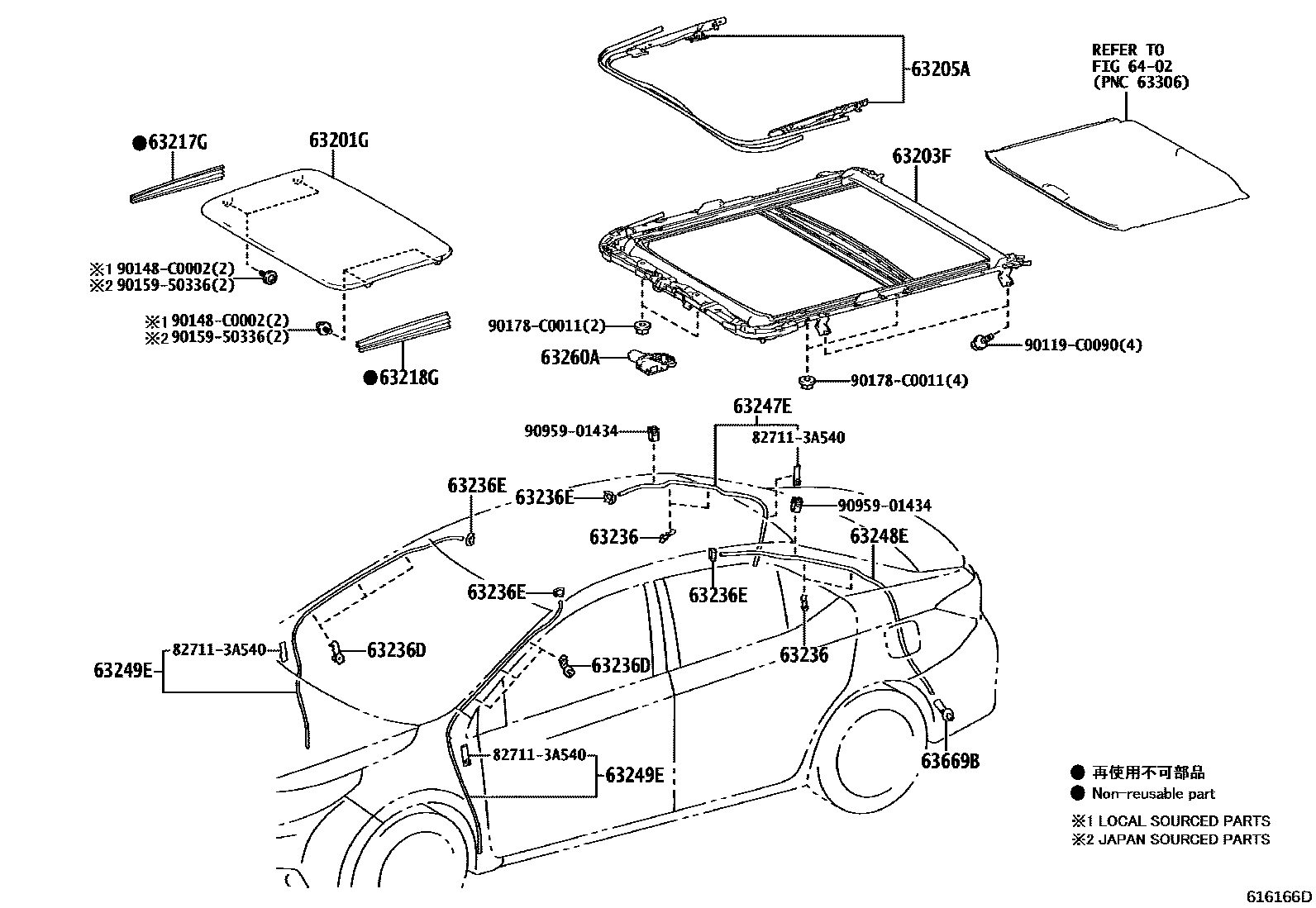

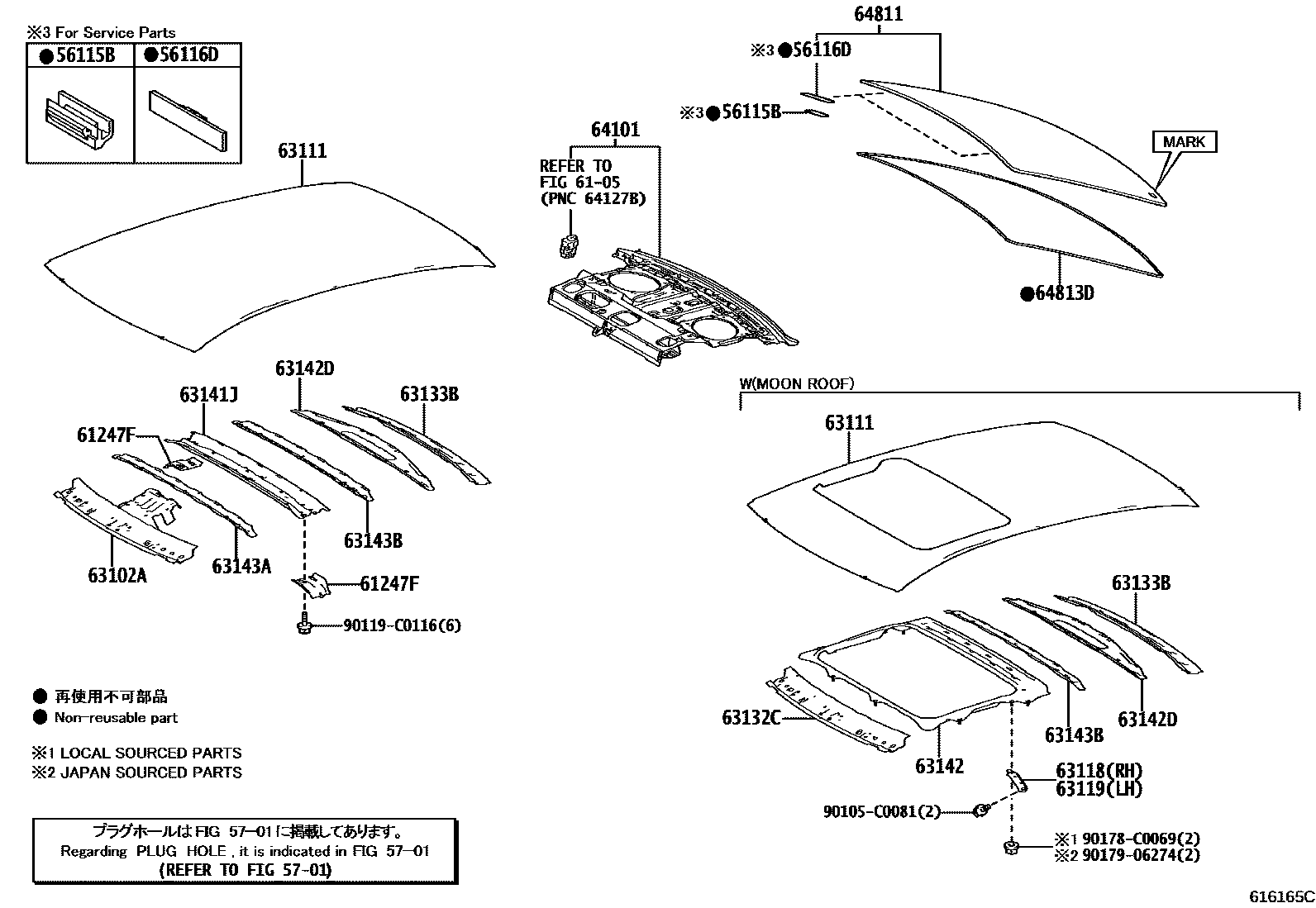

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-02200 |
| 63102A | Windshield roof sub-assembly | 63102-02390 |
| 63111 | roof panel | 63111-02540 · 63111-02570 |
| 63118 | Right roof panel bracket | 63118-02090 |
| 63119 | Left roof panel bracket | 63118-02090 |
| 63132C | Windshield inner roof panel | 63132-02220 |
| 63133B | back window frame | 63133-02170 |
| 63141J | Roof panel reinforcement | 63141-02210 |
| 63142 | No. 2 roof panel reinforcement | 63142-02100 |
| 63142D | Rear roof panel reinforcement sub-assembly | 63127-02120 |
| 63143A | Roof panel reinforcement | 63143-02190 |
| 63143B | No. 3 roof panel reinforcement | 63144-02220 · 63148-02090 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-02170 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-02110 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-02120 |
| 63217G | Right sliding sunroof trim | 63217-30100 |
| 63218G | Sliding sunroof trim, left | 63217-30100 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-02010 |
| 63236D | Sliding skylight drain hose clamp | 63236-02040 |
| 63236E | Sliding skylight drain hose clamp | 63236-02060 |
| 63247E | Right rear sliding sunroof drain hose | 63249-02480 |
| 63248E | Left rear sliding sunroof drain hose | 63249-02360 |
| 63249E | Sliding skylight drain hose | 63249-02690 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-02140 |
| 63669B | Sliding skylight drain seal | 90480-C0011 |
| 64101 | Upper back panel sub-assembly | 64101-02650 |
| 64811 | back window glass | 64801-02300 · 64801-02340 · 64801-02390 |
| 64813D | Back window glass adhesive seal | 64813-02120 |
