Toyota COROLLA 侧梁 — Figure 6101

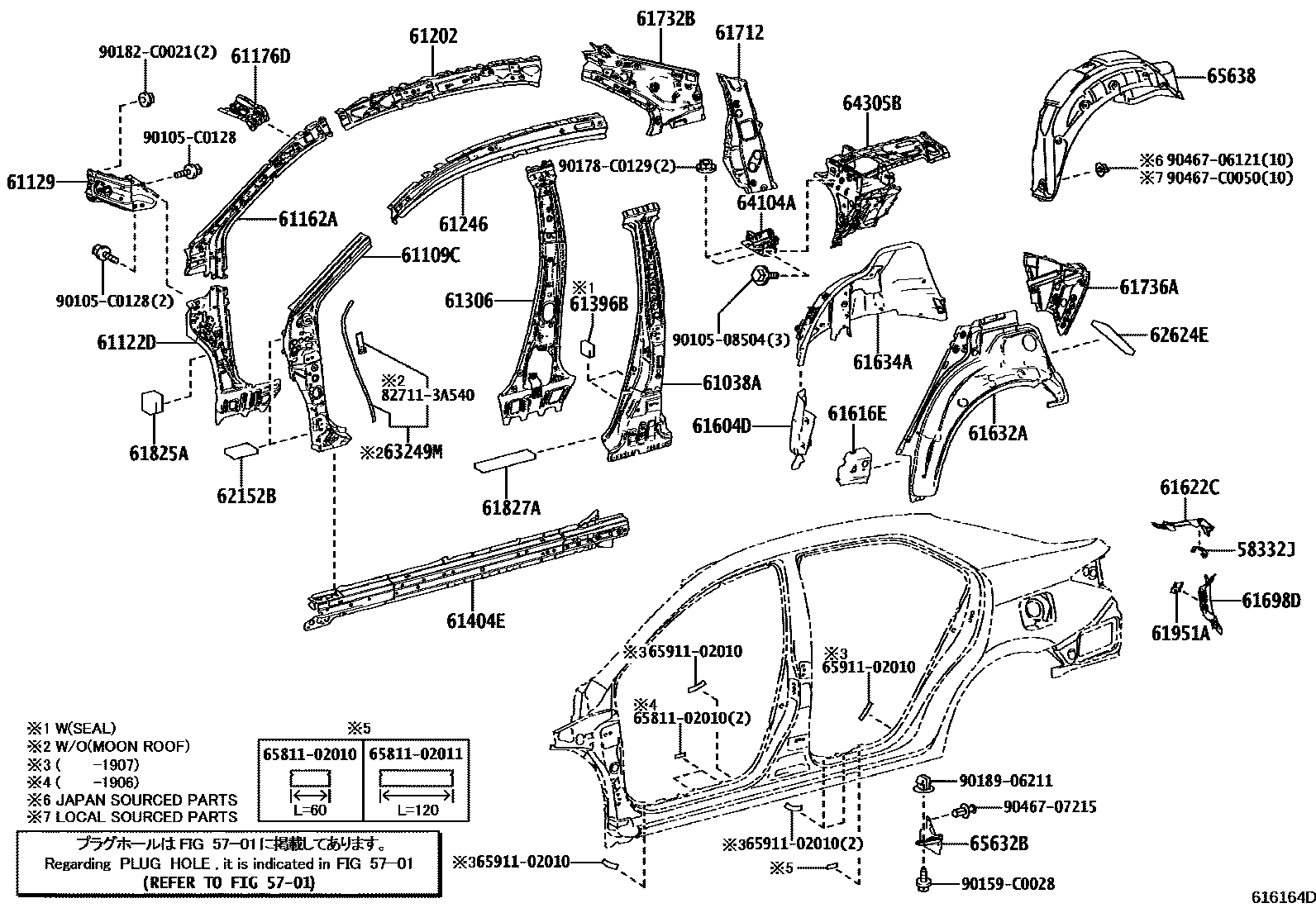

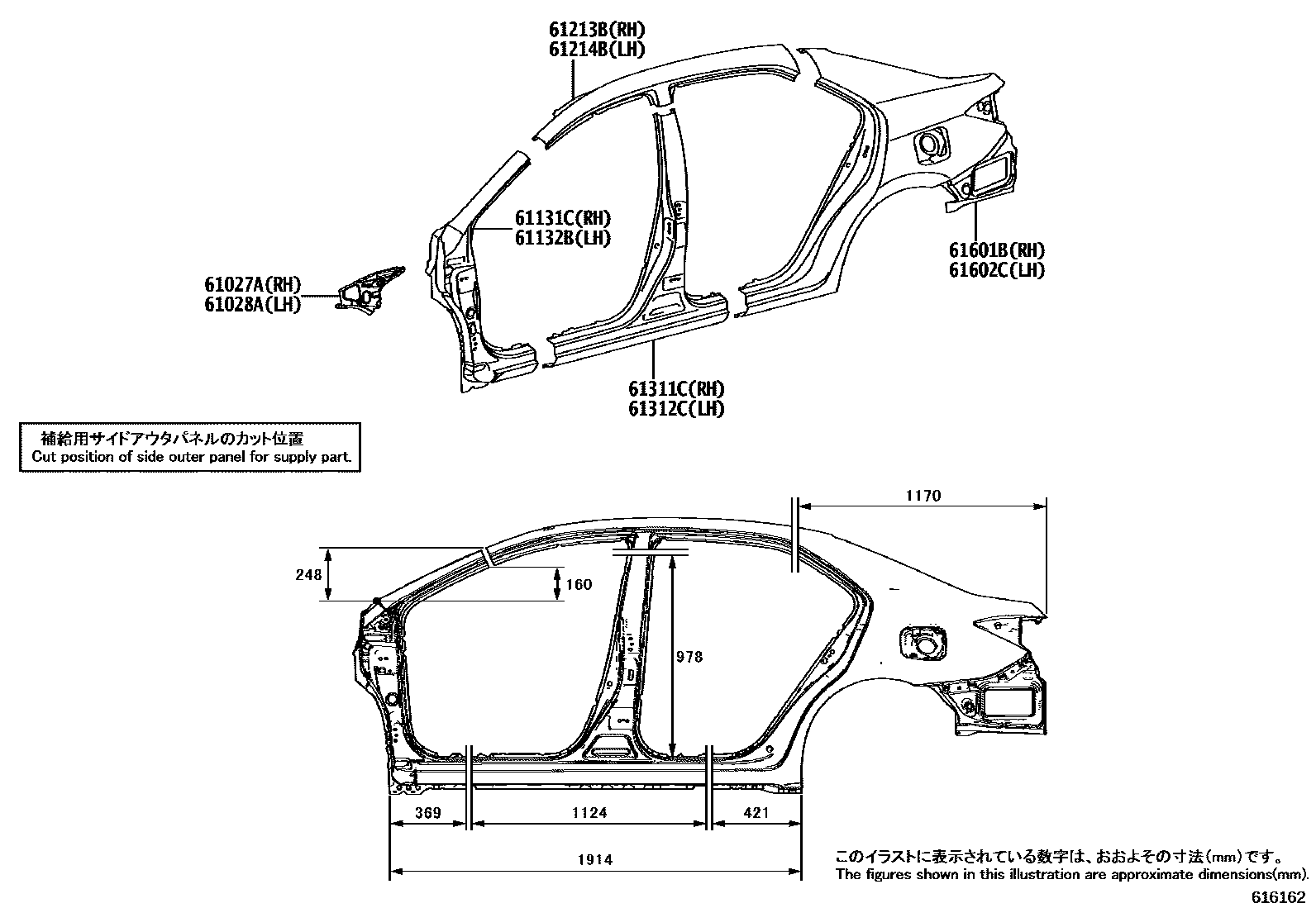

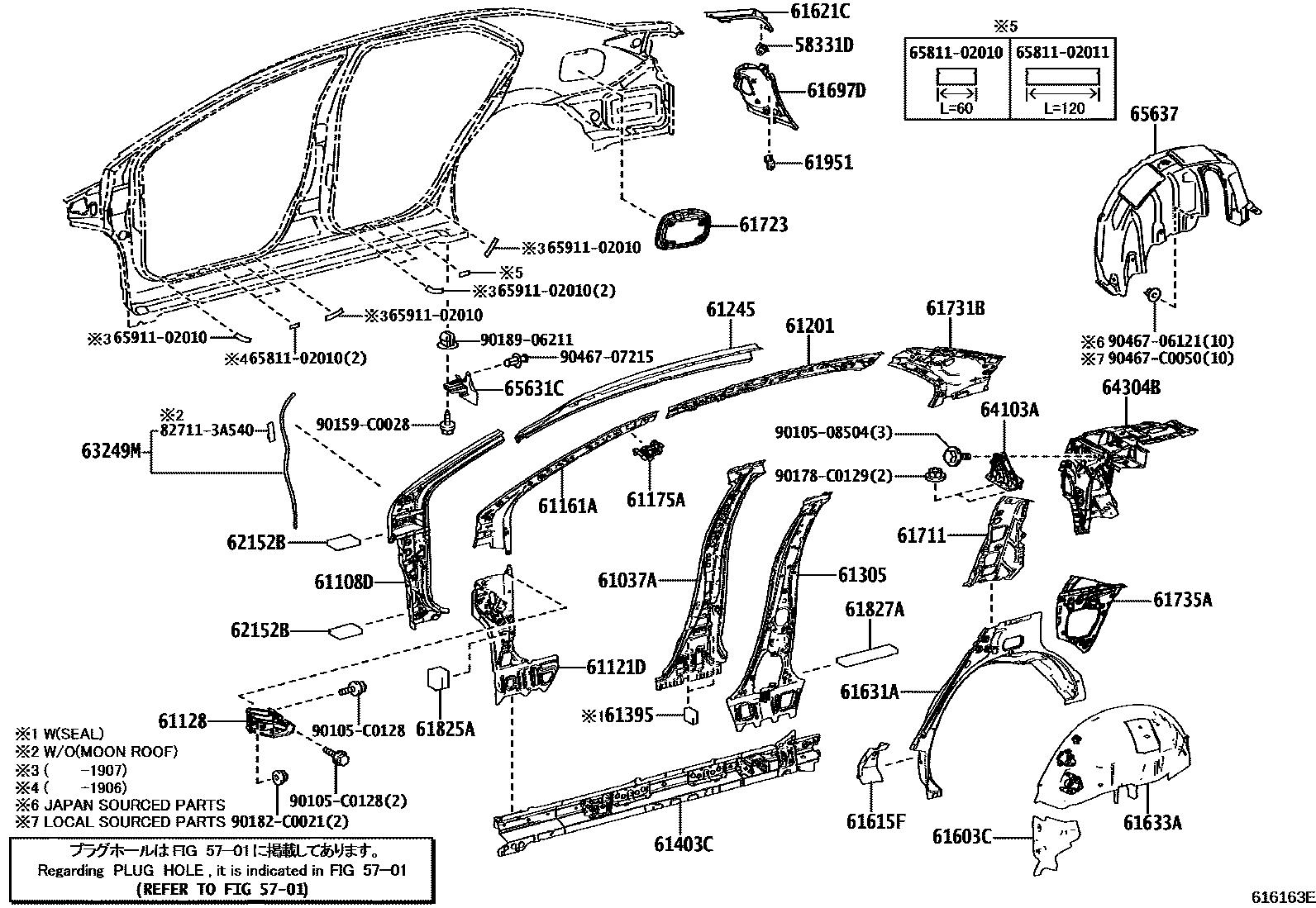

Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58331D | No. 1 suitcase decorative panel bracket | 58331-02070 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-02020 |
| 61027A | Right body outer front pillar sub-assembly | 61027-02060 |
| 61028A | Left body outer front pillar sub-assembly | 61028-02060 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02270 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02270 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-02260 · 61108-02261 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-02260 · 61109-02261 |
| 61121D | Right front panel | 61121-02200 |
| 61122D | Left front panel | 61122-02200 |
| 61128 | Right front wall side panel reinforcement | 61103-02220 |
| 61129 | Left front wall side panel reinforcement | 61104-02210 |
| 61131C | Right body outer front pillar | 61131-02350 |
| 61132B | Left body outer front pillar | 61132-02380 |
| 61161A | Right body inner front pillar | 61161-02240 |
| 61162A | Left side inner front pillar | 61162-02240 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-02210 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-02210 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-02250 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-02250 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-02130 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-02130 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-02240 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-02240 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-02171 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-02171 |
| 61311C | Right rear body front outer panel | 61311-02340 |
| 61312C | Left rear body front outer panel | 61312-02330 |
| 61395 | Right body center pillar seal | 61395-02010 |
| 61396B | Left body center pillar seal | 61395-02010 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02212 · 61403-02213 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02212 · 61404-02213 |
| 61601B | Right side enclosure sub-assembly | 61601-02480 |
| 61602C | Left side enclosure sub-assembly | 61602-02510 |
| 61603C | Right wheel cover sub-assembly | 61603-02030 |
| 61604D | Left side wheel cover sub-assembly | 61604-02030 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-02030 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-02030 |
| 61621C | Luggage right opening slot | 61621-02240 |
| 61622C | Luggage trunk left opening slot | 61622-02240 |
| 61631A | Right wheel cover outer panel | 61631-02220 |
| 61632A | Left side wheel cover outer panel | 61632-02250 |
| 61633A | Right wheel housing lining panel | 61607-02959 |
| 61634A | Left side wheel housing lining panel | 61608-02959 |
| 61697D | Right side enclosure end cover | 61697-02140 |
| 61698D | Left side enclosure end cover | 61698-02140 |
| 61711 | Roof right side outer panel | 61711-02220 |
| 61712 | Roof left outer panel | 61712-02220 |
| 61723 | Right rear corner window opening fixing | 61723-02030 |
| 61731B | Roof right inner panel | 61731-02400 |
| 61732B | Roof left inner panel | 61732-02400 |
| 61735A | Right rear roof inner panel | 61735-02300 |
| 61736A | Left rear roof inner panel | 61736-02210 |
| 61825A | Noise Control Panel No. 2 | 61825-02090 |
| 61827A | Noise Control Panel No. 4 | 61827-02080 |
| 61951 | Right trim part bracket | 61951-02100 |
| 61951A | Left trim part bracket | 61951-02100 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62624E | Left rear side wheel housing lining block | 62623-02130 |
| 63249M | discharge hose | 63249-02670 |
| 64103A | Outer right rear corner panel sub-assembly | 64103-02010 |
| 64104A | Outer left rear corner panel sub-assembly | 64104-02010 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02330 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02330 |
| 65631C | Right rear wheel house front panel | 65631-02290 |
| 65632B | Left rear wheel house front panel | 65632-02290 |
| 65637 | Right rear wheel house lining | 65637-02110 |
| 65638 | Left rear wheel house lining | 65638-02110 |
