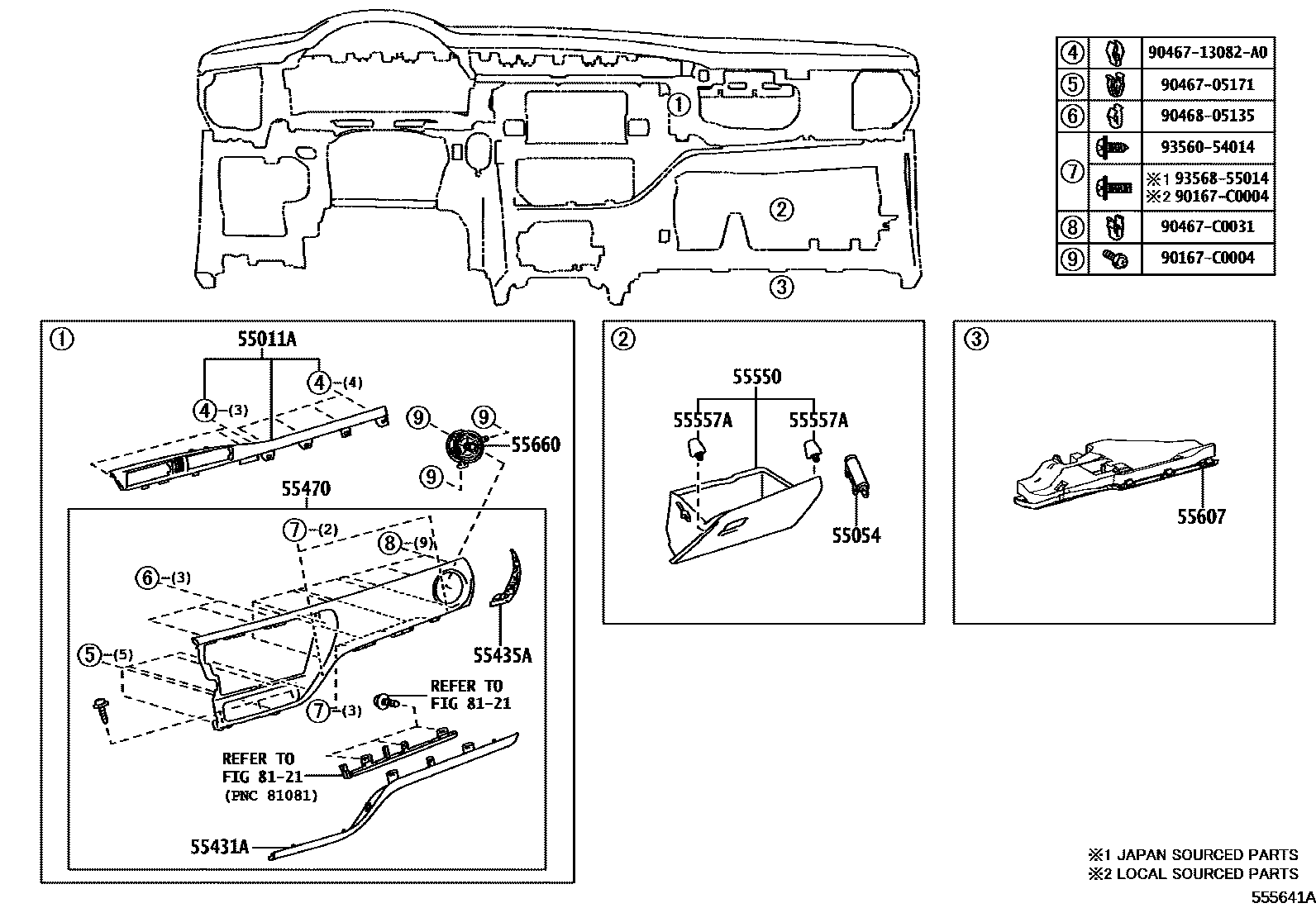

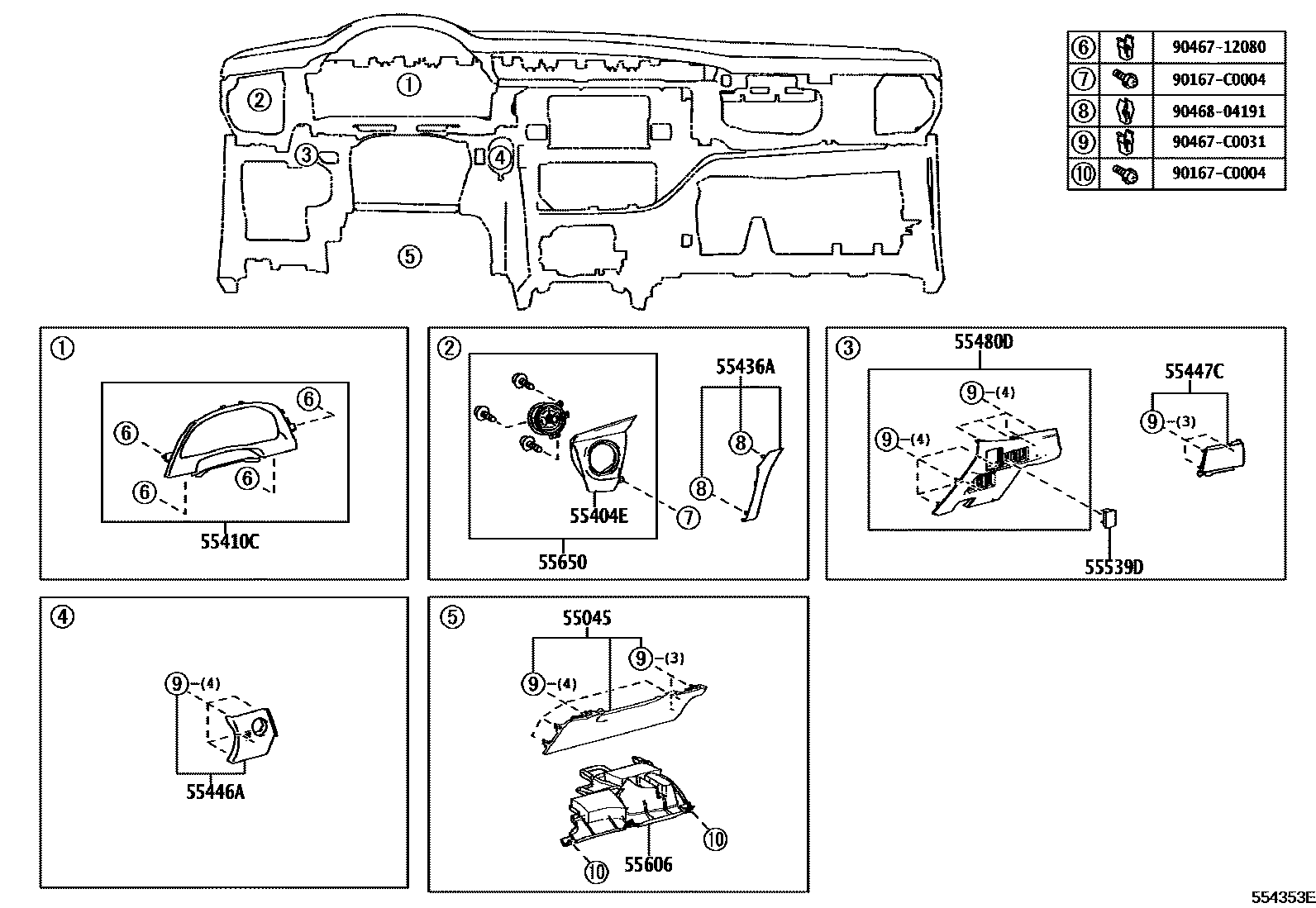

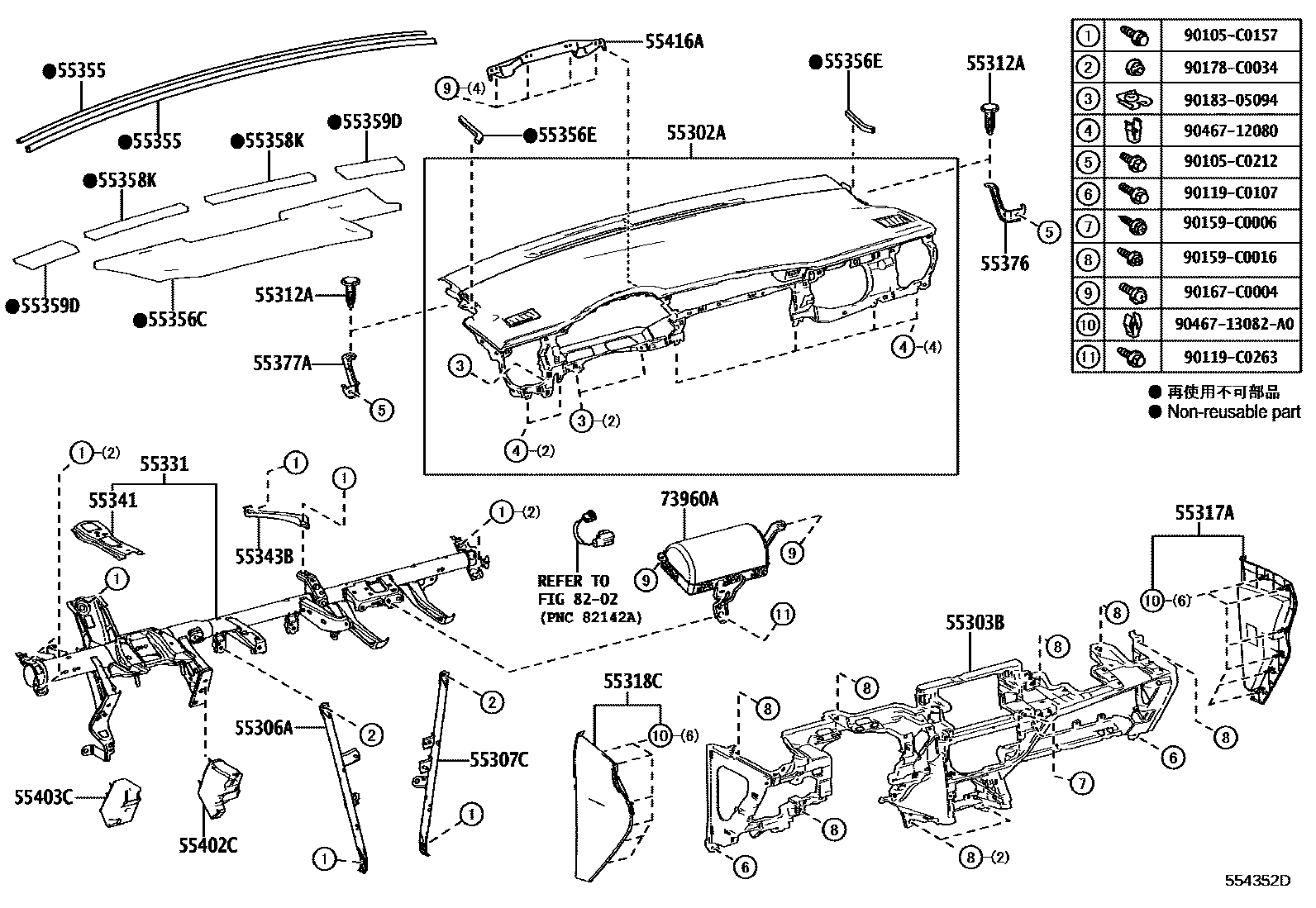

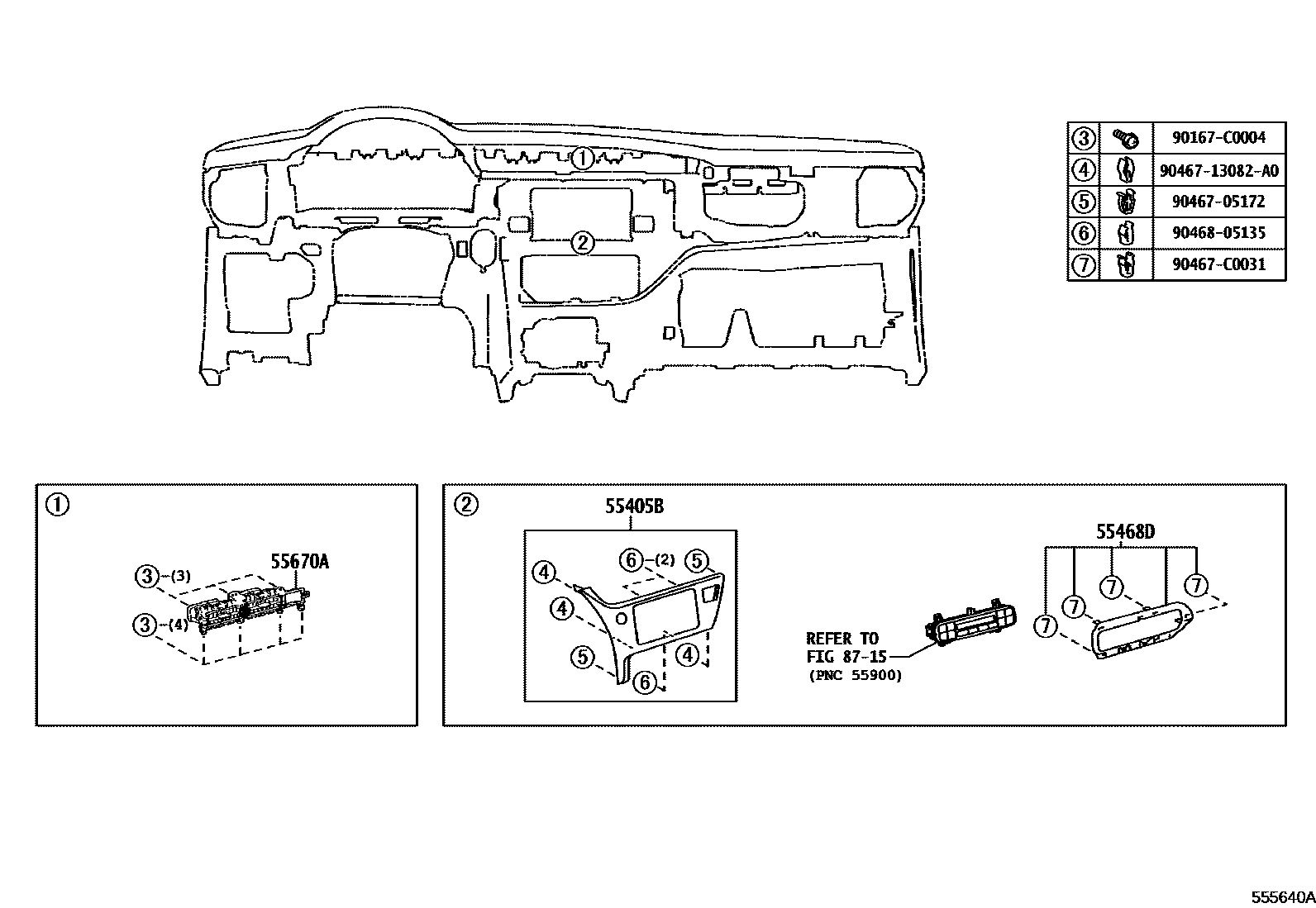

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-02050 · 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02740 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02630 |
| 55312A | Dashboard clip | 52161-02040 · 52161-16010 |
| 55331 | Dashboard reinforcement | 55330-02B30 |
| 55341 | Instrument panel bracket No. 1 | 55341-02440 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02240 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02440 · 55355-02590 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-02360 |
| 55356E | Dashboard No. 2 Cushion Pad | 55356-02400 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-02170 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-02170 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-02150 |
| 55377A | Instrument panel mounting bracket No. 2 | 55377-02140 |
| 55402C | Dashboard lower right pad sub-assembly | 55402-02080 |
| 55403C | Instrument panel lower left pad sub-assembly | 55403-02180 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02C60 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-02240 |
| 55468D | Dashboard safety mat central fixing | 55468-02130 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02360 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02370 |
| 55670A | Instrument panel central air register assembly | 55670-02600 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02241 |
