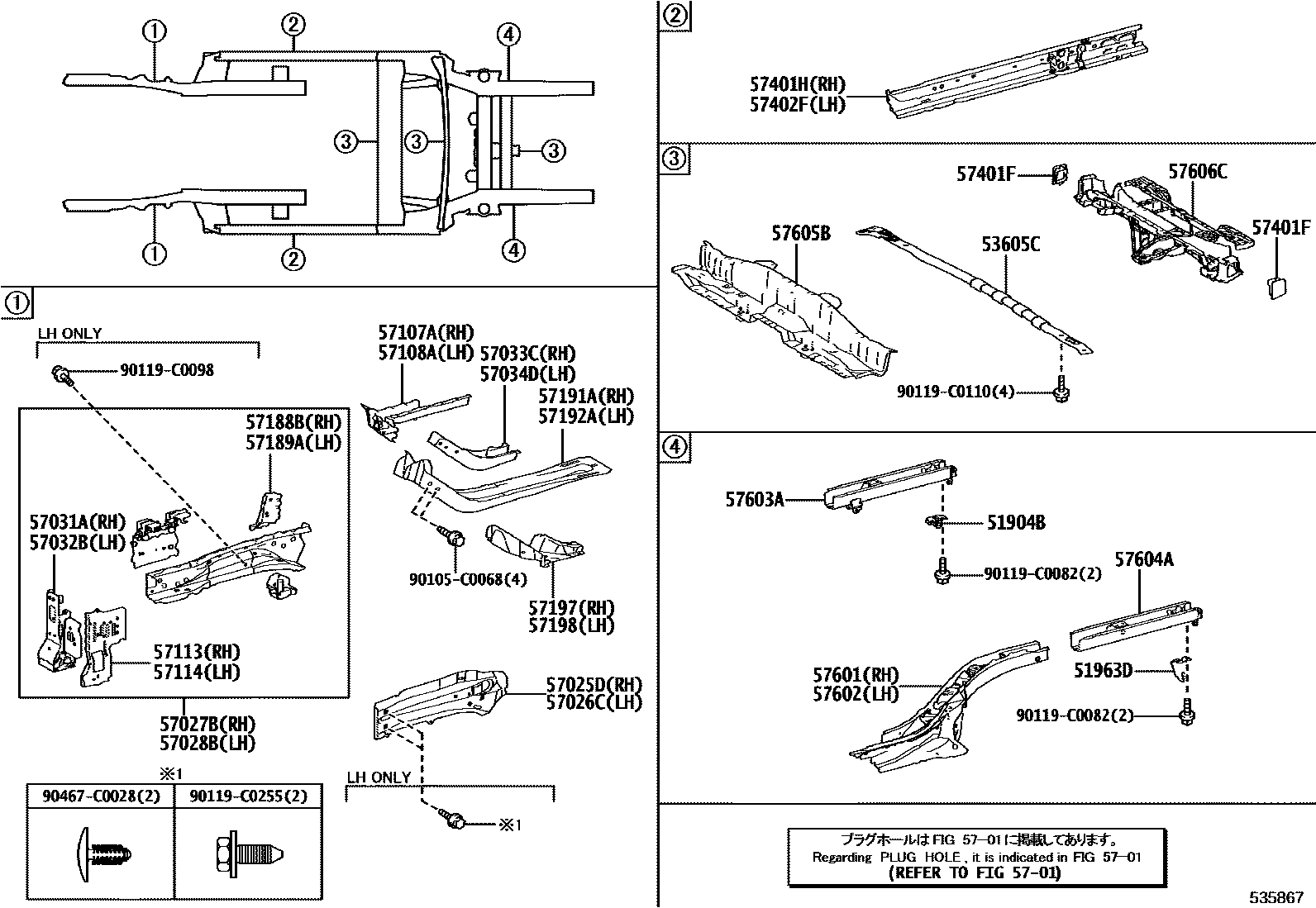

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51904B | No. 4 exhaust pipe hanger sub-assembly | 51904-02020 |
| 51963D | Left rear transport hook | 51968-02090 |
| 53605C | Rear floor longitudinal beam bracket sub-assembly | 53605-02021 |
| 57025D | Right front outer longitudinal beam sub-assembly | 57025-02040 |
| 57026C | Left front outer longitudinal beam sub-assembly | 57026-02040 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-02050 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-02040 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-02030 |
| 57032B | No. 2 left front longitudinal beam reinforcement sub-assembly | 57032-02030 |
| 57033C | No. 3 right front longitudinal beam reinforcement sub-assembly | 57033-02060 |
| 57034D | No. 3 left front longitudinal beam reinforcement sub-assembly | 57034-02060 |
| 57107A | No. 2 right front longitudinal beam plate sub-assembly | 57107-02060 |
| 57108A | No. 2 left front longitudinal beam plate sub-assembly | 57108-02060 |
| 57113 | Right front longitudinal beam extension | 57113-02090 |
| 57114 | Left front longitudinal beam extension | 57114-02090 |
| 57188B | Right front longitudinal beam to spring bracket corner plate | 57188-02030 |
| 57189A | Left front longitudinal beam to spring bracket corner plate | 57189-02030 |
| 57191A | Right rear longitudinal member inside front floor | 57191-02120 |
| 57192A | Left rear longitudinal member inside front floor | 57192-02120 |
| 57197 | Right front torsion box section piece | 57197-02060 |
| 57198 | Left front anti-torsion box section piece | 57198-02060 |
| 57401F | hole plug | 58565-02020 · 58566-02030 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-02310 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-02310 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-02200 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-02200 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-02160 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-02061 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-02270 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-02330 |
