Toyota COROLLA radiator grille — Figure 5301

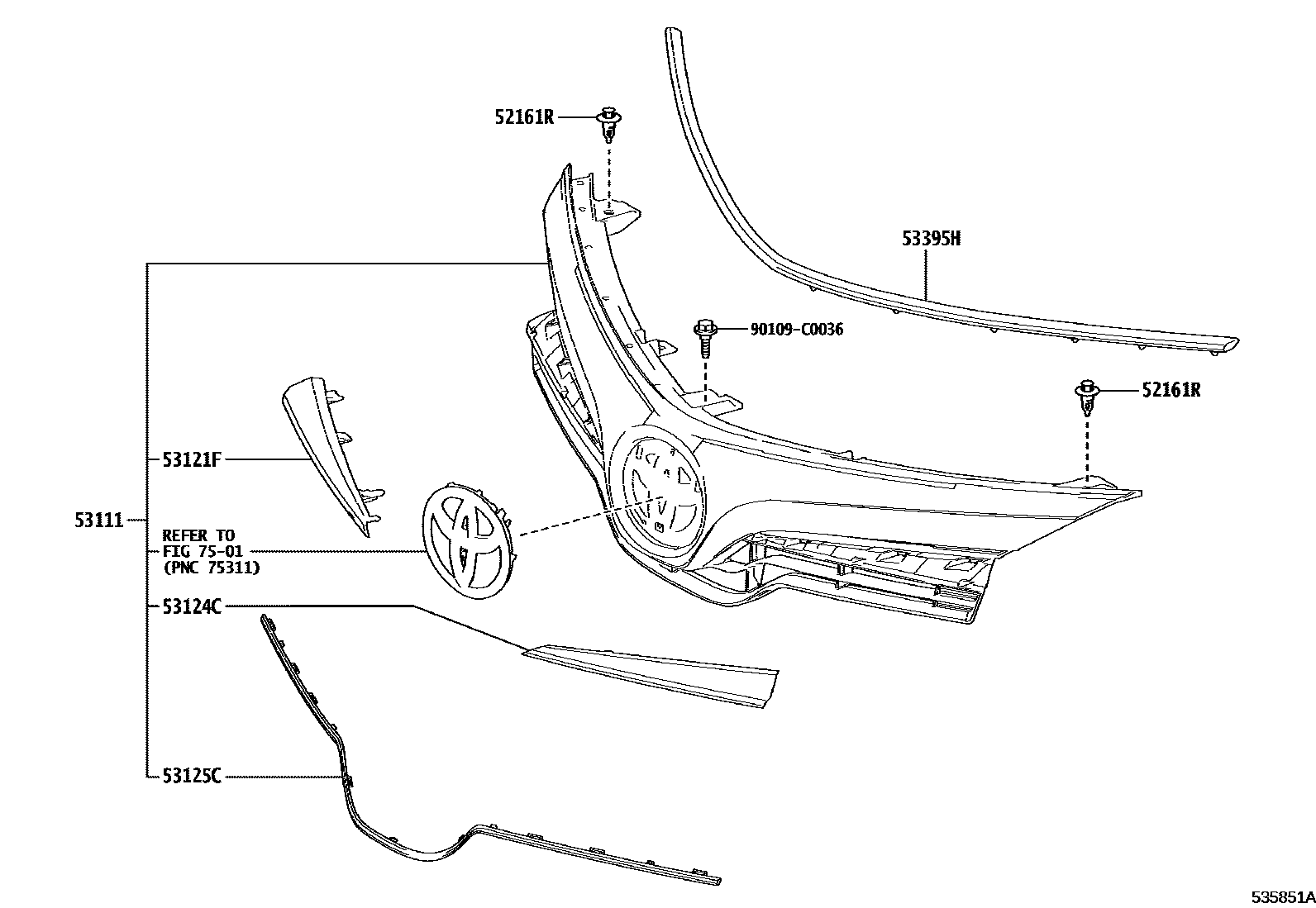

Toyota COROLLA EPC diagram 5301, radiator grille, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-02040 · 52161-16010 |
| 53111 | radiator grille | 53100-YK010 |
| 53121F | Radiator grille upper right protective strip | 53121-YK010 |
| 53124C | Radiator grille upper left protective strip | 53124-YK010 |
| 53125C | Radiator grille No. 5 protective strip | 53125-YK010 |
| 53395H | Engine cover to radiator grille seal | 53395-02180 |
