Toyota COROLLA 后保险杠及附件 — Figure 5202

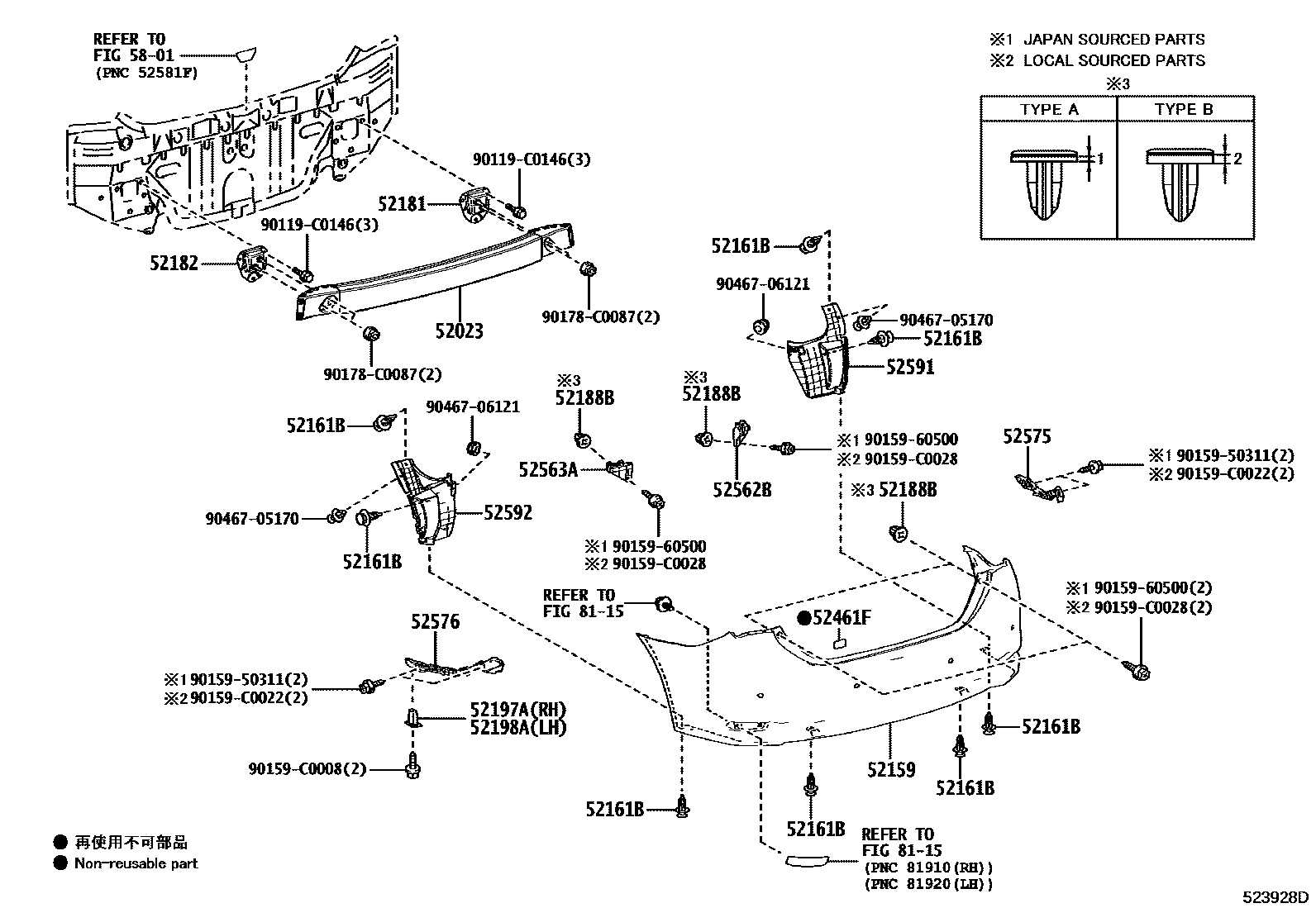

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-02210 |
| 52159 | rear bumper cover | 52159-0Z916 |
| 52161B | Rear bumper insert | 52161-02040 · 52161-16010 |
| 52181 | Rear bumper right arm | 52181-02220 |
| 52182 | Rear bumper left arm | 52182-02190 |
| 52188B | Rear bumper installation spacer | 52188-33040 · 90189-06228 · 90189-C0023 |
| 52197A | Rear bumper right seal support | 52197-02050 · 52197-22020 |
| 52198A | Rear bumper left seal support | 52197-02050 · 52197-22020 |
| 52461F | rear bumper lining | 52462-02220 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02130 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02270 |
| 52575 | Rear bumper right side fixing bracket | 52575-02160 |
| 52576 | Rear bumper left side fixing bracket | 52576-02160 |
| 52591 | Rear bumper right seal | 52591-02341 |
| 52592 | Rear bumper left seal | 52592-02321 |
