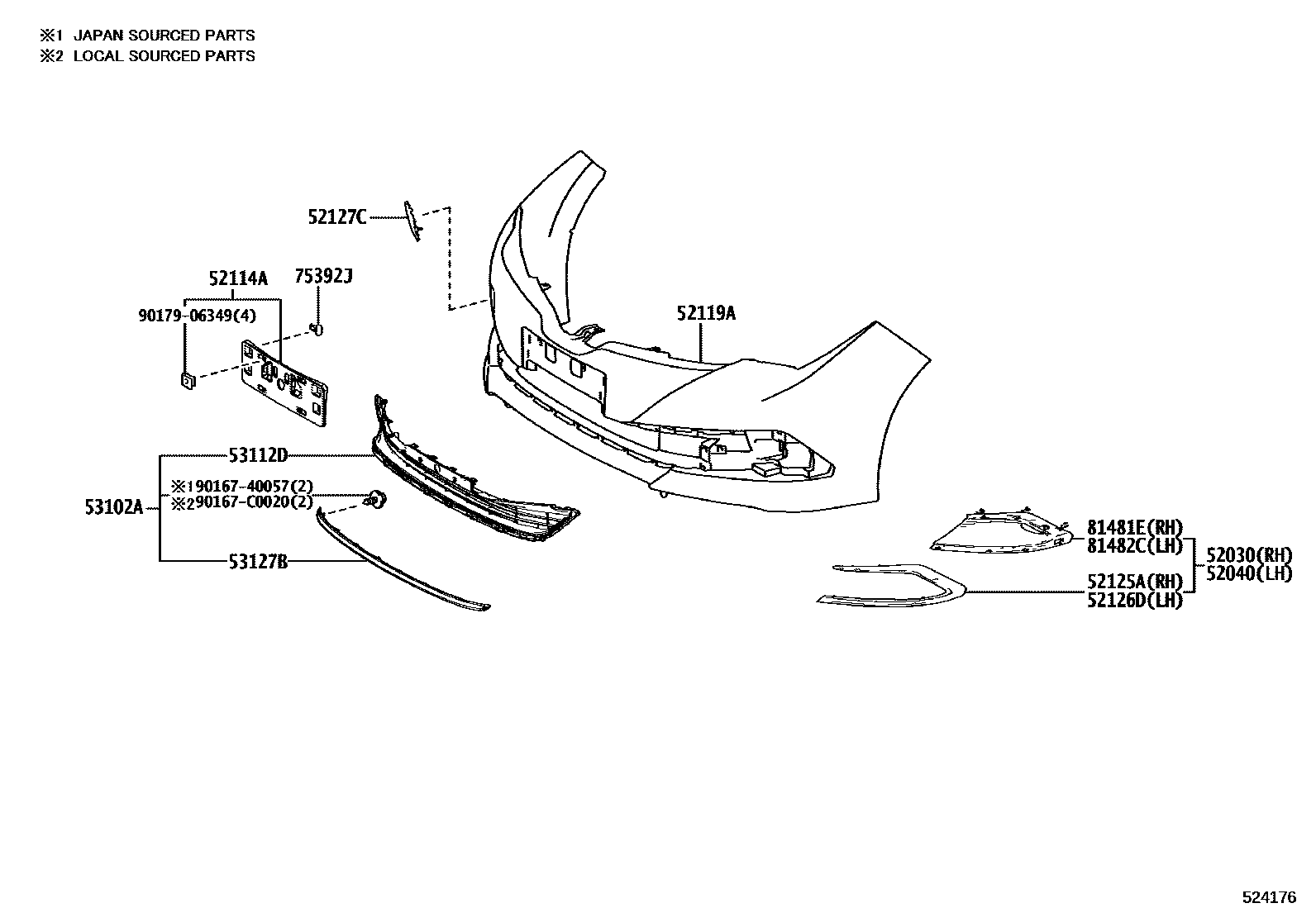

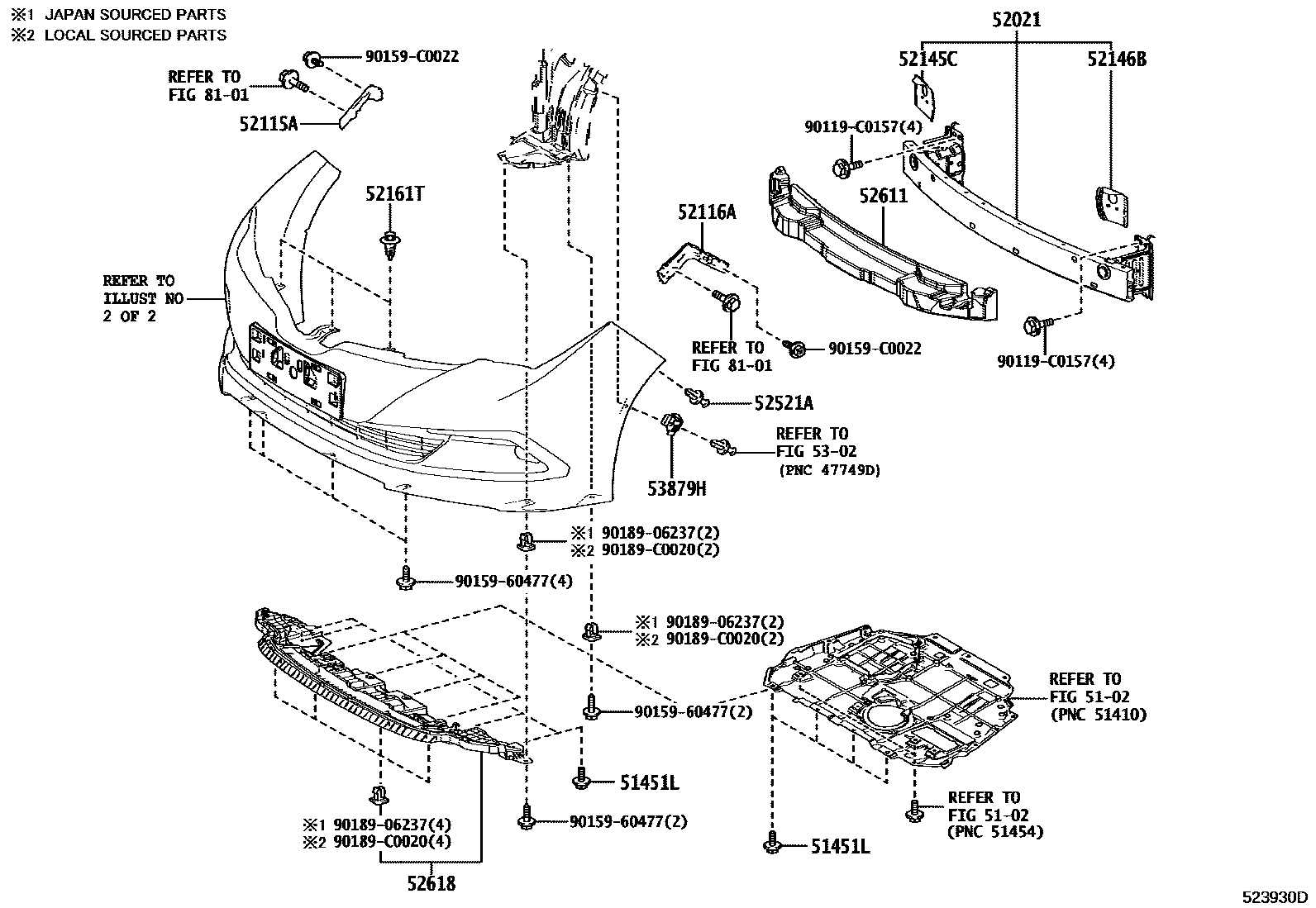

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451L | Bolt No. 1 | 90119-C0186 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-02280 |
| 52030 | Front bumper right hole cover assembly | 52030-02200 |
| 52040 | Front bumper left hole cover assembly | 52040-02200 |
| 52114A | Front bumper extension mounting bracket | 52114-YK010 |
| 52115A | Front bumper right side bracket | 52115-02210 |
| 52116A | Front bumper left bracket | 52116-02210 |
| 52119A | front bumper cover | 52119-YK902 |
| 52125A | Right fog light mounting bracket | 52125-02230 |
| 52126D | Left fog light mounting bracket | 52126-02220 |
| 52127C | Front bumper hole cover | 52127-02929 |
| 52145C | Front bumper right side mounting bracket | 52145-02180 |
| 52146B | Front bumper left mounting bracket | 52146-02160 |
| 52161T | front bumper insert | 52161-02040 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52611 | front bumper energy absorber | 52611-YK030 |
| 52618 | Front bumper lower shock absorber | 52618-YK010 |
| 53102A | Radiator lower grille sub-assembly | 53102-YK010 |
| 53112D | Lower right radiator grille | 53112-YK040 |
| 53127B | Radiator grille No. 7 protective strip | 53127-02110 |
| 53879H | Front fender lining fixing parts | 53879-02060 · 53879-58010 |
| 75392J | External protective strip fixings | 75392-0R030 · 75392-35220 |
| 81481E | Right fog light cover | 81481-02560 |
| 81482C | Left fog light cover | 81482-02550 |
