Toyota COROLLA 制动配管和卡箍 — Figure 4708

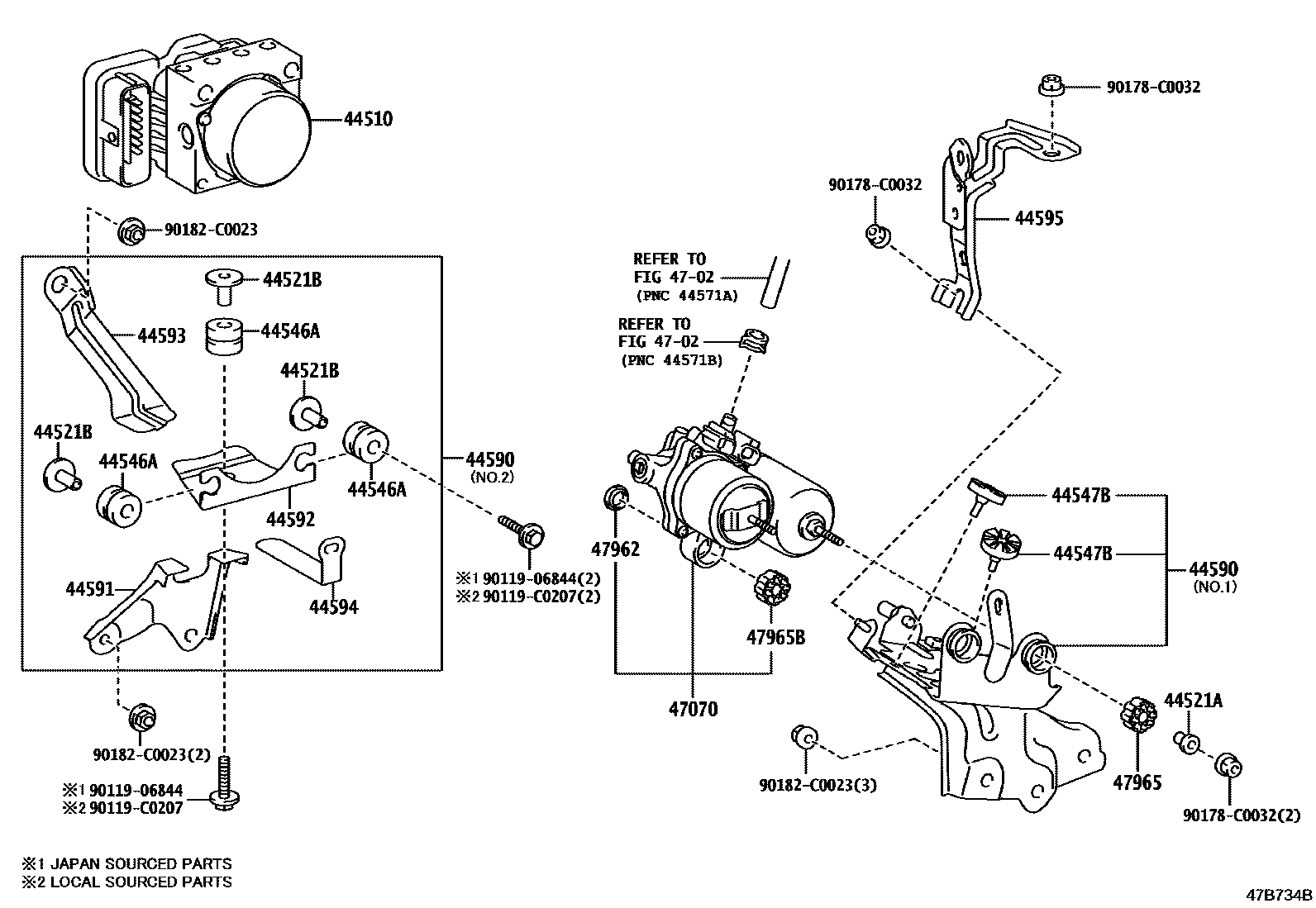

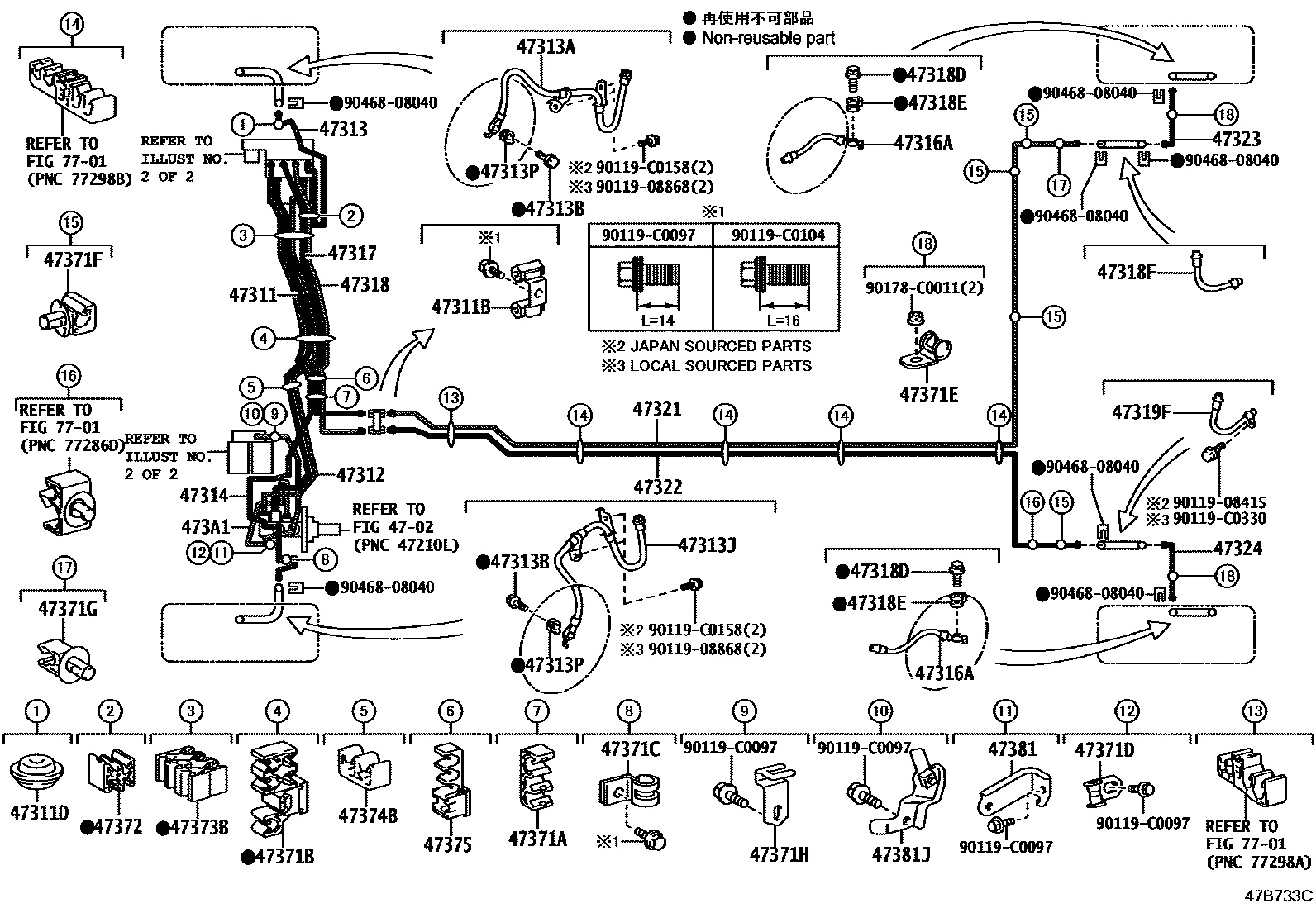

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 2 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-02L30 · 44050-47060 |
| 44521A | No. 1 brake actuator housing collar | 44521-02030 |
| 44521B | No. 2 brake actuator housing collar | 44521-12050 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 47131-47070 |
| 44590 | Brake actuator bracket assembly | 44590-02440 · 44590-02570 |
| 44591 | No. 1 brake actuator bracket | 44591-02530 |
| 44592 | No. 2 brake actuator bracket | 44592-02390 |
| 44593 | No. 3 brake actuator bracket | 44593-02250 |
| 44594 | No. 4 brake actuator bracket | 44594-02130 |
| 44595 | No. 5 brake actuator bracket | 44595-02020 |
| 47070 | Brake booster pump assembly | 47070-12020 |
| 47311 | No. 1 front brake pipe | 47311-02F50 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 · 90412-C0001 · 90412-C0004 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-02D90 |
| 47313 | No. 3 front brake pipe | 47313-02G20 |
| 47313A | No. 1 front flexible hose | 90947-C2049 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-C0001 |
| 47313J | No. 2 front flexible hose | 90947-C2050 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-02E10 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-C2052 |
| 47317 | No. 7 front brake pipe | 47317-02F00 |
| 47318 | No. 8 front brake pipe | 47318-02F20 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-C0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-C2051 |
| 47319F | Left rear flexible hose | 90947-C2053 |
| 47321 | No. 1 rear brake pipe | 47321-02560 |
| 47322 | No. 2 rear brake pipe | 47322-02560 |
| 47323 | No. 3 rear brake pipe | 47323-02150 |
| 47324 | No. 4 rear brake pipe | 47324-02200 |
| 47371A | No. 1 brake pipe clamp | 90464-00857 |
| 47371B | No. 6 brake pipe clamp | 90949-01E60 |
| 47371C | No. 7 brake pipe clamp | 90461-10781 |
| 47371D | No. 8 brake pipe clamp | 90461-10840 |
| 47371E | No. 9 brake pipe clamp | 90461-C0002 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47371G | No. 11 brake pipe clamp | 90949-01D29 |
| 47371H | No. 12 brake pipe clamp | 47371-02040 |
| 47372 | No. 2 brake pipe clamp | 90464-00876 |
| 47373B | No. 3 brake pipe clamp | 90464-00880 |
| 47374B | No. 4 brake pipe clamp | 90464-00903 |
| 47375 | No. 5 brake pipe clamp | 90949-01D08 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-02150 |
| 47381J | No. 2 brake pipe clamp bracket | 47381-02200 |
| 473A1 | Pipe from accumulator to brake master cylinder | 473A1-02080 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47965B | No. 2 brake booster pump bushing | 47965-30010 |
