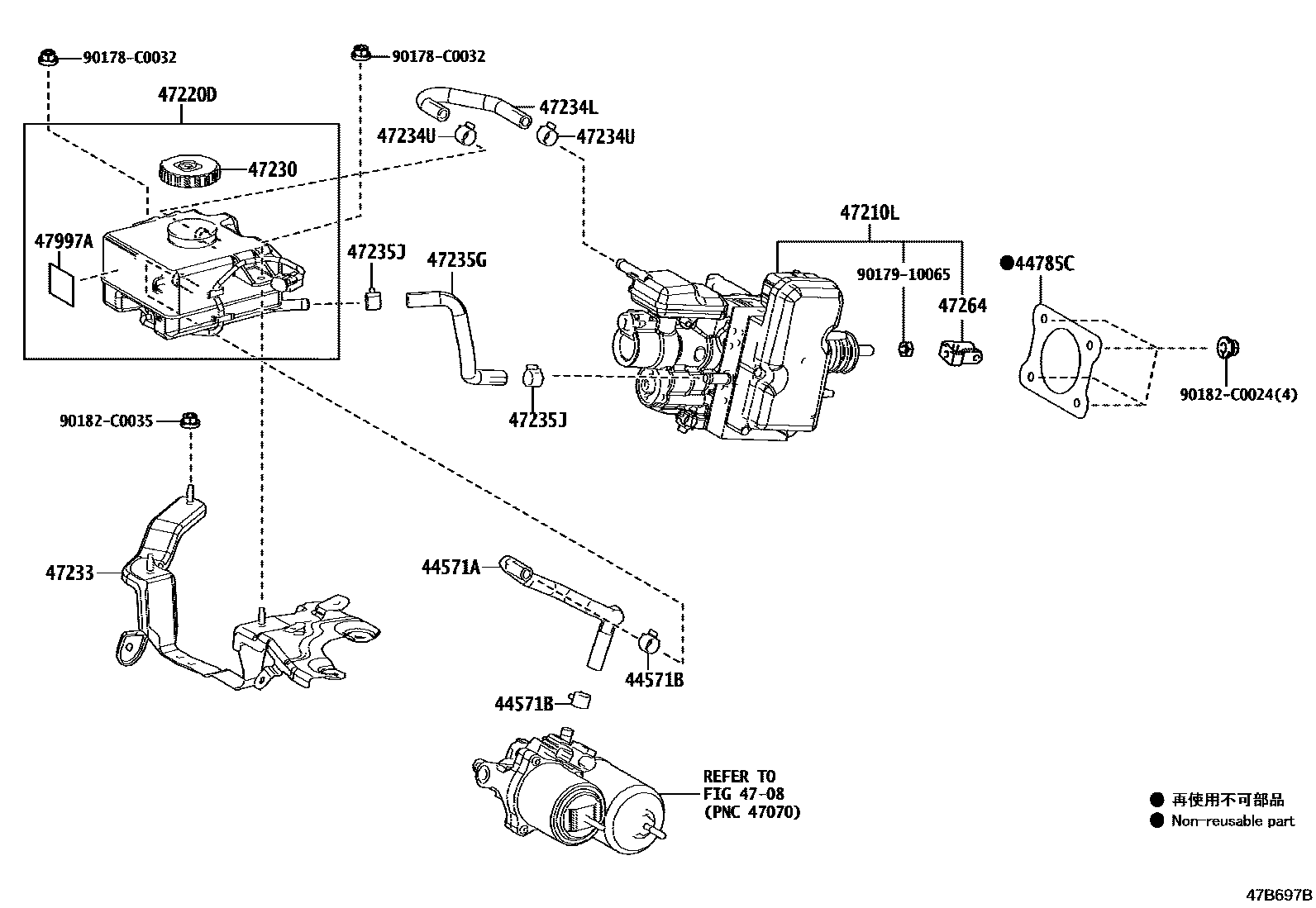

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44571A | No. 1 brake actuator hose | 44571-02080 |
| 44571B | Hose clip (for brake actuator hose No. 1) | 90466-C0026 |
| 44785C | brake booster pad | 44785-02050 |
| 47210L | Brake booster assembly with master cylinder | 47050-02090 · 47050-12C30 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-12380 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-47090 |
| 47233 | Reservoir tank bracket | 47233-02040 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-02040 |
| 47234U | Clamp (for reservoir tank No. 1 hose) | 90466-C0026 |
| 47235G | Reservoir tank No. 2 hose | 47235-02040 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 90466-C0026 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
