Toyota COROLLA Front Drive Shaft — Figure 4302

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 3 images and 29 PNC and OE references.

Toyota COROLLA Front Drive Shaft EPC diagram — 433792

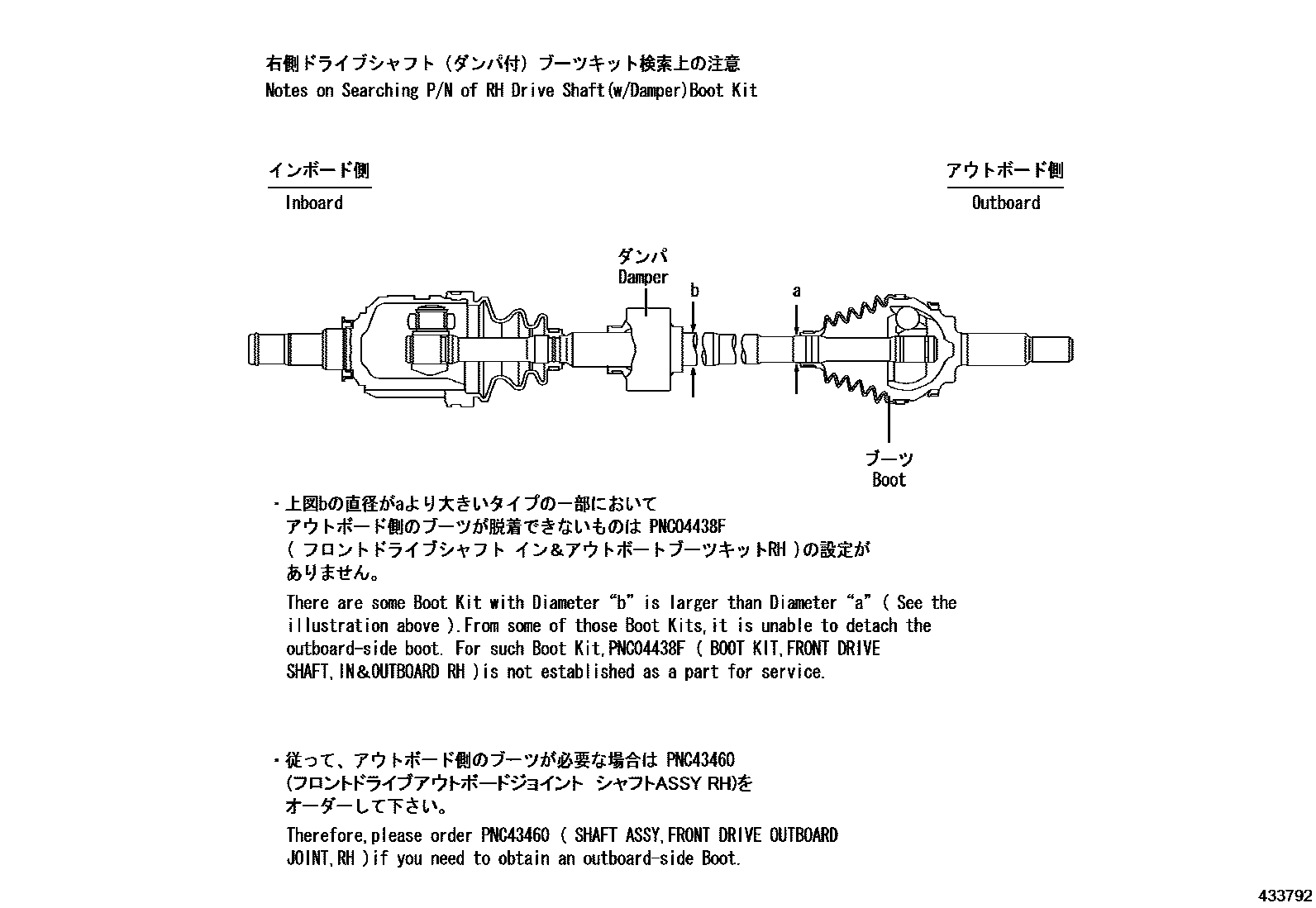

Front Drive Shaft — 433792 (201903 – 999999)
Toyota COROLLA Front Drive Shaft EPC diagram — 434110A

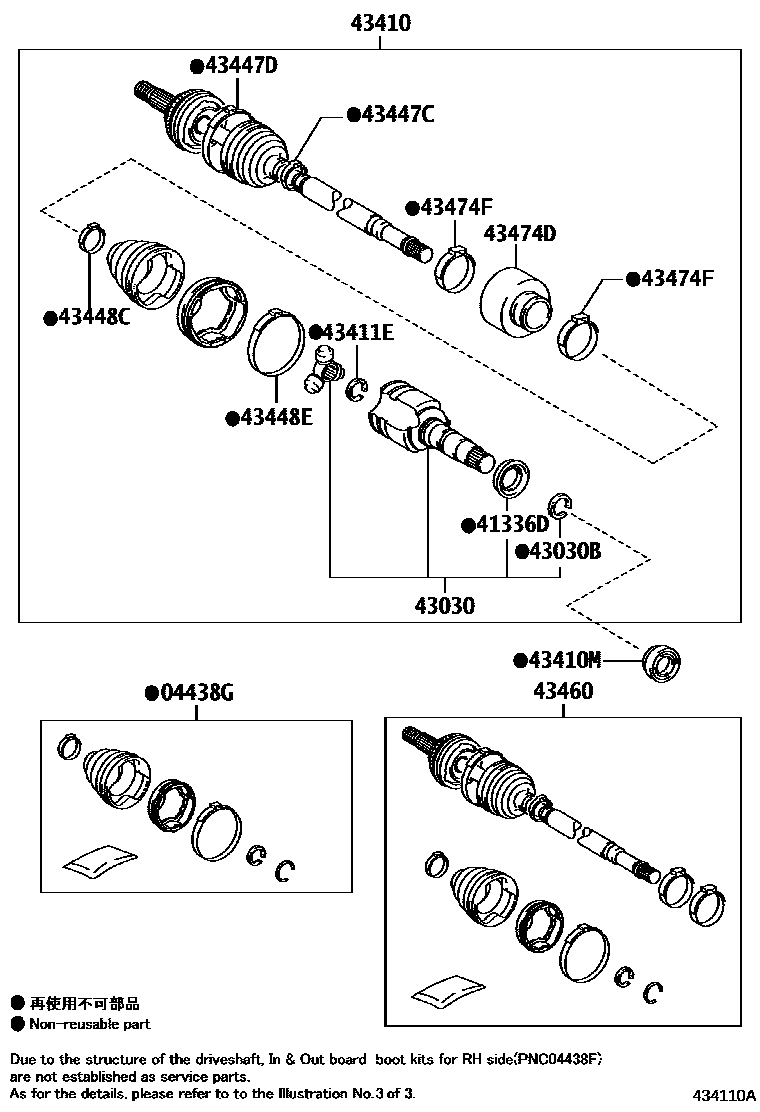

Front Drive Shaft — 434110A (201903 – 999999)
Toyota COROLLA Front Drive Shaft EPC diagram — 434111A

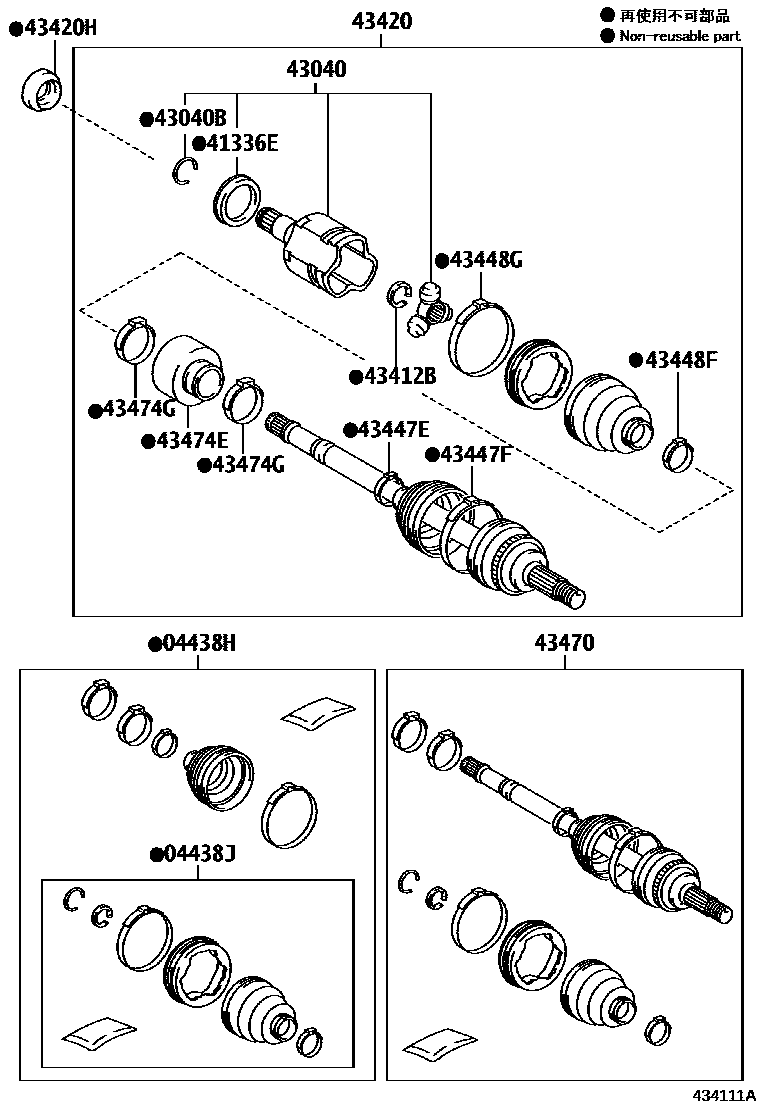

Front Drive Shaft — 434111A (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438GRight front drive shaft inner universal joint dust boot assembly04437-02541
04438HLeft front driveshaft inboard and outboard dust boot assembly04428-02842 · 04428-02843 · 04428-02844
04438JLeft front drive shaft inner universal joint dust boot assembly04437-02541
41336DRight front driveshaft dust cover41336-02380 · 41336-12020
41336ELeft front driveshaft dust cover41336-02510
43030Right front drive shaft inner universal joint assembly43040-02350
43030BHole snap ring (for right front drive shaft inboard universal joint)90520-C0040 · 90521-33002
43040Left front drive shaft inner universal joint assembly43040-02360
43040BHole snap ring (for left front drive shaft inboard universal joint)90520-C0040 · 90521-33002
43410Right front driveshaft assembly43410-02B90 · 43410-02B91
43410MFront drive shaft right oil seal90311-C0037
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-12070 · 90520-C0029
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-12070 · 90520-C0029
43420Left front drive shaft assembly43420-02E10 · 43420-02E11
43420HFront drive shaft left oil seal90311-C0038
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-12230
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-12240
43447EClamp (for left front axle outer universal joint dust cover)42345-12230
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-12240
43448CClamp (for the universal joint dust cover inside the right front axle)42345-12230
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-12180
43448FClamp (for left front axle inner universal joint dust cover)42345-12230
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-12180
43460Right front outer drive universal joint shaft assembly43460-09Y21 · 43460-09Y22
43470Left front outer drive universal joint shaft assembly43470-8Z271 · 43470-8Z839
43474DRight front driveshaft shock absorber43474-02570
43474ELeft front driveshaft shock absorber43474-02580
43474FClamp (for right front driveshaft shock absorber)42345-02310
43474GClamp (for left front driveshaft shock absorber)42345-06420 · 42345-12090
