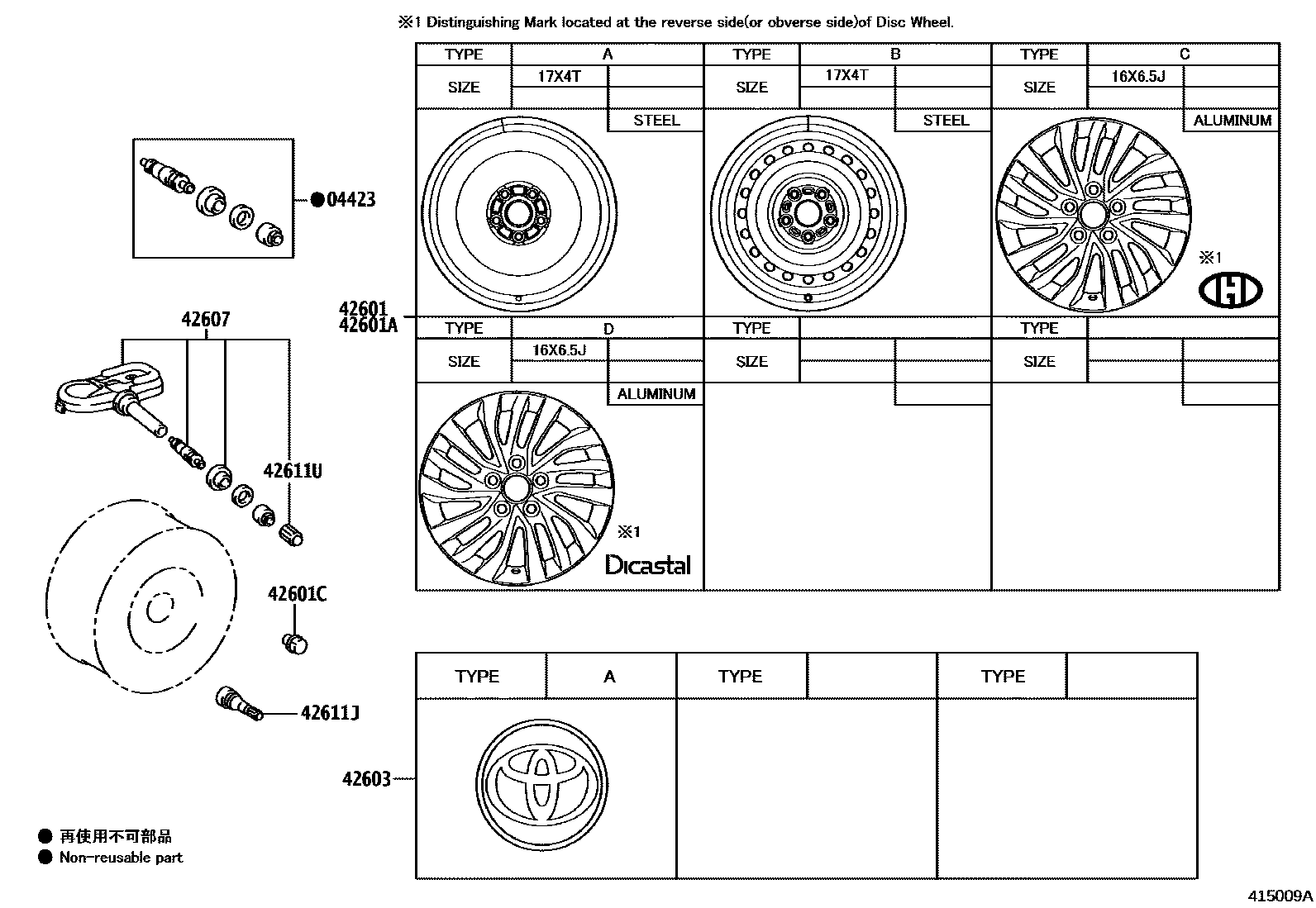

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0N010 |
| 42601 | spoke wheel | 42611-02L41 · 42611-02L50 |
| 42601A | Spoke wheel (for spare tire) | 42611-02Q10 · 42611-02Q11 · 42611-02Q20 · 42611-02Q21 |
| 42601C | Hub nut (for axle) | 90942-C1001 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-02320 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02040 · 42607-02041 |
| 42611J | Valve (for tubeless spare tire) | 90942-C5004 |
| 42611U | tire valve cover | 90942-C5001 |
