Toyota COROLLA 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901

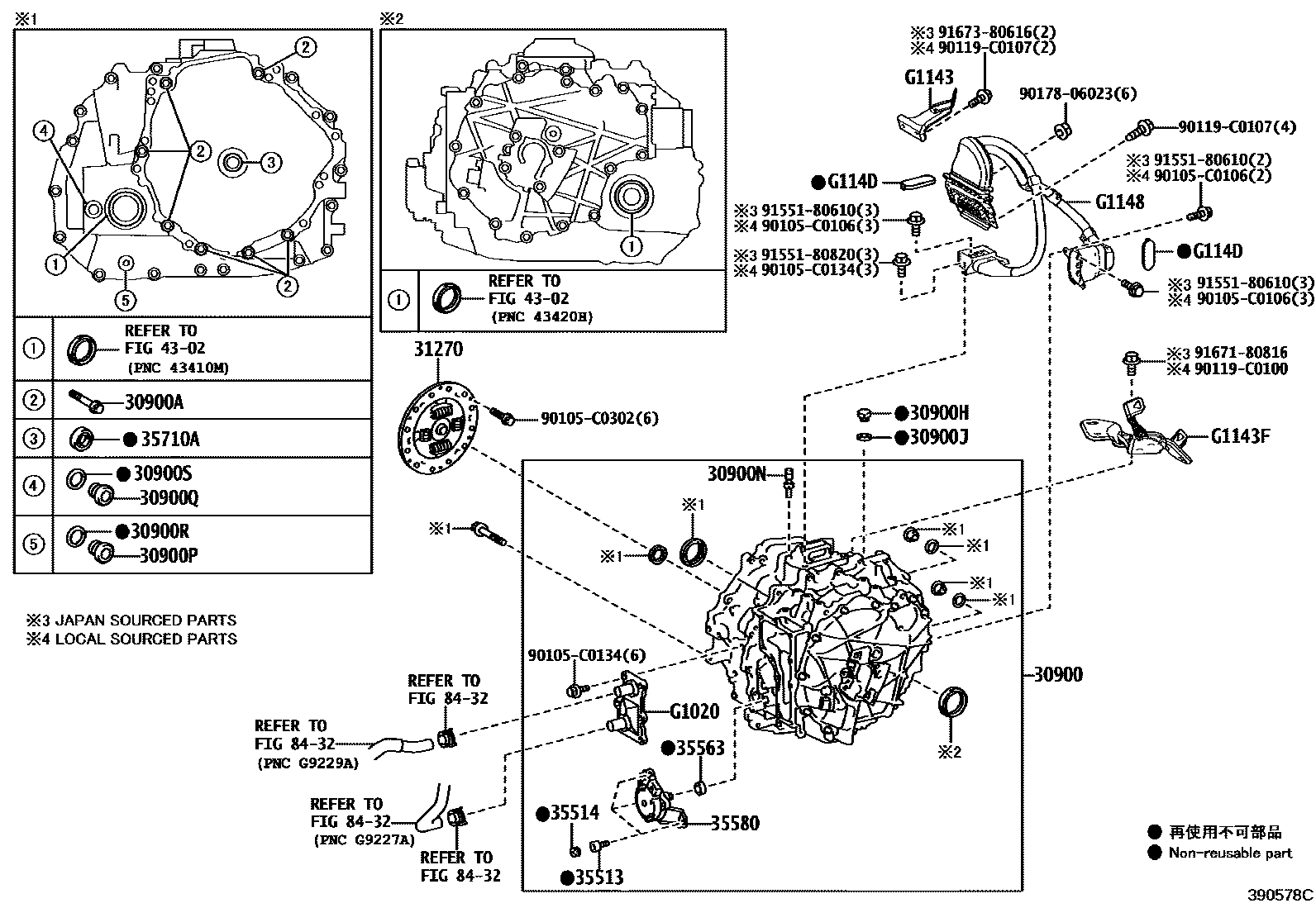

Toyota COROLLA EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-02030 |
| 30900A | Bolts (used to secure the transaxle and engine of hybrid vehicles) | 90119-C0139 |
| 30900H | No. 3 headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900J | No. 3 gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900N | Breather plug (for transaxle) | 90930-03246 |
| 30900P | Drain plug (HEV) | 90341-18016 |
| 30900Q | Oil filling plug (HEV) | 90341-18016 |
| 30900R | Drain plug gasket (HEV) | 90430-18008 |
| 30900S | Oil filling plug gasket (HEV) | 90430-18008 |
| 31270 | Transmission input damper assembly | 31270-47060 |
| 35513 | shift control actuator bolt | 35513-47010 |
| 35514 | Shift control actuator bolt cover | 35514-47010 |
| 35563 | Shift control actuator seal | 35563-02010 |
| 35580 | Shift control actuator assembly | 35580-47020 |
| 35710A | T-type oil seal (for input shaft) | 90311-C0039 |
| G1020 | No. 1 motor water jacket cover assembly | G1020-02020 |
| G1143 | Motor cable bracket | G1143-02010 |
| G1143F | No. 2 motor cable bracket | G1143-02020 |
| G1148 | Motor cable | G1148-02010 |
| G114D | Motor cable terminal cover | G114D-02010 |
