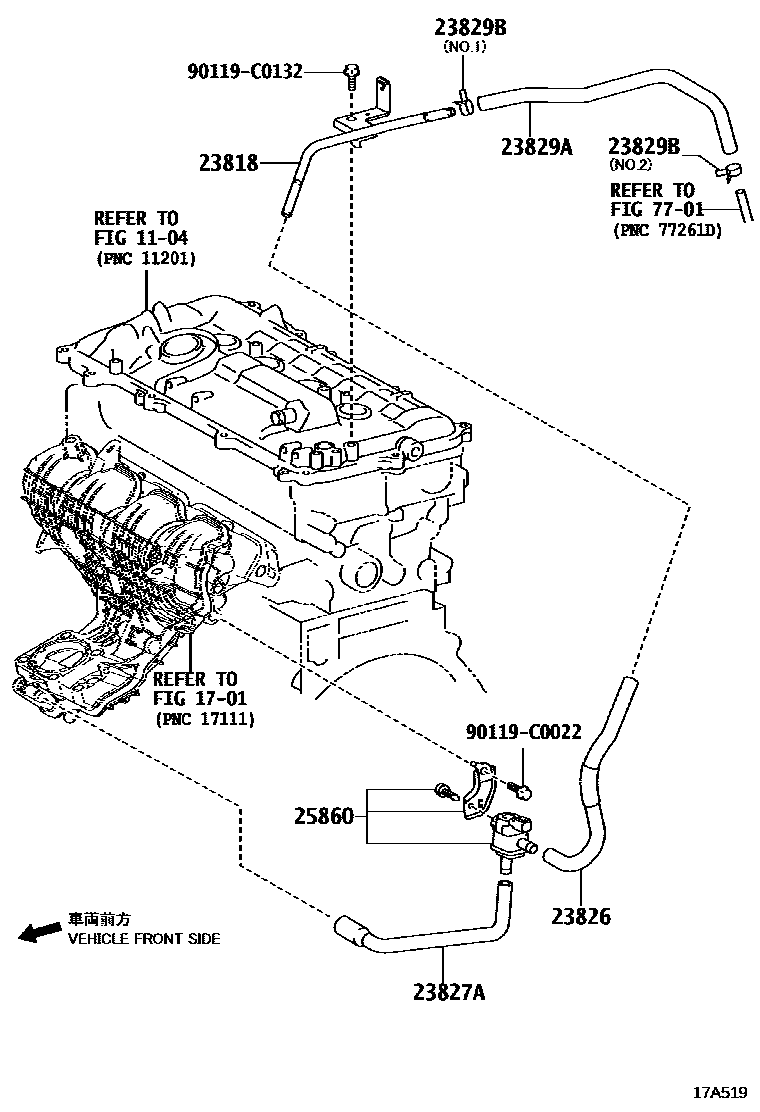

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23818 | Fuel vapor supply pipe | 23818-0T020 · 23818-37010 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0T380 |
| 23827A | No. 2 fuel vapor supply hose | 23827-37040 |
| 23829A | Fuel vapor supply hose | 23826-0T330 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-C0039 · 96136-41901 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-37020 |
