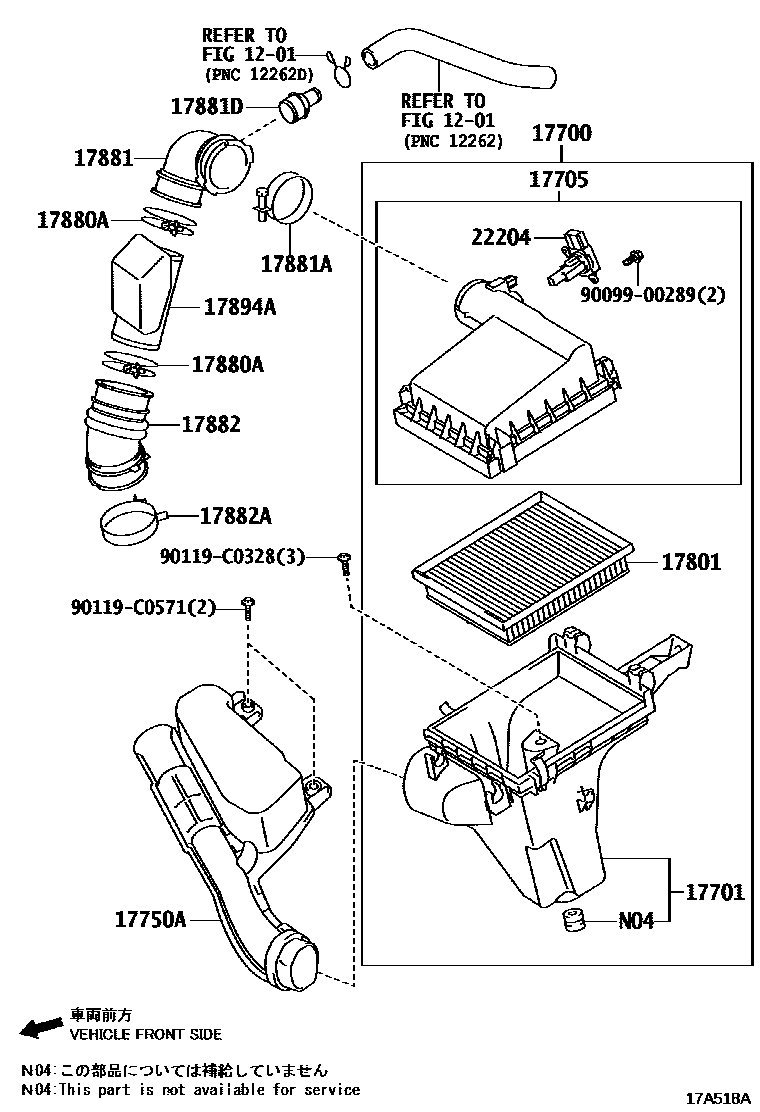

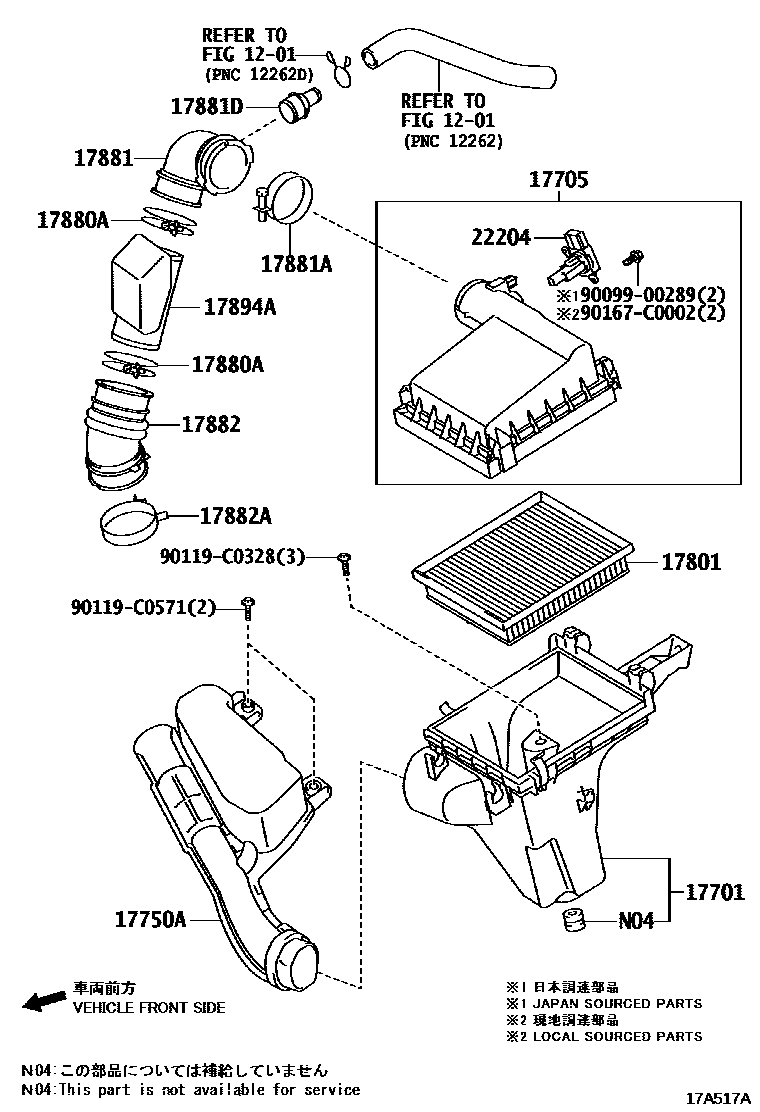

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-37261 |
| 17701 | Air filter housing sub-assembly | 17701-0T160 · 17701-37170 |
| 17705 | Air filter cover sub-assembly | 17705-0T200 · 17705-37131 |
| 17750A | Air filter air inlet assembly | 17750-0T020 |
| 17801 | Air filter element sub-assembly | 17801-0T070 · 17801-37021 |
| 17880A | hose clamp | 96111-10750 |
| 17881 | No. 1 air cleaner hose | 17881-0T420 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10650 |
| 17881D | Connector tube (for air cleaner hose) | 90904-06008 |
| 17882 | No. 2 air cleaner hose | 17882-0T020 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 90466-C0019 |
| 17894A | No. 2 intake resonator | 17894-0T020 |
| 22204 | Intake air flow meter assembly | 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-28010 |
