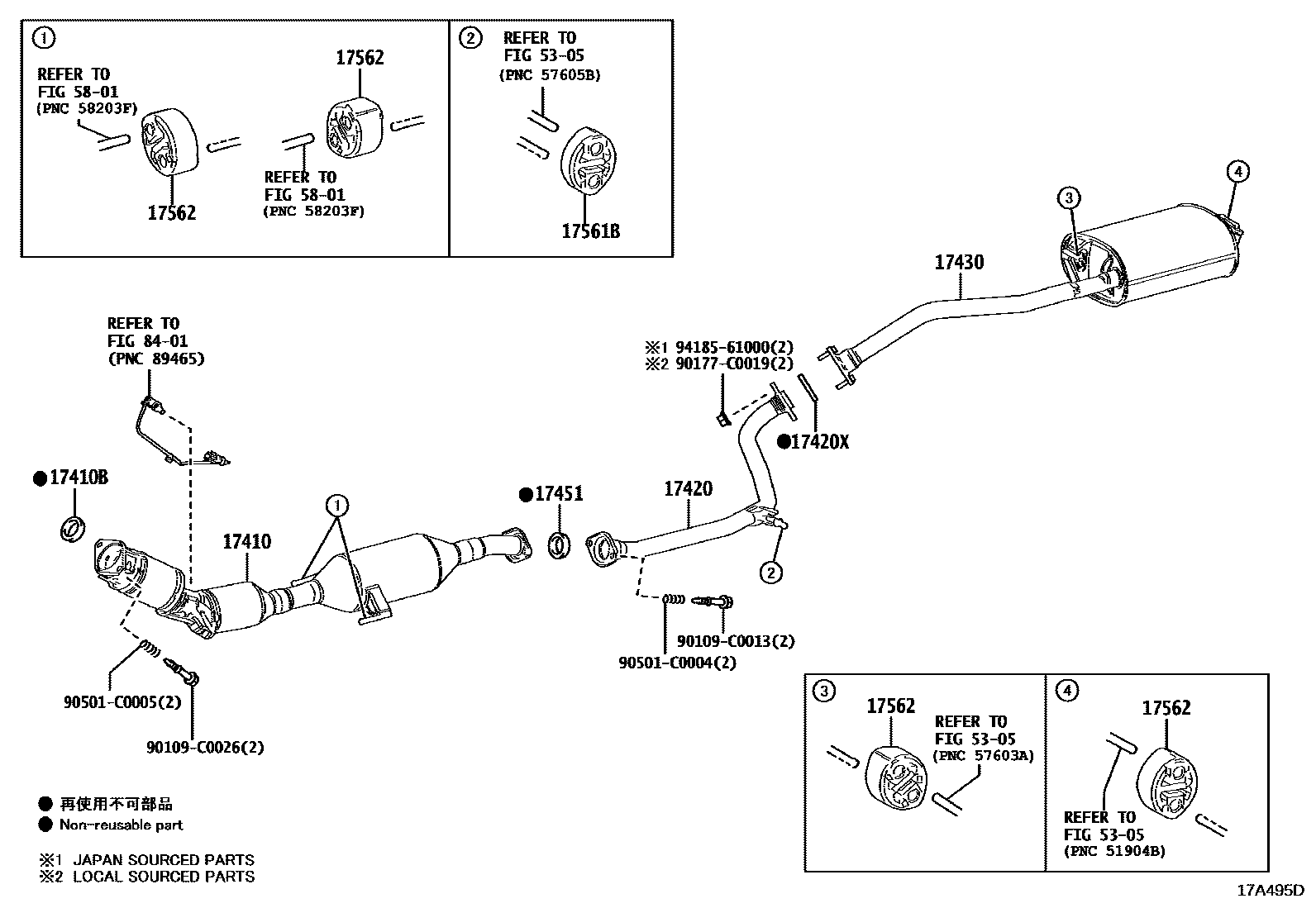

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0TE90 |
| 17410B | Exhaust pipe gasket | 17451-0T010 |
| 17420 | Central exhaust pipe assembly | 17420-0T080 |
| 17420X | Center exhaust pipe liner | 90917-T6003 |
| 17430 | Exhaust tailpipe assembly | 17430-0T150 |
| 17451 | Exhaust pipe gasket | 17451-0T022 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-0D070 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-0T011 |
