Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603

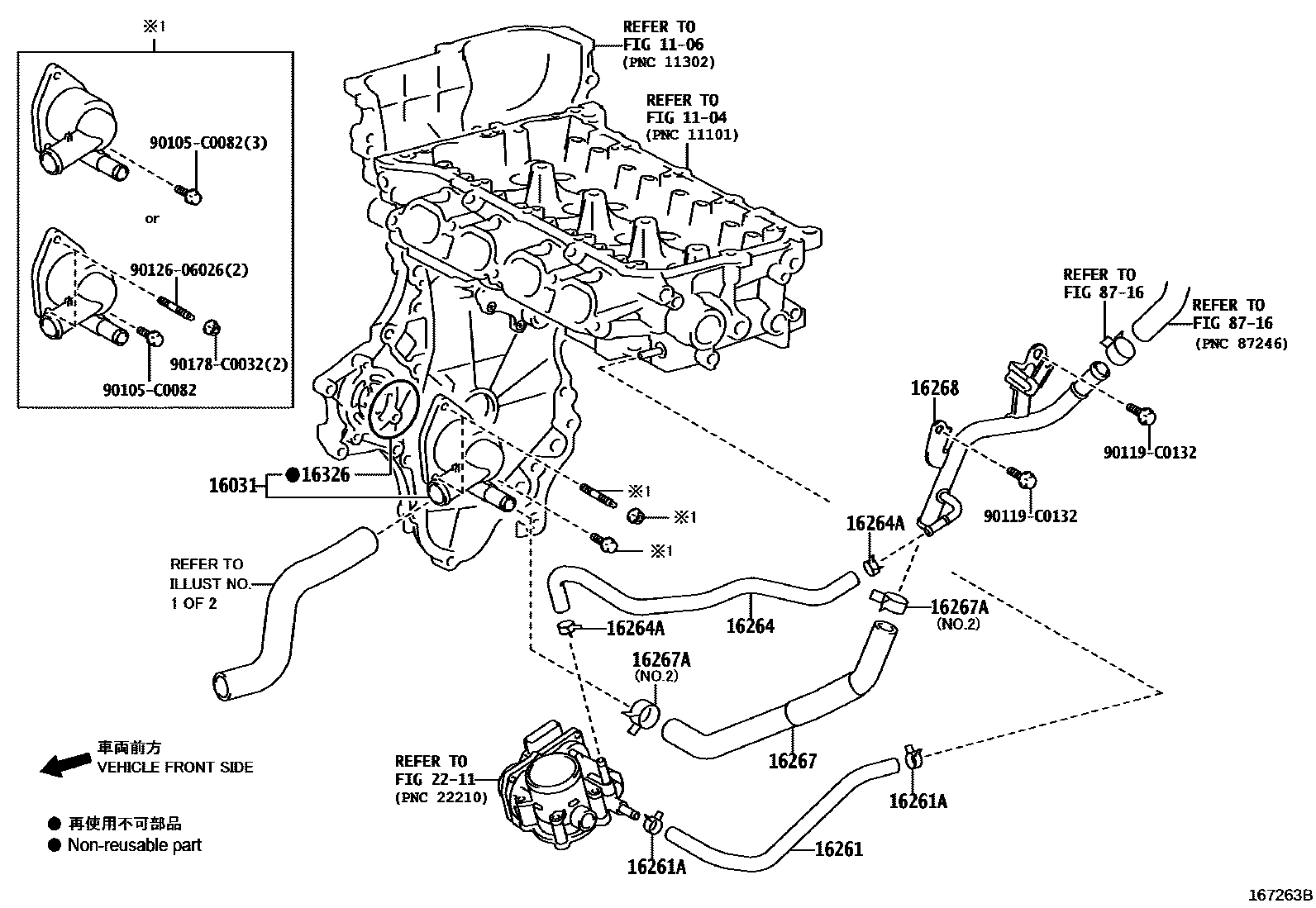

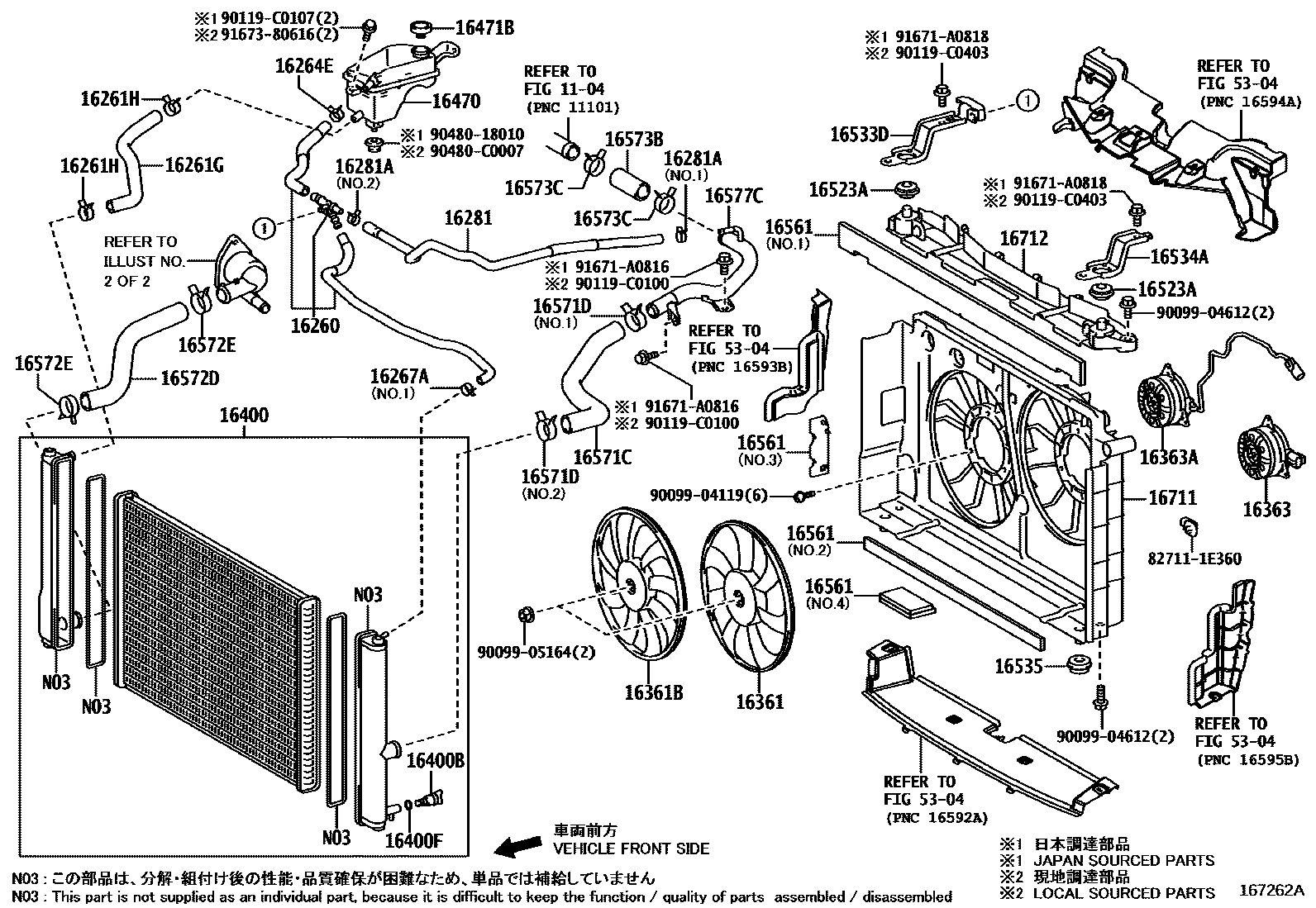

Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-0T010 |
| 16260 | Water bypass hose assembly | 16260-0T080 |
| 16261 | HOSE, WATER BY-PASS | 16261-0T230 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0026 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0T180 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-C0014 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0T180 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0004 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0T150 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0005 · 90466-C0014 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0T010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0T121 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-C0005 · 90466-C0043 · 96137-41701 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37020 |
| 16361 | Fan | 16361-0T130 |
| 16361B | Fan No. 2 | 16361-0T140 |
| 16363 | cooling fan motor | 16363-0T300 |
| 16363A | Cooling fan motor No. 2 | 16363-0T310 |
| 16400 | Radiator assembly | 16400-0T260 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 |
| 16400F | Seal (for radiator drain switch) | 16492-0P460 |
| 16470 | Radiator reservoir assembly | 16480-0T010 |
| 16471B | Reservoir tank cover | 16475-0T081 · 16475-28140 |
| 16523A | Radiator bracket cushion | 16523-0T080 |
| 16533D | Radiator right side support | 16533-0T110 |
| 16534A | Radiator left support | 16534-0T020 |
| 16535 | Radiator lower support | 16535-0H090 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0T120 · 16561-0T130 · 16561-0T140 · 16561-0T150 |
| 16571C | Radiator hose No. 1 | 16571-0T120 |
| 16571D | No. 1 radiator hose clip | 90466-C0008 · 90466-C0009 |
| 16572D | Radiator hose No. 2 | 16572-0T200 |
| 16572E | No. 2 radiator hose clip | 90466-C0009 |
| 16573B | Radiator hose No. 3 | 16573-0T090 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-C0008 |
| 16577C | radiator pipe | 16577-0T061 |
| 16711 | fan cover | 16711-0T290 |
| 16712 | No. 2 fan cover | 16712-0T080 |
