Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 1 images and 6 PNC and OE references.

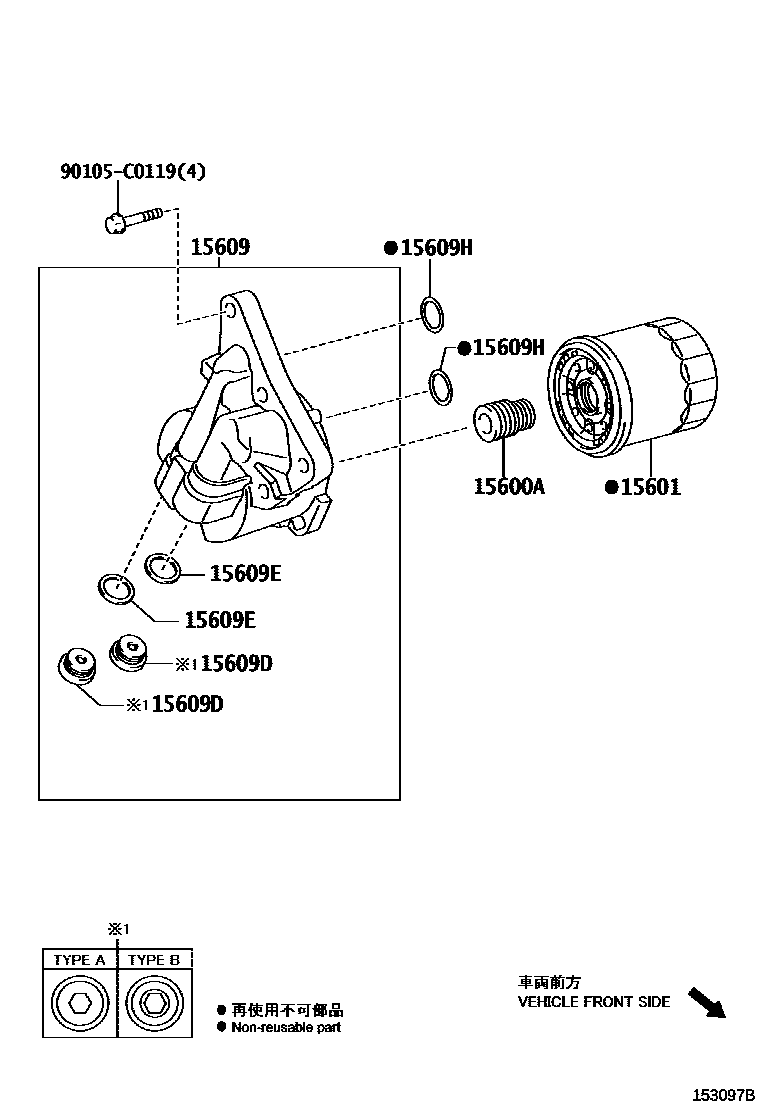

Toyota COROLLA Oil Filter EPC diagram — 153097B
Oil Filter — 153097B (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-CA003
15609Oil filter bracket sub-assembly15609-0T090 · 15609-37060
15609DStraight threaded plug with head (for oil filter bracket)90341-20002 · 90341-20012
15609EHeaded straight thread plug liner90430-20004 · 90430-20018
15609HO-ring (for oil filter bracket)90301-C0033
