Toyota COROLLA Camshaft & Valve — Figure 1302

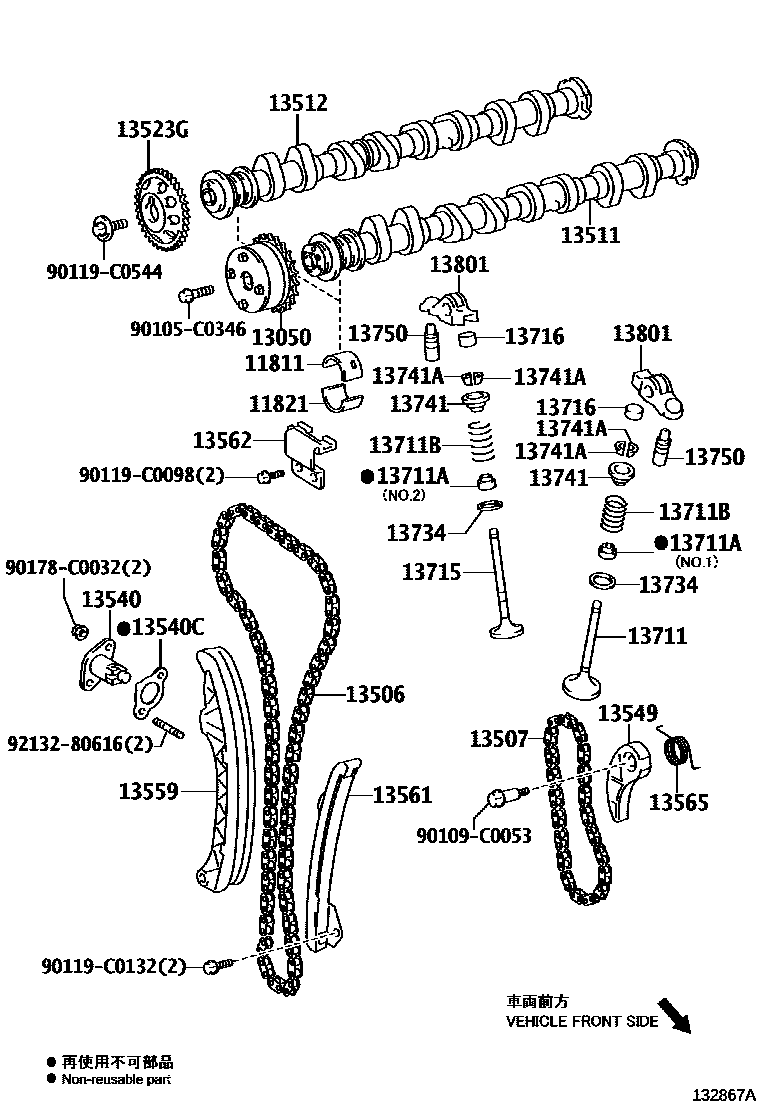

Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-0T010 |
| 11821 | No. 2 camshaft bearing | 11821-0T010 |
| 13050 | Camshaft timing gear assembly | 13050-0T120 |
| 13506 | Chain sub-assembly | 13506-0T090 |
| 13507 | No. 2 chain sub-assembly | 13507-0H020 |
| 13511 | camshaft | 13501-0T070 |
| 13512 | Camshaft No. 2 | 13502-0T110 |
| 13523G | Camshaft timing sprocket | 13523-22020 |
| 13540 | No. 1 chain tensioner assembly | 13540-0T011 |
| 13540C | Pad (for chain tensioner) | 13552-0T010 |
| 13549 | chain tensioner pressure plate | 13549-0T010 |
| 13559 | chain tensioner guide plate | 13559-0T010 |
| 13561 | No. 1 chain shock absorber | 13561-0T010 |
| 13562 | No. 2 chain shock absorber | 13562-0T010 |
| 13565 | chain damper spring | 13565-0T010 |
| 13711 | intake valve | 13711-0T030 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-T2001 · 90913-T2003 |
| 13711B | Compression spring (for inner side) | 90501-C0020 |
| 13715 | exhaust valve | 13715-0T030 |
| 13716 | valve stem cover | 13716-0Y010 |
| 13734 | Valve spring seat | 13734-0P020 |
| 13741 | Valve spring seat ring | 13741-0Y050 |
| 13741A | Valve spring seat lock plate | 90913-C3002 |
| 13750 | Valve lash adjuster assembly | 13750-0V030 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0V020 |
