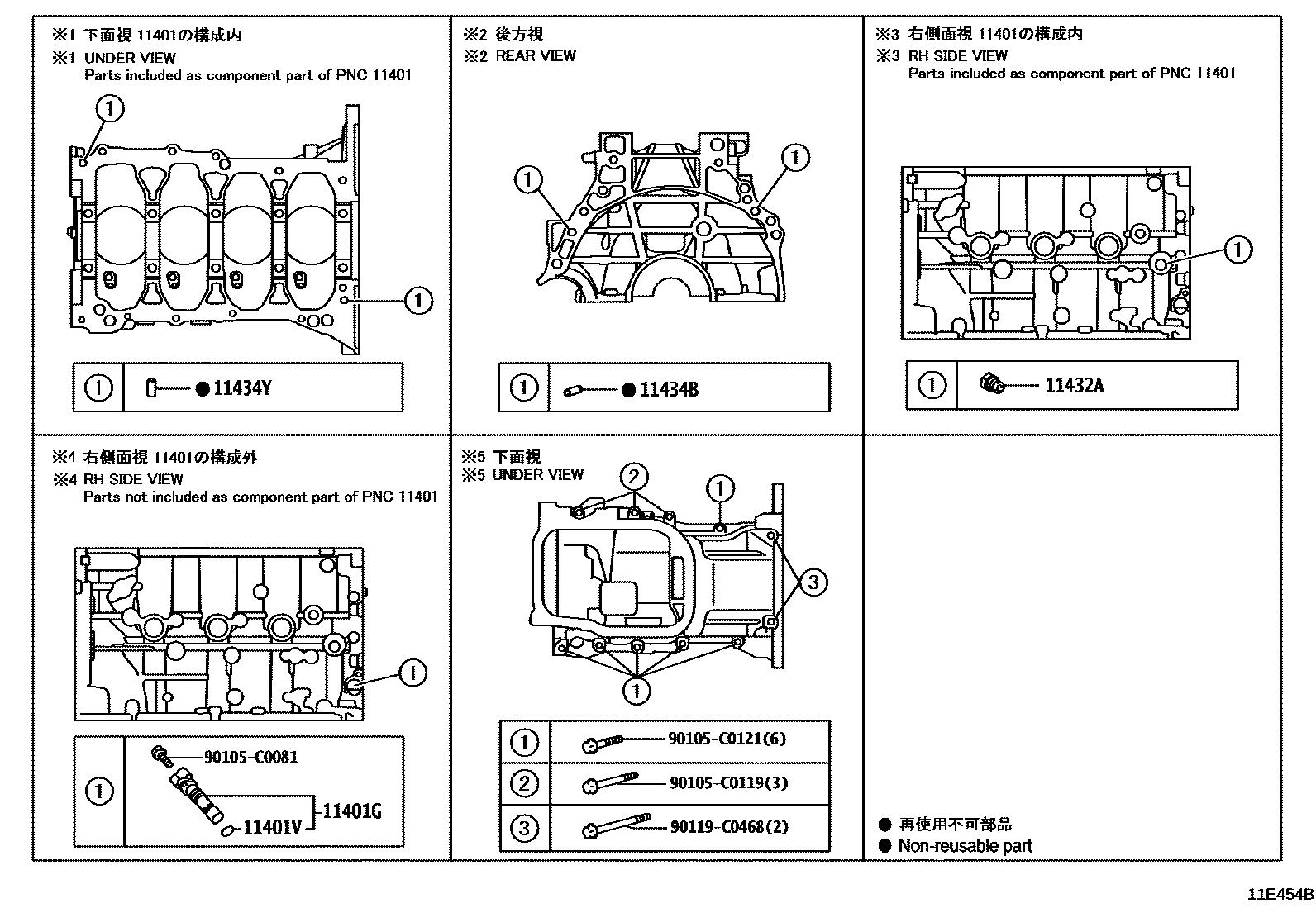

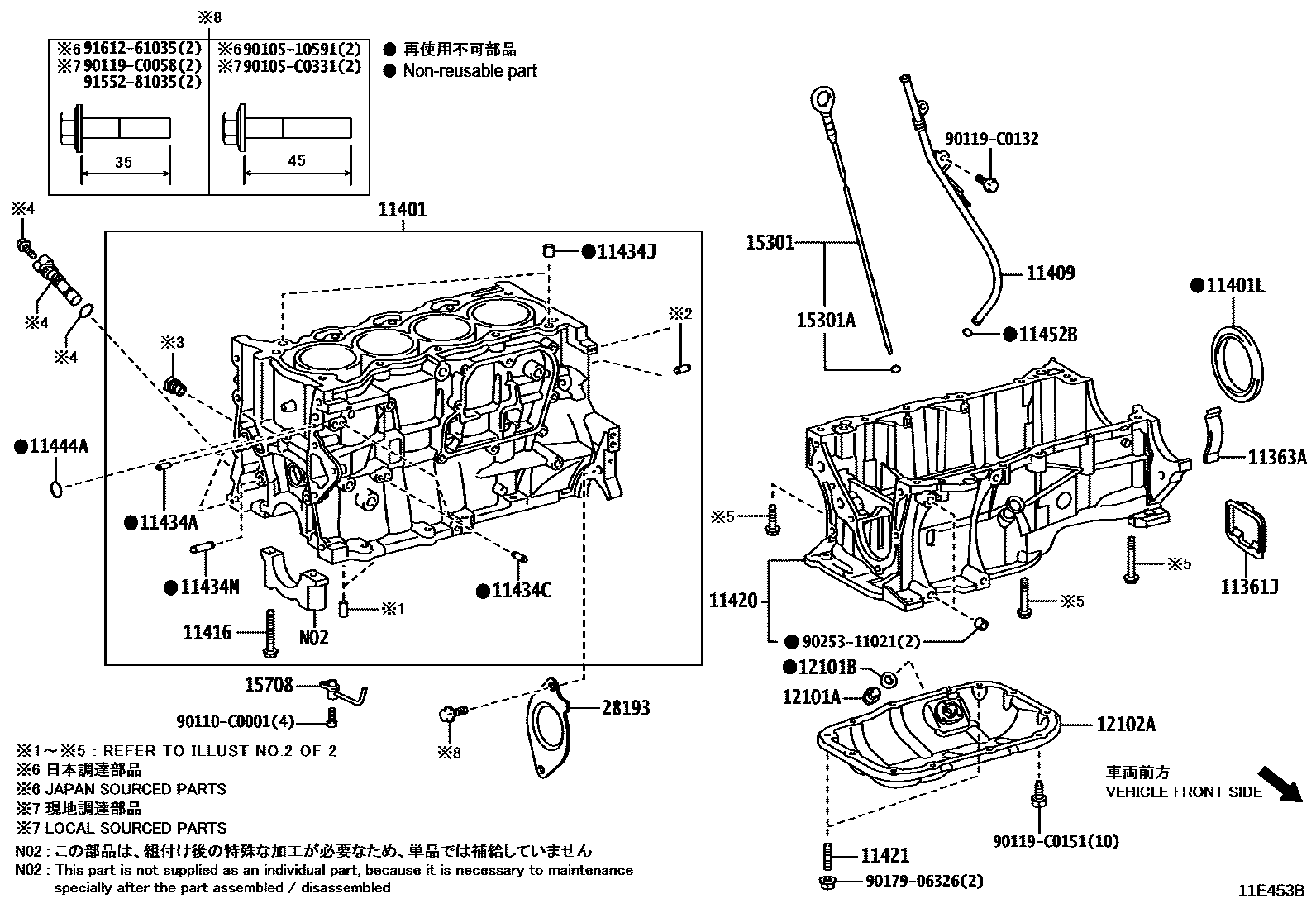

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-0T020 · 11361-21011 |
| 11363A | Flywheel housing side cover | 11363-33010 |
| 11401 | Cylinder block sub-assembly | 11410-09661 |
| 11401G | crankshaft position sensor | 90919-05070 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-C0029 |
| 11401V | Crankshaft position sensor O-ring | 90301-14016 |
| 11409 | Engine oil level gauge guide sub-assembly | 11409-0T010 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-C2001 |
| 11420 | Reinforce crankcase assembly | 11420-0T020 |
| 11421 | Stud bolts (for oil pan) | 90126-C0001 |
| 11432A | No. 1 headed tapered thread plug | 90345-53006 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-C0009 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-C0009 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-C0003 |
| 11434M | Direct pin (for chain tensioner) | 90250-C0006 |
| 11434Y | Direct sales (for oil pan) | 90250-C0011 |
| 11444A | O-ring | 90301-C0033 |
| 11452B | O-ring (for oil level gauge guide) | 90301-C0007 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-C0005 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0T010 |
| 15301 | Engine oil level scoring assembly | 15301-0T030 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0T020 · 15708-37012 |
| 28193 | Starter hole vibration isolation pad | 28193-0T010 |
