Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.

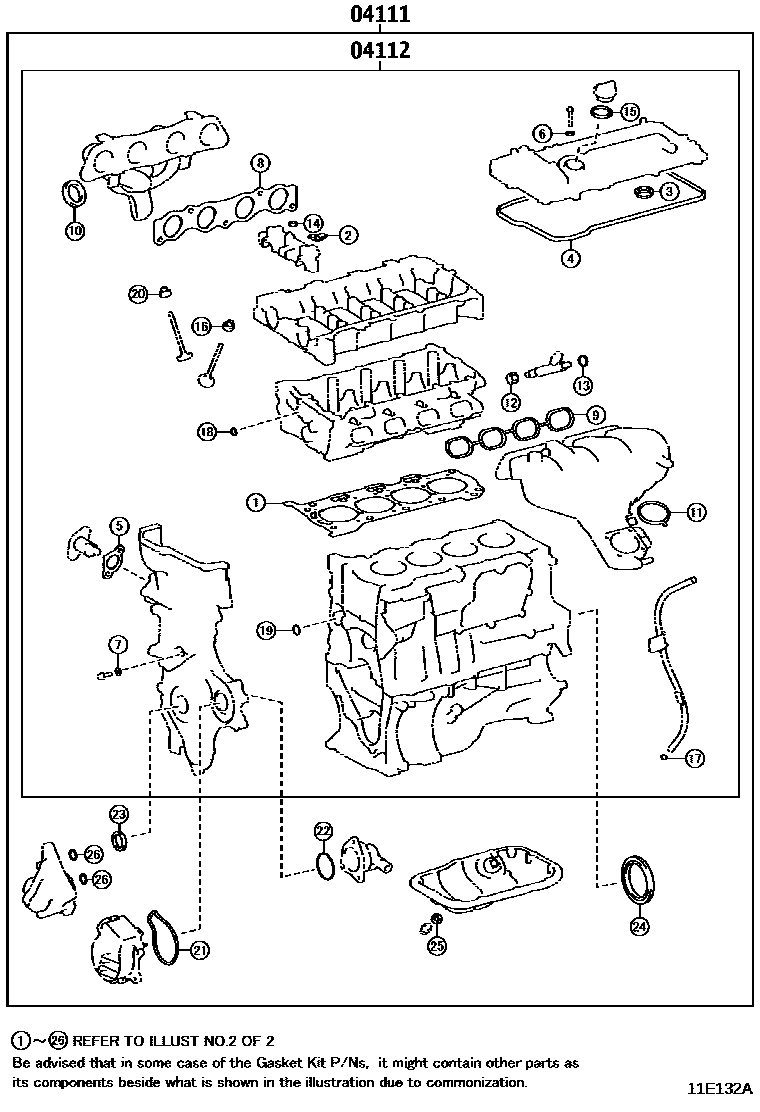

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E132A
Engine Overhaul Gasket Kit — 11E132A (201903 – 999999)

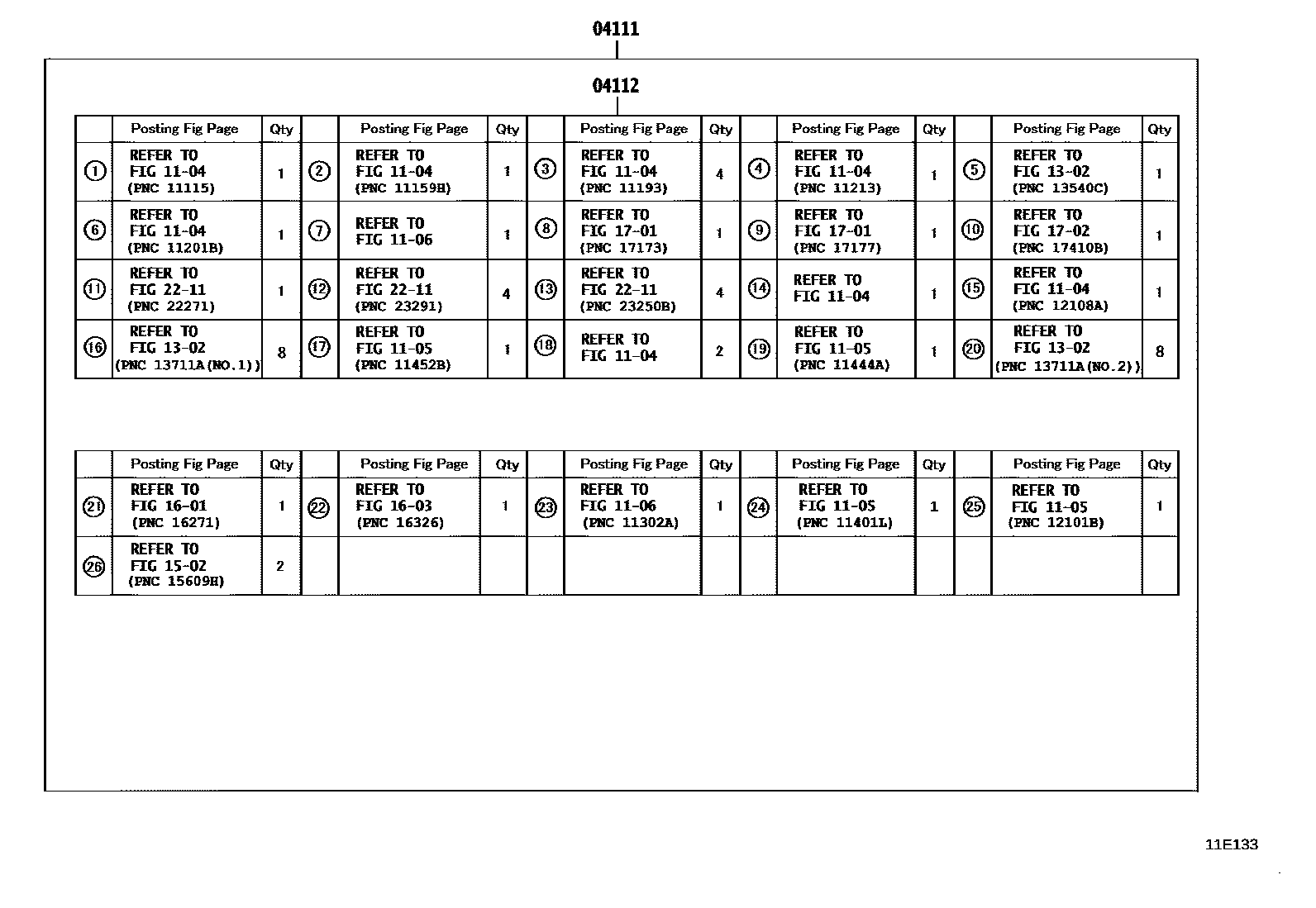

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E133
Engine Overhaul Gasket Kit — 11E133 (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T251
04112Engine valve grinding pad assembly04112-0T220
