Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

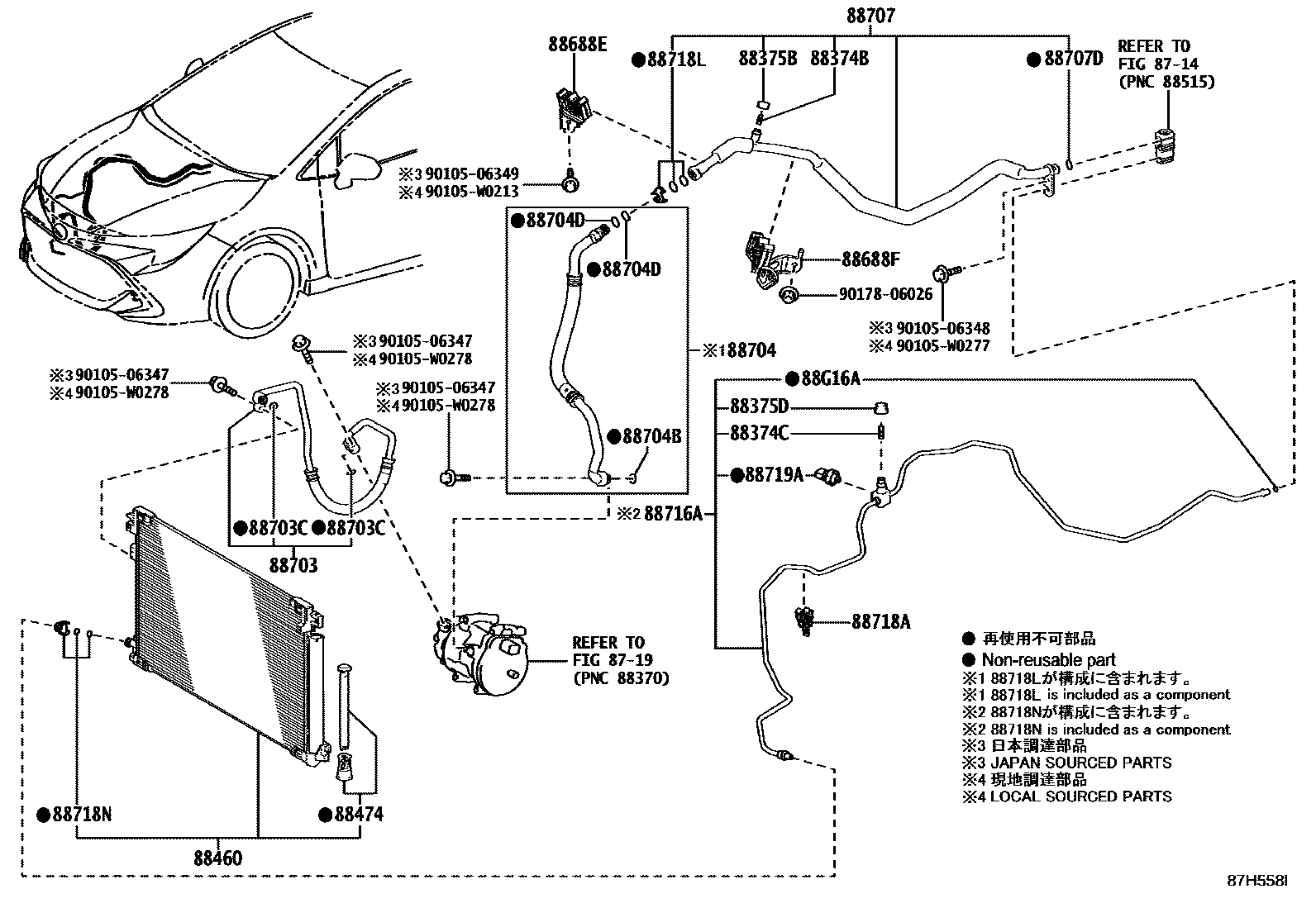

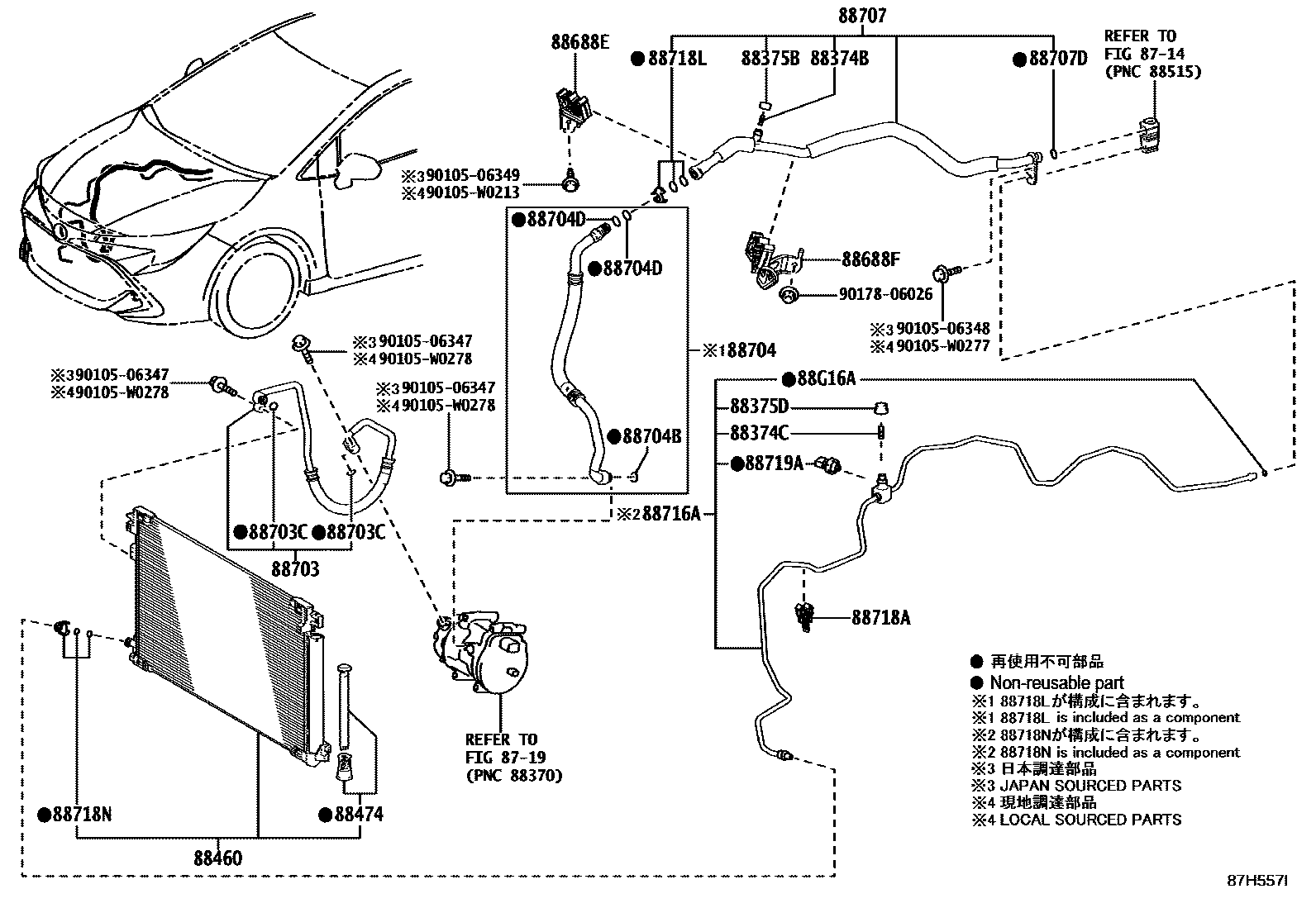

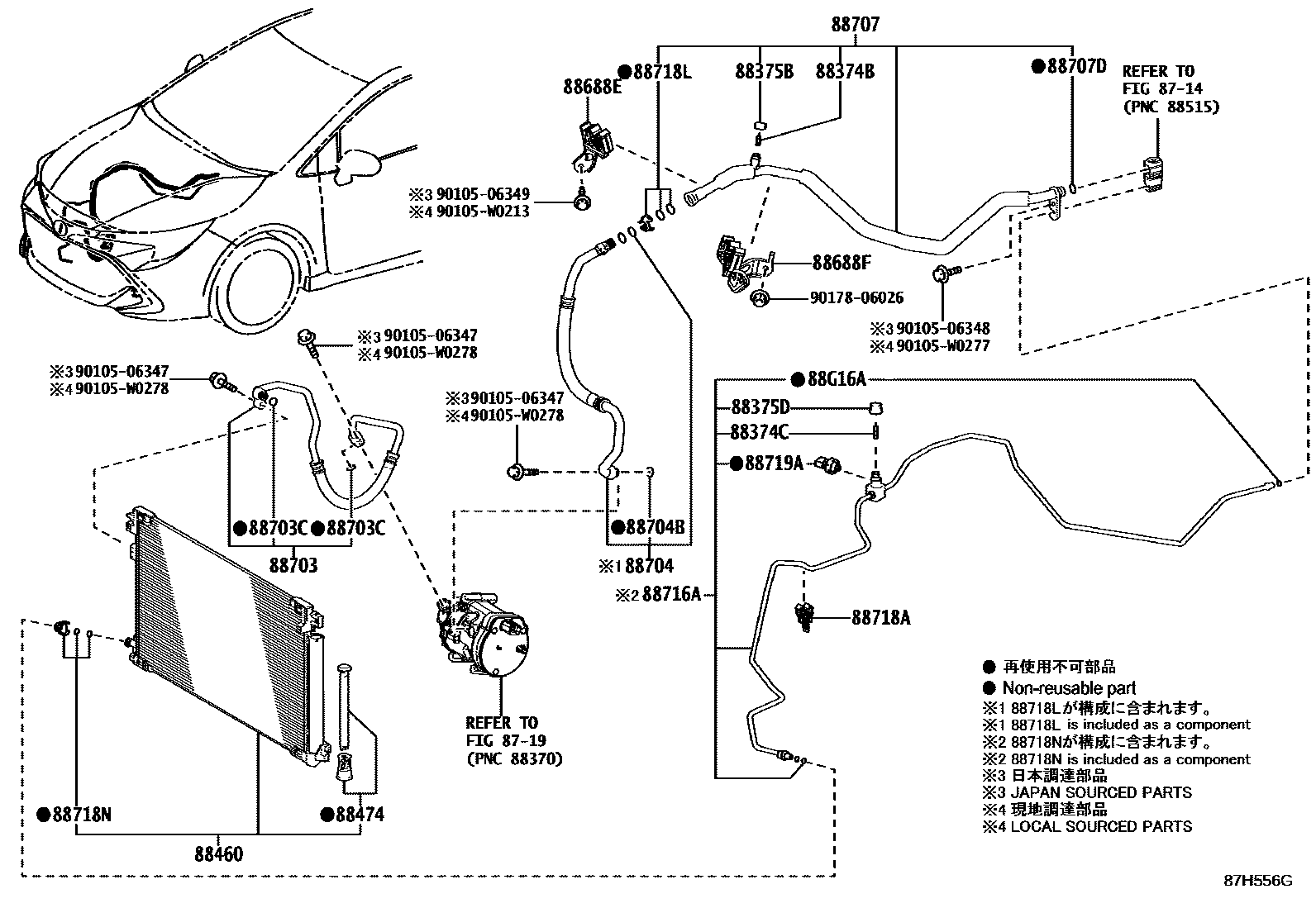

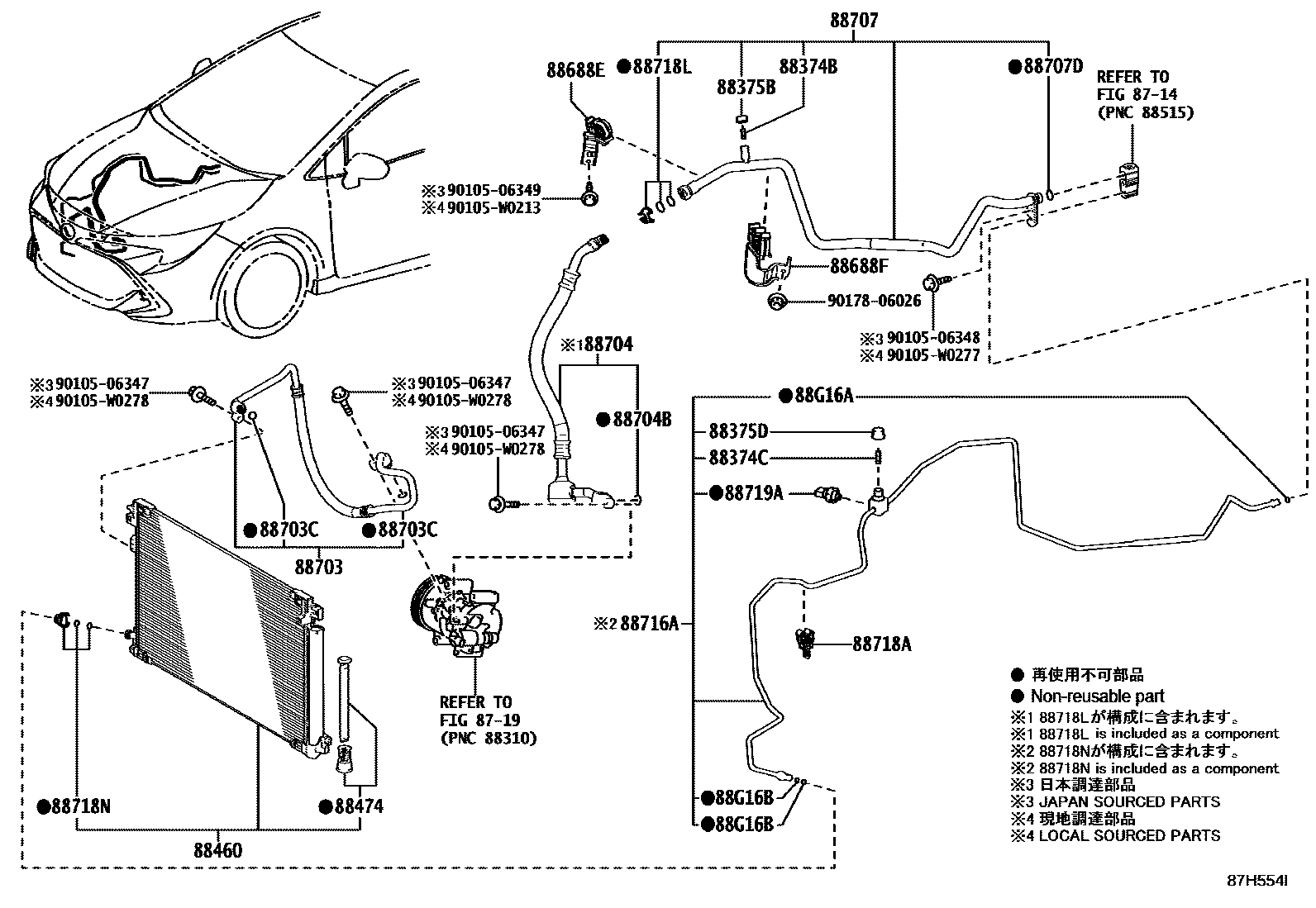

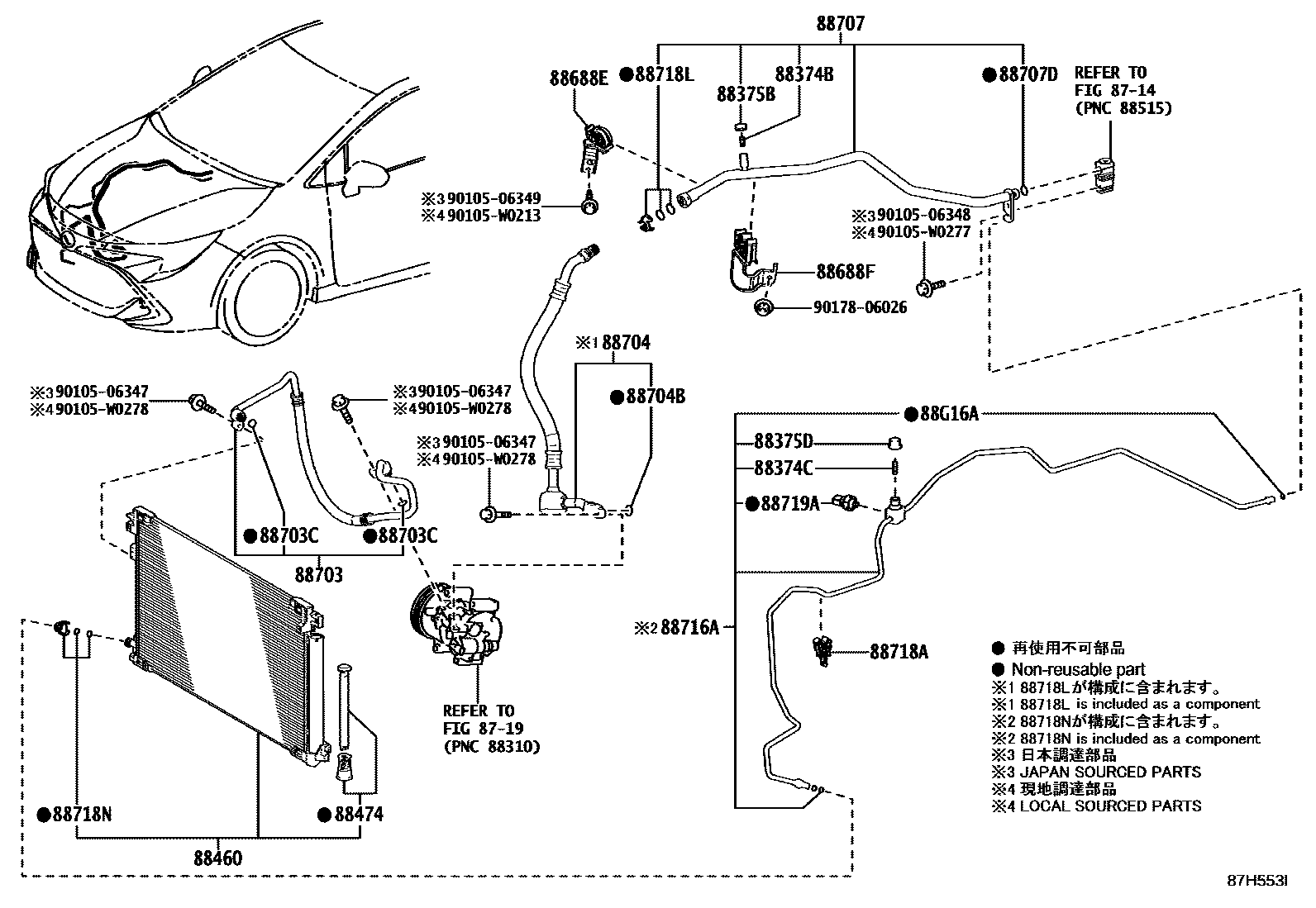

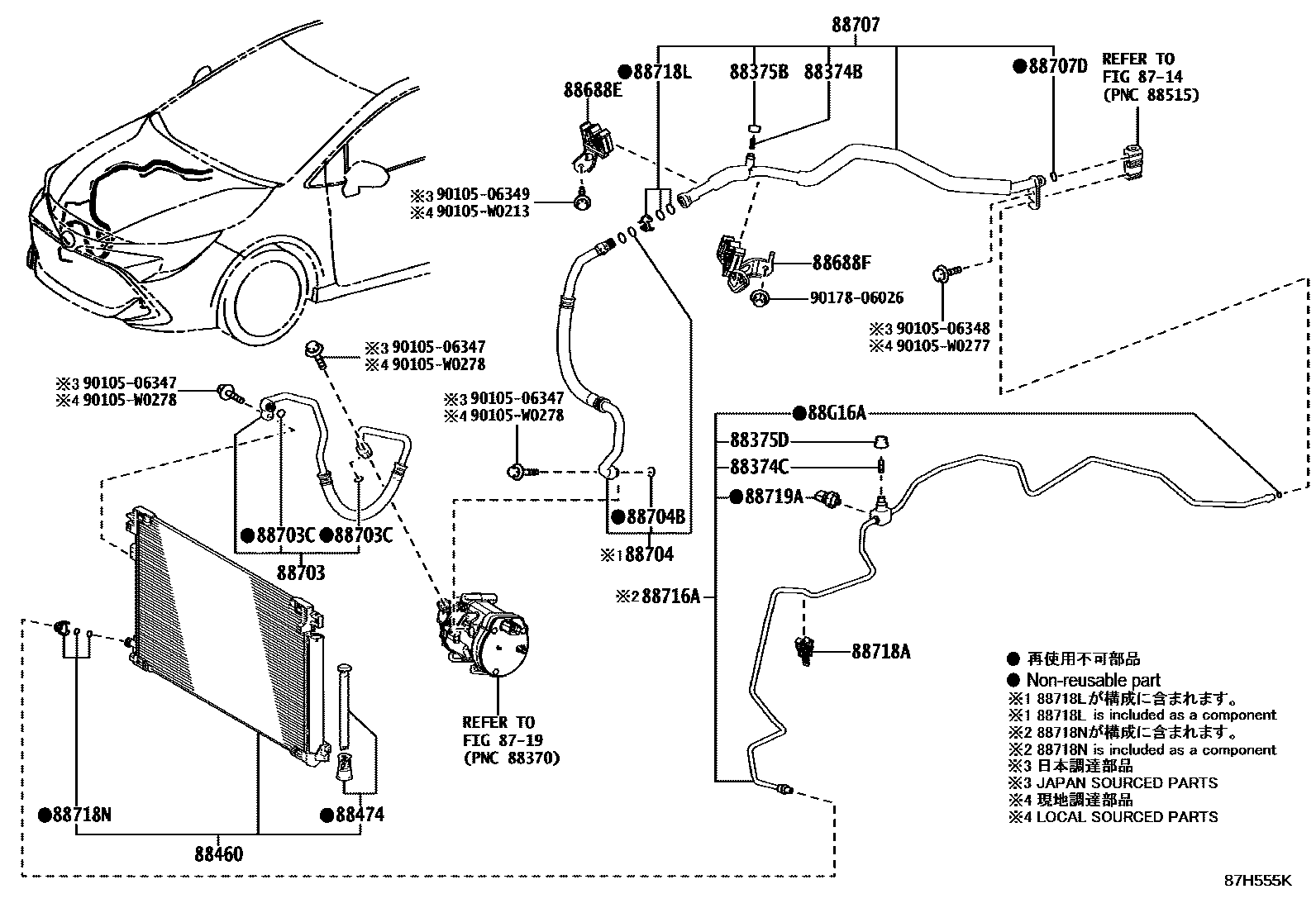

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 · 88374-30020 · 88374-33020 · 88374-33070 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 · 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 · 88375-30320 |
| 88460 | Air conditioning condenser assembly | 88460-F4040 · 884A0-02030 · 884A0-02040 · 884A0-02050 · 884A0-02340 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-02C70 · 88688-02C90 · 88688-F4040 · 88718-76030 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-02C80 · 88688-F4050 |
| 88703 | Discharge hose sub-assembly | 88703-02C90 · 88703-02D00 · 88703-02E90 · 88703-02F50 · 88703-F4030 |
| 88703C | O-ring (for drain hose) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-02D10 · 88704-02D20 · 88704-02G10 · 88704-F4030 |
| 88704B | O-ring (for suction hose) | 90099-14121 |
| 88704D | No. 2 O-ring (for oil suction hose) | 90099-14157 |
| 88707 | Suction pipe sub-assembly | 88707-02480 · 88707-02490 · 88707-02500 · 88707-02510 · 88707-02520 · 88707-02530 · 88707-02550 · 88707-F4010 · 88707-F4020 |
| 88707D | O-ring (for suction pipe) | 90068-14038 · 90099-14121 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-02D40 · 88710-02D50 · 88710-02D60 · 88710-02D70 · 88710-02D80 · 88710-02D90 · 88710-02E00 · 88710-02E10 · 88710-02E20 · 88710-02J30 · 88710-02J40 · 88710-02J50 · 88710-02K30 · 88710-02K40 · 88710-02K50 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-02A30 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718N | Pipe clamp | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88G16A | No. 1 O-ring (for cooler refrigerant liquid hose) | 90099-14119 |
| 88G16B | No. 2 O-ring (for cooler refrigerant liquid hose) | 90099-14158 |
