Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

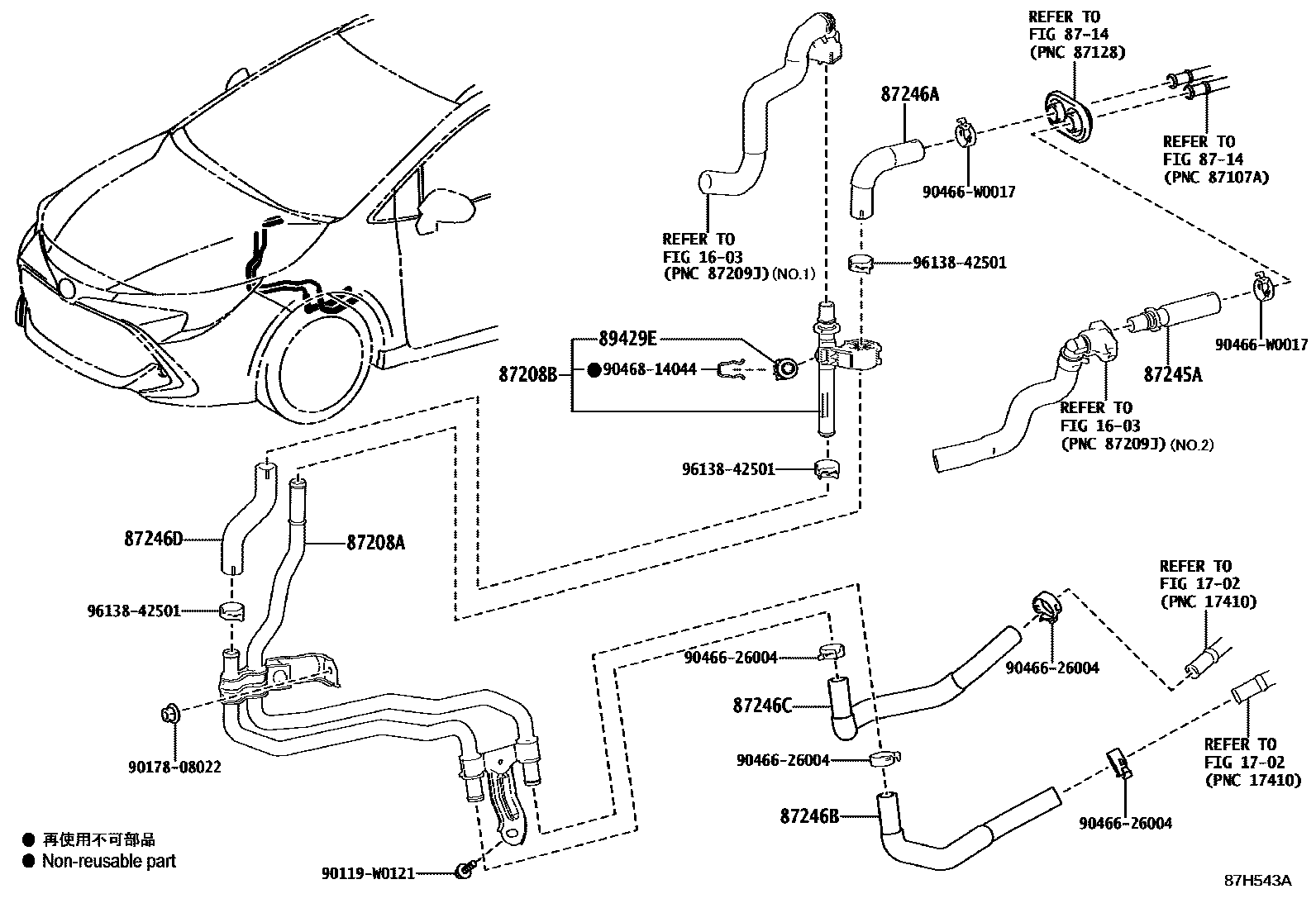

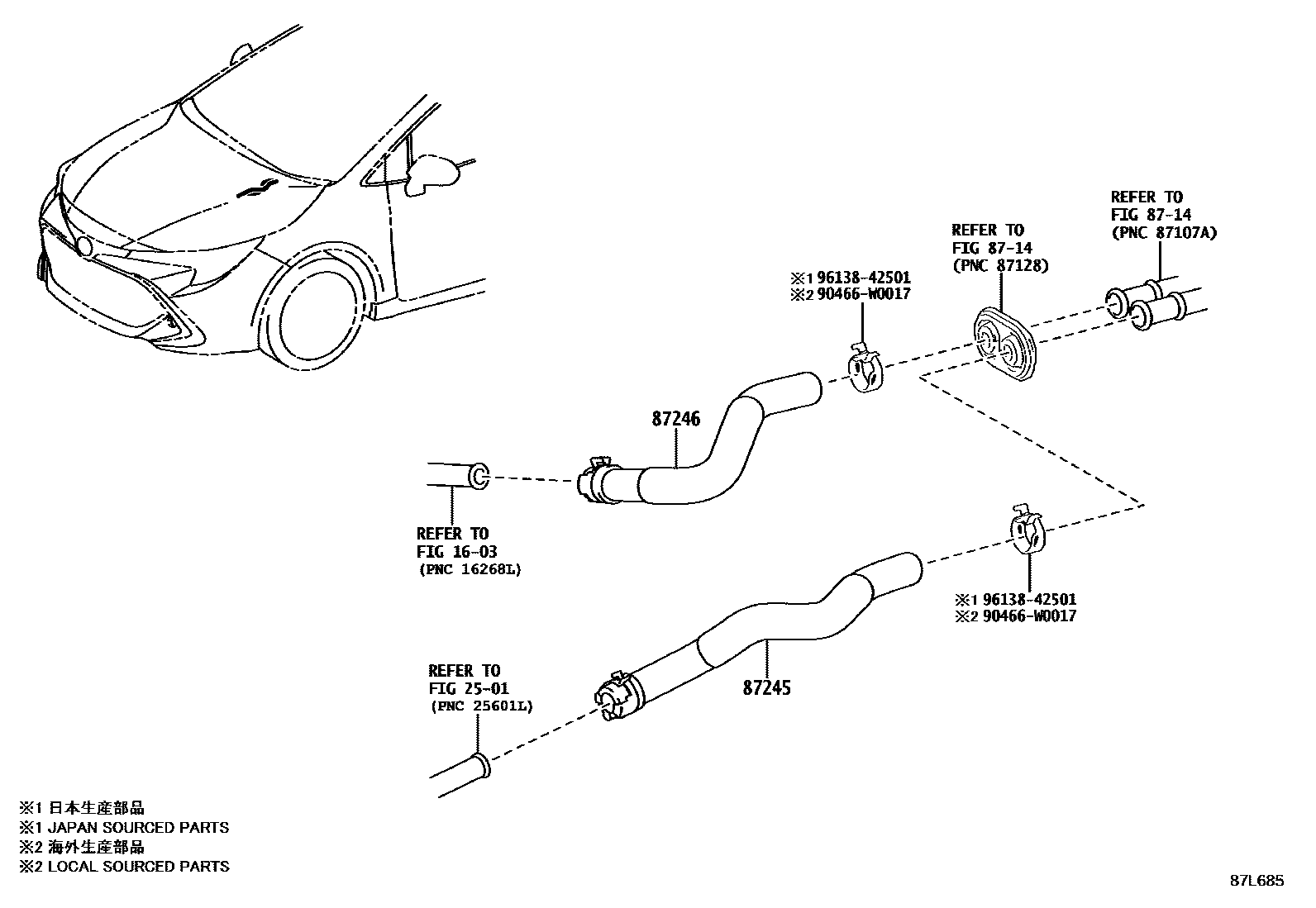

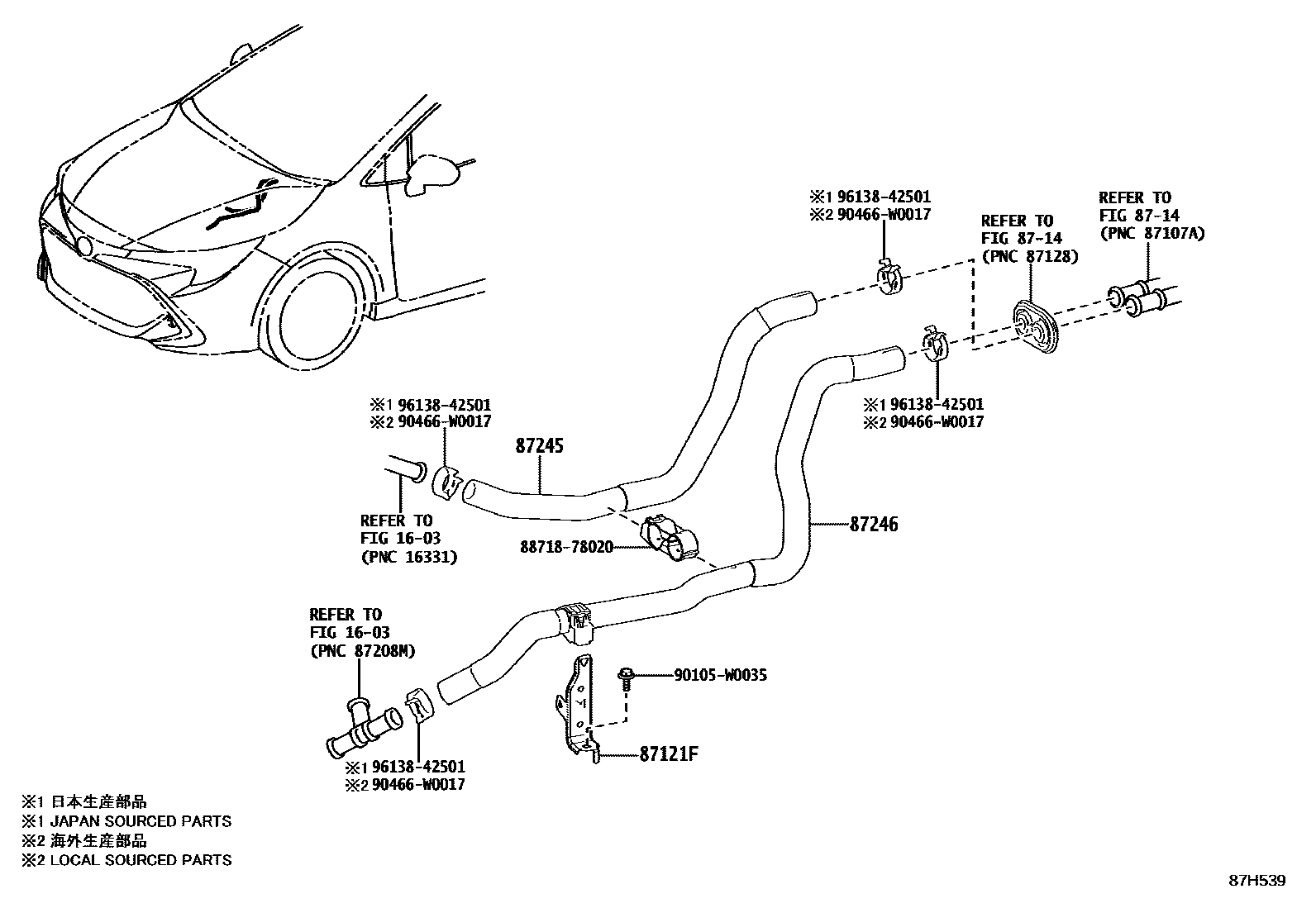

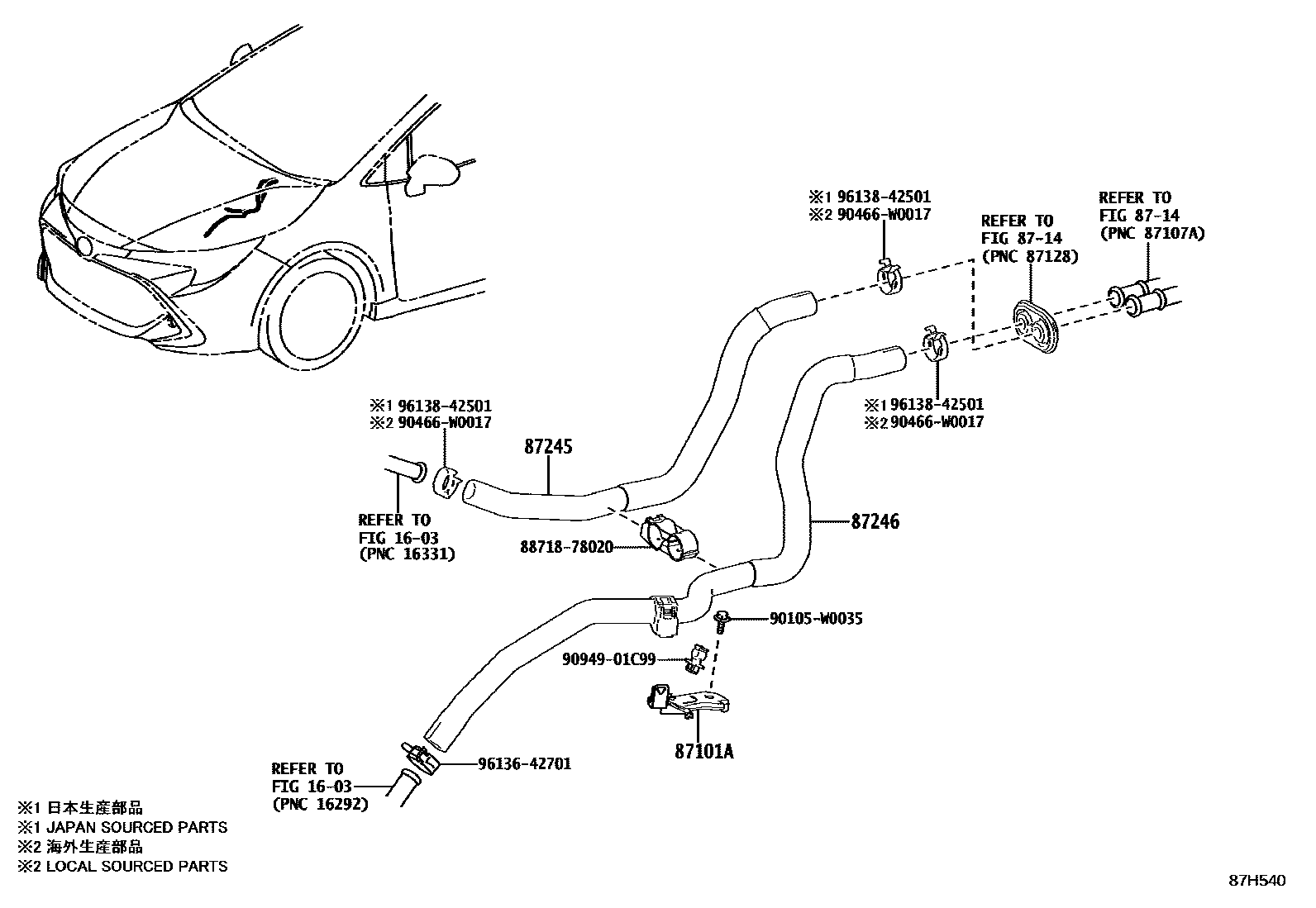

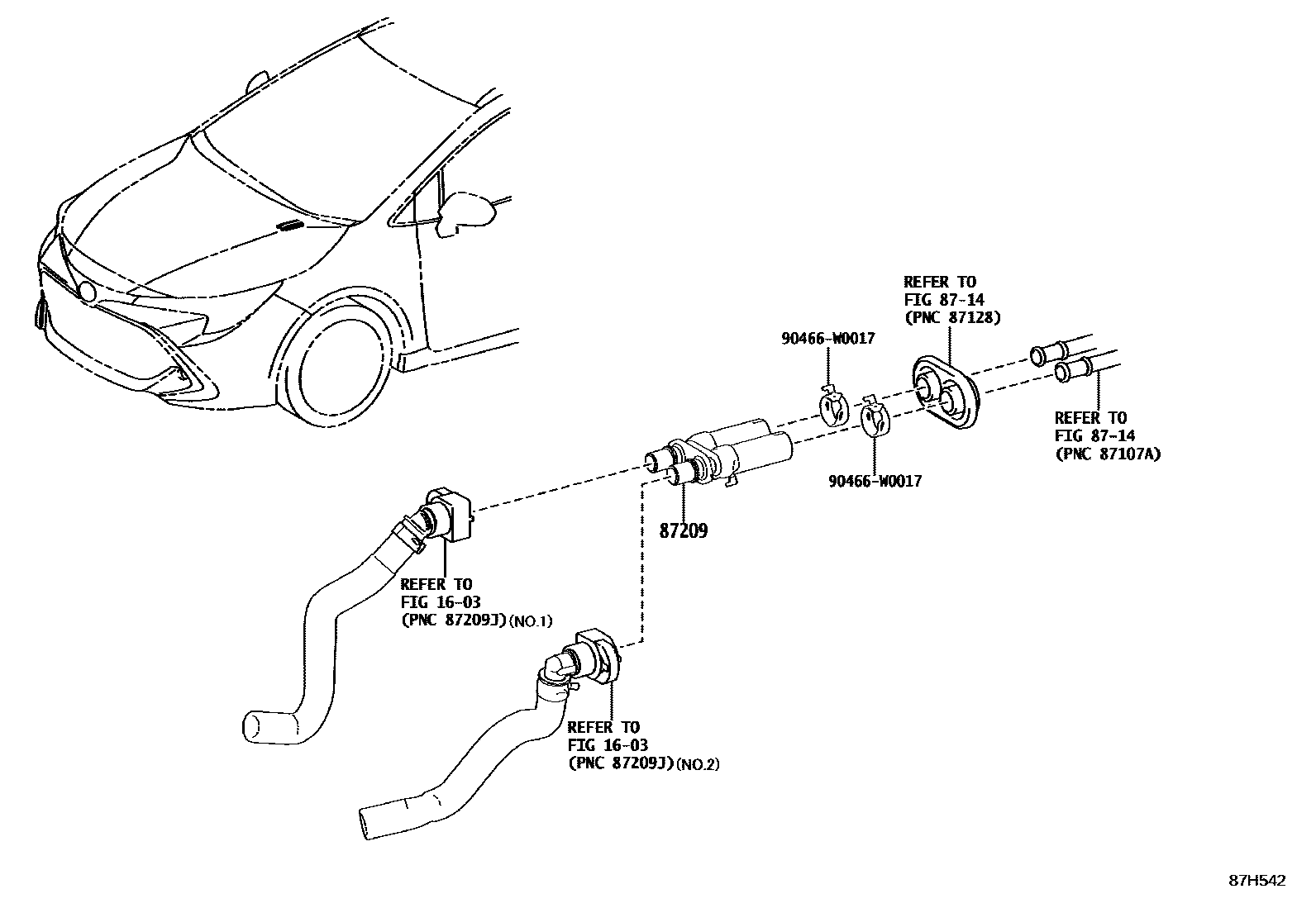

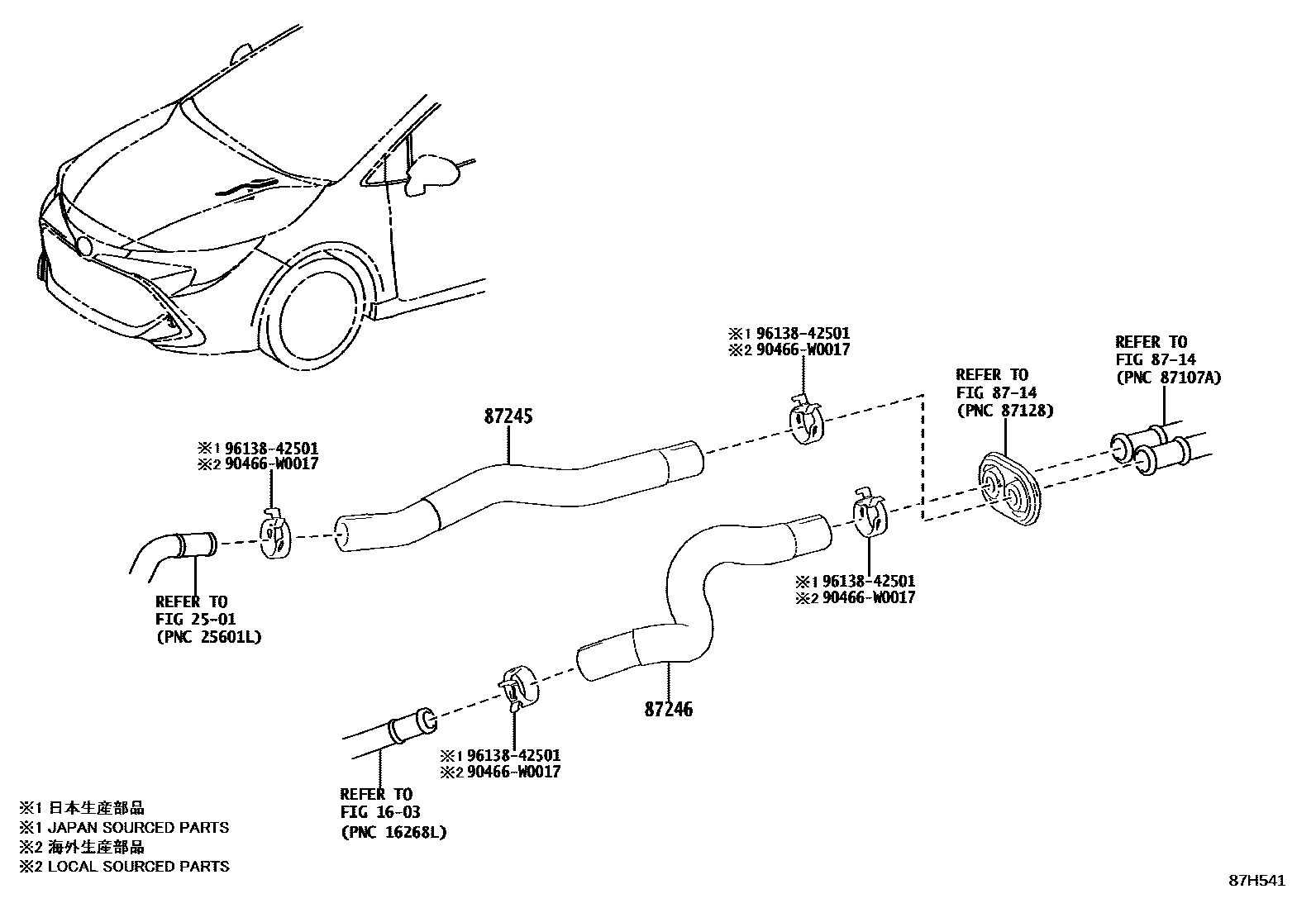

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 6 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101A | No. 1 heater bracket sub-assembly | 87101-12150 |
| 87121F | heater bracket | 87121-02080 |
| 87208A | Heater water pipe sub-assembly A | 87248-12320 |
| 87208B | Heater water pipe sub-assembly B | 87248-76020 · 87248-76030 |
| 87209 | Water hose sub-assembly | 87209-16040 · 87209-76070 |
| 87245 | Heater water inlet hose | 87209-47010 · 87245-02R30 · 87245-F4030 |
| 87245A | Heater water inlet hose A | 87209-76020 |
| 87246 | Heater outlet hose | 87209-02350 · 87209-02360 · 87209-47030 · 87245-F4040 |
| 87246A | Heater outlet hose A | 87245-76020 |
| 87246B | Heater outlet hose B | 87245-12J20 |
| 87246C | Heater outlet hose C | 87245-12J30 |
| 87246D | Heater outlet hose D | 87245-76030 |
| 89429E | water temperature sensor | 89422-33040 |
