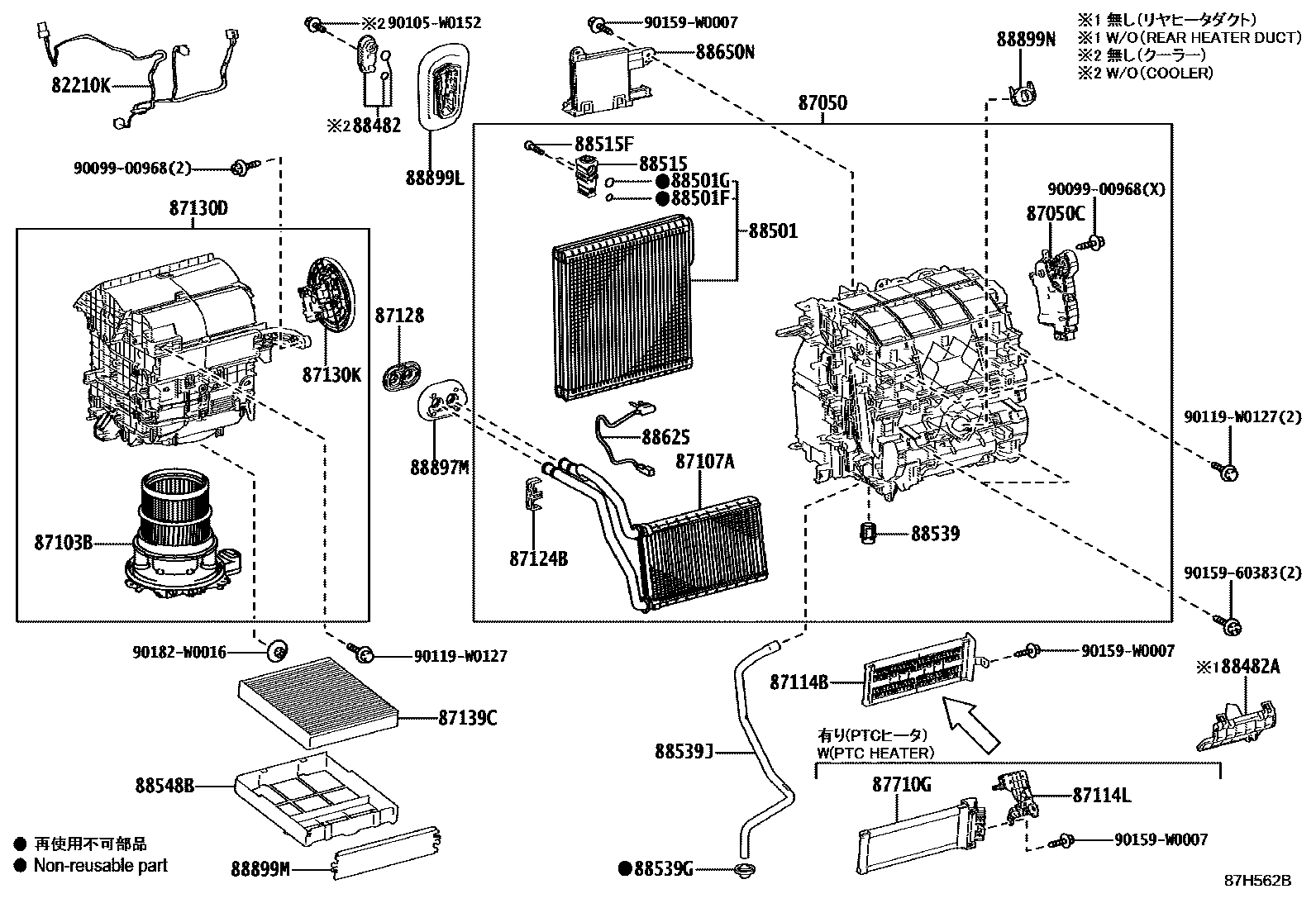

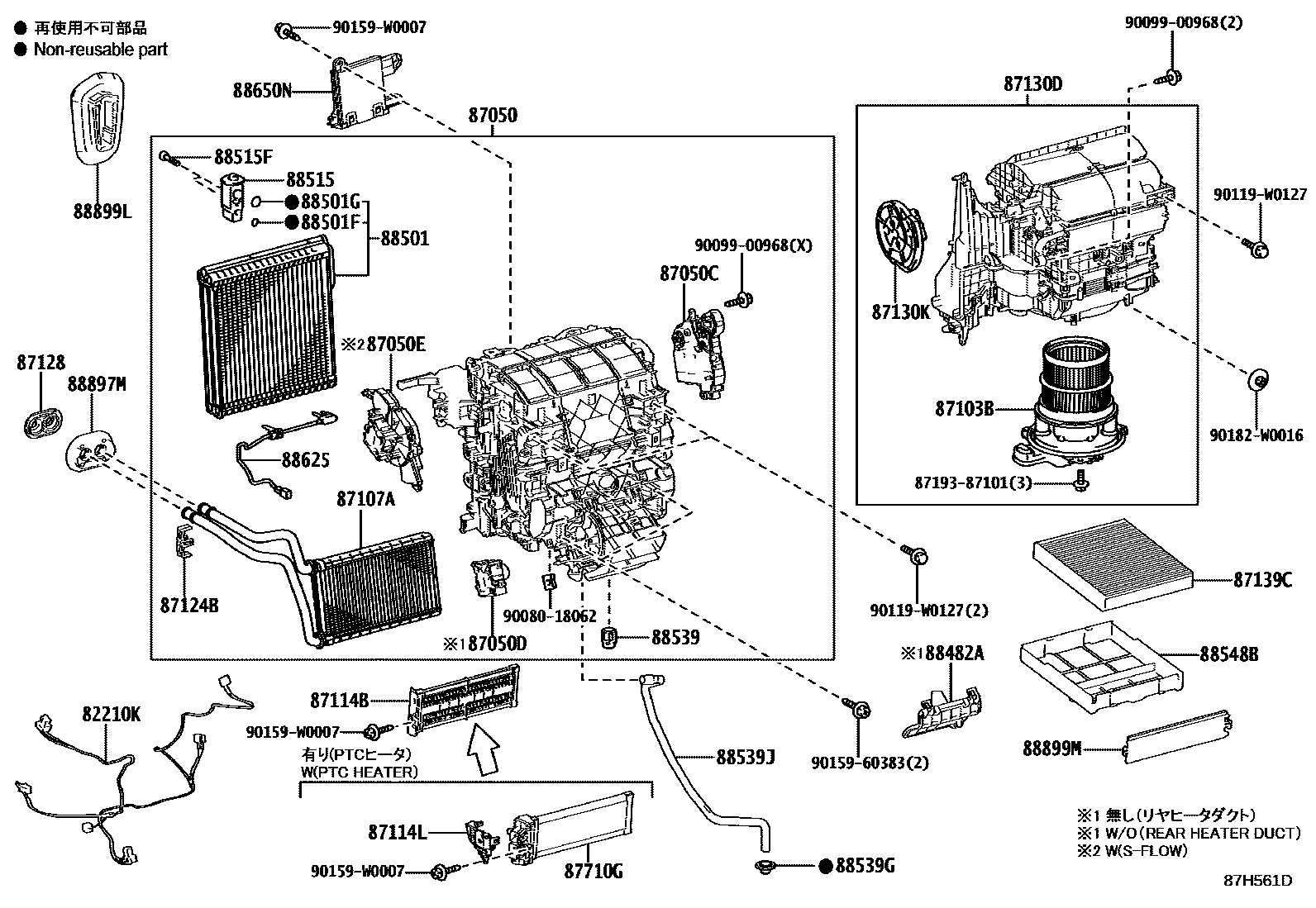

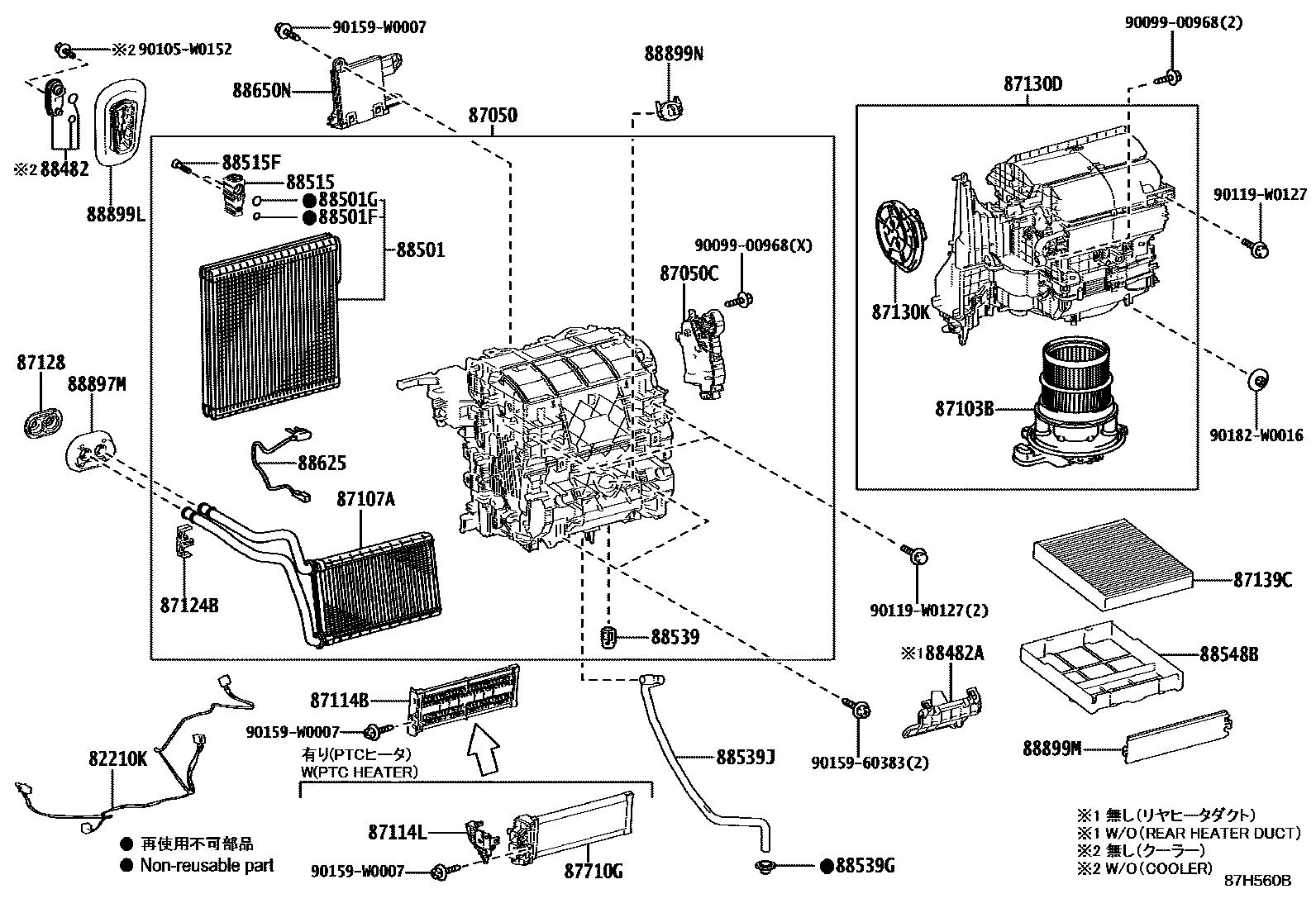

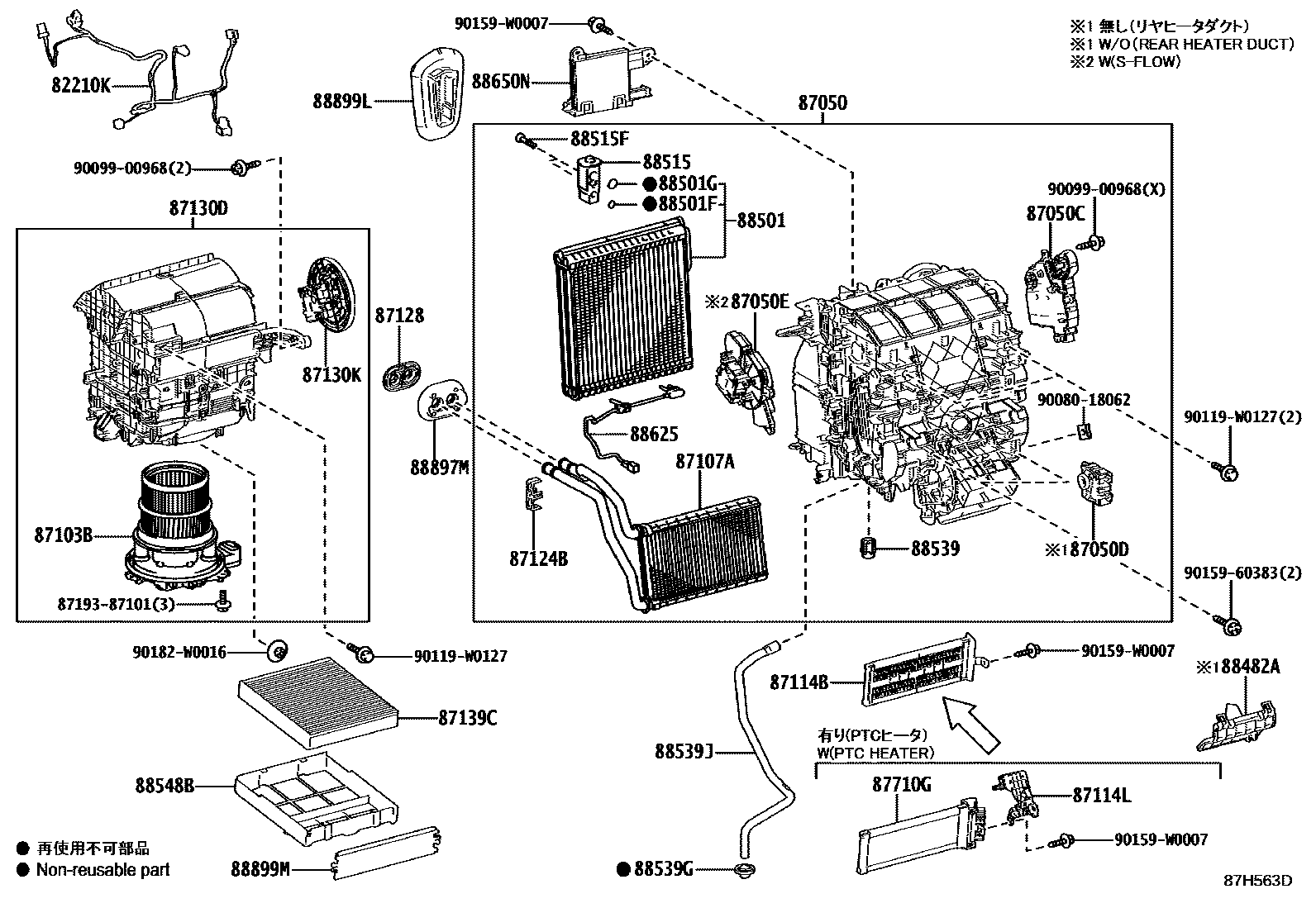

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-02190 · 82212-02200 · 82212-02210 · 82212-02220 · 82212-02230 · 82212-02240 · 82212-02250 · 82212-02260 · 82212-02270 · 82212-02280 · 82212-02290 · 82212-02300 · 82212-02580 · 82212-02590 · 82212-F4010 · 82212-F4020 |
| 87050 | Air conditioning radiator assembly | 87050-02Y10 · 87050-02Y20 · 87050-02Y50 · 87050-0Z390 · 87050-0Z400 · 87050-0Z410 · 87050-0Z420 · 87050-0Z430 · 87050-0Z440 · 87050-0Z450 · 87050-0Z460 · 87050-0Z470 · 87050-0Z480 · 87050-0Z490 · 87050-0Z500 · 87050-0Z510 · 87050-0Z520 · 87050-0Z530 · 87050-0Z540 · 87050-0Z550 · 87050-0Z560 · 87050-0Z570 · 87050-0Z580 · 87050-0Z590 · 87050-0Z600 · 87050-0Z610 · 87050-0Z620 · 87050-0Z630 · 87050-0Z650 · 87050-0Z660 · 87050-0Z670 · 87050-0Z680 · 87050-0Z690 · 87050-0Z700 · 87050-0Z710 · 87050-0Z720 · 87050-0ZE20 · 87050-0ZE30 · 87050-0ZE40 · 87050-0ZE50 · 87050-0ZE60 · 87050-0ZE70 · 87050-0ZG70 · 87050-F4130 · 87050-F4140 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-02540 · 87106-F4010 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-02670 · 87106-02680 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-02690 · 87106-02700 |
| 87103B | Blower motor sub-assembly with fan | 87103-02740 · 87103-02750 · 87103-F4010 · 87103-F4020 |
| 87107A | Heater radiator device sub-assembly | 87107-F4010 · 87107-F4020 |
| 87114B | heater cover | 87114-F4060 |
| 87114L | Heater cover No. 2 | 87114-02120 · 87114-F4050 |
| 87124B | heater clip | 87124-F4010 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-F4010 · 87130-F4011 · 87130-F4020 · 87130-F4021 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-F4020 · 87106-F4030 |
| 87139C | air purification filter | 87139-58010 · 87139-F4020 |
| 87710G | Rapid heater assembly | 87710-F4030 |
| 88482 | cooler cover | 88482-26040 |
| 88482A | cover | 87114-F4070 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02480 · 88501-02490 · 88501-02500 · 88501-02510 · 88501-02520 · 88501-02680 · 88501-F4100 |
| 88501F | No. 1 cooler evaporator O-ring (discharge) | 90099-14120 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90099-14121 |
| 88515 | Cooler expansion valve | 88515-02560 · 88515-02650 · 88515-02660 · 88515-02770 · 88515-02790 · 88515-02800 |
| 88515F | Bolt (for cooler expansion valve) | 90099-04542 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88899-10110 |
| 88539G | Seal (for cooler unit drain hose) | 88888-47010 |
| 88539J | Cooler drain hose | 88539-F4030 · 88539-F4040 |
| 88548B | air filter housing | 88899-F4030 |
| 88625 | Cooler No. 1 Thermistor | 88620-02130 · 88620-02210 · 88620-F4010 |
| 88650N | Air conditioning amplifier assembly | 88650-02L40 · 88650-02L60 · 88650-02L61 · 88650-02P60 · 88650-02P61 · 88650-02Q10 |
| 88897M | Seals (for heater tubes) | 87128-F4010 |
| 88899L | Cooling unit parts | 88899-02370 · 88899-F4040 |
| 88899M | cover (for air cleaner) | 88899-F4011 |
| 88899N | Cover plate | 88899-02320 |
