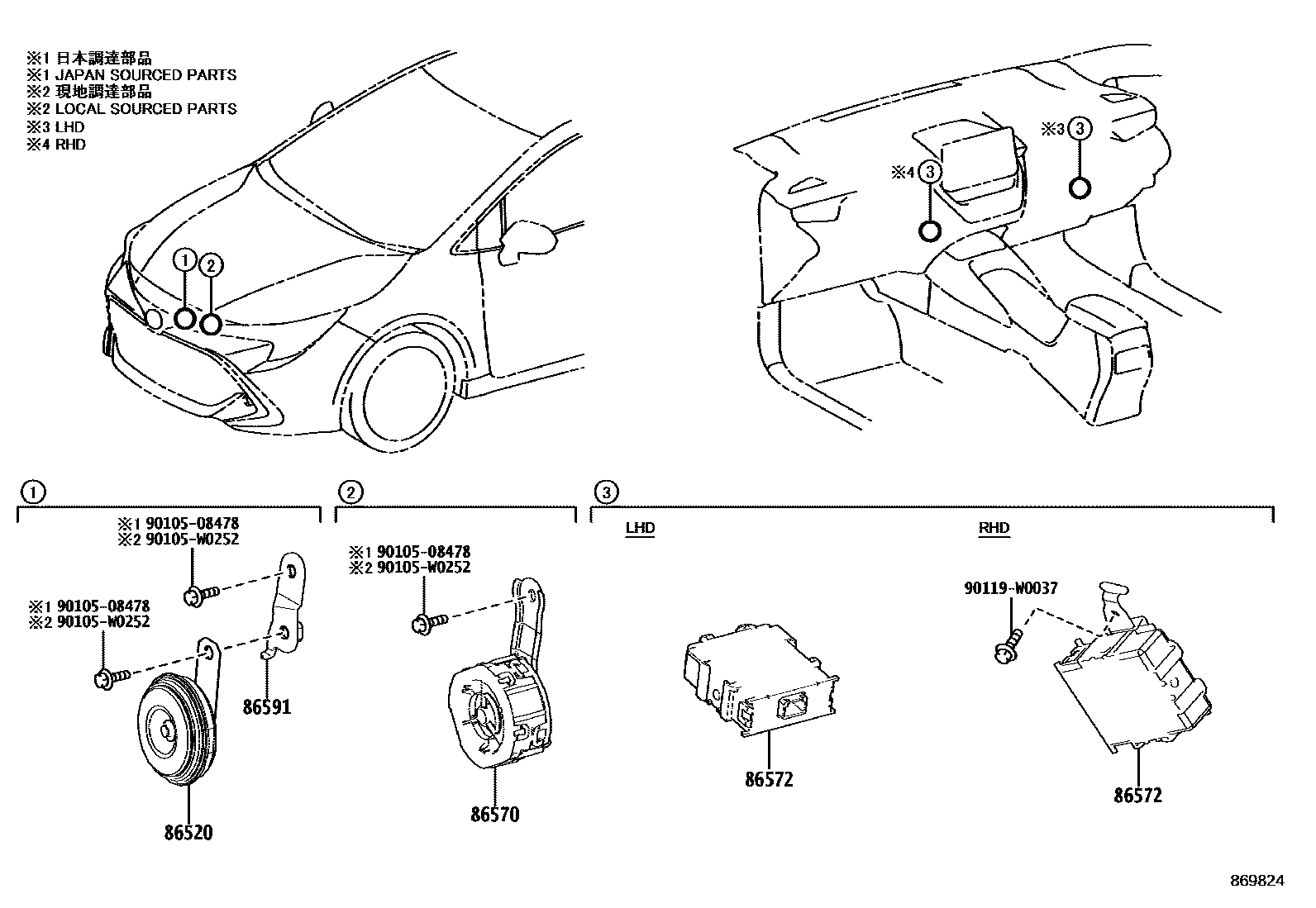

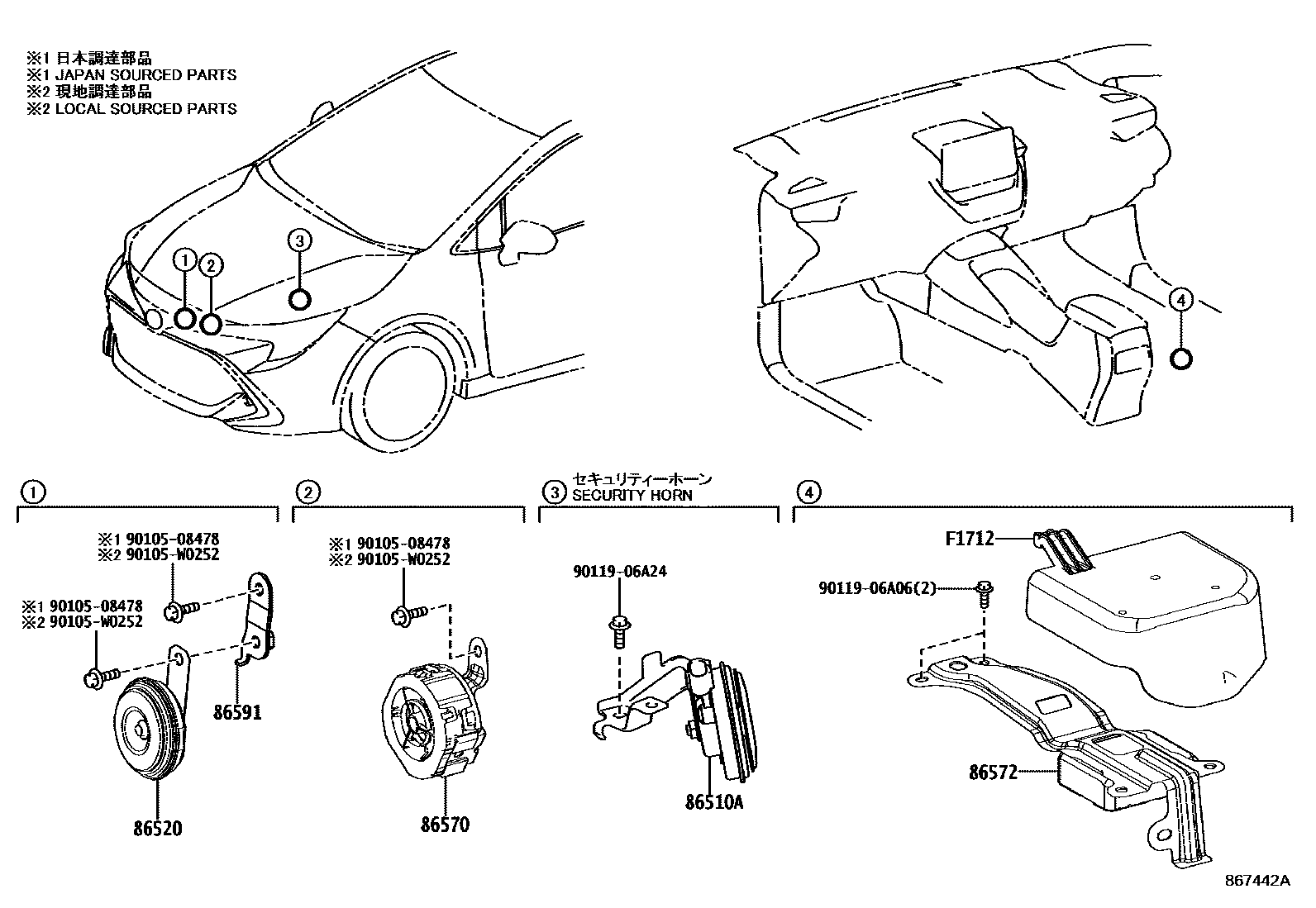

Toyota COROLLA 喇叭 — Figure 8611
Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510A | Alarm horn assembly | 86560-12090 |
| 86520 | Subwoofer assembly | 86520-0D050 · 86520-35102 |
| 86570 | Vehicle intrusion speaker assembly | 86570-02070 · 86570-12030 |
| 86572 | vehicle hacking speaker controller | 86572-02070 · 86572-02080 · 86572-02090 · 86572-02100 · 86572-12130 · 86572-12170 |
| 86591 | speaker bracket | 86591-02020 · 86591-02190 |
| F1712 | Vehicle Intrusion Speaker Controller Cover | F1712-12090 |
