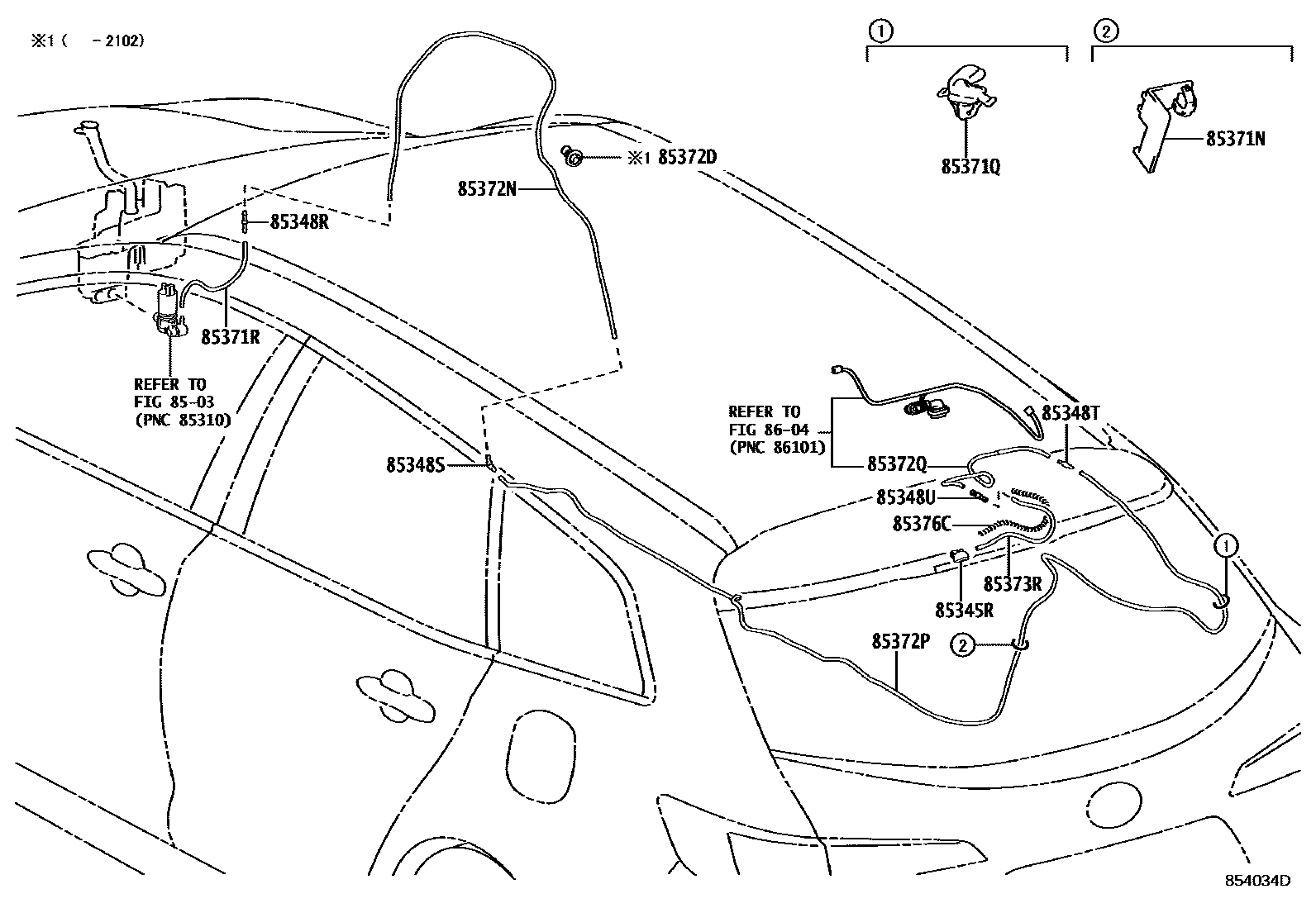

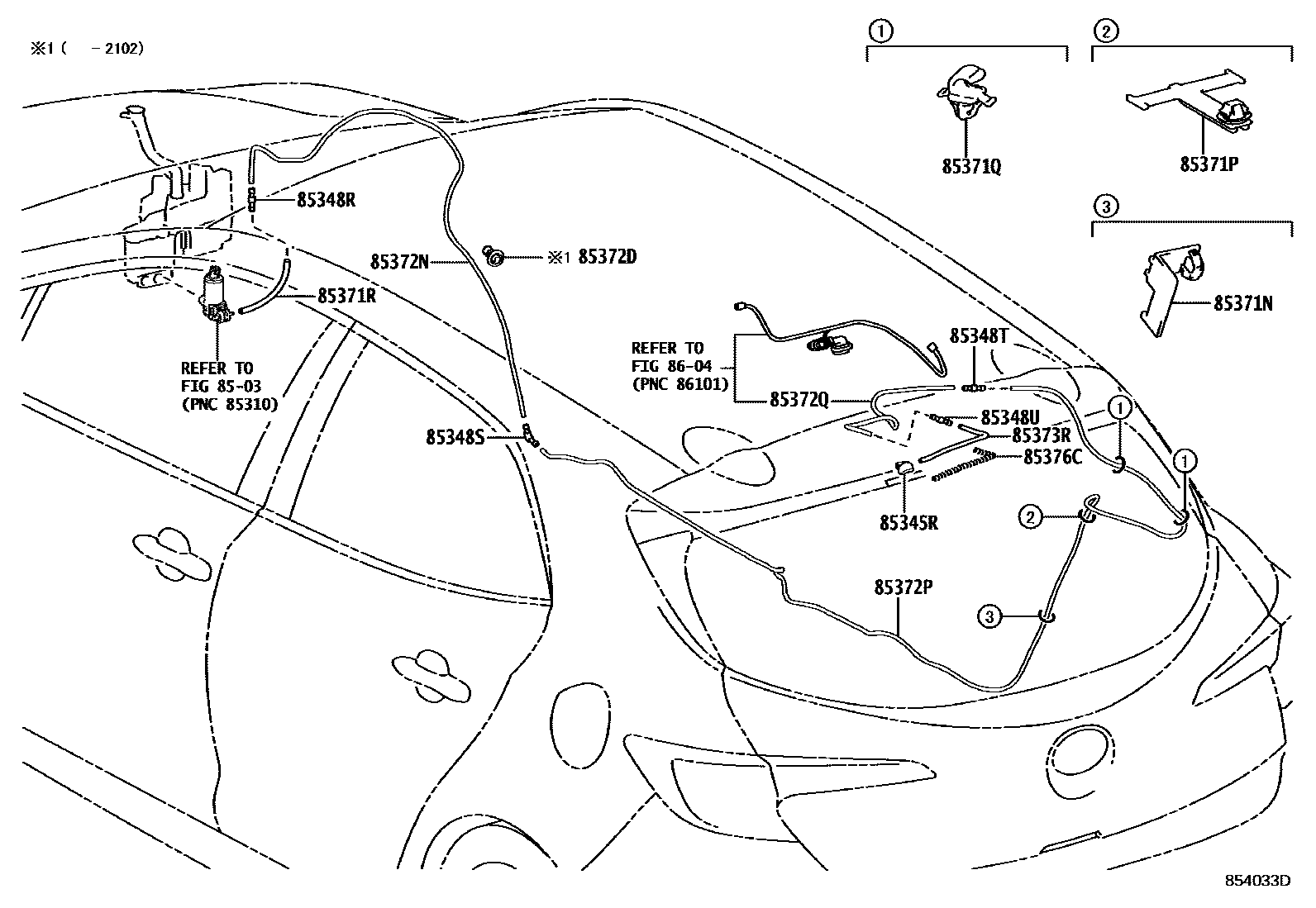

Toyota COROLLA 后清洗器 — Figure 8504
Toyota COROLLA EPC diagram 8504, 后清洗器, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85391-12100 · 85391-12110 |
| 85348R | No. 1 rear washer hose connector | 85375-05050 |
| 85348S | No. 1 rear cleaner elbow joint | 85395-05020 |
| 85348T | No. 2 rear washer hose connector | 85375-05050 |
| 85348U | No. 3 rear washer hose connector | 85349-89122 |
| 85371N | Rear washer hose clamp | 85387-02540 |
| 85371P | No. 2 rear washer hose clamp | 82711-48220 |
| 85371Q | No. 3 rear washer hose clamp | 85371-12040 |
| 85371R | Rear washer hose (from motor to connector) | 90069-16009 |
| 85372D | Rear washer hose seal | 85379-12850 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90069-16010 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90069-16010 |
| 85376C | washer hose spring | 85389-12080 · 85389-72030 |
