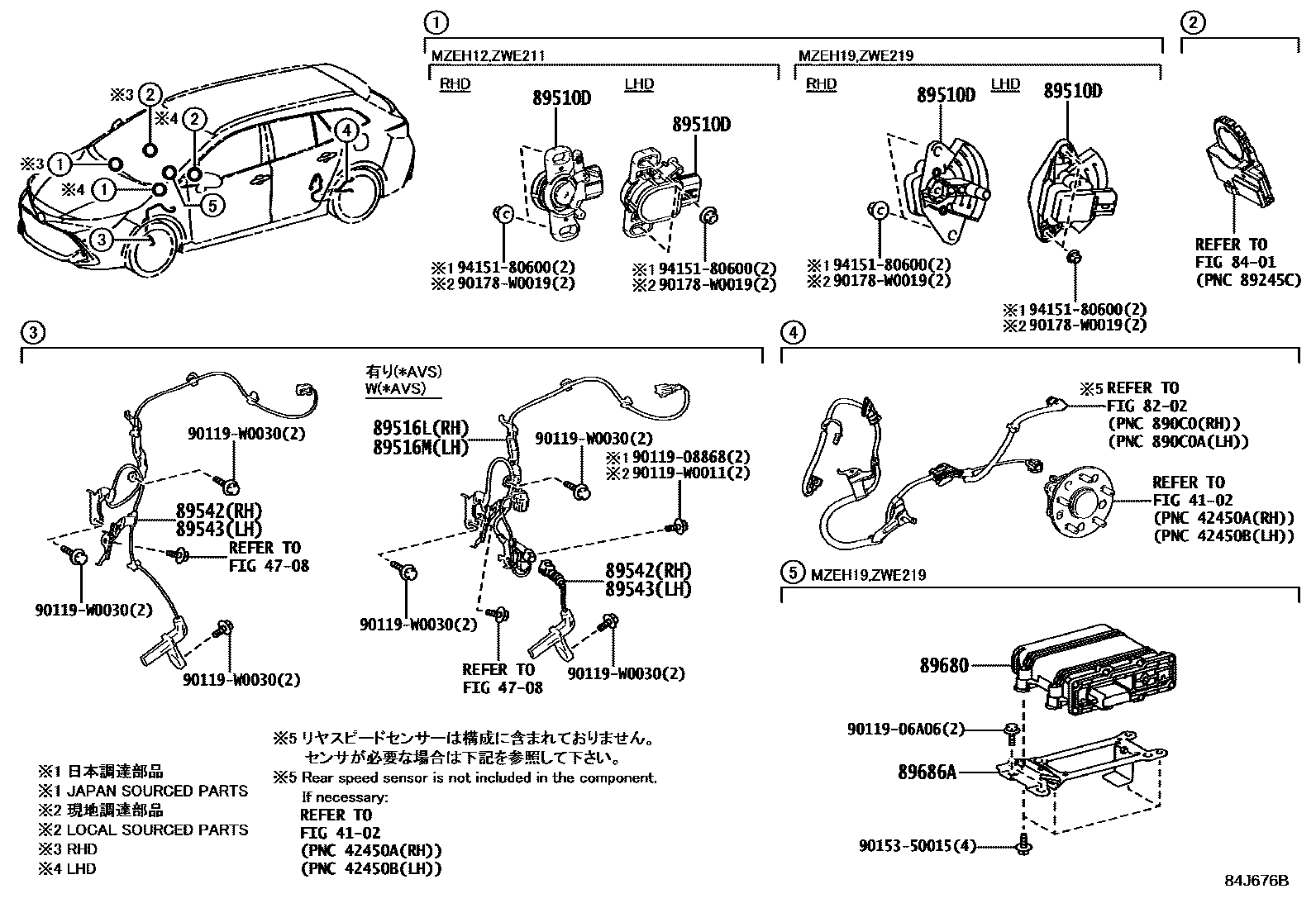

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89510D | Brake pedal stroke sensor assembly | 89510-47030 · 89510-47040 · 89510-K0010 · 89510-K0011 · 89510-K0020 · 89510-K0021 |
| 89516L | Anti-skid control sensor right side harness with suspension control | 89516-12090 |
| 89516M | Anti-skid control sensor left harness with suspension control | 89516-12200 |
| 89542 | Right front wheel speed sensor | 89542-02170 · 89542-12140 |
| 89543 | Left front wheel speed sensor | 89543-02170 · 89543-12140 |
| 89680 | Brake control power supply assembly | 89680-02010 |
| 89686A | No. 1 brake control power bracket | 89686-02010 |
