Toyota COROLLA 高位刹车灯 — Figure 8117

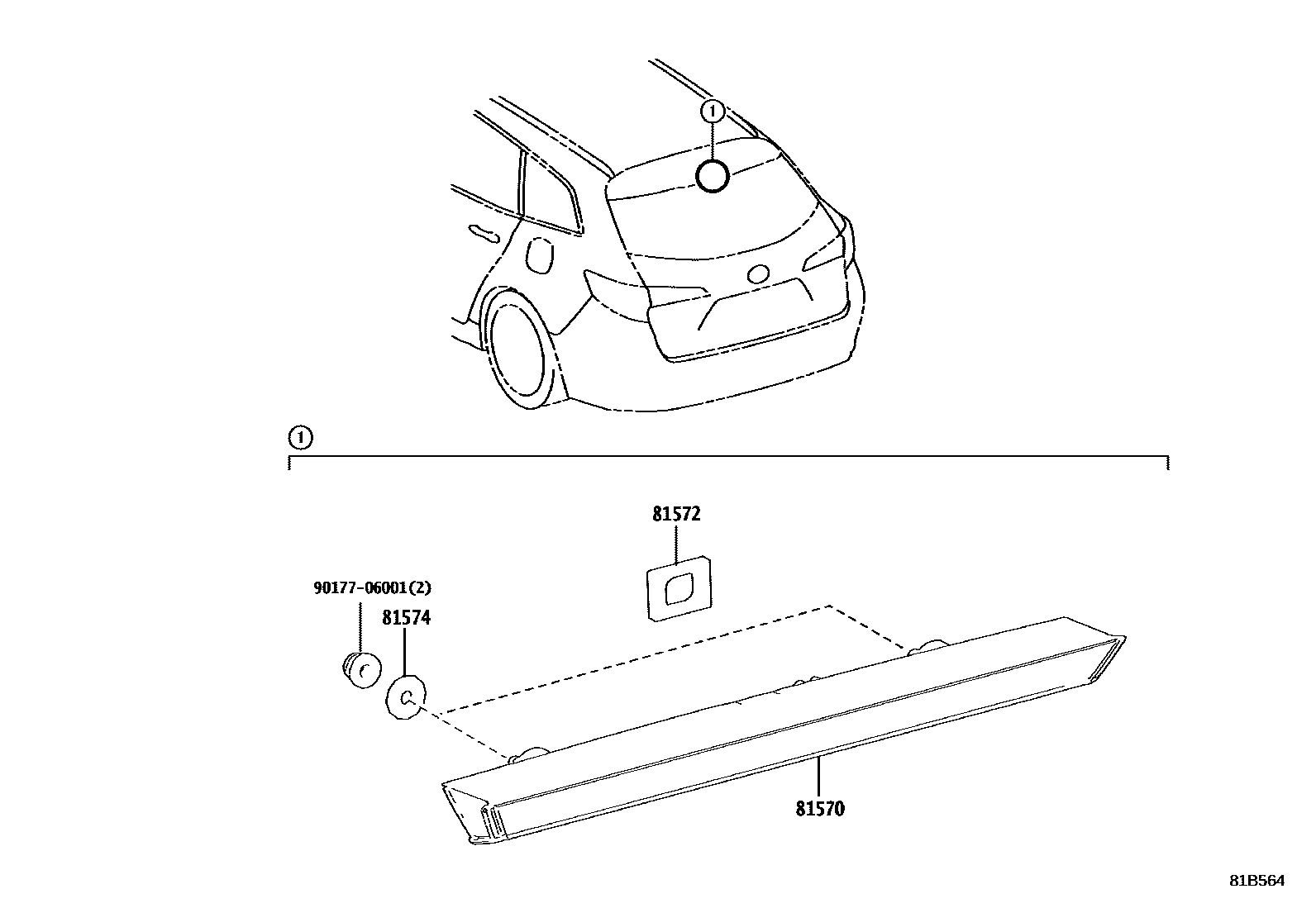

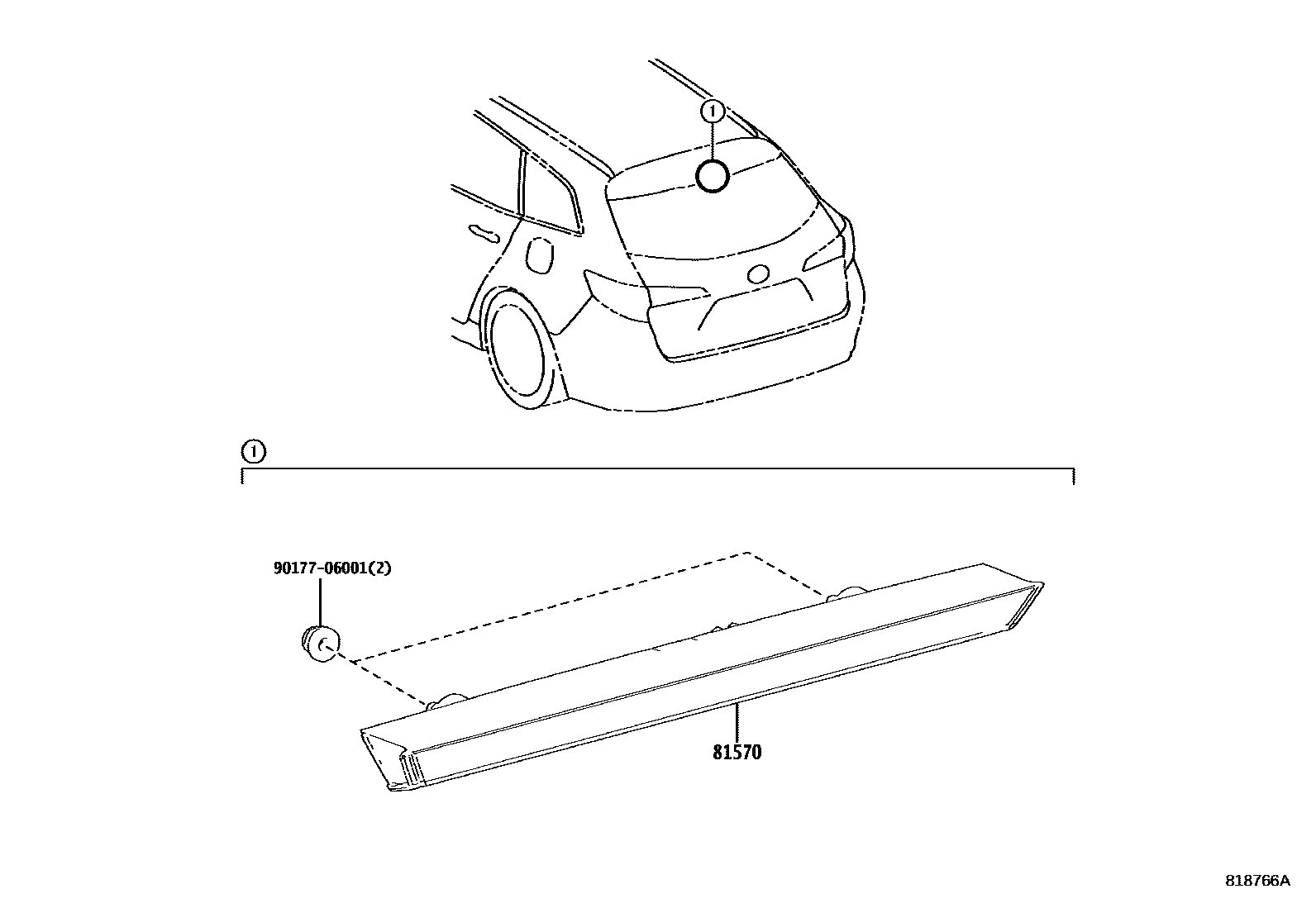

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-02230 · 81570-02240 · 81570-12450 |
| 81572 | Center brake light gasket | 81572-12450 |
| 81574 | Central brake light cover | 81574-13210 |
