Toyota COROLLA Headlamp — Figure 8101

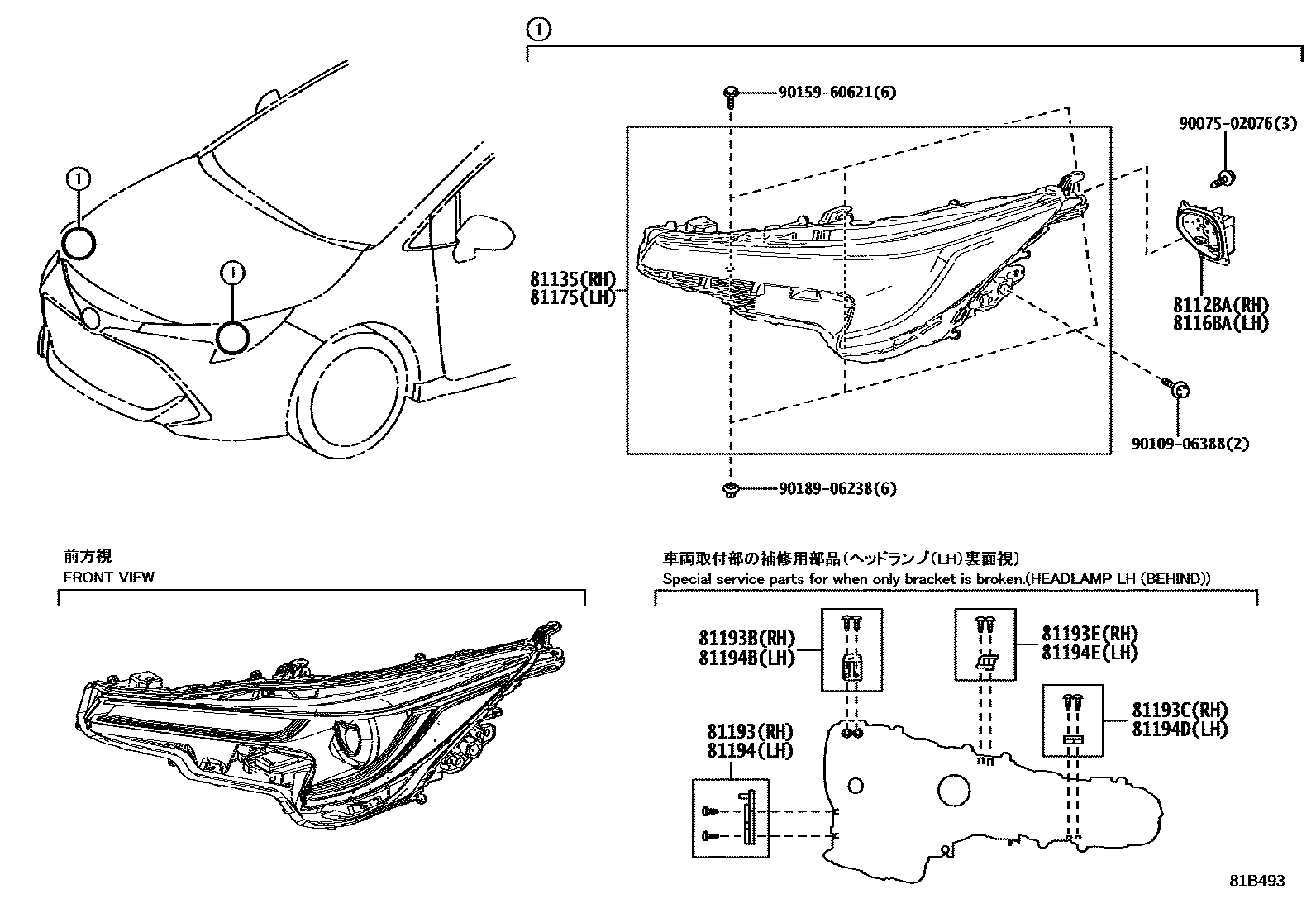

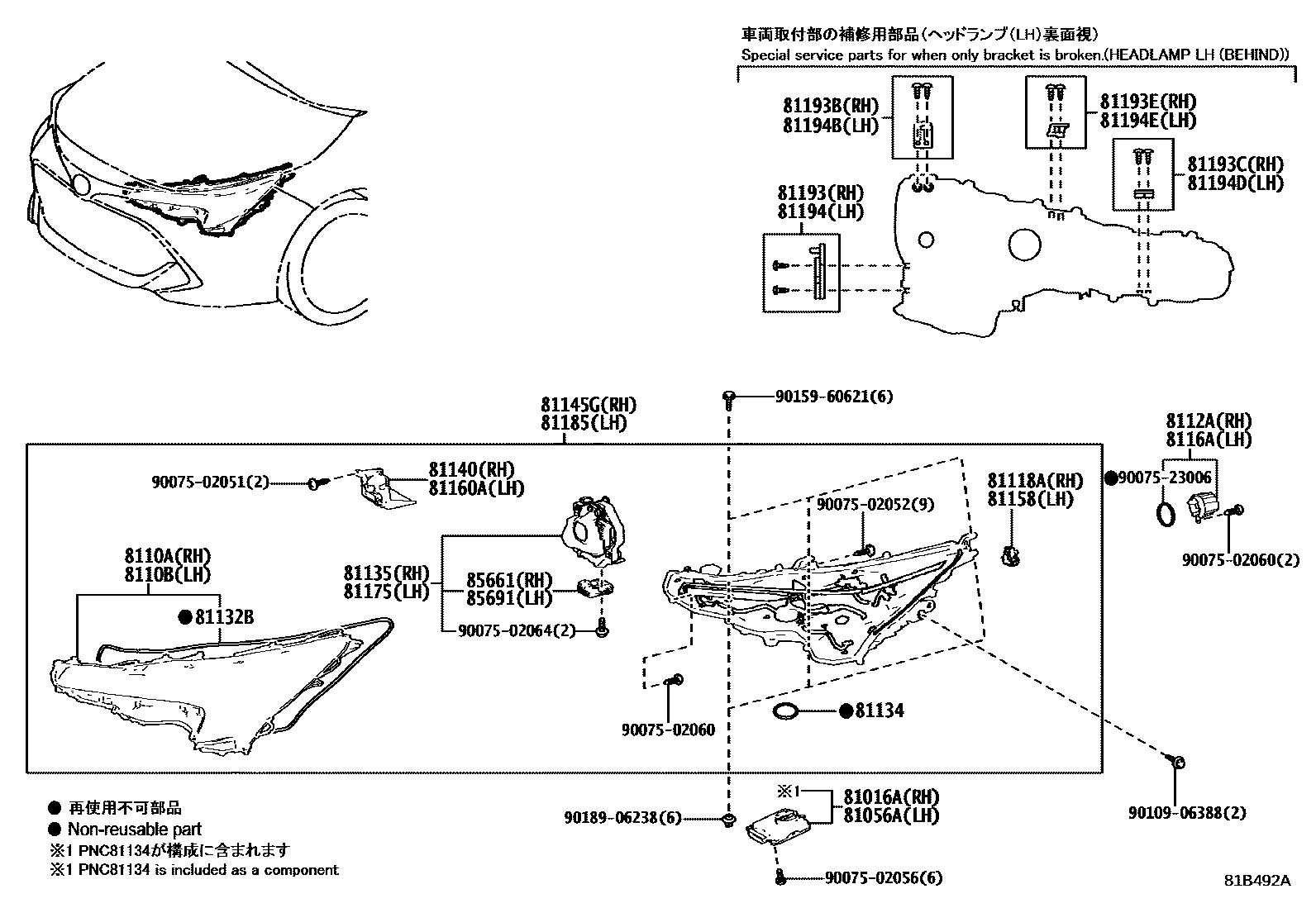

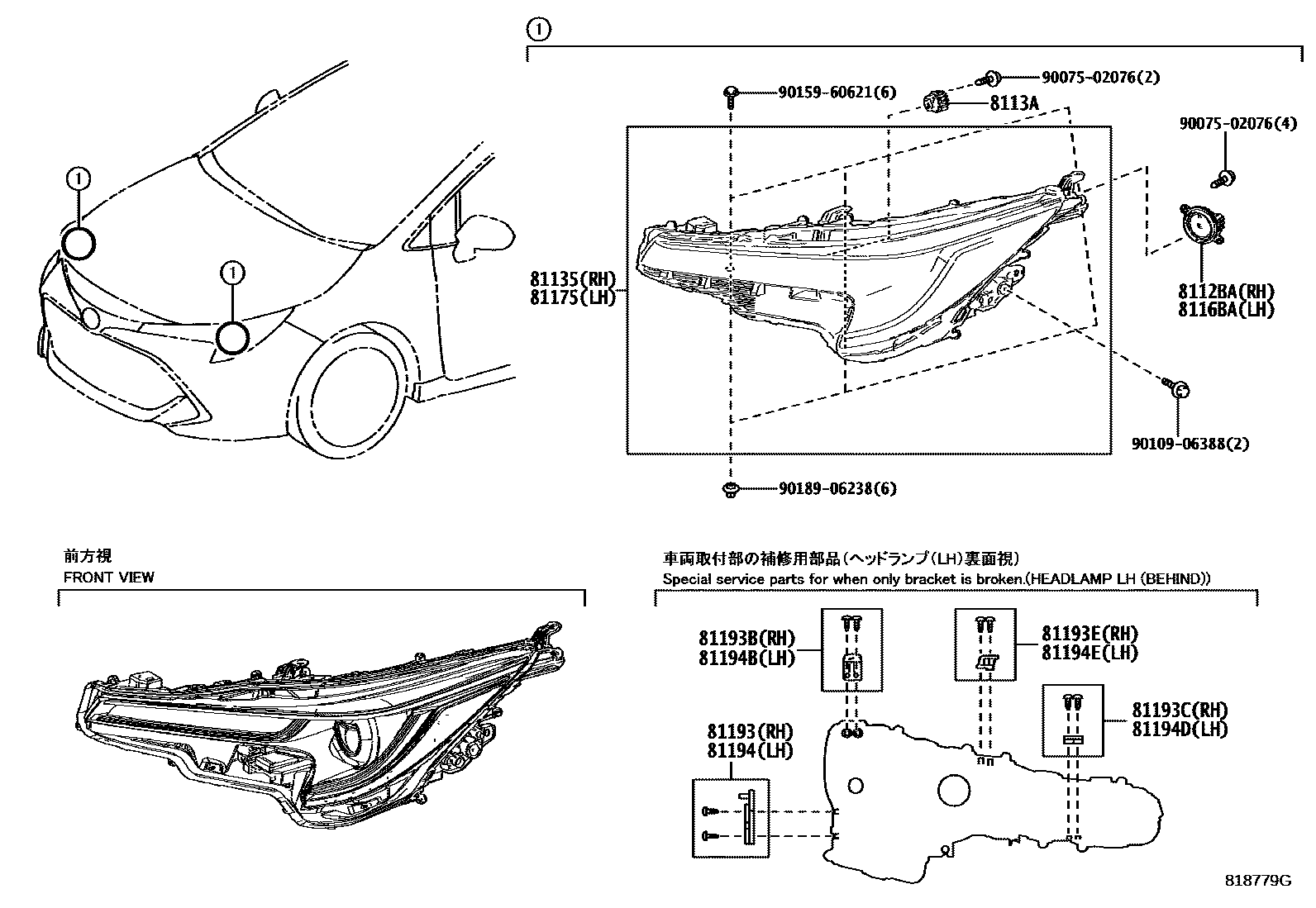

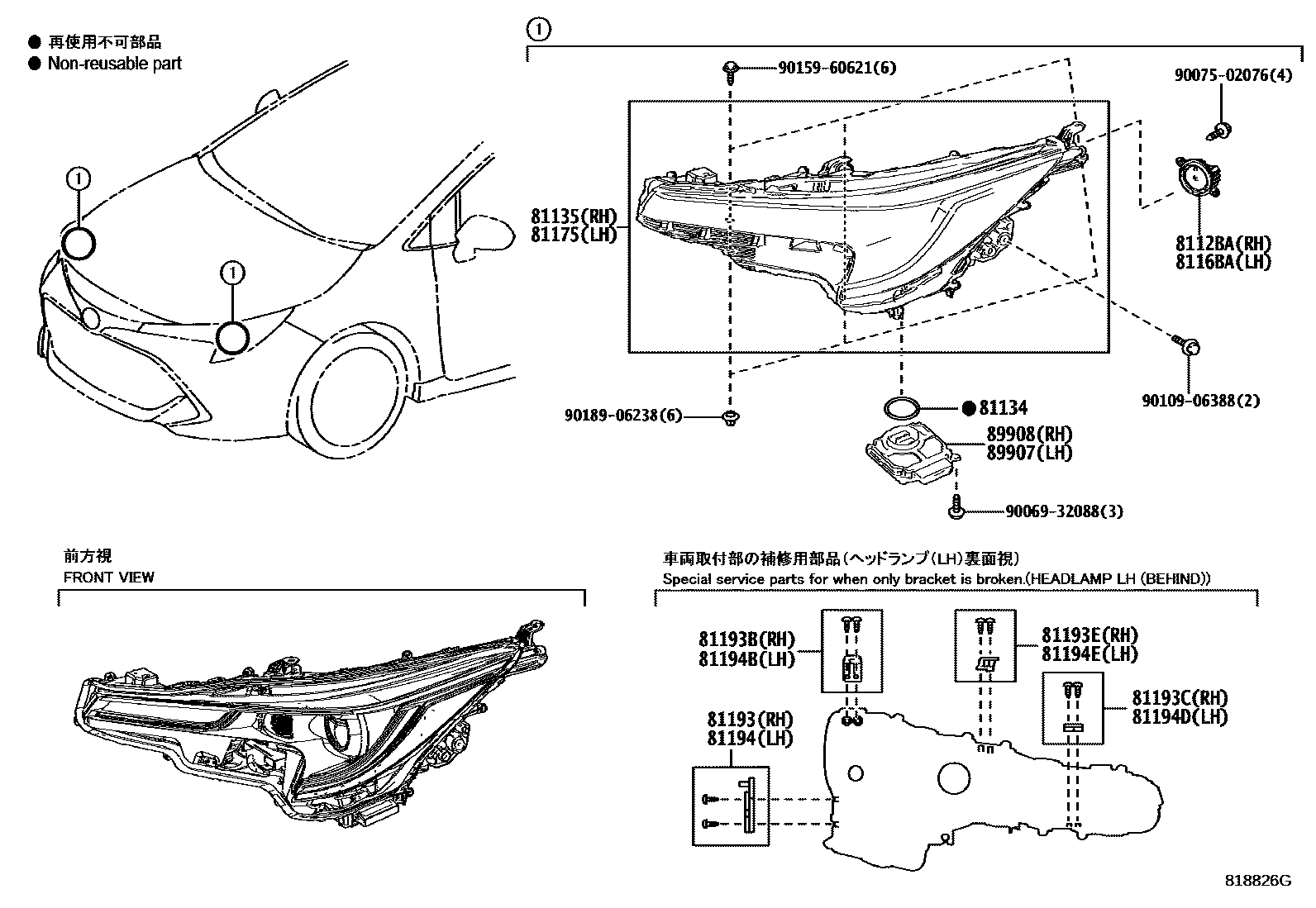

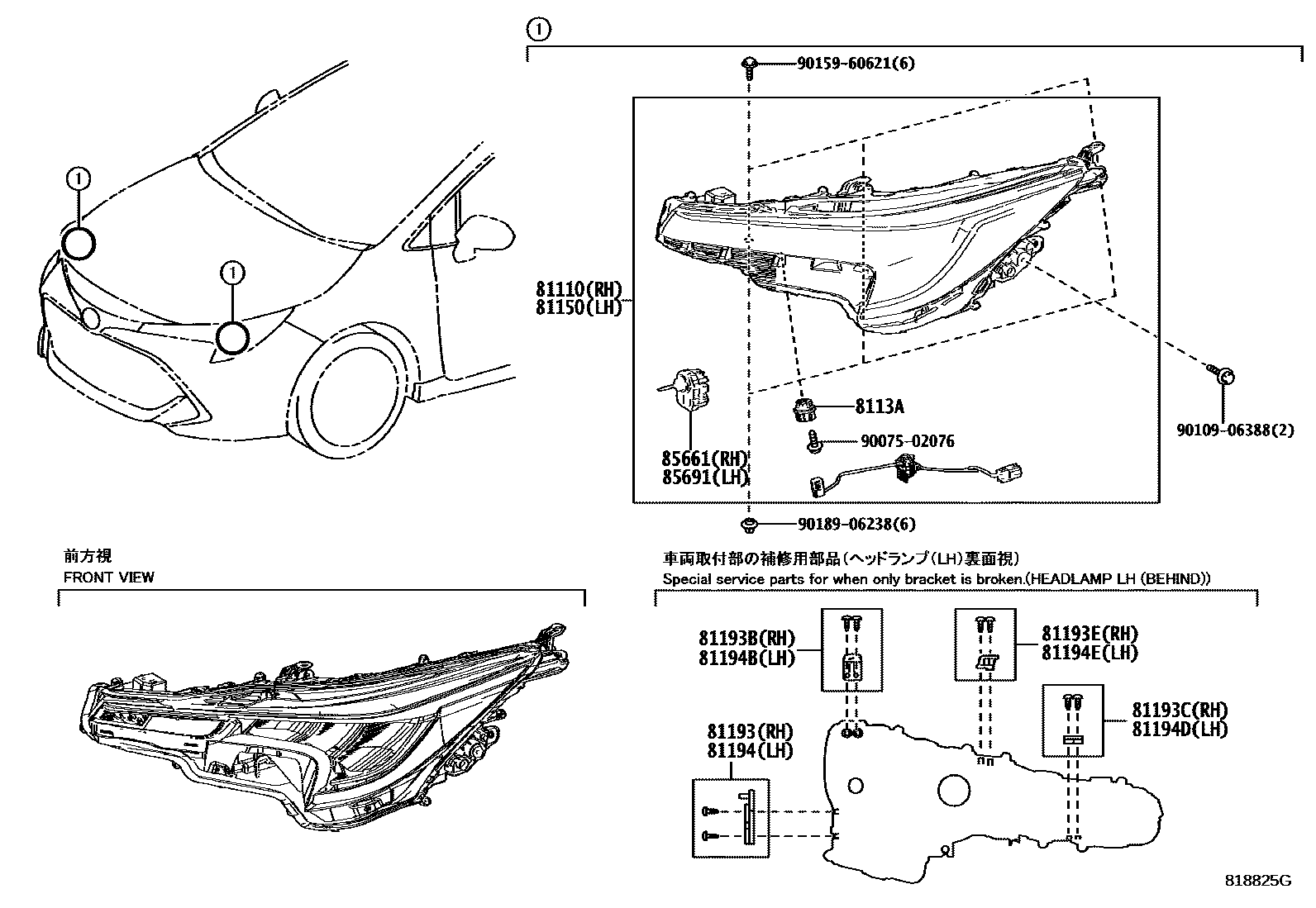

Toyota COROLLA EPC diagram 8101, Headlamp, with 5 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016A | Right headlight ECU sub-assembly | 81016-12N80 |
| 81056A | Left headlight ECU sub-assembly | 81056-12N80 |
| 8110A | Right headlight cover sub-assembly | 8110A-12N80 |
| 8110B | Left headlight cover sub-assembly | 8110B-12N80 |
| 81110 | Right headlight assembly | 00000-00000 · 81110-02S60 · 81110-02T00 |
| 81118A | Right headlight bracket | 81118-76310 |
| 8112A | Right No. 1 headlight width indicator LED assembly | 8112A-12N30 |
| 8112BA | Right LED headlight daytime running light bulb | 8112B-02S70 · 8112B-02X10 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81134 | headlight gasket | 90075-23003 · 90075-23004 |
| 81135 | Right headlight assembly assembly | 81130-02S70 · 81130-02S80 · 81130-02T10 · 81130-02T20 · 81130-02X10 · 81130-02X20 · 81130-12N70 · 81130-12N80 |
| 8113A | Headlight turn signal LED | 8113A-02S60 |
| 81140 | Right headlight LED assembly assembly | 81140-12N80 |
| 81145G | Padded right side headlight assembly? | 81145-12N70 · 81145-12N80 |
| 81150 | Left headlight assembly | 00000-00000 · 81150-02S60 · 81150-02T00 |
| 81158 | Left headlight bracket | 81158-76310 |
| 81160A | Left headlight LED assembly assembly | 81160-12N80 |
| 8116A | Left No. 1 headlight width indicator LED assembly | 8116A-12N30 |
| 8116BA | Left LED headlight daytime running light bulb | 8116B-02S70 · 8116B-02X10 |
| 81175 | Left headlight assembly assembly | 81170-02S70 · 81170-02S80 · 81170-02T10 · 81170-02T20 · 81170-02X10 · 81170-02X20 · 81170-12N70 · 81170-12N80 |
| 81185 | Padded left headlight assembly | 81185-12N70 · 81185-12N80 |
| 81193 | Right headlight upper protective ring | 81193-12250 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-12260 |
| 81193C | Right headlight upper right protection ring | 81193-12270 |
| 81193E | Protective ring on the right No. 3 headlight | 81193-12280 |
| 81194 | Left headlight upper protective ring | 81194-12250 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-12260 |
| 81194D | Left headlight upper left protective ring | 81194-12270 |
| 81194E | Protective ring on the left No. 3 headlight | 81194-12280 |
| 85661 | Right headlight beam height adjustment motor | 85661-45010 · 85661-68011 |
| 85691 | Left headlight beam height adjustment motor | 85661-68011 · 85691-45010 |
| 89907 | Left headlight ECU sub-assembly | 89907-12050 |
| 89908 | Right headlight ECU sub-assembly | 89908-12050 |
