Toyota COROLLA 侧防护条 — Figure 7503
Toyota COROLLA EPC diagram 7503, 侧防护条, with 8 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

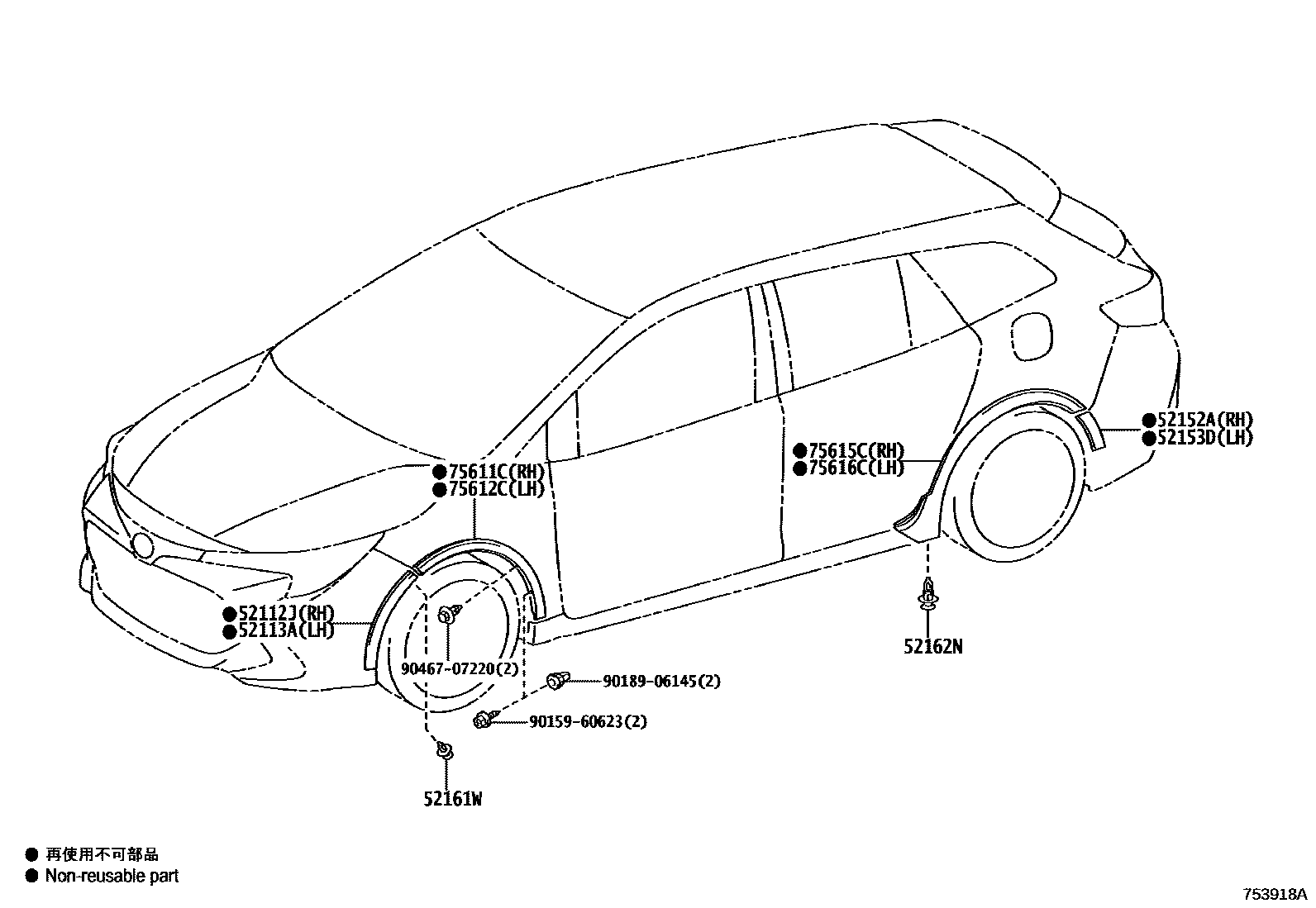

| 52112J | Front bumper right extension | 52112-YY040 |
| 52113A | Front bumper left extension | 52113-YY040 |
| 52152A | Rear bumper right extension | 52152-YY020 |
| 52153D | Rear bumper left extension | 52153-YY020 |
| 52161W | front bumper insert | 52161-YY020 |
| 52162N | Rear bumper insert | 52161-02030 |
| 60117 | Right front pillar upper cover sub-assembly | 60117-02230 · 60117-02250 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-02230 · 60118-02250 |

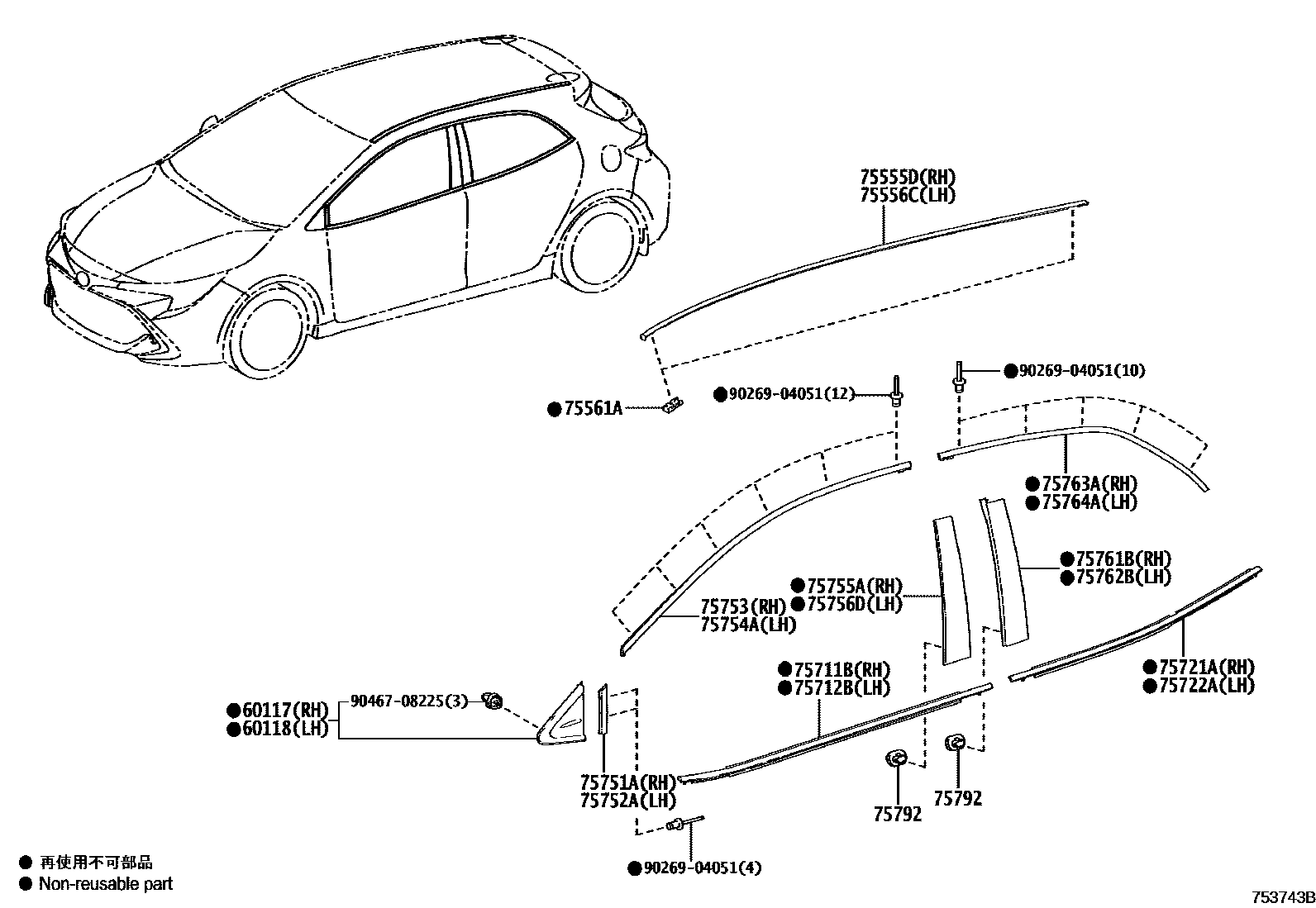

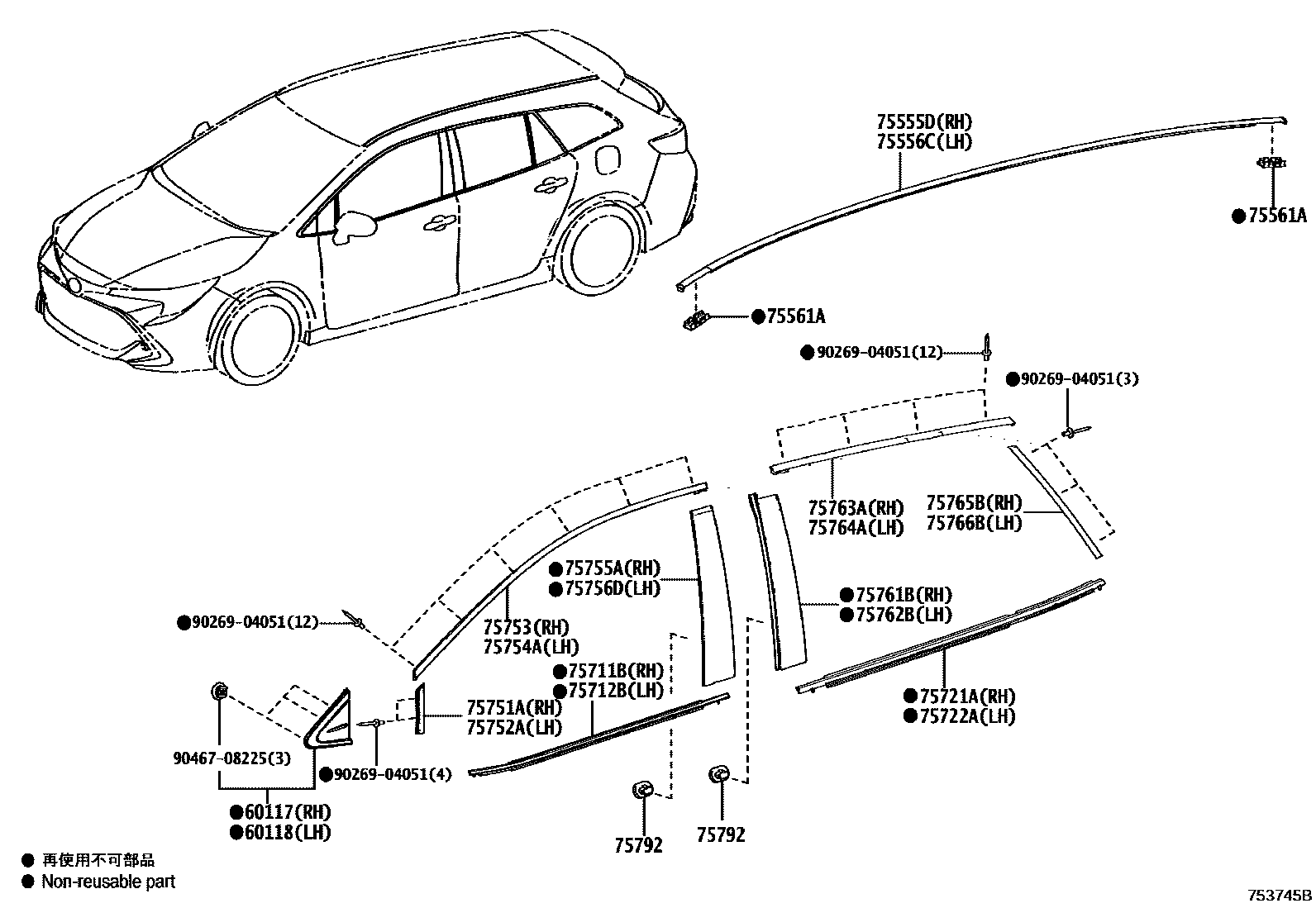

| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-02310 · 75555-02320 · 75555-02390 · 75555-02420 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-02290 · 75556-02370 · 75556-02390 · 75556-02430 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75611C | Right front fender outer protective strip | 75611-YY010 |
| 75612C | Left front fender outer protective strip | 75612-YY010 |
| 75615C | Right front fender rear protective strip | 75615-YY010 |
| 75616C | Left front fender rear protective strip | 75616-YY010 |
| 75711B | Right front door waistline protection strip | 75710-02490 |
| 75712B | Left front door waistline protection strip | 75720-02490 |
| 75721A | Right rear door waistline protection strip | 75730-02470 · 75730-02510 |
| 75722A | Left rear door waistline protection strip | 75740-02470 · 75740-02510 |
| 75751A | Front door window frame protection strip (right front pillar) | 75751-02020 |
| 75752A | Front door window frame protection strip (left front pillar) | 75752-02020 |
| 75753 | Protective strip on right front door window frame | 75753-02030 · 75753-02040 |
| 75754A | Protective strip on left front door window frame | 75754-02030 · 75754-02040 |
| 75755A | Front door window frame protection strip (right center pillar) | 75755-02130 · 75755-02190 |
| 75756D | Front door window frame protection strip (left center pillar) | 75756-02130 · 75756-02190 |
| 75761B | Rear door window frame protection strip (right center pillar) | 75761-02140 · 75761-02200 |
| 75762B | Rear door window frame protection strip (left center pillar) | 75762-02140 · 75762-02200 |
| 75763A | Protective strip on right rear door window frame | 75763-02030 · 75763-02040 · 75763-02070 · 75763-02080 |
| 75764A | Protective strip on left rear door window frame | 75764-02030 · 75764-02040 · 75764-02070 · 75764-02080 |
| 75765B | Rear door window frame protection strip (right rear pillar) | 75765-02030 |
| 75766B | Rear door window frame protection strip (left rear pillar) | 75766-02030 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |

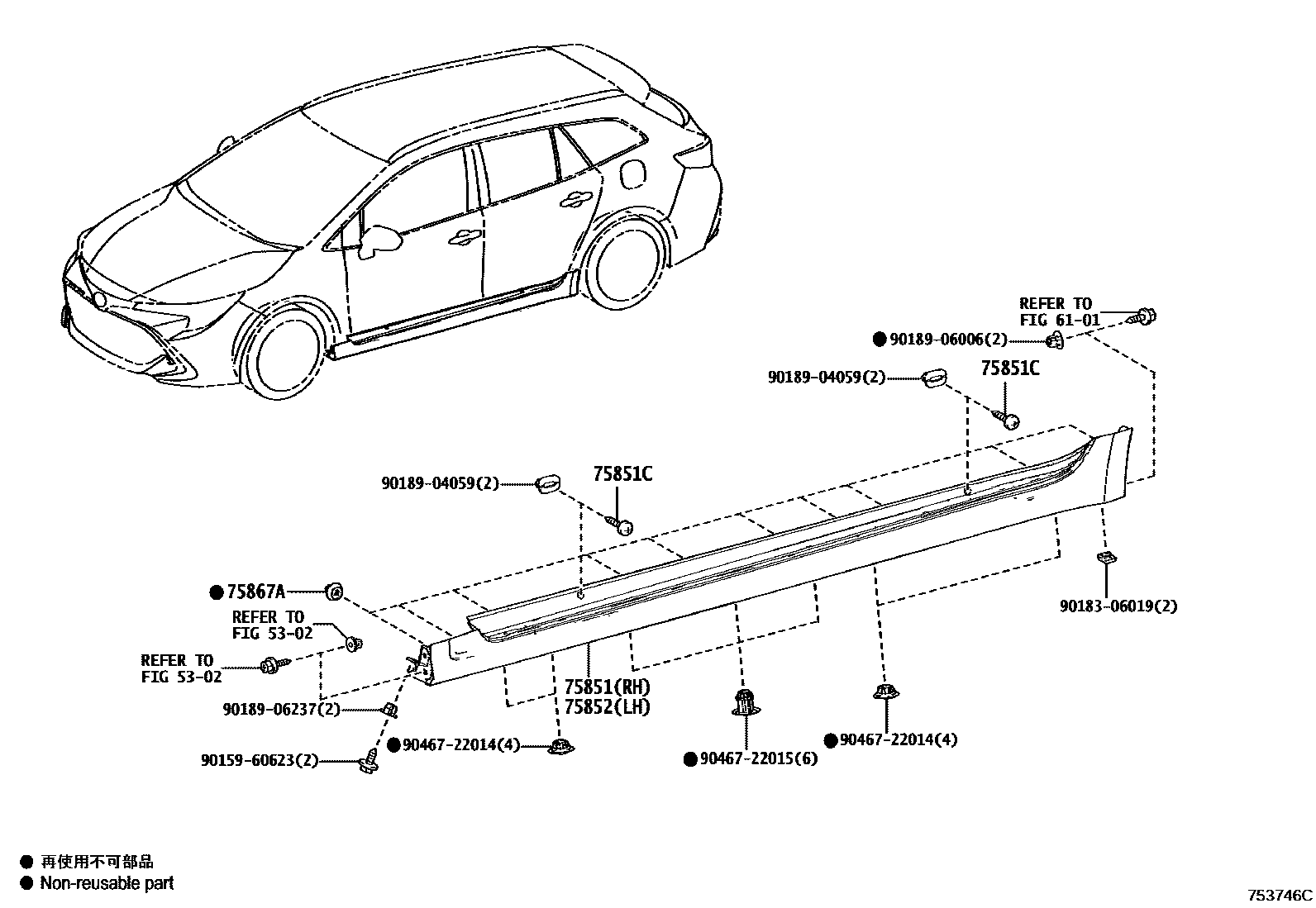

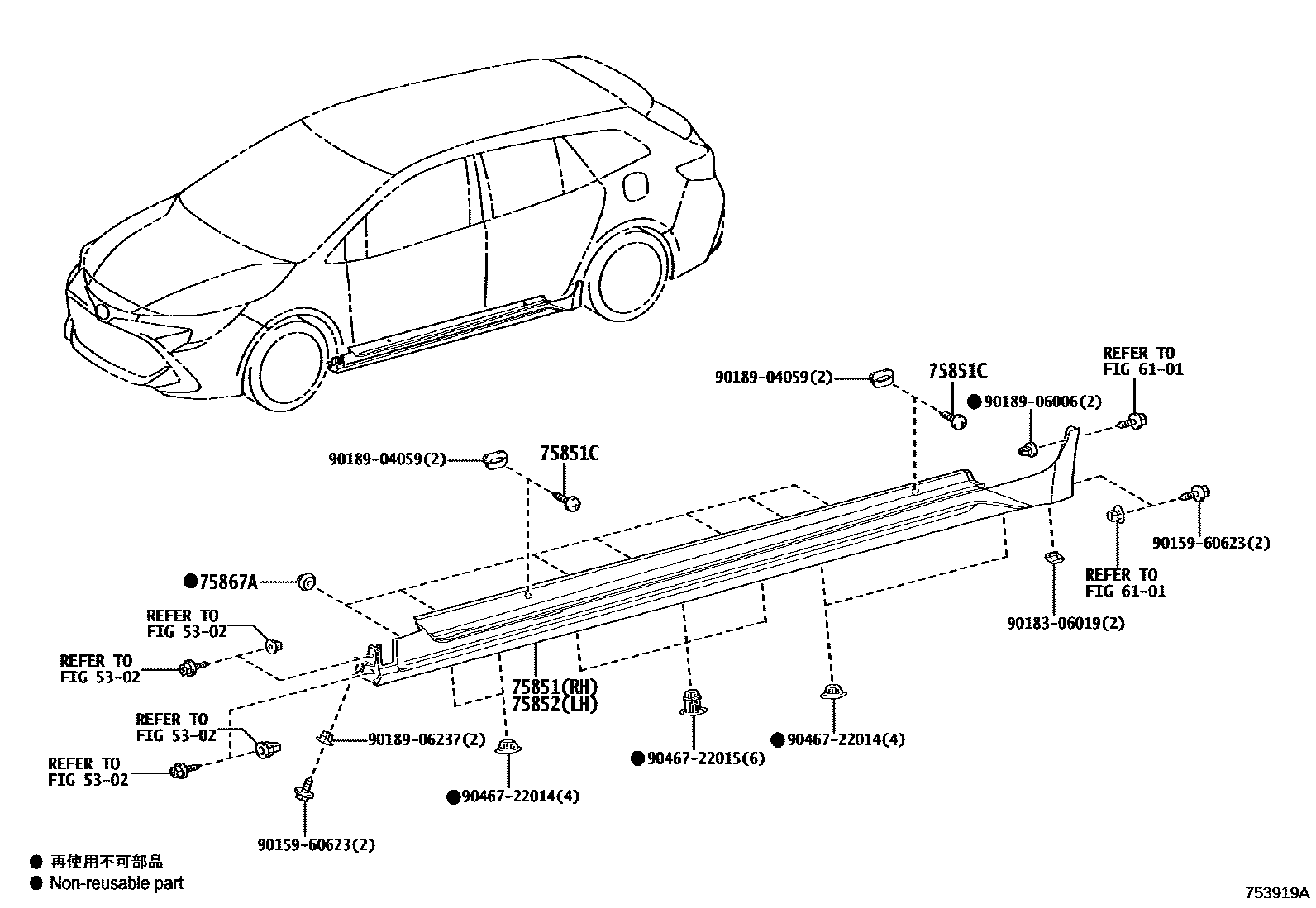

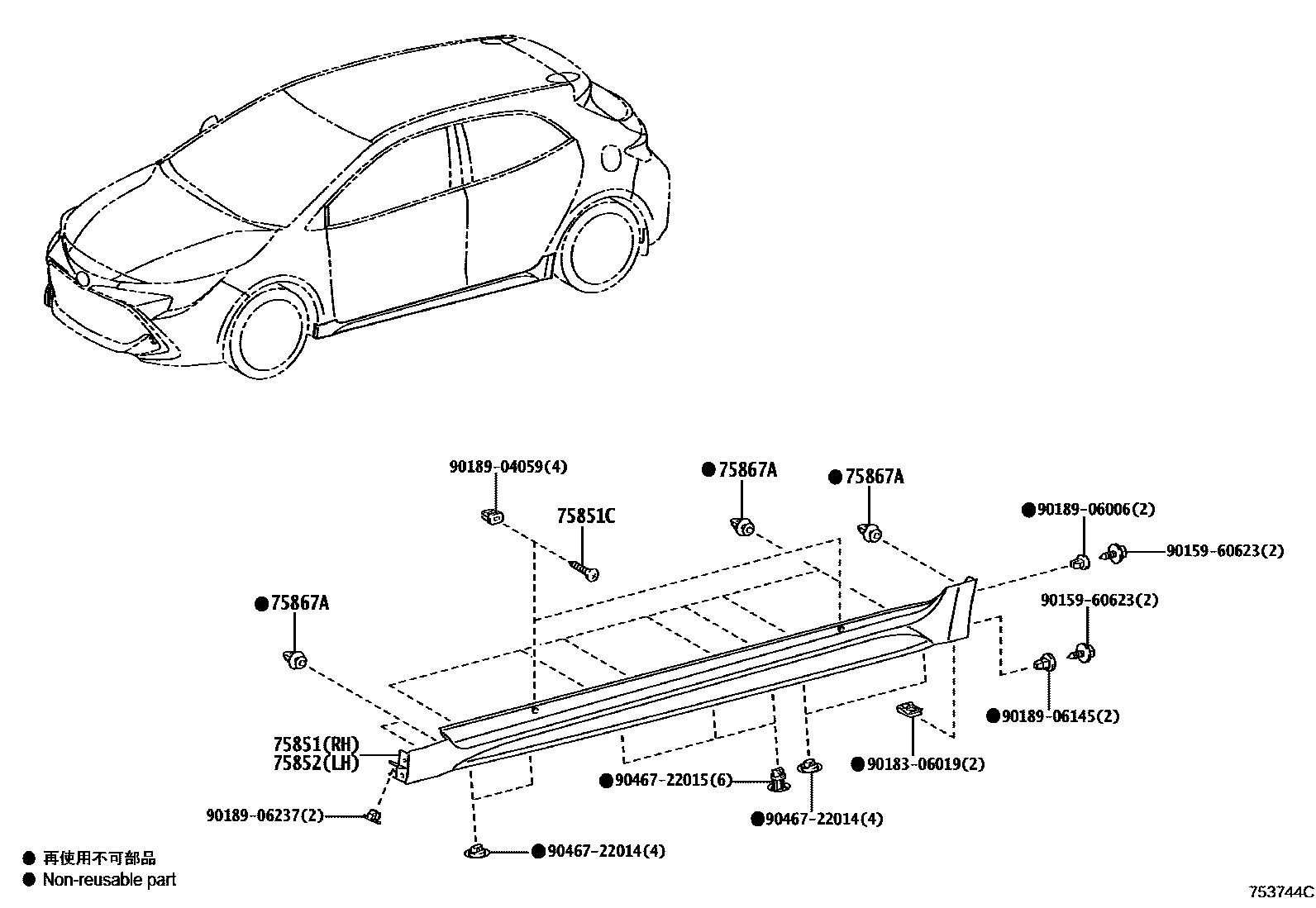

| 75851 | Right side door sill panel protective strip | 75851-02902 · 75851-02903 · 75851-YY010 · 75851-YY902 · 75851-YY903 |
| 75851C | Screws (for body sill protection strips) | 90162-40034 · 90162-40035 |
| 75852 | Left side door sill panel protective strip | 75852-02901 · 75852-02902 · 75852-YY010 · 75852-YY900 · 75852-YY901 |

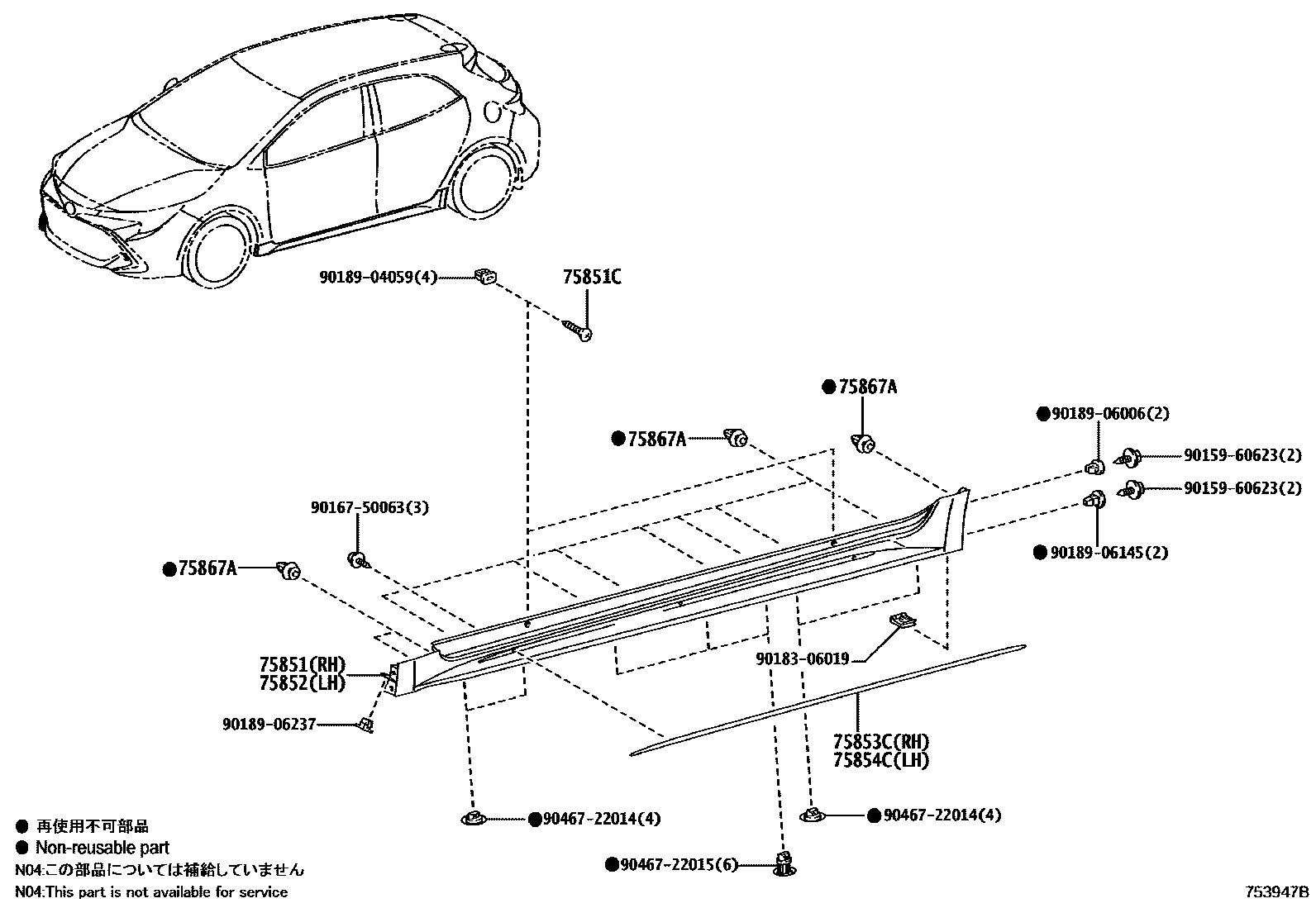

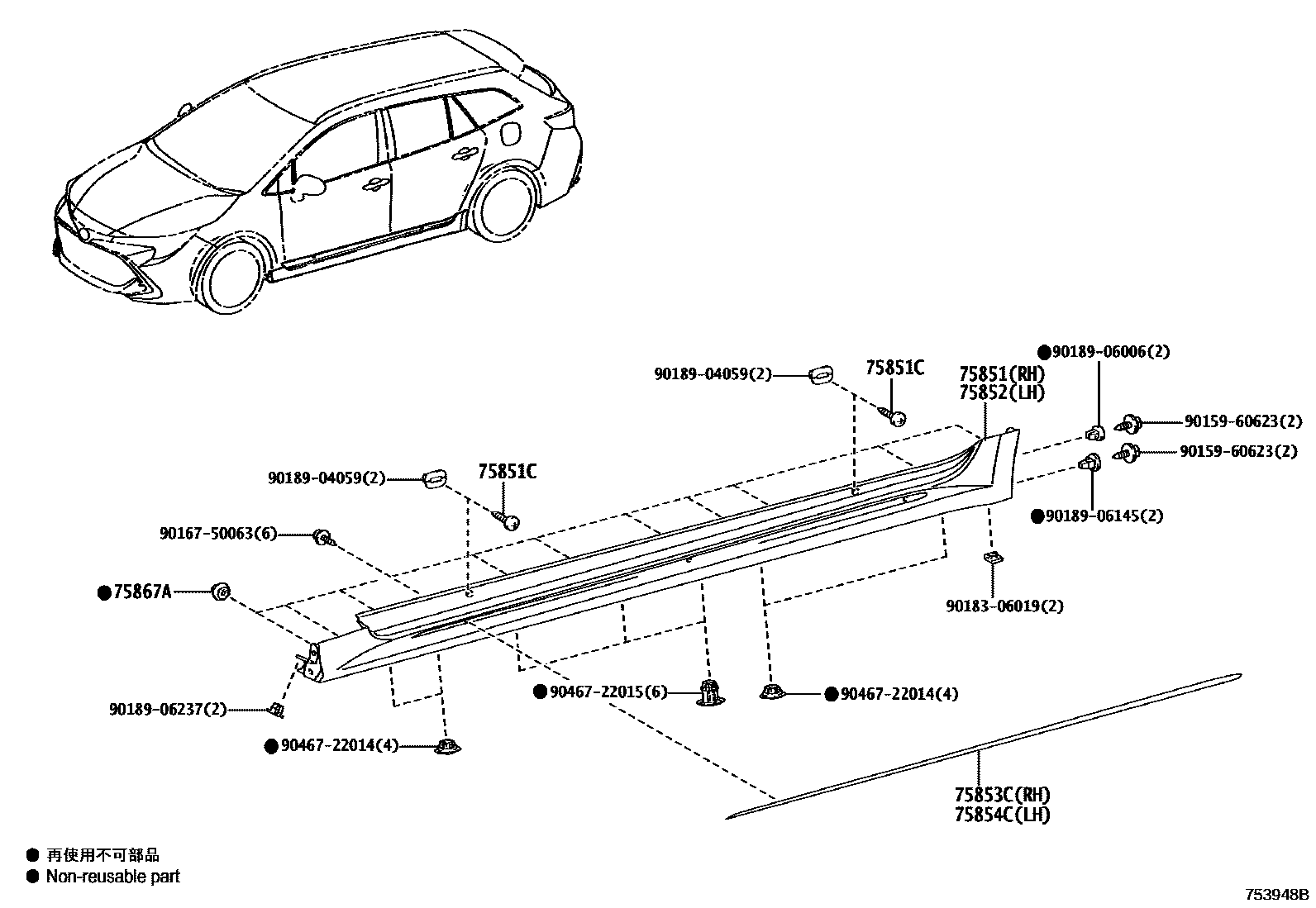

| 75853C | Right side door sill panel lower protective strip | 75853-YY020 · 75853-YY030 · 75853-YY050 · 75853-YY060 |
| 75854C | Left side door sill panel lower protective strip | 75854-YY020 · 75854-YY030 · 75854-YY050 · 75854-YY060 |
| 75867A | Door sill panel protective strip clip | 75867-33040 · 75867-52020 |
