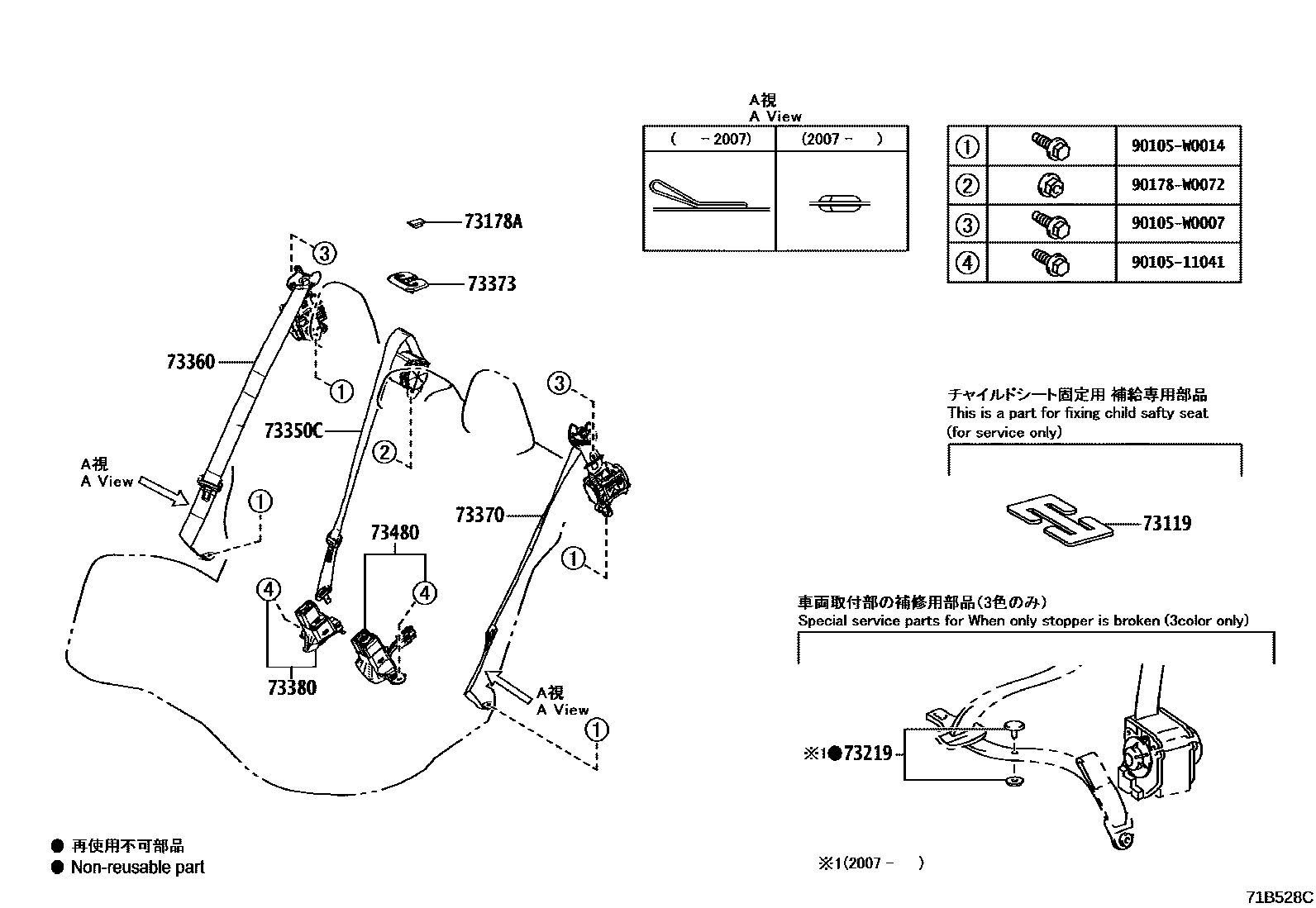

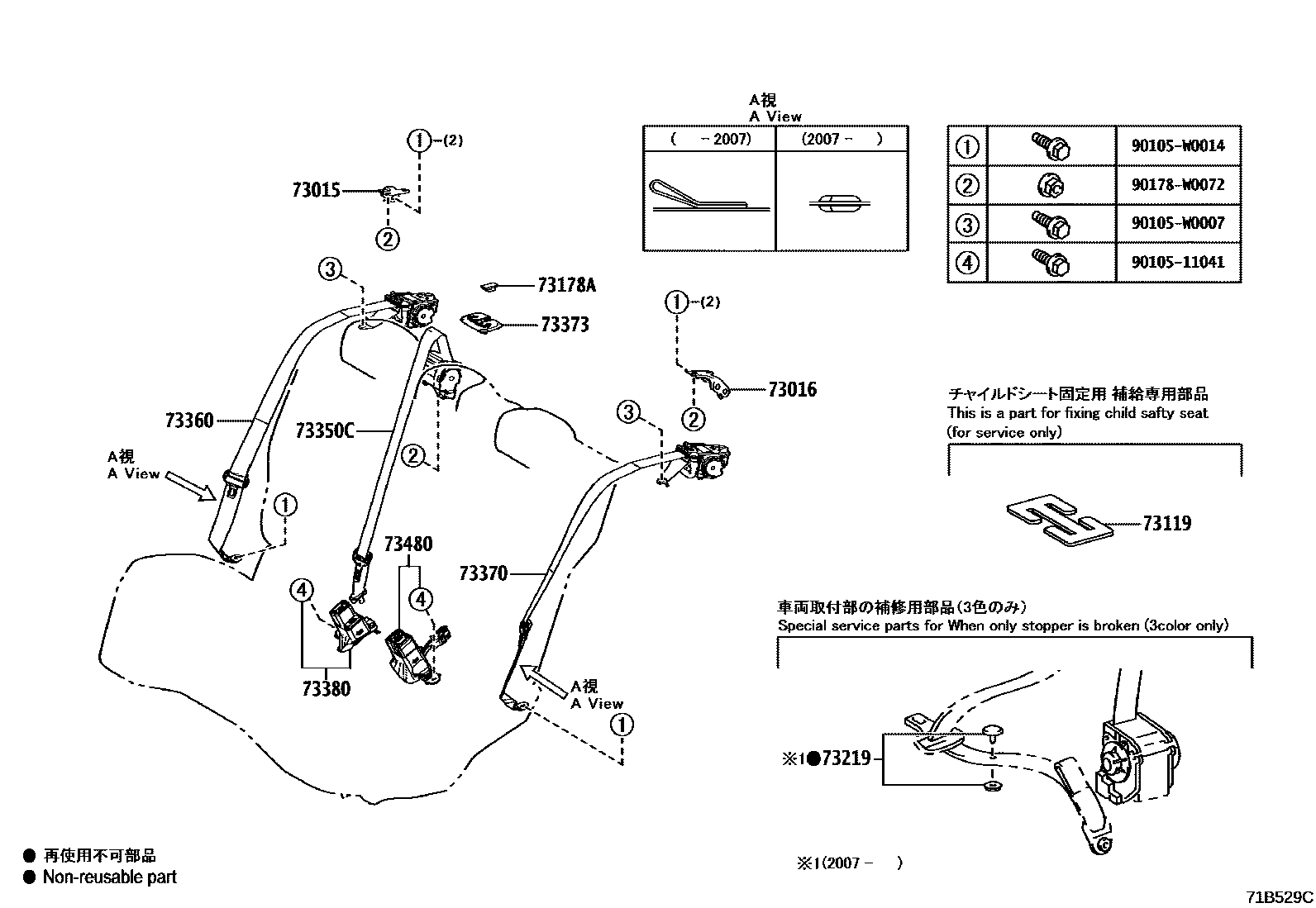

Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104
Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73015 | Right seat belt outer anchor bracket sub-assembly | 73015-02160 |
| 73016 | Left side seat belt outer anchor bracket sub-assembly | 73016-02160 |
| 73119 | seat belt clip | 73119-22010 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-F4010 |
| 73214 | Front seat belt anchor plate | 73214-75010 · 90206-W0001 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
