Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

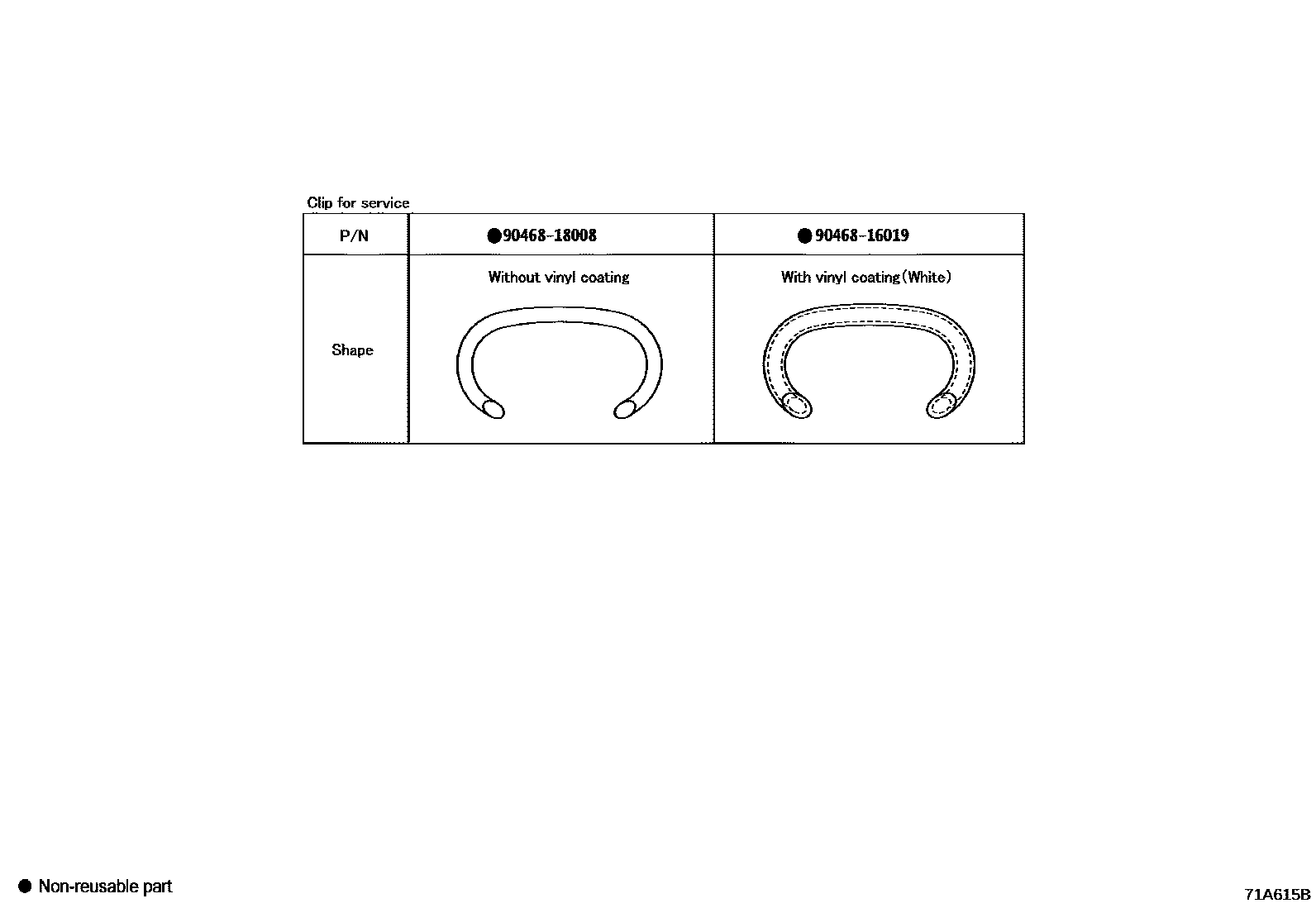

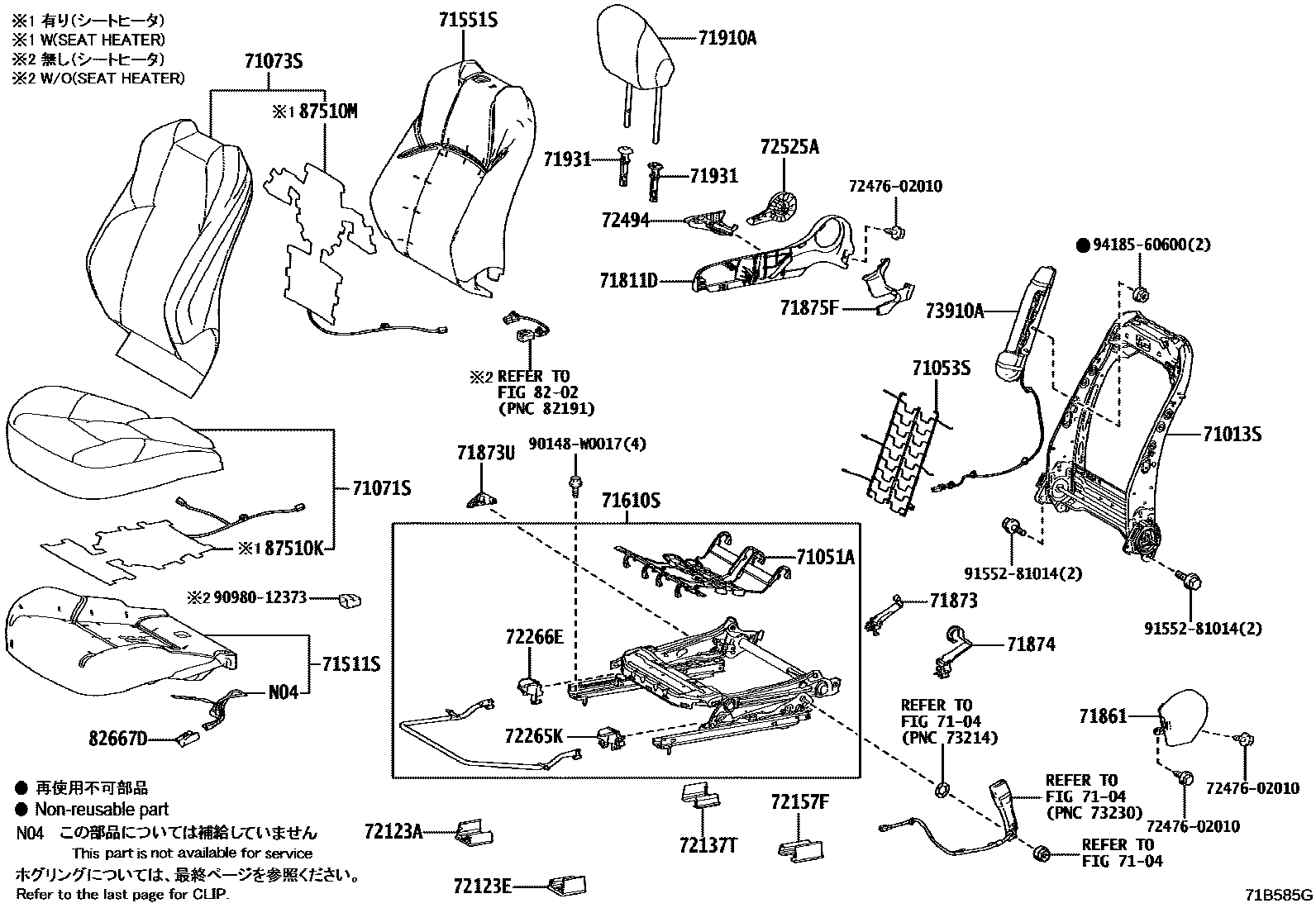

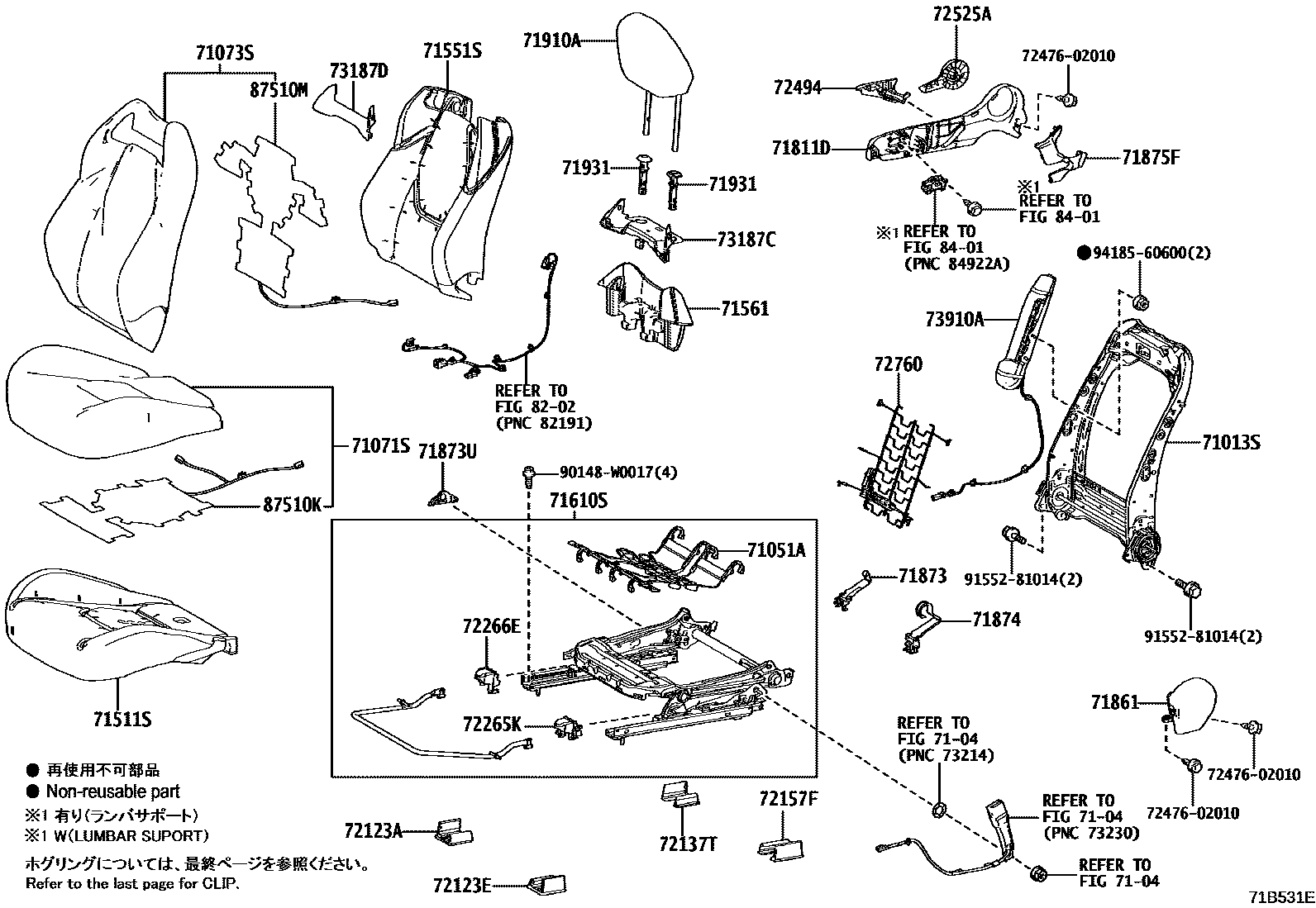

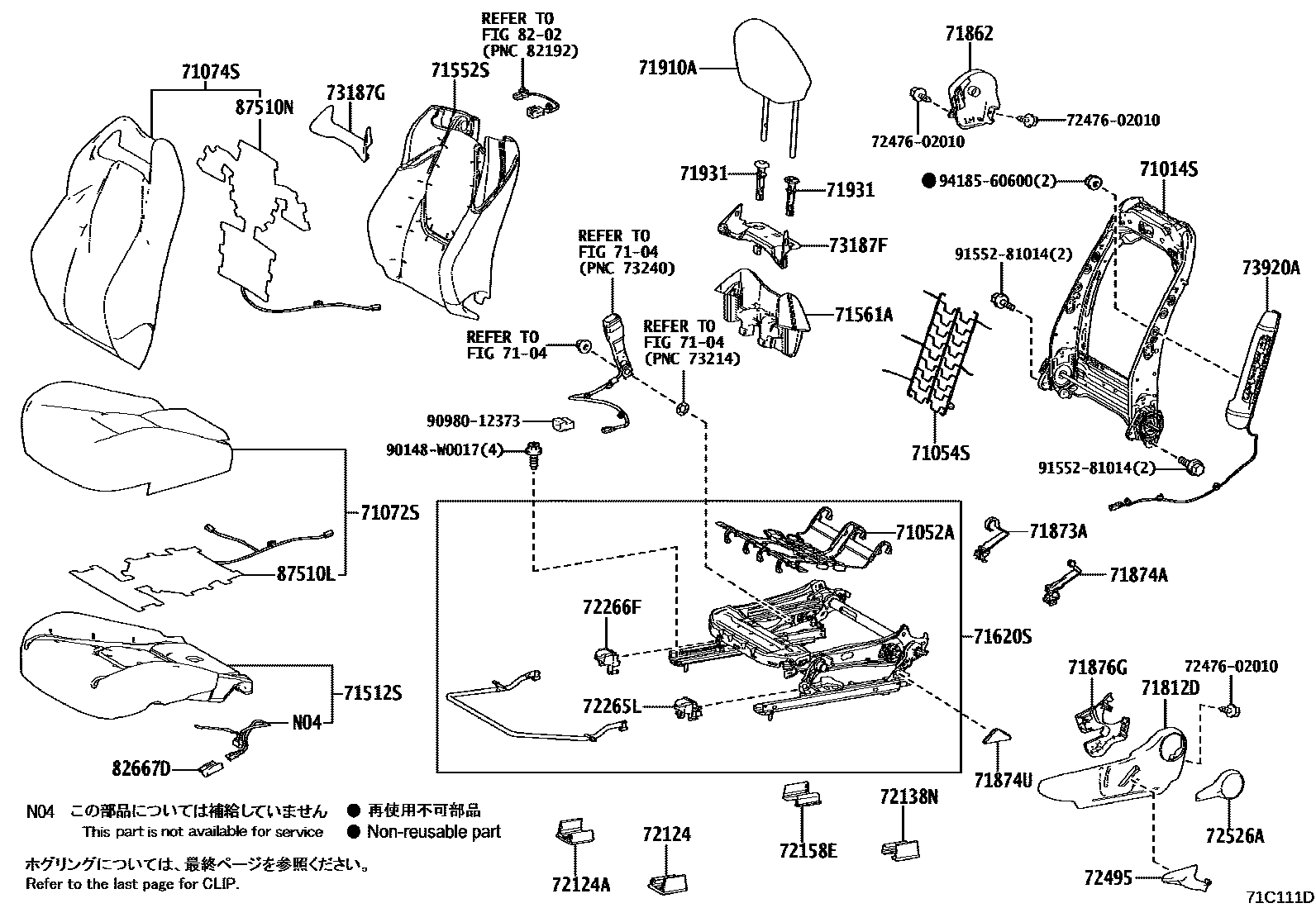

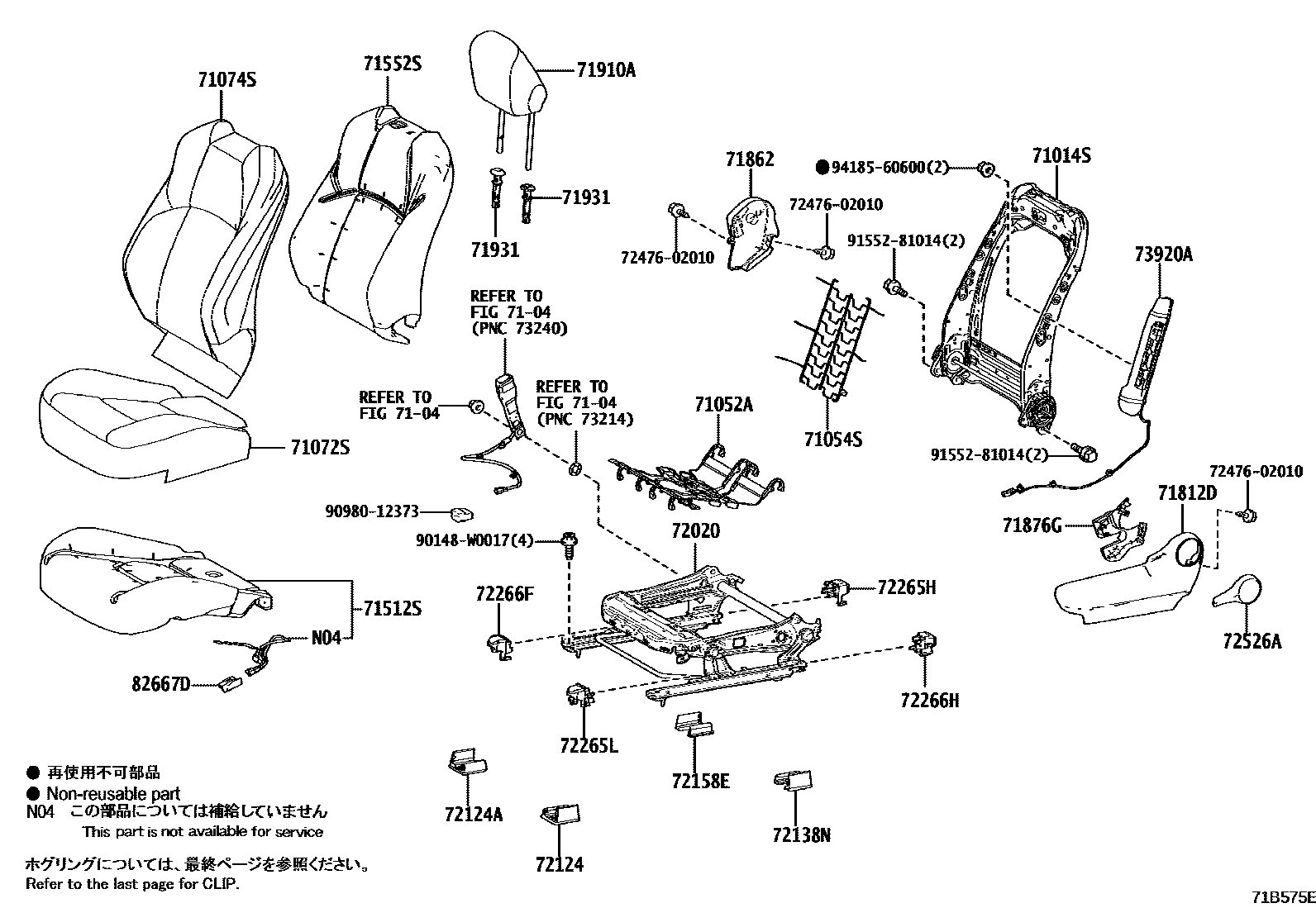

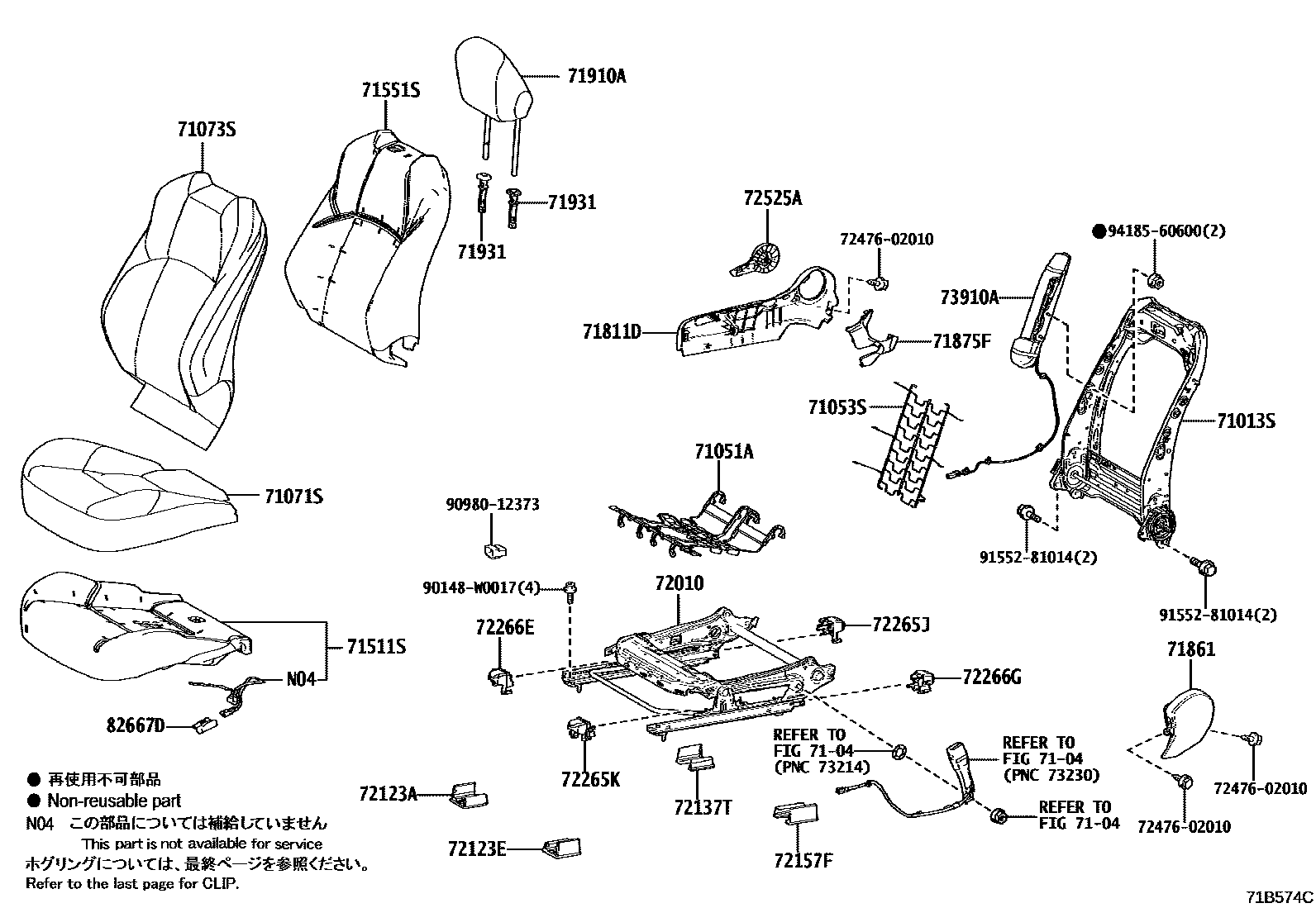

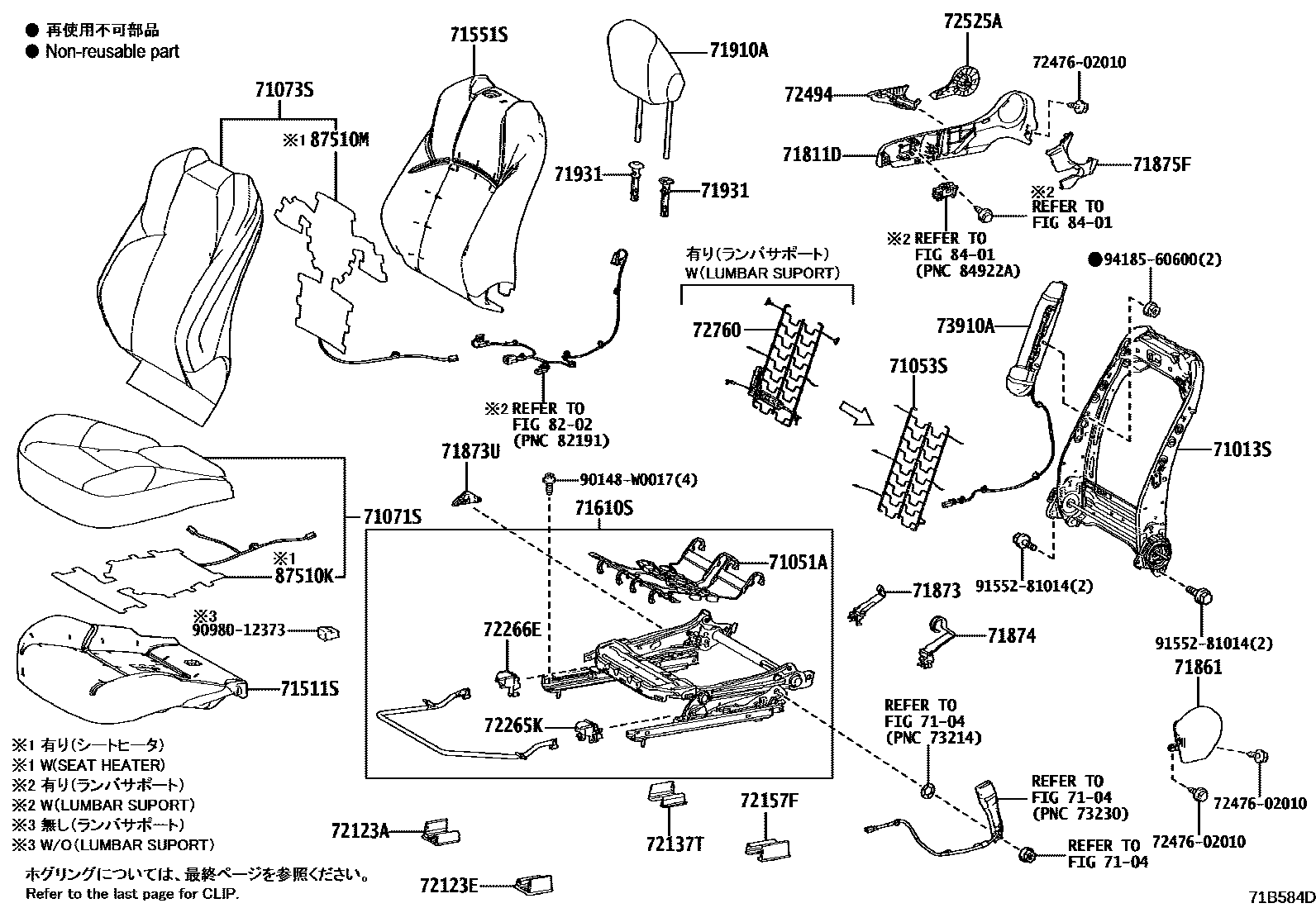

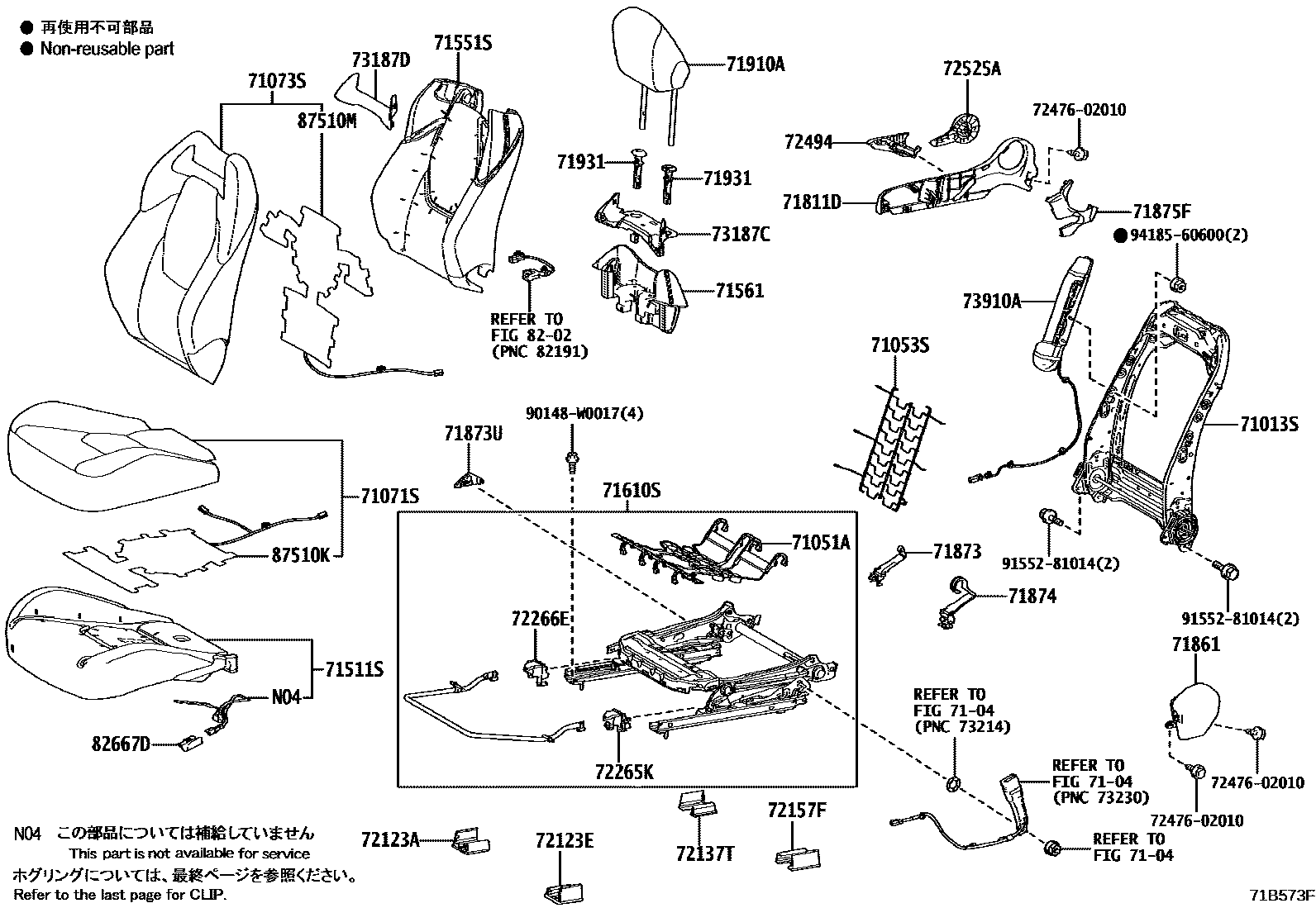

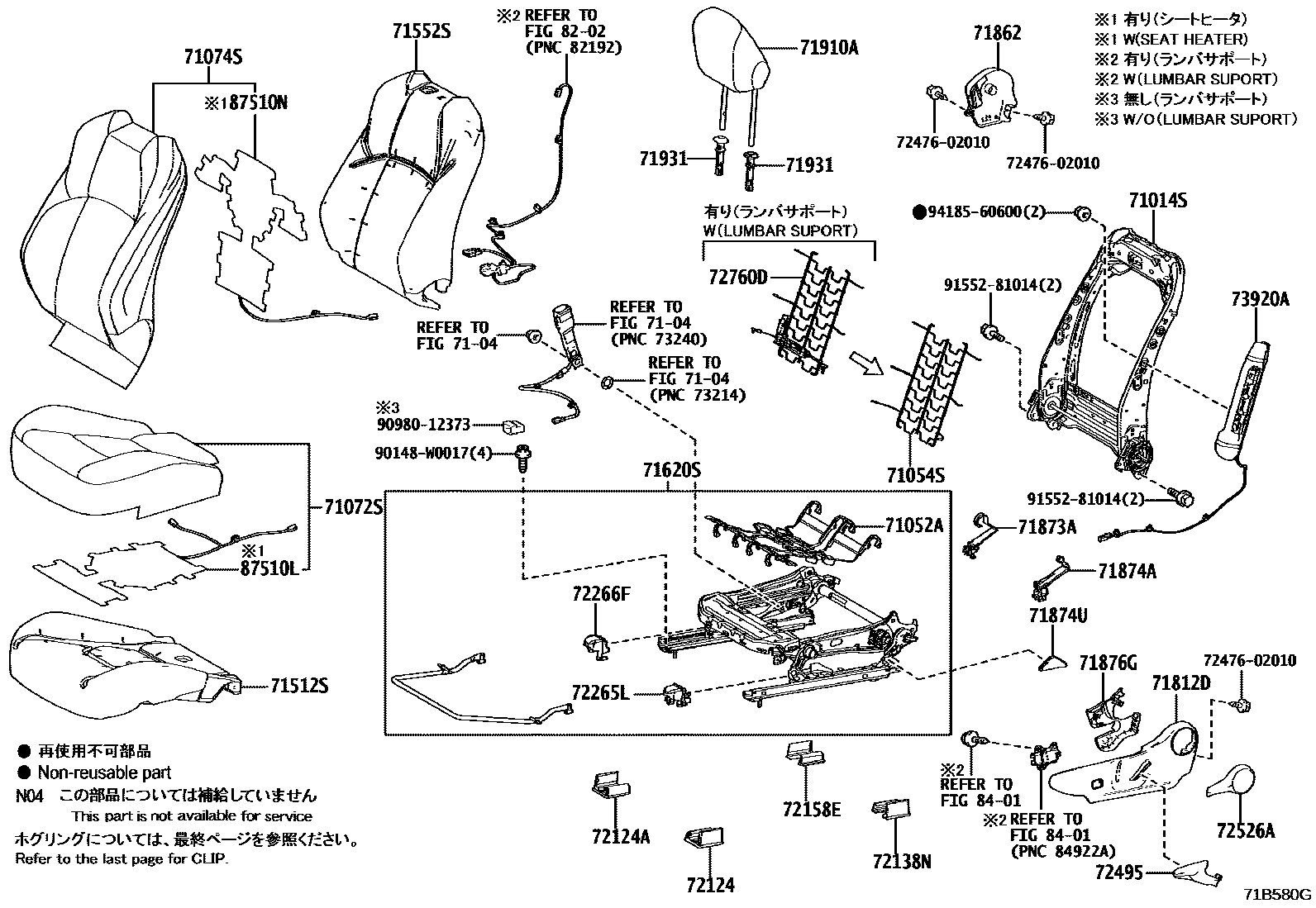

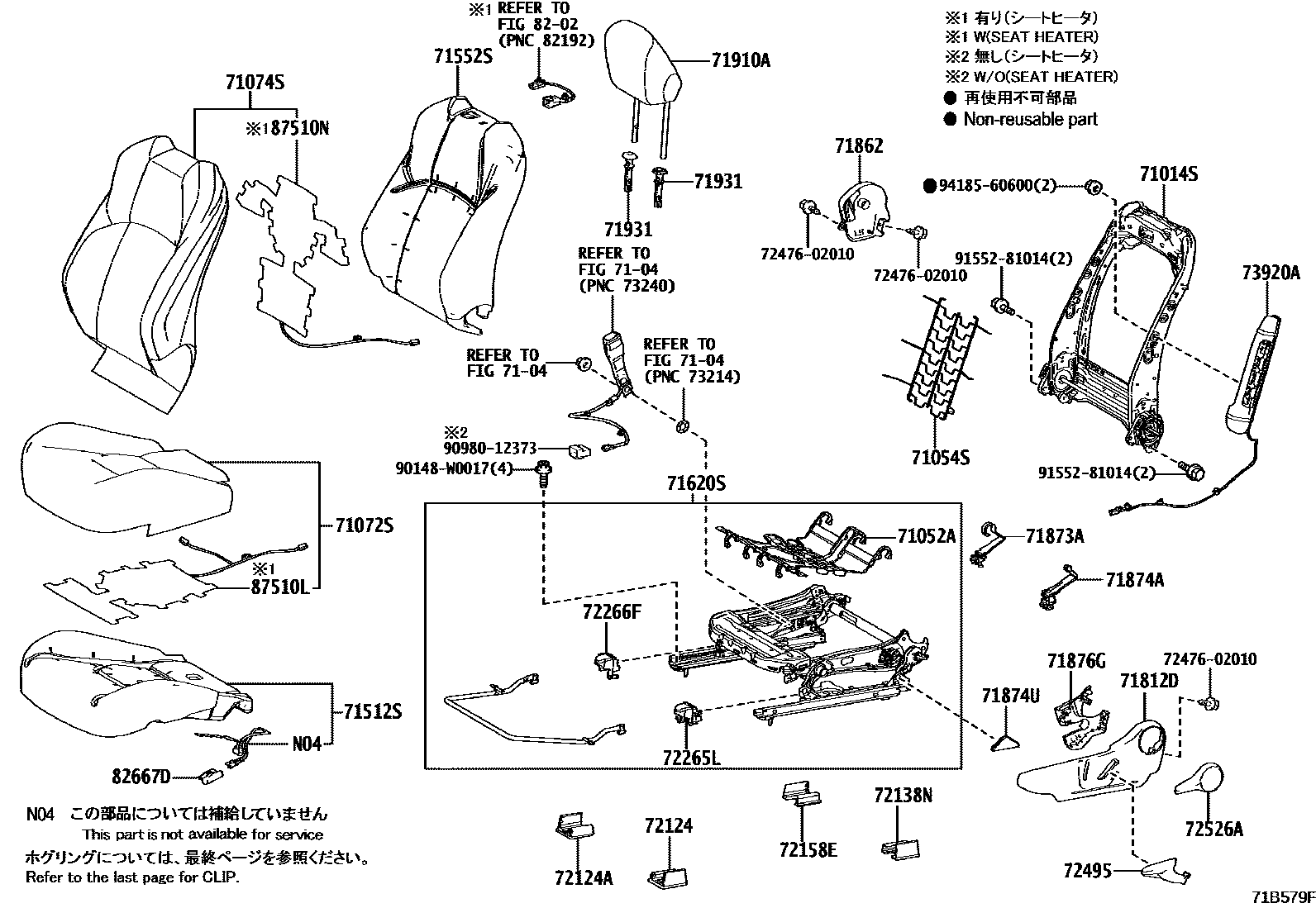

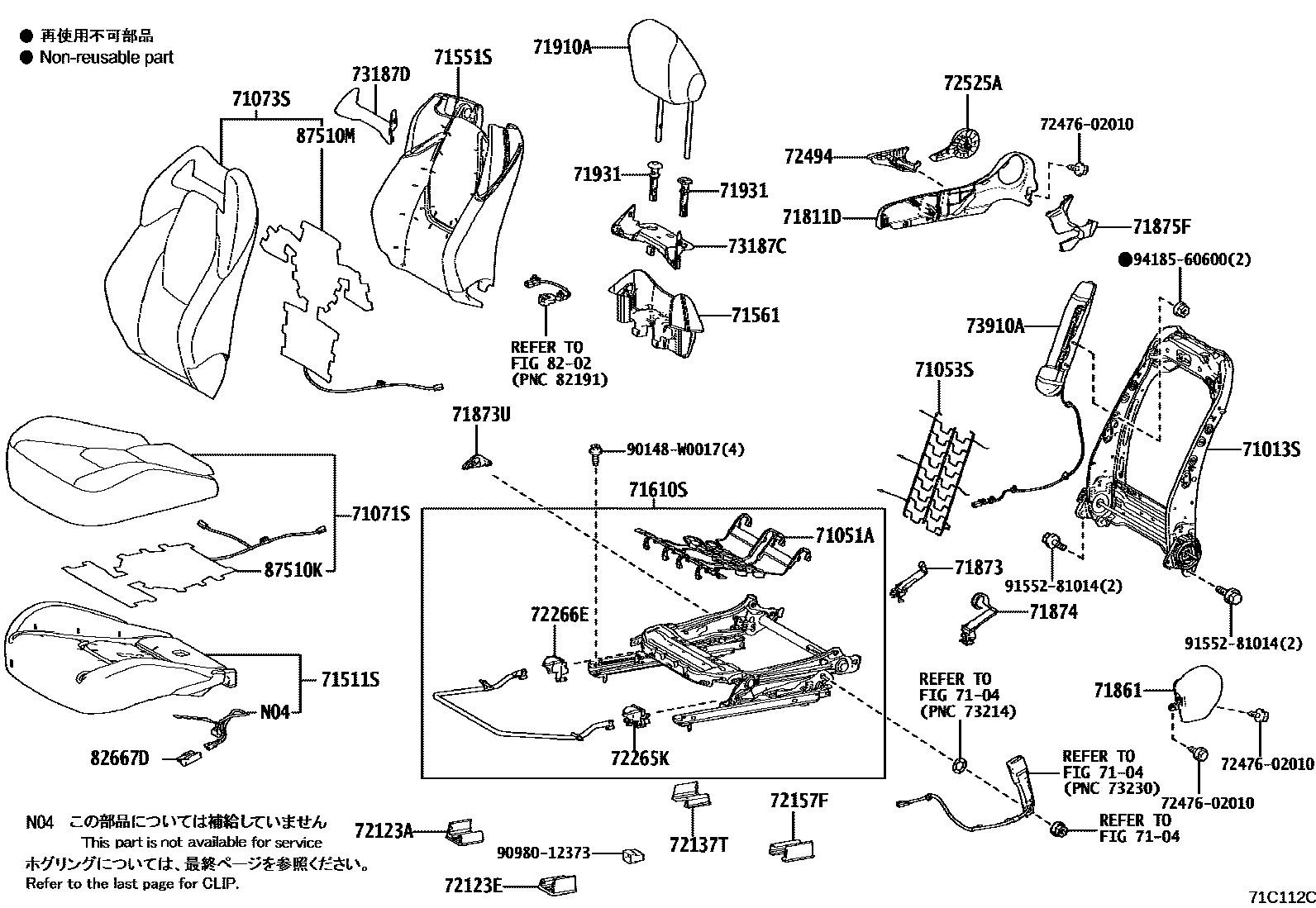

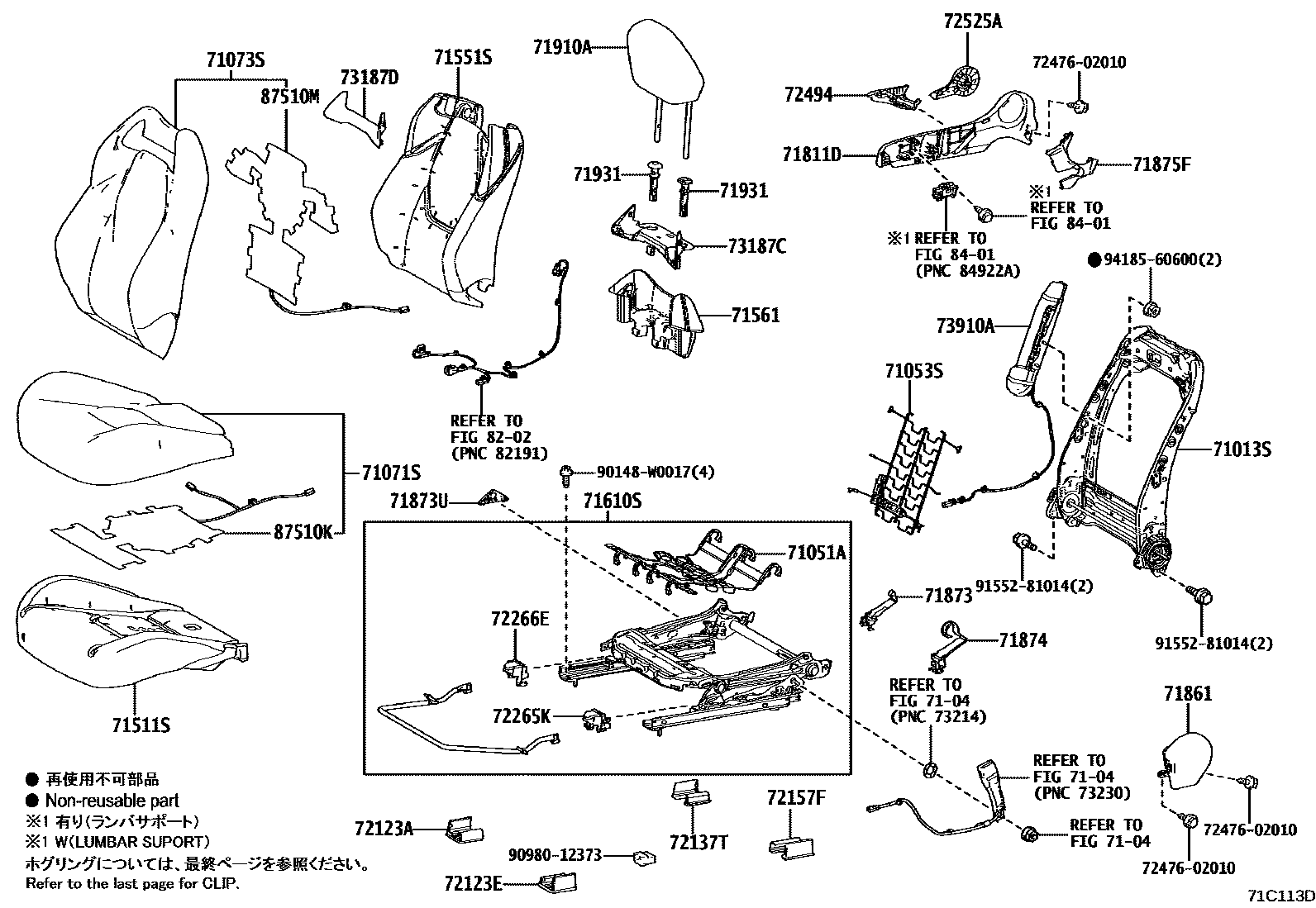

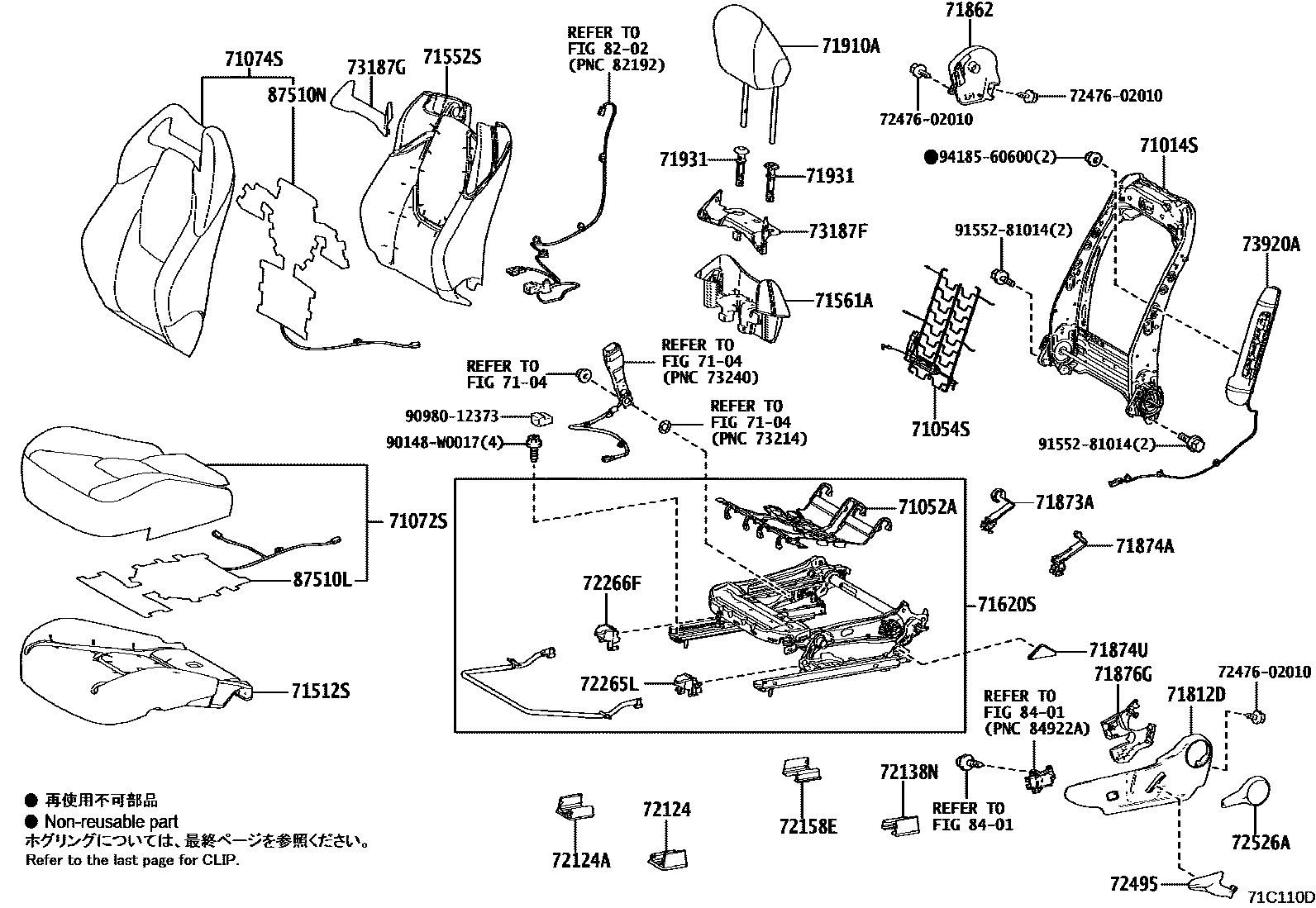

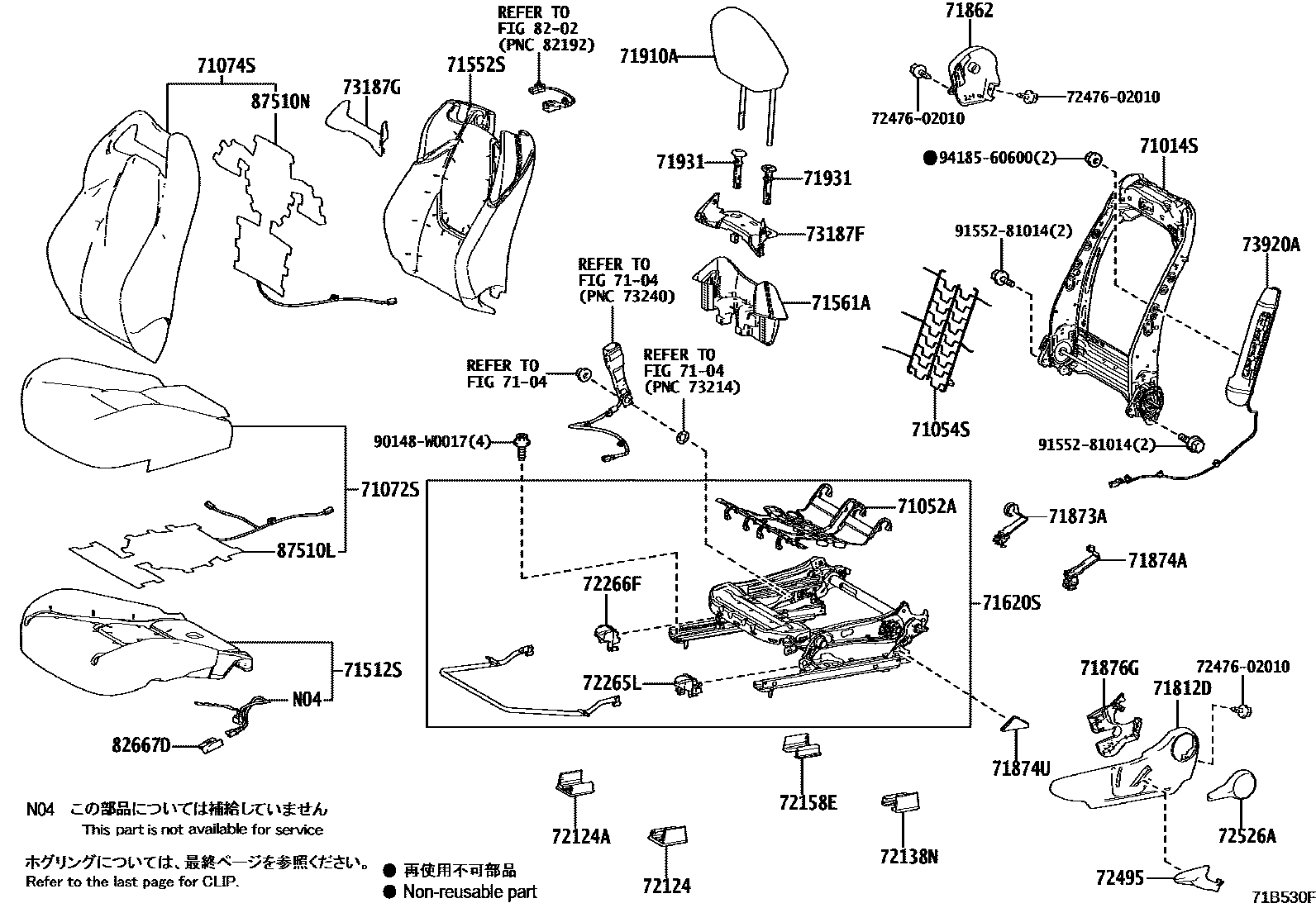

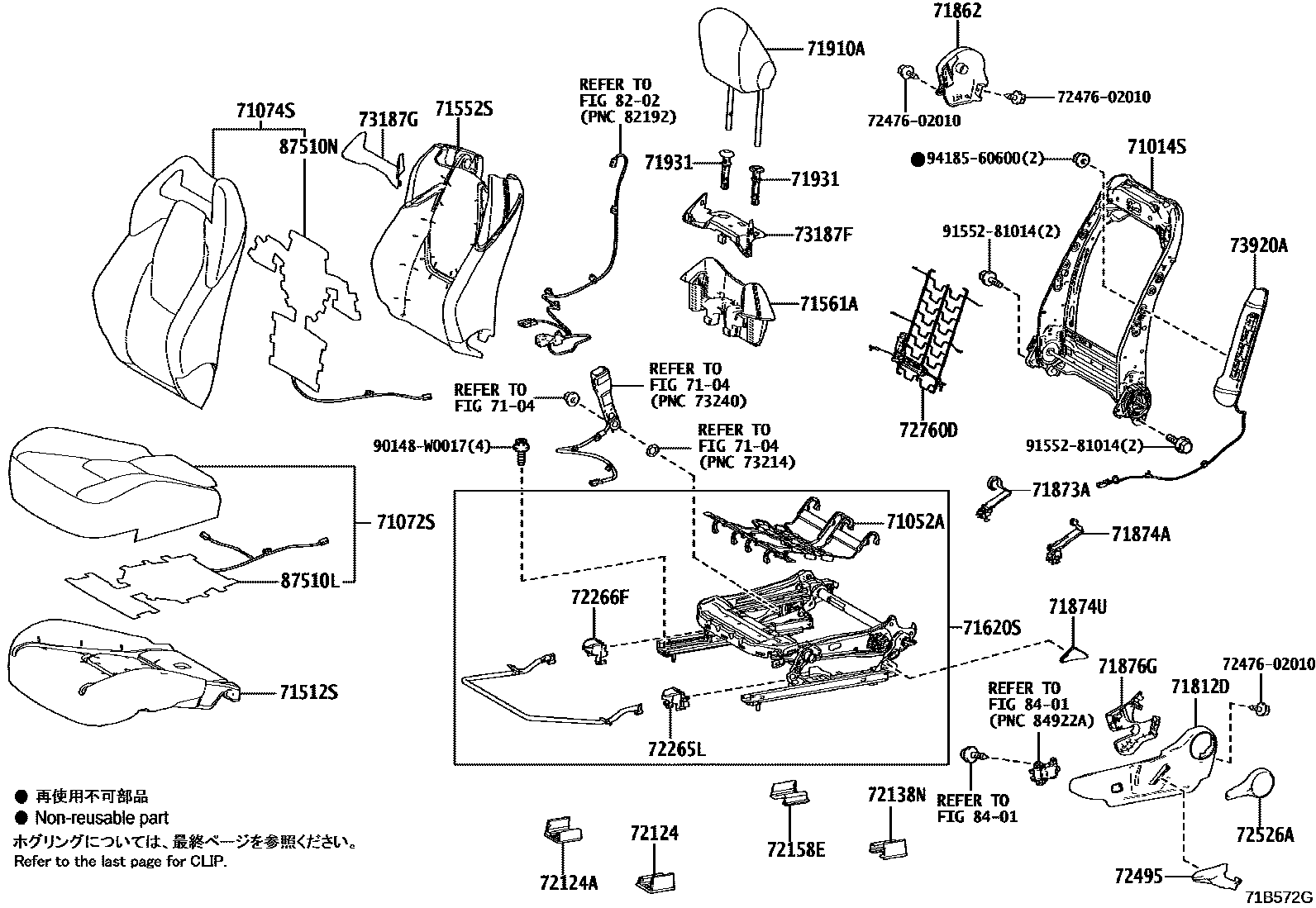

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 15 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-02350 |
| 71014S | Front left seat back frame sub-assembly | 71014-02280 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-02380 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-02380 |
| 71053S | Front right seat back spring sub-assembly | 71053-02250 |
| 71054S | Front left seat back spring sub-assembly | 71053-02250 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-YY110 · 71071-YY120 · 71071-YY130 · 71071-YY140 · 71071-YY150 · 71071-YY160 · 71071-YY170 · 71071-YY180 · 71071-YY190 · 71071-YY200 · 71071-YY210 · 71071-YY430 · 71071-YY440 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-F2050 · 71072-YY110 · 71072-YY120 · 71072-YY130 · 71072-YY140 · 71072-YY150 · 71072-YY160 · 71072-YY170 · 71072-YY180 · 71072-YY190 · 71072-YY200 · 71072-YY210 · 71072-YY420 · 71072-YY430 |
| 71073S | Front right seat back cover (for split seats) | 71073-0ZX52 · 71073-YP870 · 71073-YY080 · 71073-YY090 · 71073-YY100 · 71073-YY110 · 71073-YY120 · 71073-YY130 · 71073-YY140 · 71073-YY150 · 71073-YY160 · 71073-YY170 · 71073-YY180 · 71073-YY190 · 71073-YY200 · 71073-YY210 · 71073-YY220 · 71073-YY260 · 71073-YY270 · 71073-YY280 · 71073-YY290 · 71073-YY510 · 71073-YY520 |
| 71074S | Front left seat back cover (for split seats) | 71074-0ZW42 · 71074-YP890 · 71074-YY080 · 71074-YY090 · 71074-YY100 · 71074-YY110 · 71074-YY120 · 71074-YY130 · 71074-YY140 · 71074-YY150 · 71074-YY160 · 71074-YY170 · 71074-YY180 · 71074-YY190 · 71074-YY200 · 71074-YY210 · 71074-YY220 · 71074-YY230 · 71074-YY240 · 71074-YY250 · 71074-YY260 · 71074-YY460 · 71074-YY470 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02310 · 71501-02330 · 71511-02C20 · 71511-02C30 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-02120 · 71502-02270 · 71512-02A30 · 71512-02A40 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02E90 · 71551-02E91 · 71551-02F00 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02C60 · 71552-02C61 · 71552-02C70 |
| 71561 | Front seat backrest upper right cushion | 71561-02010 |
| 71561A | Front seat backrest upper left cushion | 71561-02010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-02510 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-02600 |
| 71910A | Front seat headrest assembly | 71910-02W00 · 71910-YP110 · 71910-YY080 · 71910-YY090 · 71910-YY100 · 71910-YY110 · 71910-YY120 · 71910-YY130 · 71910-YY150 · 71910-YY240 |
| 72010 | Front right seat adjuster assembly | 72010-02650 |
| 72020 | Front left seat adjuster assembly | 72020-02810 |
| 72123A | Front right seat outer slide rail bracket cover | 72137-02380 |
| 72123E | Front right seat inner slide rail bracket cover | 72123-02120 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-02120 |
| 72124A | Front left seat inner slide rail bracket cover | 72137-02380 |
| 72137T | Rear right seat outer slide rail bracket cover | 72123-02120 |
| 72138N | Rear left seat outer slide rail bracket cover | 72137-02380 |
| 72157F | Rear right seat inner slide rail bracket cover | 72157-02360 |
| 72158E | Rear left seat inner slide rail bracket cover | 72158-02330 |
| 72265H | Rear seat slide rail upper rail inner cover | 72265-02080 |
| 72265J | Rear seat slide rail upper rail cover | 72265-02080 |
| 72265K | Front seat slide rail upper rail inner cover (for right seat) | 72265-02080 |
| 72265L | Front seat slide rail upper rail cover (for left seat) | 72265-02080 |
| 72266E | Front seat slide rail upper rail cover (for right seat) | 72266-02010 |
| 72266F | Front seat slide rail upper rail inner cover (for left seat) | 72266-02010 |
| 72266G | Rear seat slide rail upper rail inner cover | 72266-02010 |
| 72266H | Rear seat slide rail upper rail cover | 72266-02010 |
| 72495 | Left height adjuster handle | 72495-02070 |
| 72760 | Right lumbar support adjuster assembly | 72760-02060 |
| 72760D | Left lumbar support adjuster assembly | 72760-02060 |
| 73187C | No. 1 guide channel on the right side of the front seat shoulder belt | 73187-02020 |
| 73187D | No. 2 guide channel on the right side of the front seat shoulder safety belt | 73187-02010 · 73187-02030 · 73187-02050 · 73187-02060 |
| 73187F | Front seat shoulder safety belt left No. 1 guide channel | 73187-02020 |
| 73187G | No. 2 guide channel on the left side of the front seat shoulder belt | 73187-02010 · 73187-02030 · 73187-02050 · 73187-02060 |
| 73910A | Front right seat airbag assembly | 73910-02320 |
| 73920A | Front left seat airbag assembly | 73920-02310 |
| 82667D | Connector holder | 82666-F4080 |
| 87510K | Front right seat cushion heater assembly | 87510-02340 · 87510-02370 |
| 87510L | Front left seat cushion heater assembly | 87510-02340 · 87510-02370 |
| 87510M | Front right seat back heater assembly | 87530-02080 · 87530-02110 |
| 87510N | Front left seat back heater assembly | 87530-02080 · 87530-02110 |
