Toyota COROLLA 背门锁和背门把手 — Figure 6709

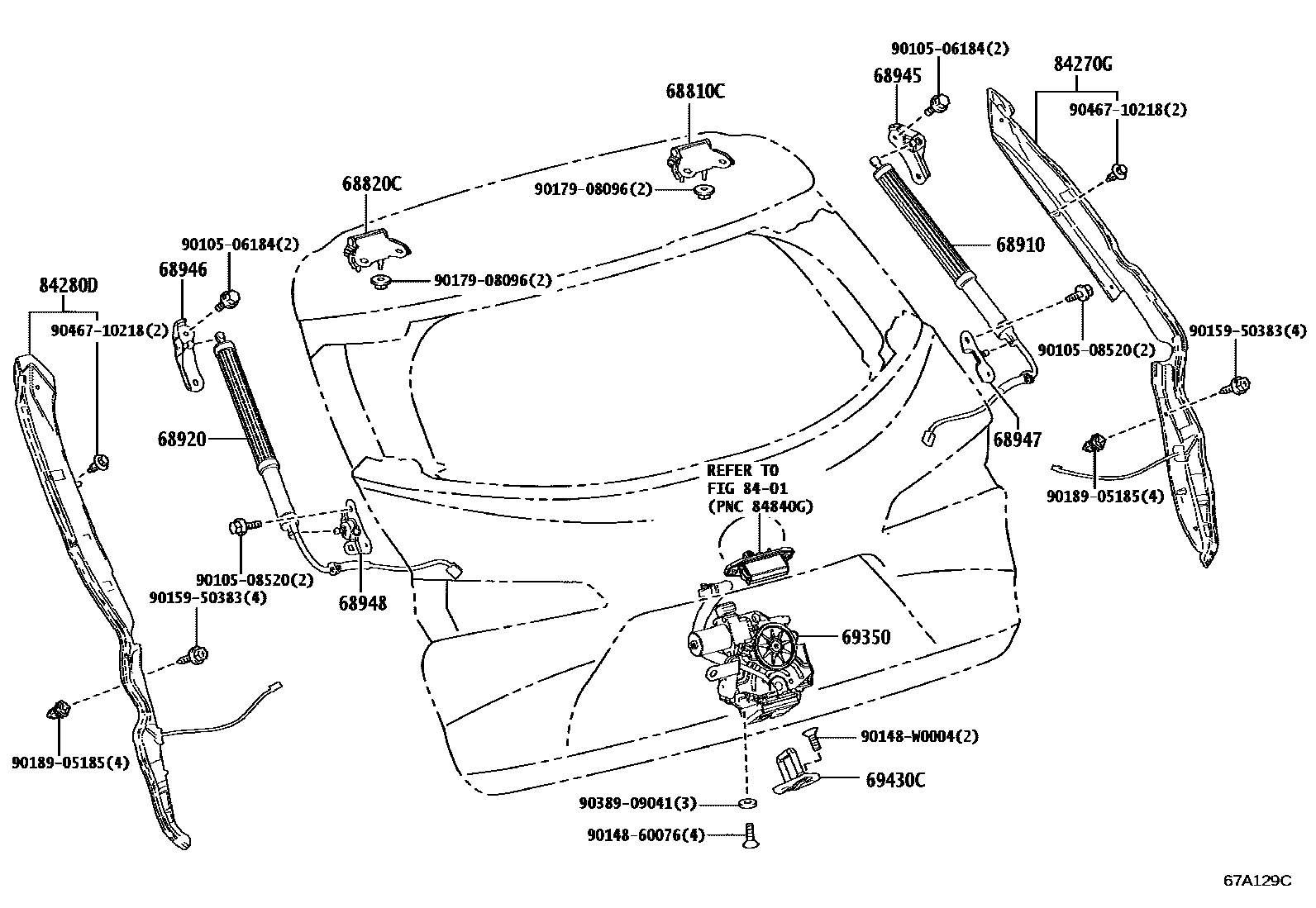

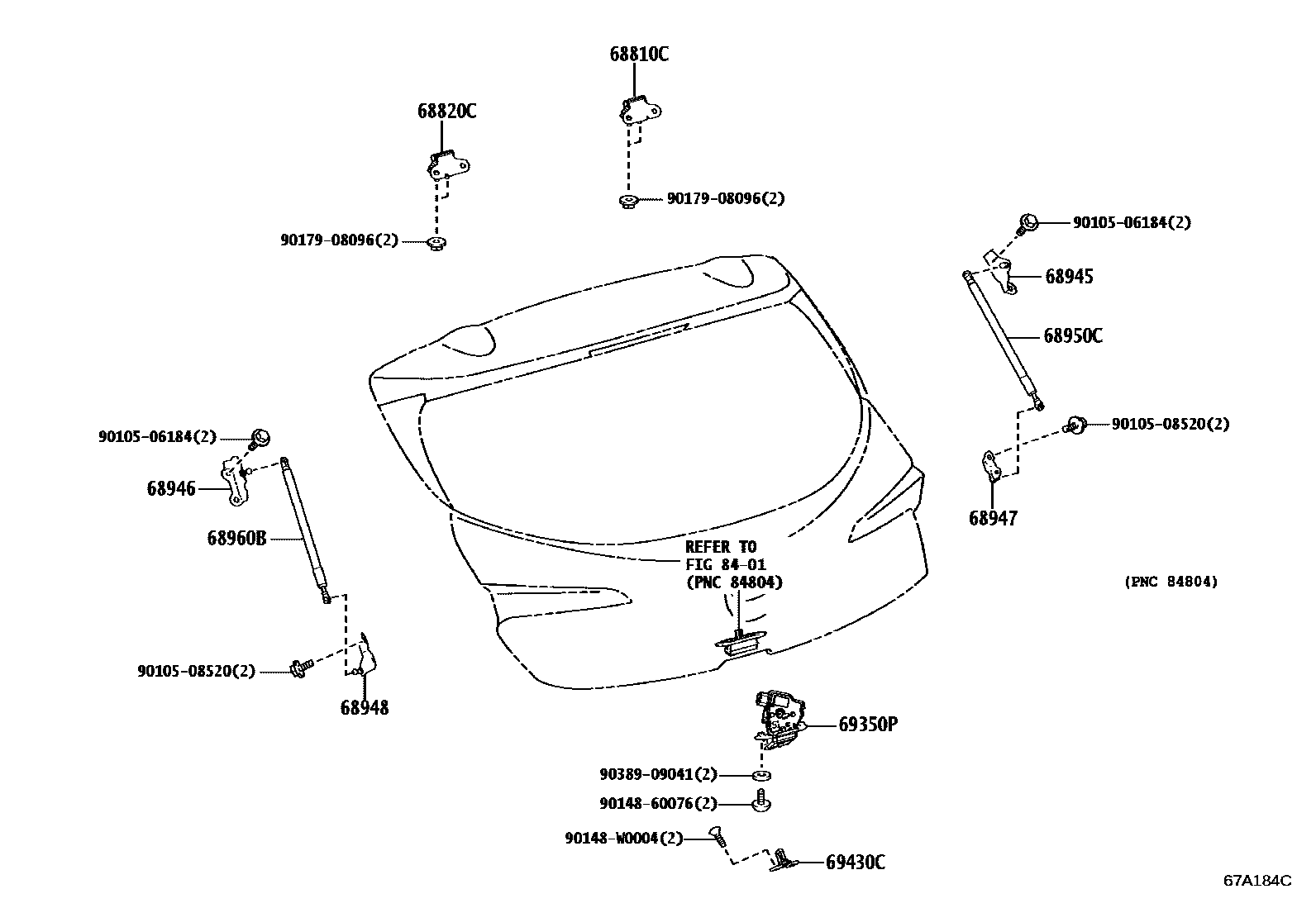

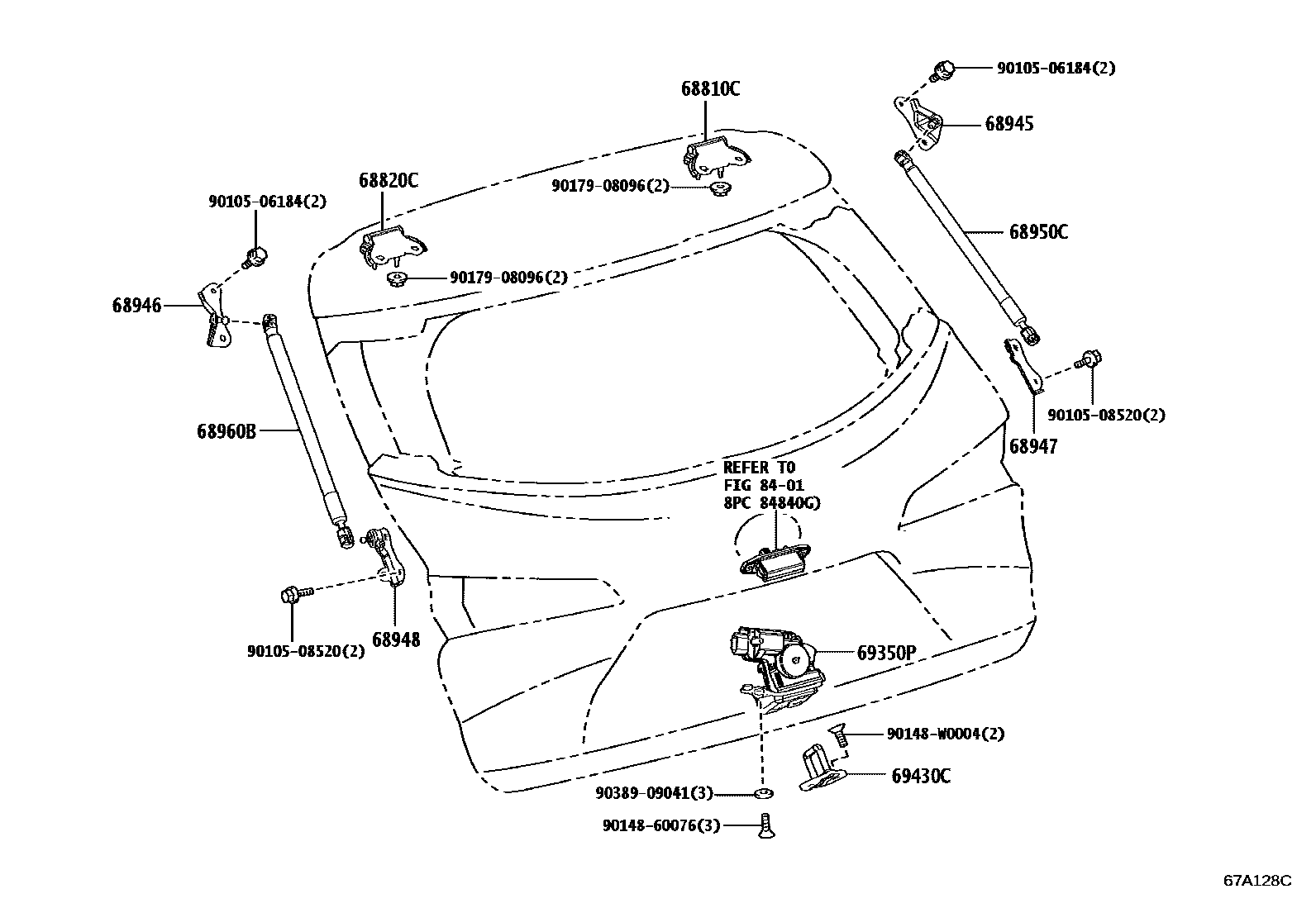

Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810C | Back door right hinge assembly | 68810-02130 · 68810-02170 · 68810-02190 · 68810-02230 |
| 68820C | Back door left hinge assembly | 68820-02030 · 68820-02070 · 68820-02090 · 68820-02130 |
| 68910 | Back door electric unit assembly | 68910-12010 · 68910-12020 |
| 68920 | Left rear door electric unit assembly assembly | 68920-12010 · 68920-12020 |
| 68945 | Back door right damping stay upper bracket | 68945-02070 · 68945-02080 · 68945-02090 · 68945-02100 |
| 68946 | Rear door left damping strut upper bracket | 68946-02050 · 68946-02060 · 68946-02070 · 68946-02080 |
| 68947 | Back door right damping strut lower bracket | 68947-02020 · 68947-02030 · 68947-02031 · 68947-02040 · 68947-02050 |
| 68948 | Rear door left damping strut lower bracket | 68948-02020 · 68948-02030 · 68948-02031 · 68948-02040 · 68948-02050 |
| 68950C | Back door right support rod assembly | 68950-02190 · 68950-02191 · 68950-02220 |
| 68960B | Back door left support rod assembly | 68960-02200 · 68960-02201 · 68960-02210 |
| 69350 | Rear door lock assembly | 69350-12240 |
| 69350P | Back door with door control light switch lock assembly | 69350-02100 · 69350-12250 |
| 69430C | Back door lock assembly | 69430-02030 · 69430-48030 |
| 84270G | Electric back door right side sensor assembly | 84270-12010 · 84270-12020 |
| 84280D | Electric back door left sensor assembly | 84280-12010 · 84280-12020 |
