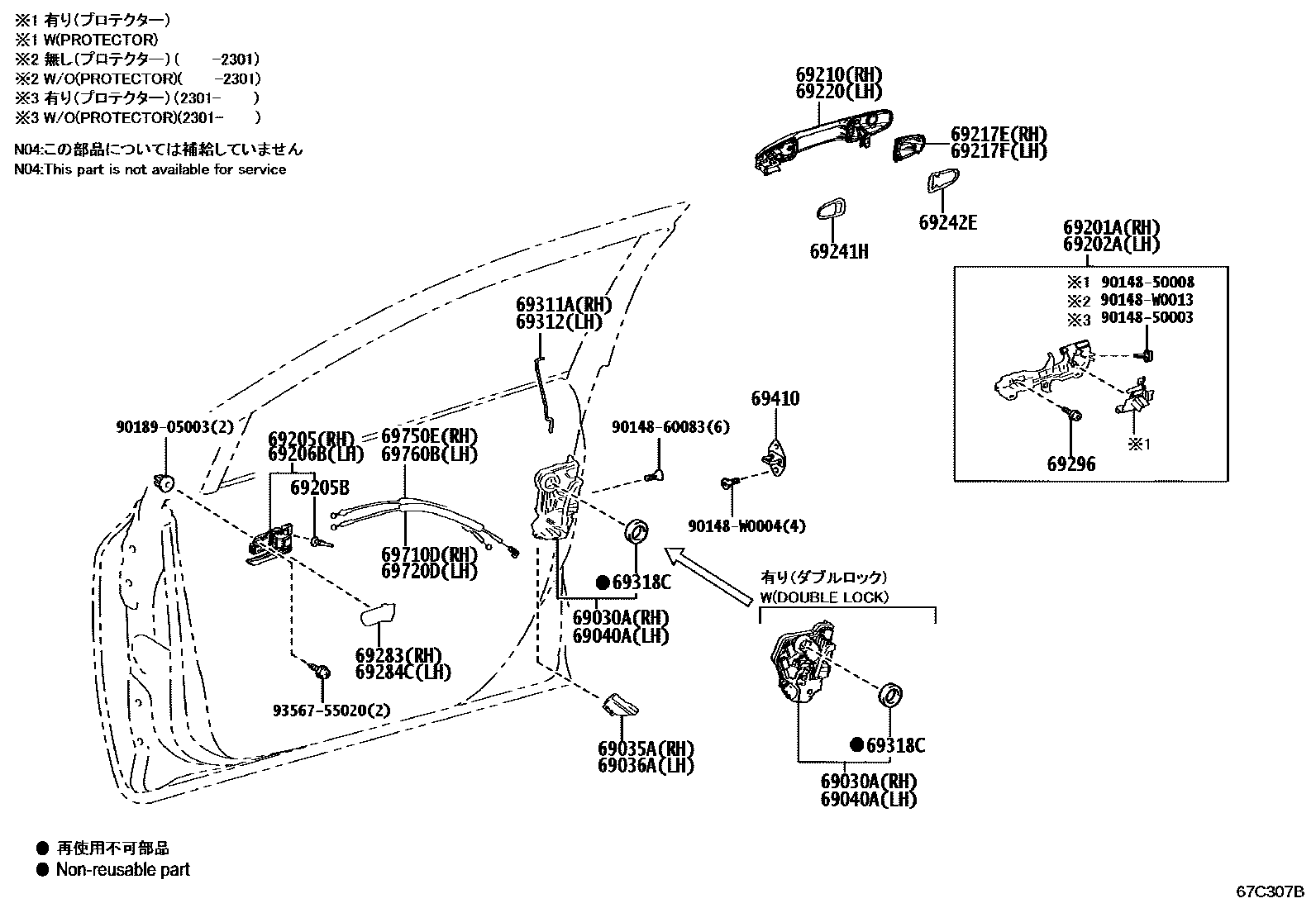

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-02250 · 69030-02511 · 69030-02560 · 69030-F4020 |
| 69035A | Right front door lock cover sub-assembly | 69035-02020 |
| 69036A | Left front door lock cover sub-assembly | 69036-02020 |
| 69040A | Left front door door lock assembly with motor | 69040-02491 · 69040-05150 · 69040-F4020 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-02320 · 69201-02380 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02260 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210 | Right front door outer handle assembly | 69211-02934 · 69211-02935 |
| 69217E | Right front door outer handle cover | 69217-02580 |
| 69217F | Left front door outer handle cover | 69217-02580 |
| 69220 | Left front door outer handle assembly | 69211-02934 · 69211-02935 |
| 69241H | Front door exterior handle pad | 69241-02250 |
| 69242E | Front door rear outer handle pad | 69242-02240 |
| 69296 | Car door inner handle screws | 69296-30010 |
| 69311A | Right front door lock opening lever | 69311-02350 · 69311-02420 |
| 69312 | Left front door lock opening lever | 69312-02350 · 69312-02420 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-0H020 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-02360 · 69710-02440 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-02360 · 69710-02440 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-02390 · 69750-02470 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-02390 · 69750-02470 |
