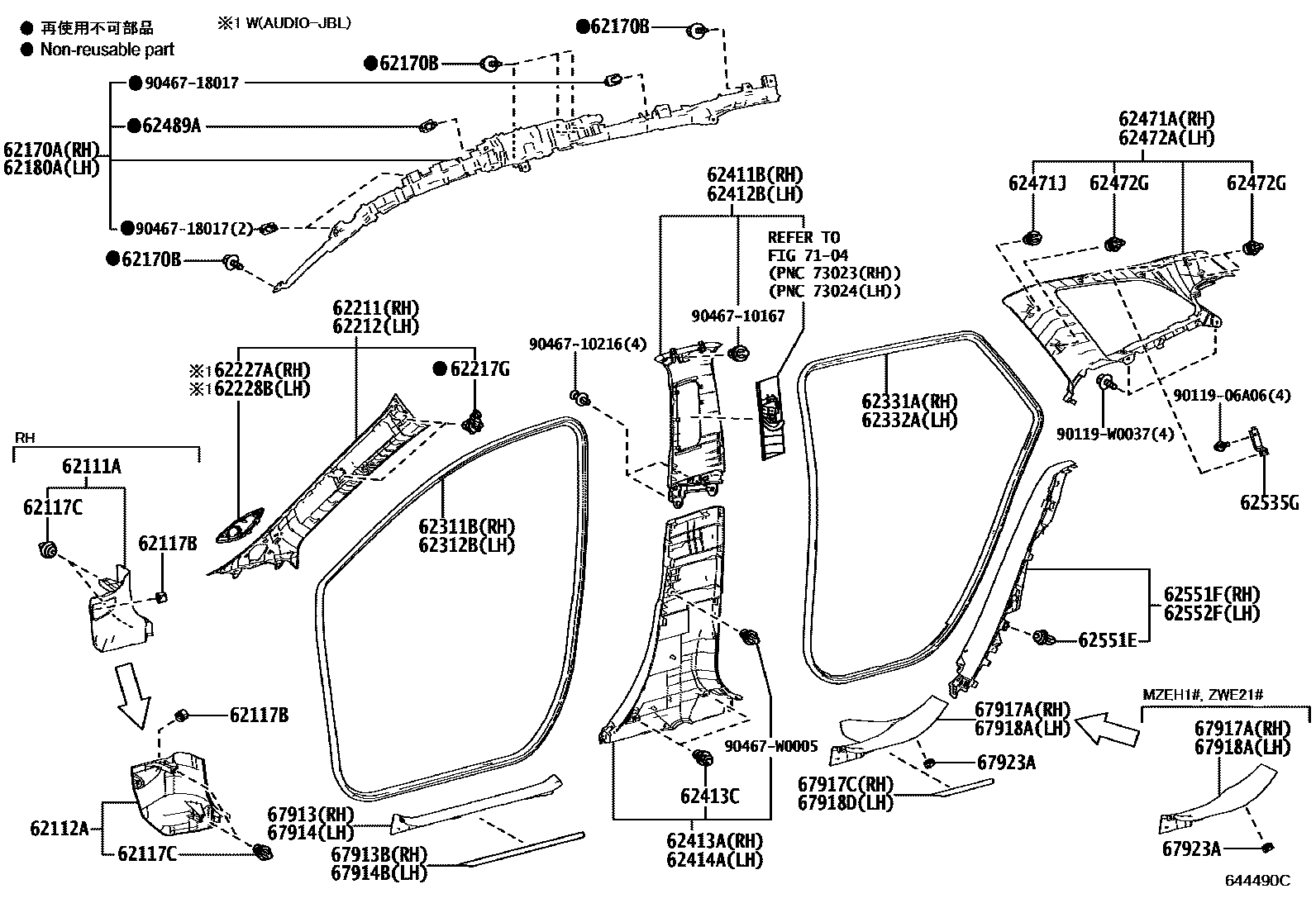

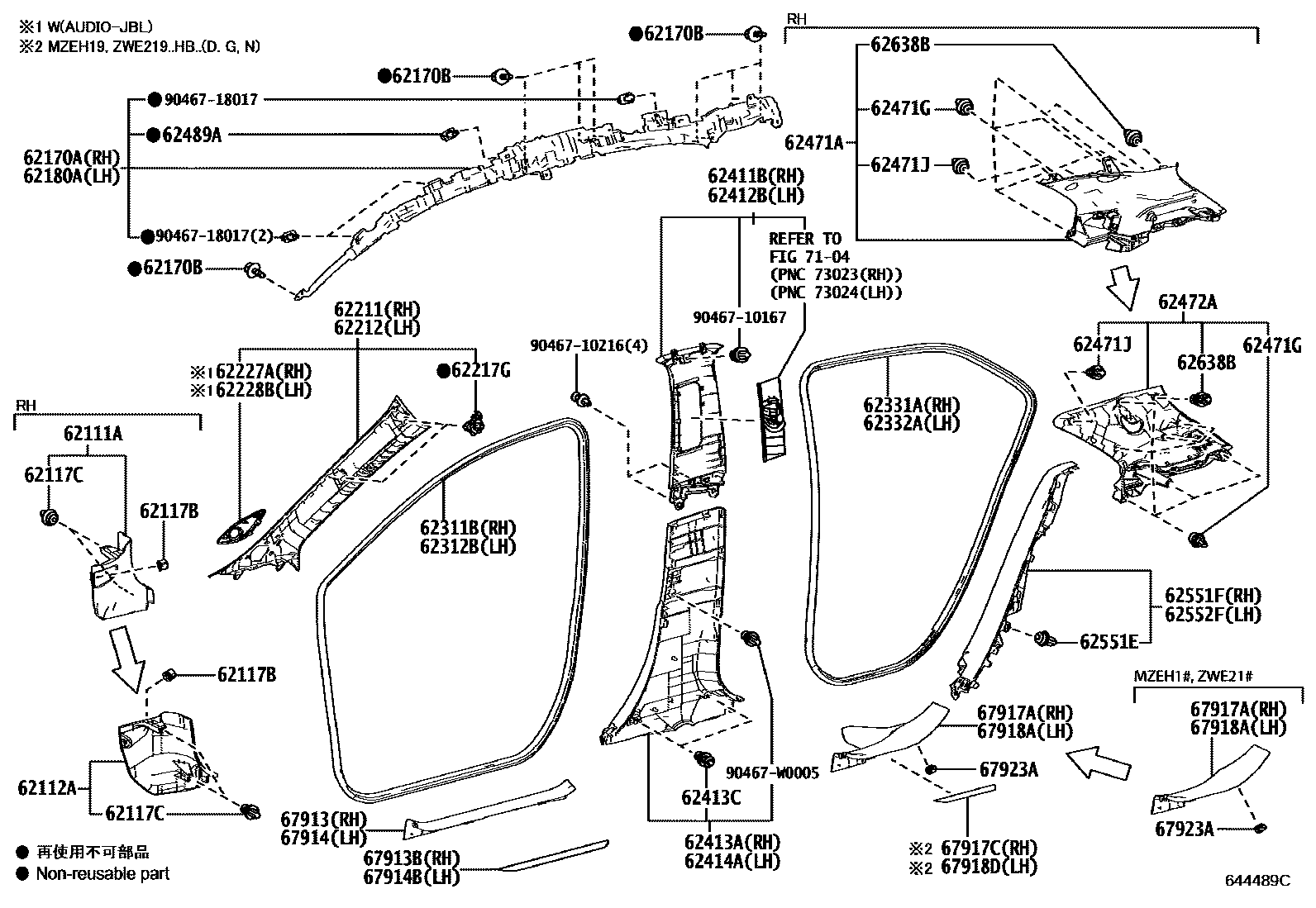

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06147 |
| 62117C | No. 2 clip (for cowl side trim panel) | 90467-10167 |
| 62170A | Right curtain air bag assembly | 62170-02180 · 62170-02181 · 62170-02280 · 62170-02420 · 62170-02421 · 62170-02440 |
| 62170B | Bolts with washers | 90119-W0037 |
| 62180A | Left curtain air bag assembly | 62180-02190 · 62180-02191 · 62180-02270 · 62180-02400 · 62180-02401 · 62180-02440 |
| 62217G | Front pillar decorative plate clip | 62217-42050 |
| 62311B | Right front door opening waterproof tape | 62311-02300 |
| 62312B | Left front door opening waterproof tape | 62312-02340 |
| 62331A | Right rear door opening waterproof tape | 62331-02360 · 62331-02370 |
| 62332A | Left rear door opening waterproof tape | 62332-02360 · 62332-02370 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-A0033 |
| 62471G | Roof side interior panel clips | 90467-09240 |
| 62471J | Clips (for roof side trim panels) | 90467-10188 |
| 62472G | Clips (for roof side trim panels) | 90467-09240 |
| 62489A | Roof side interior panel clips | 62489-28010 |
| 62535G | No. 2 side decorative panel bracket | 62535-02020 |
| 62551E | Clips (for rear seat side trim panels) | 62217-13010 |
| 62638B | clip | 90467-09236 |
| 67913B | Right front door wear plate | 67913-YY400 · 67913-YY410 · 67913-YY470 · 67913-YY490 · 67913-YY500 · 67913-YY501 |
| 67914B | Left front door wear plate | 67913-YY470 · 67914-YY030 · 67914-YY080 · 67914-YY210 · 67914-YY220 · 67914-YY221 |
| 67917C | Right rear door wear plate | 67917-YY230 · 67917-YY240 · 67917-YY270 |
| 67918D | Left rear door wear plate | 67918-YY100 · 67918-YY170 · 67918-YY180 |
| 67923A | Car door No. 1 wear plate clip | 67923-20090 |
