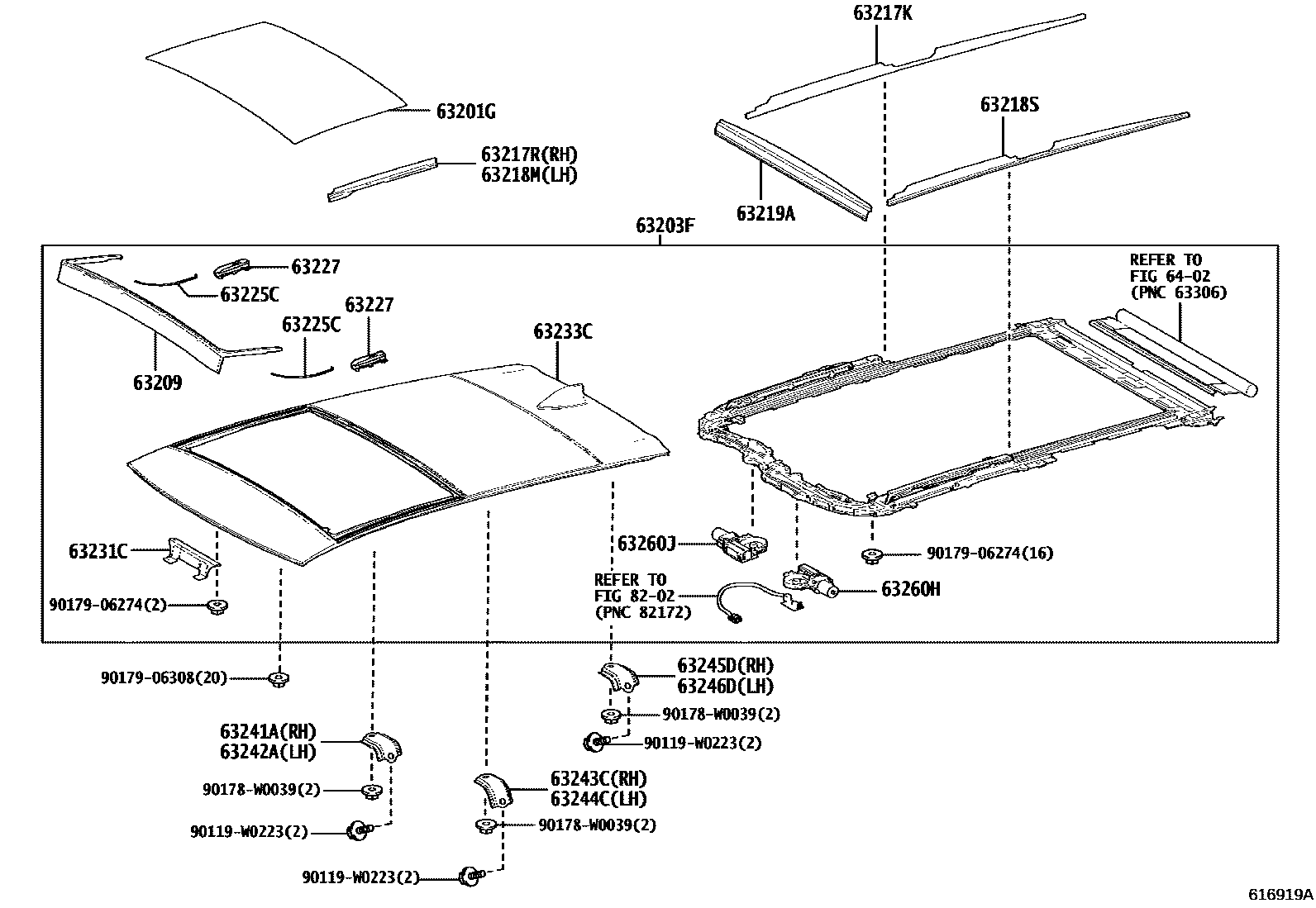

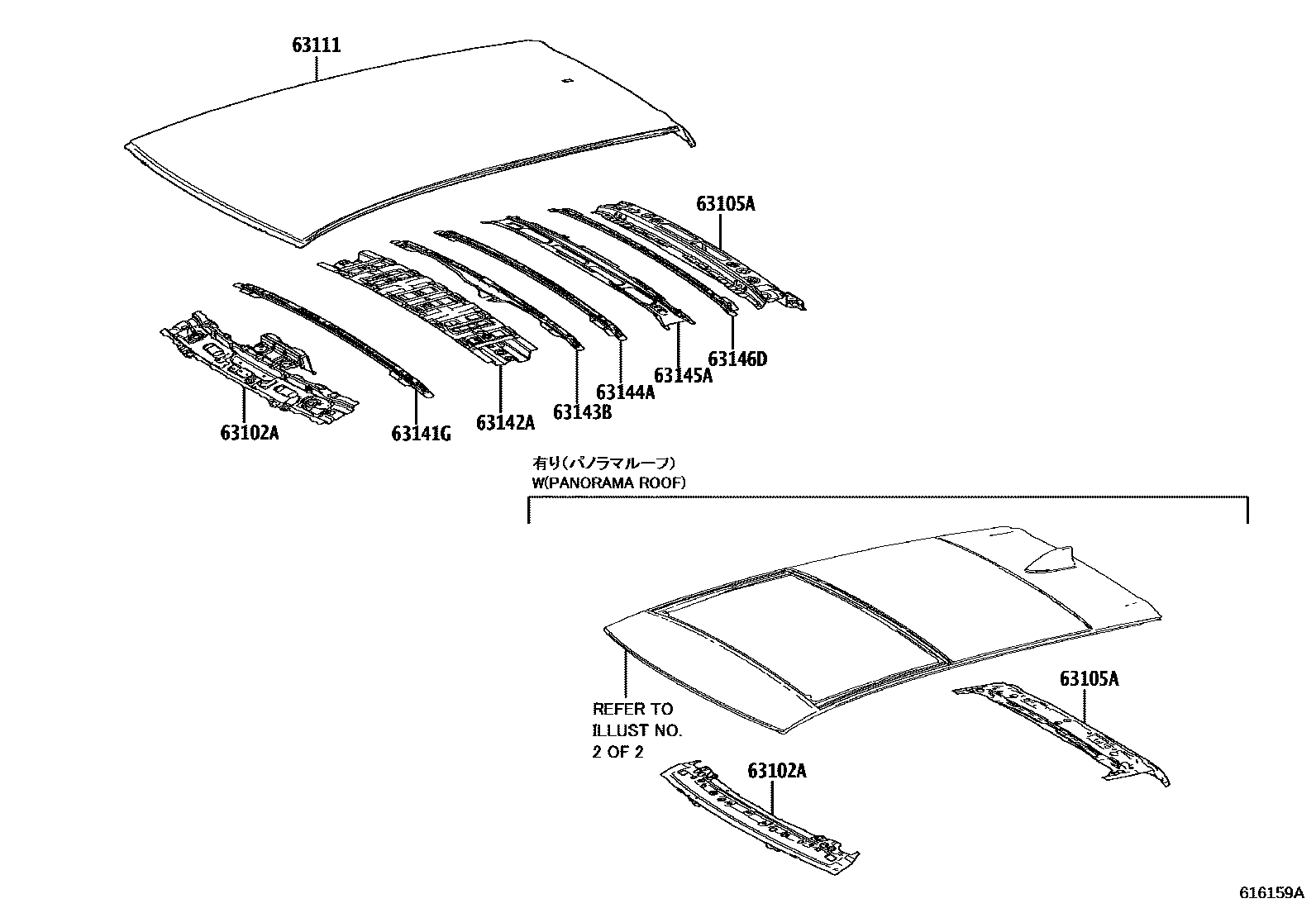

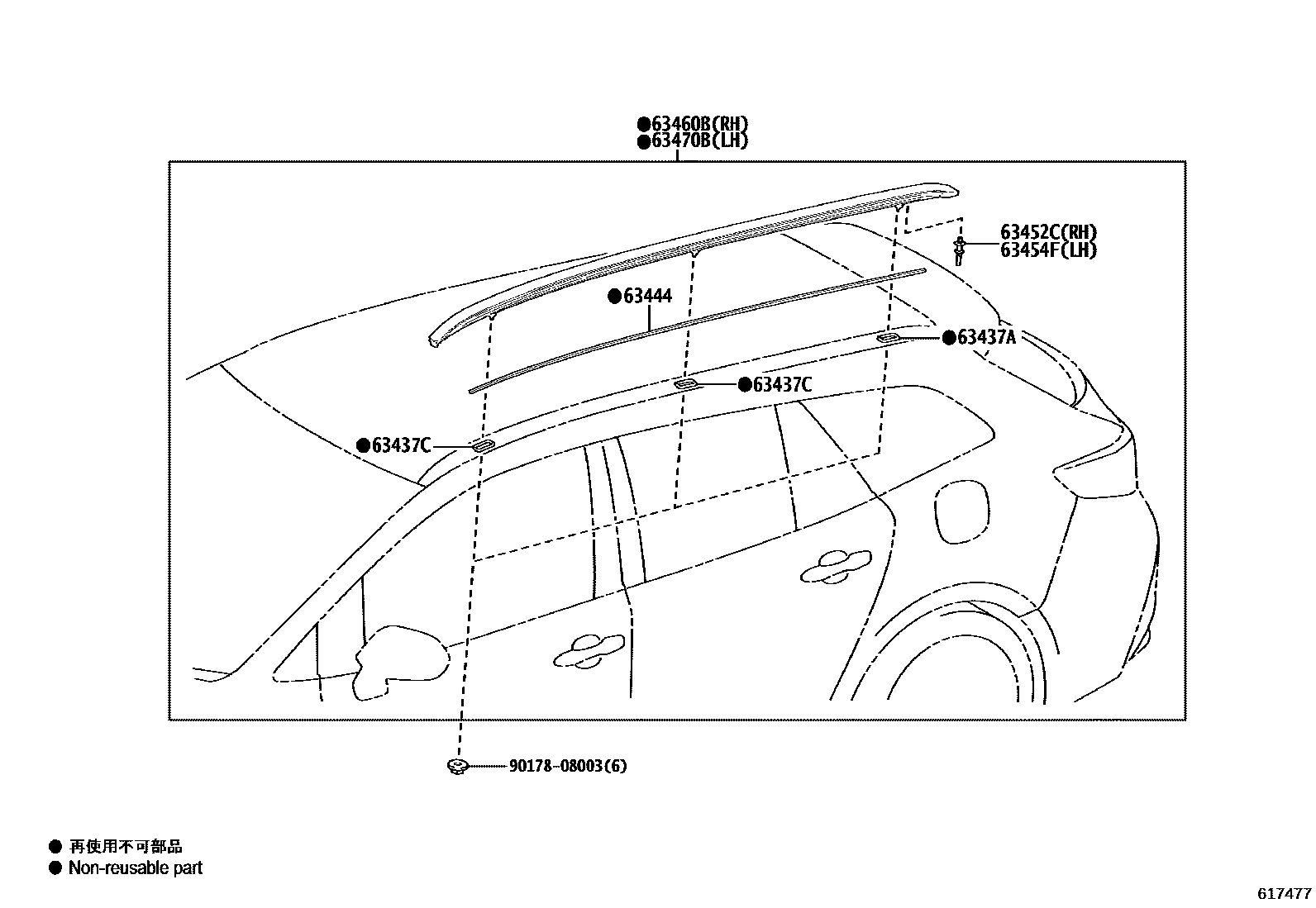

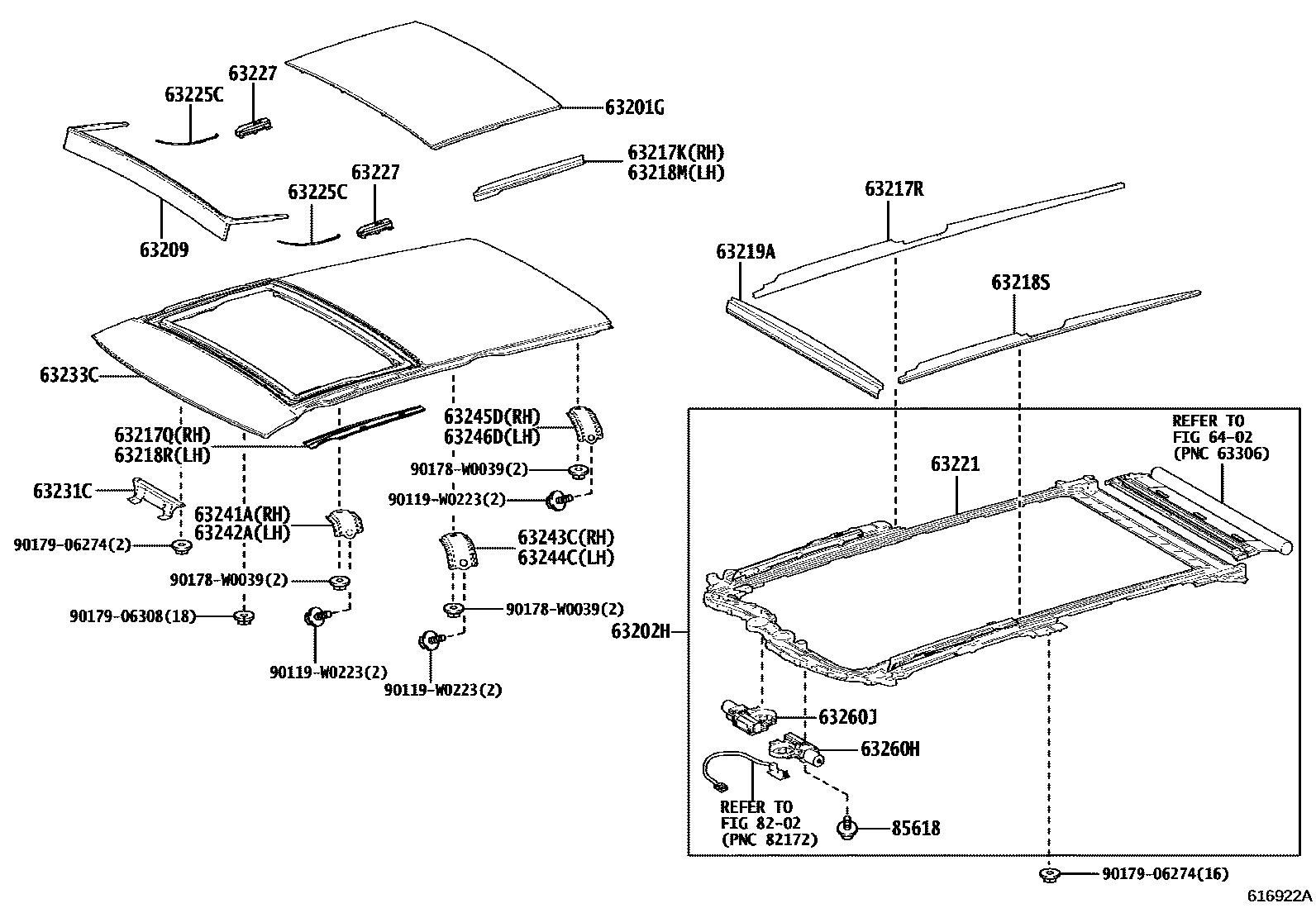

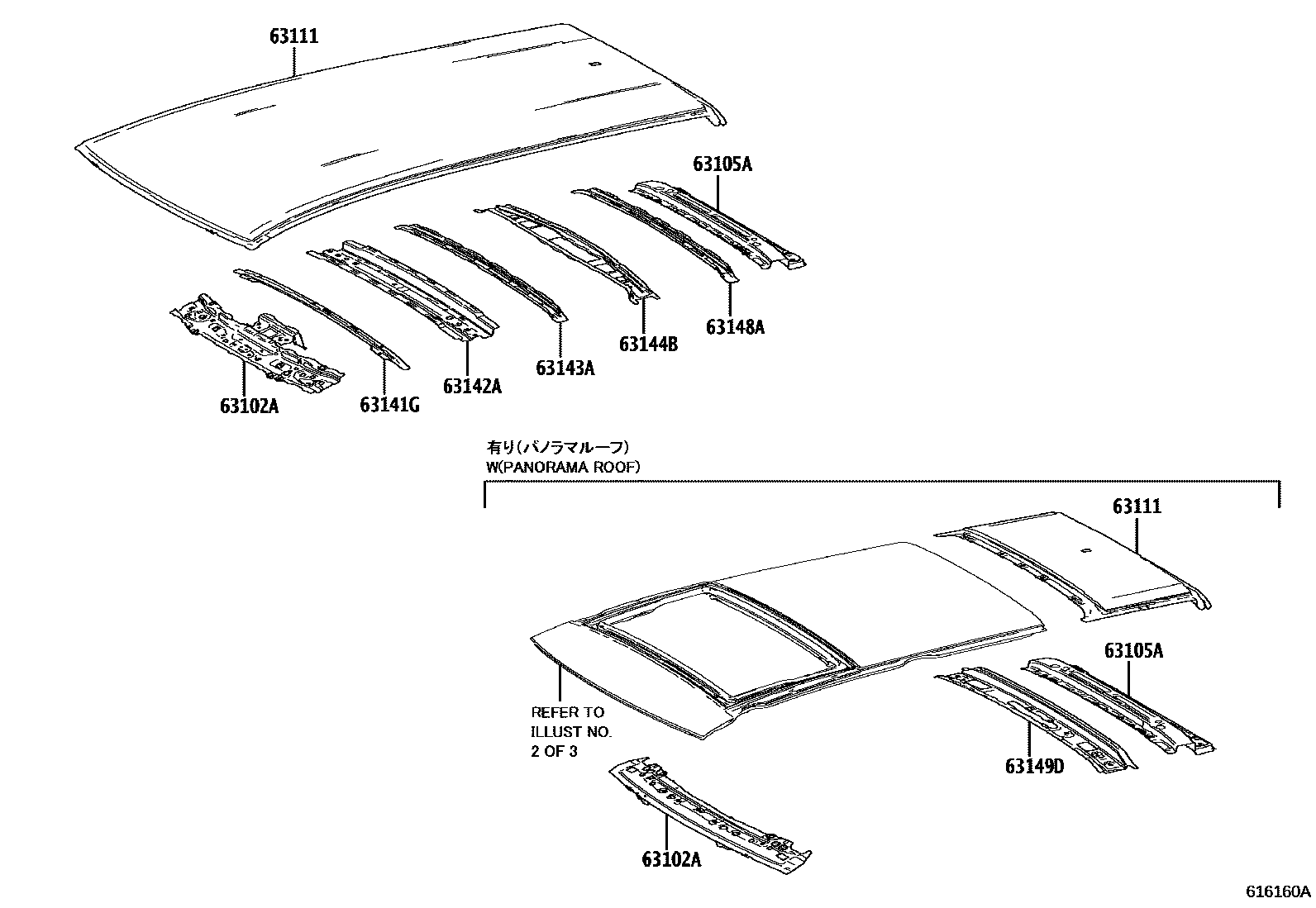

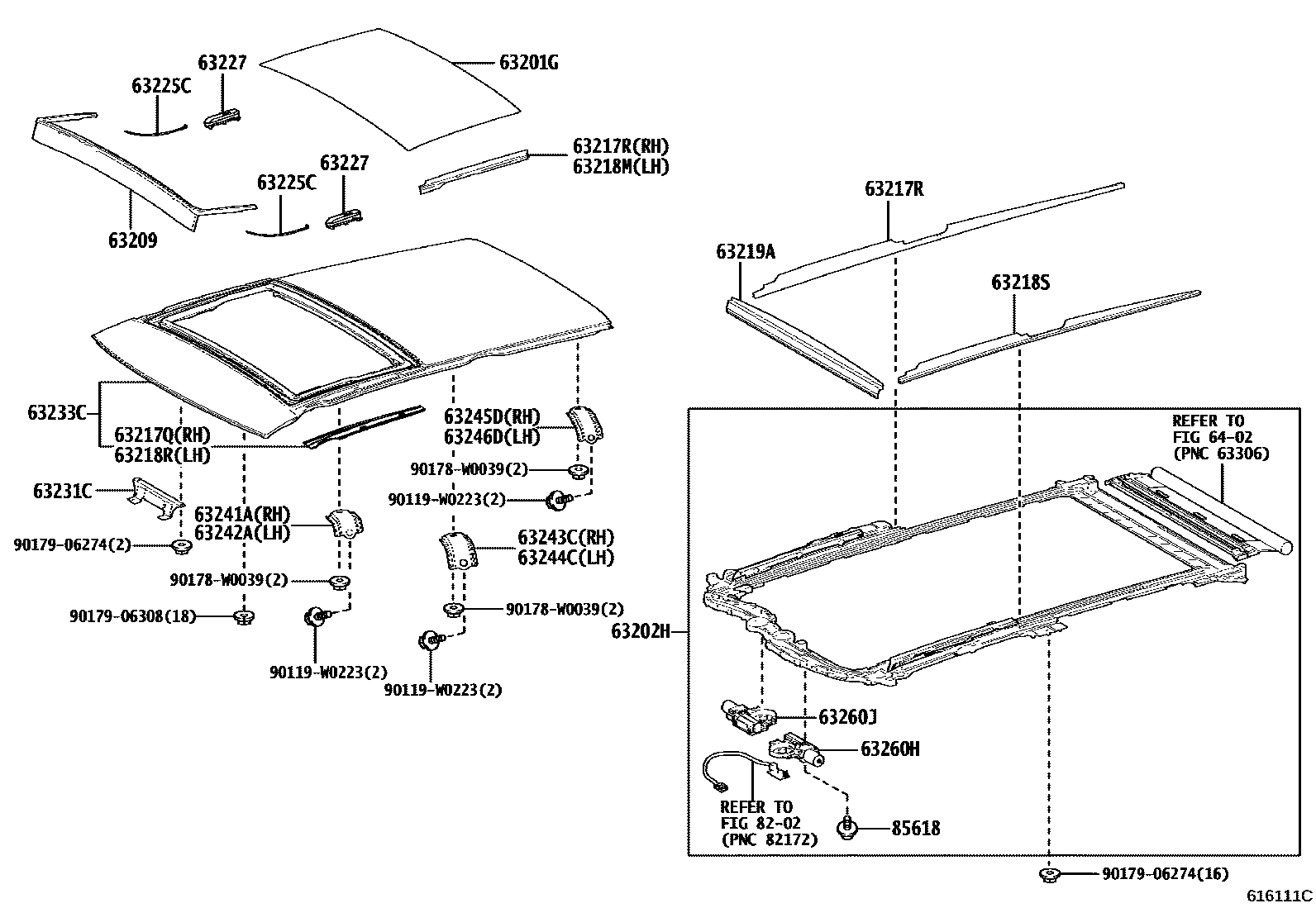

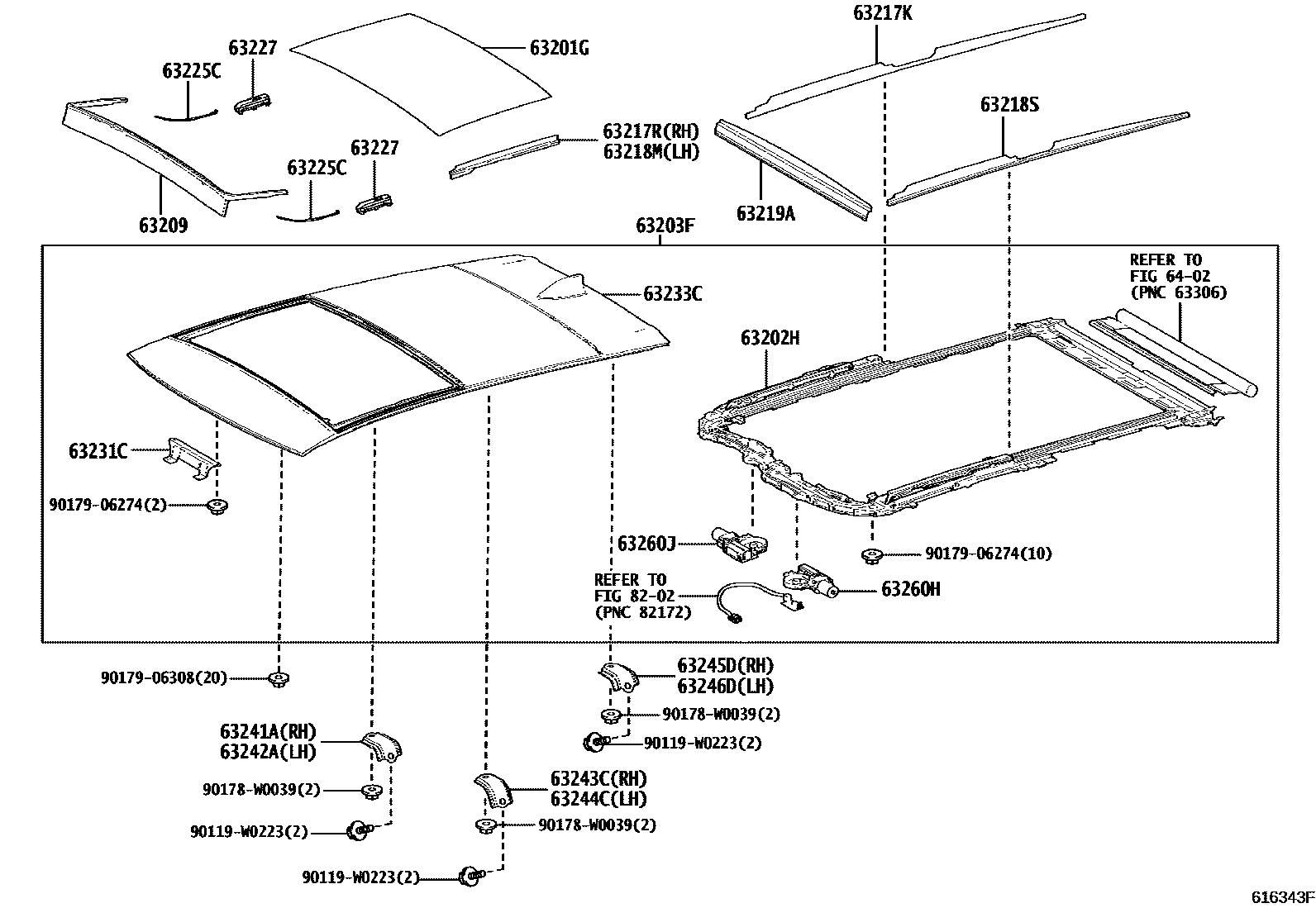

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 7 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-02903 · 63102-02904 |
| 63105A | Back door opening frame sub-assembly | 63105-02180 · 63105-02190 · 63105-02200 |
| 63111 | roof panel | 63111-02670 · 63111-02720 · 63111-02730 · 63111-02740 |
| 63141G | No. 1 roof panel reinforcement | 63142-02160 |
| 63142A | No. 2 roof panel reinforcement | 63103-02120 · 63141-02310 |
| 63143A | Roof panel reinforcement | 63143-02240 |
| 63143B | No. 3 roof panel reinforcement | 63143-02220 |
| 63144A | No. 4 roof panel reinforcement | 63144-02150 |
| 63144B | No. 4 roof panel reinforcement | 63144-02250 |
| 63145A | No. 5 roof panel reinforcement | 63128-02060 |
| 63146D | No. 6 roof panel reinforcement | 63148-02120 |
| 63148A | No. 7 roof panel reinforcement | 63128-02080 |
| 63149D | No. 8 roof panel reinforcement | 63149-02040 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-02140 · 63201-02220 |
| 63209 | Roof deflector sub-assembly | 63209-02120 · 63209-02130 |
| 63217K | Right sliding sunroof trim | 63217-02050 · 63217-02100 |
| 63217Q | Right sliding sunroof trim | 63217-02160 |
| 63217R | Right sliding sunroof trim | 63217-02060 · 63217-02070 |
| 63218M | Sliding sunroof trim, left | 63218-02030 · 63218-02040 |
| 63218R | Sliding sunroof trim, left | 63218-02080 |
| 63218S | Sliding sunroof trim, left | 63218-02020 · 63218-02070 |
| 63219A | Rear sliding sunroof trim | 63219-02010 · 63219-02020 |
| 63225C | roof deflector spring | 63225-02020 |
| 63227 | Roof deflector clip | 63227-02040 |
| 63231C | Interior light bracket | 63231-02110 |
| 63233C | Sliding skylight shelf | 63233-02140 · 63233-02150 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-02190 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-02190 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-02120 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63243-02120 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-02080 · 63245-02090 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63245-02080 · 63245-02090 |
| 63260H | Sliding sunroof driving gear assembly | 63260-02170 · 63260-02171 · 63260-02200 · 63260-02201 |
| 63260J | Sliding sunroof driving gear assembly | 63260-02180 · 63260-02181 · 63260-02240 · 63260-02241 |
| 63437A | Roof rack No. 2 seal | 63437-02030 |
| 63437C | Roof rack seal | 63437-02030 · 63437-02040 |
| 63444 | No. 1 roof rack protector | 63444-02020 |
| 63452C | Right rear roof rack fixing | 63451-02020 |
| 63454F | Left rear roof rack fixing | 63451-02020 |
| 63460B | Roof right luggage rack assembly | 63460-02060 · 63460-02070 · 63460-02080 · 63460-02090 |
| 63470B | Roof left luggage rack assembly | 63470-02060 · 63470-02070 · 63470-02080 · 63470-02090 |
| 85618 | Sliding sunroof motor thrust screw | 85618-21010 |
