Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

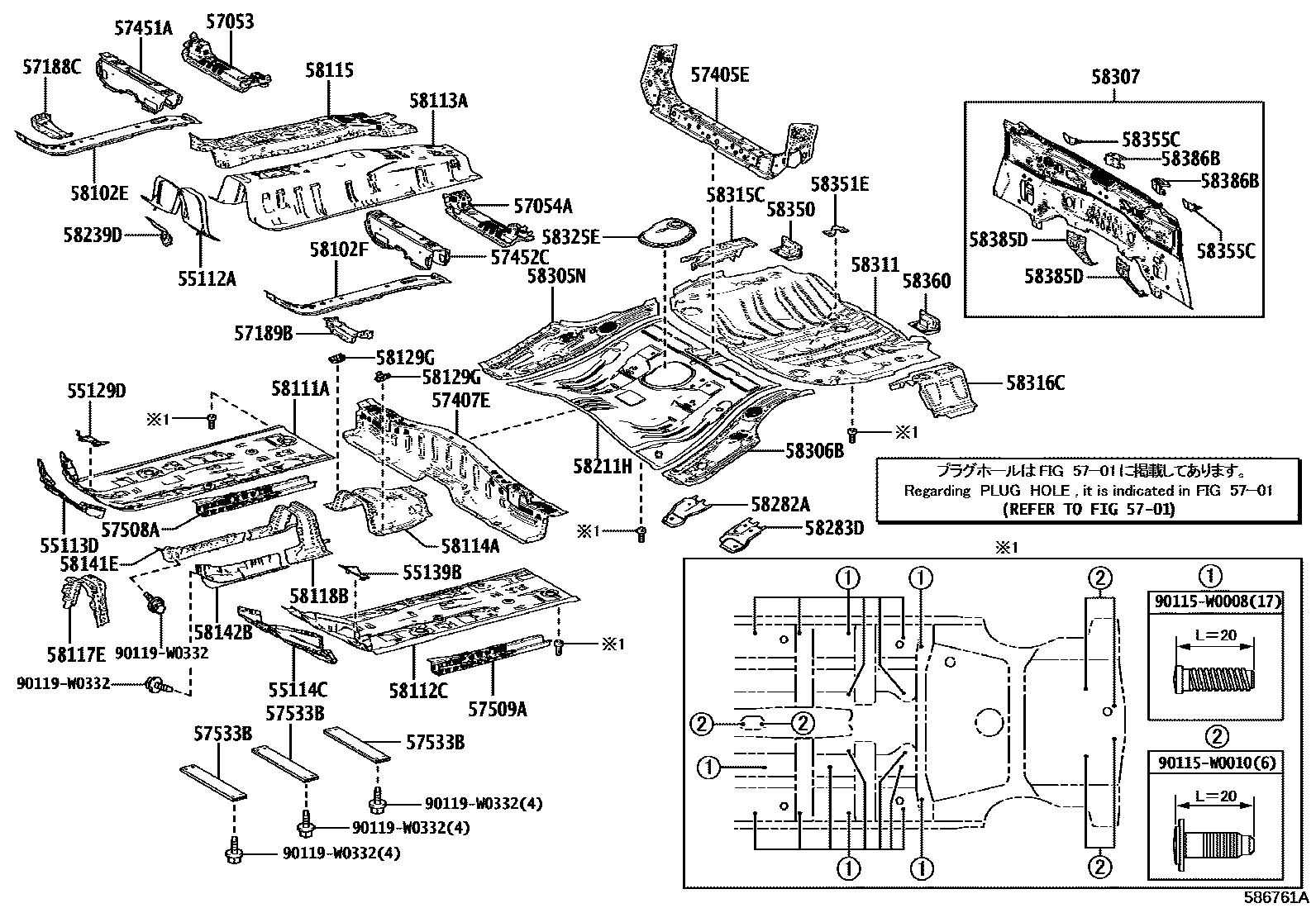

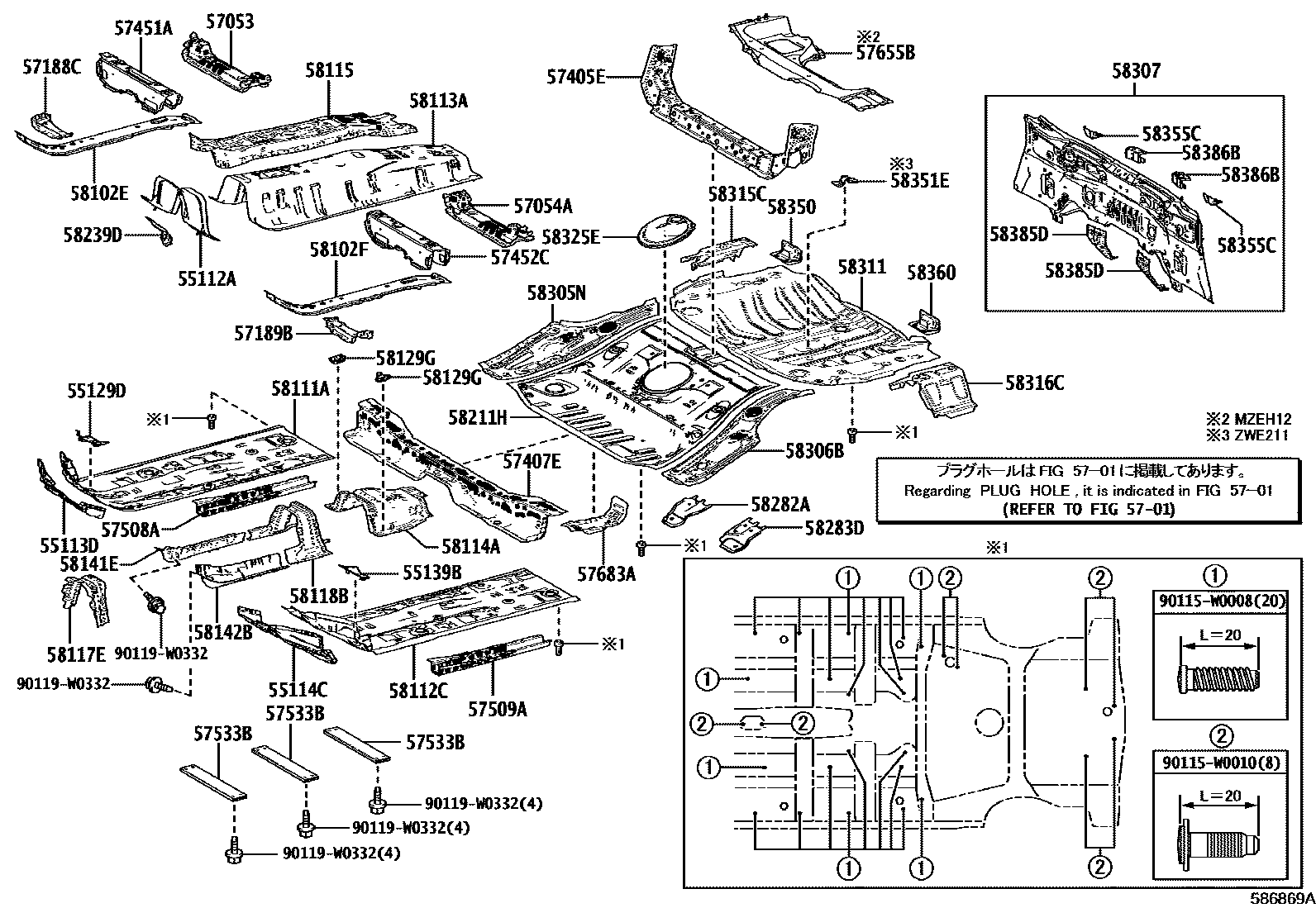

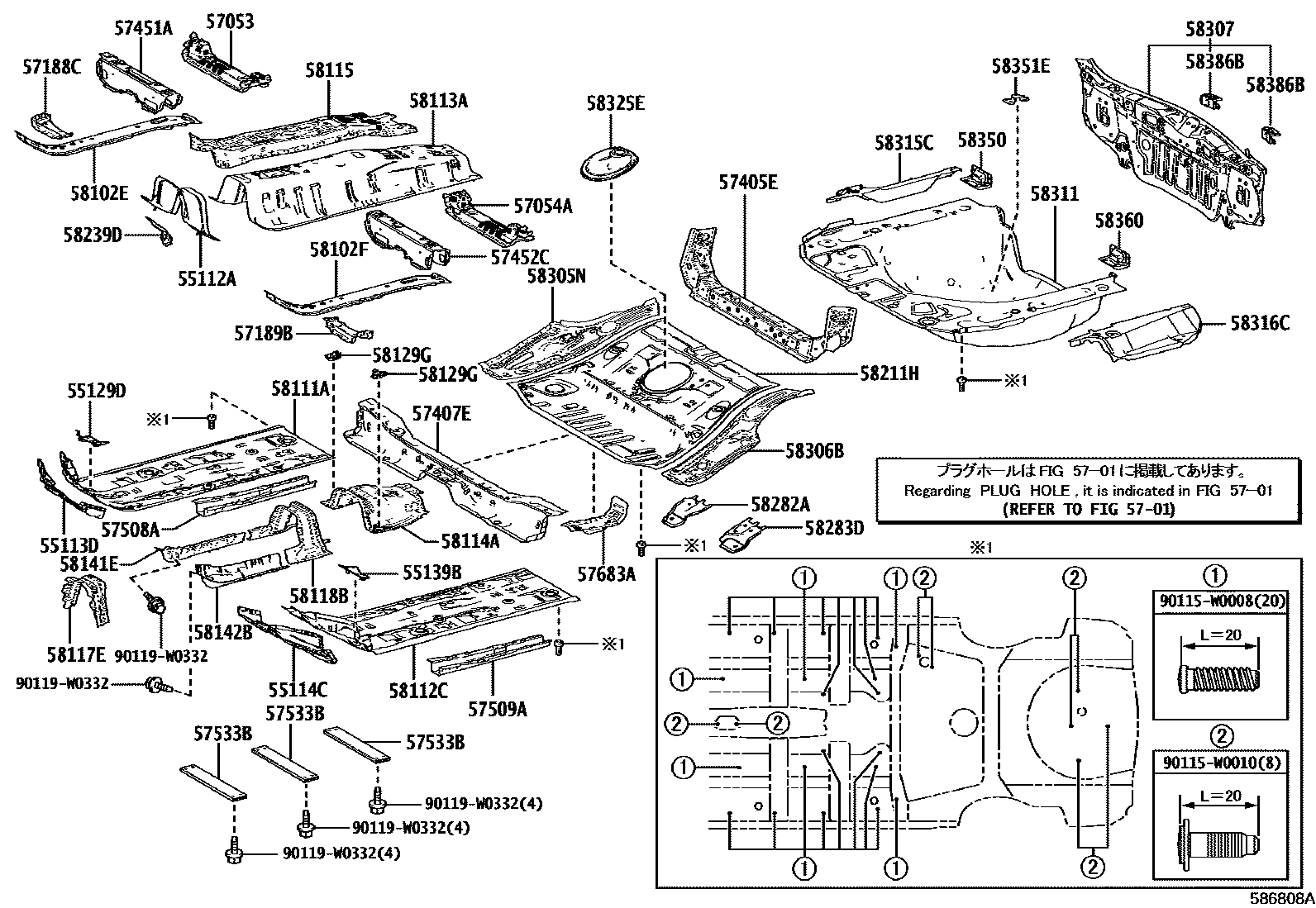

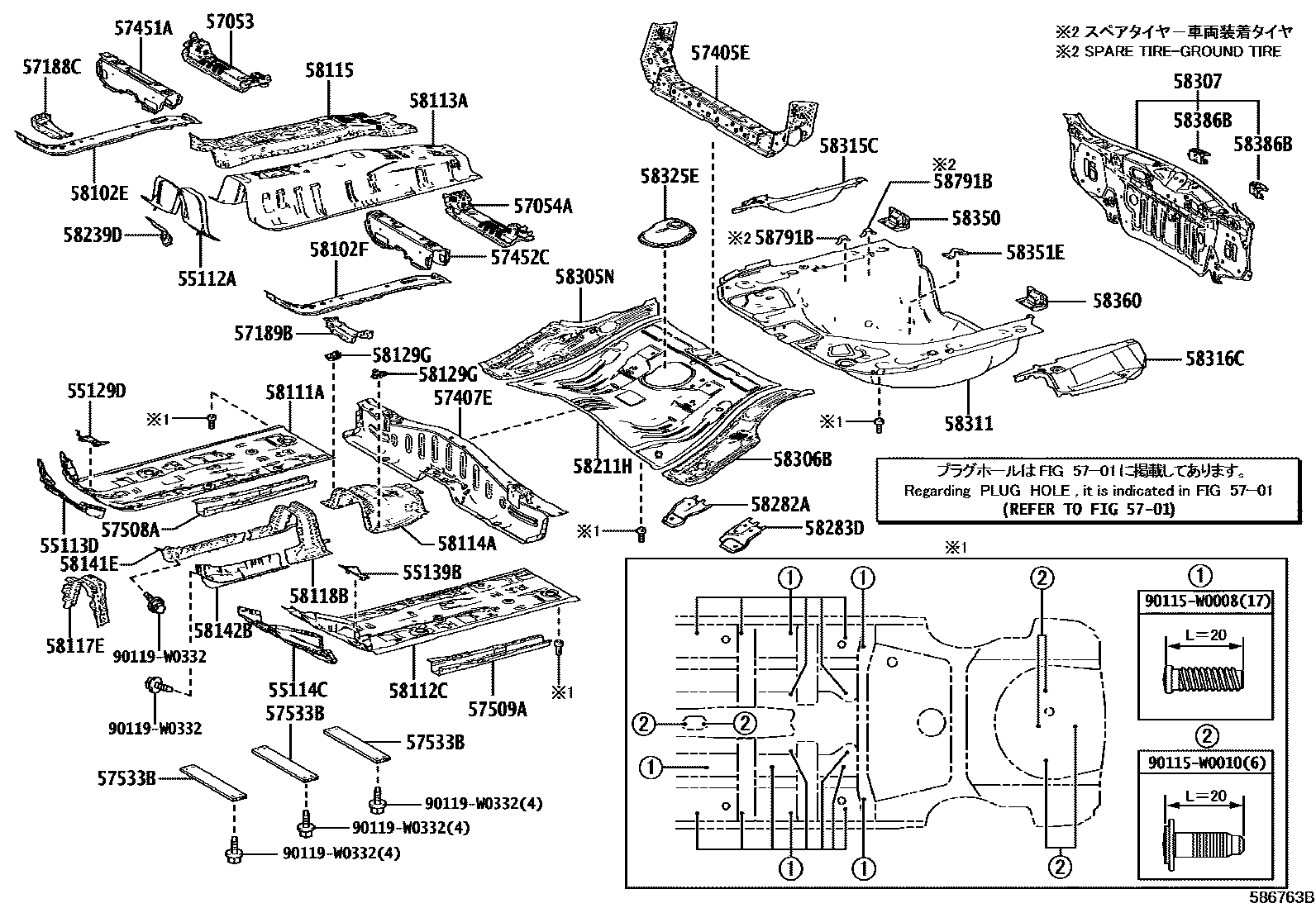

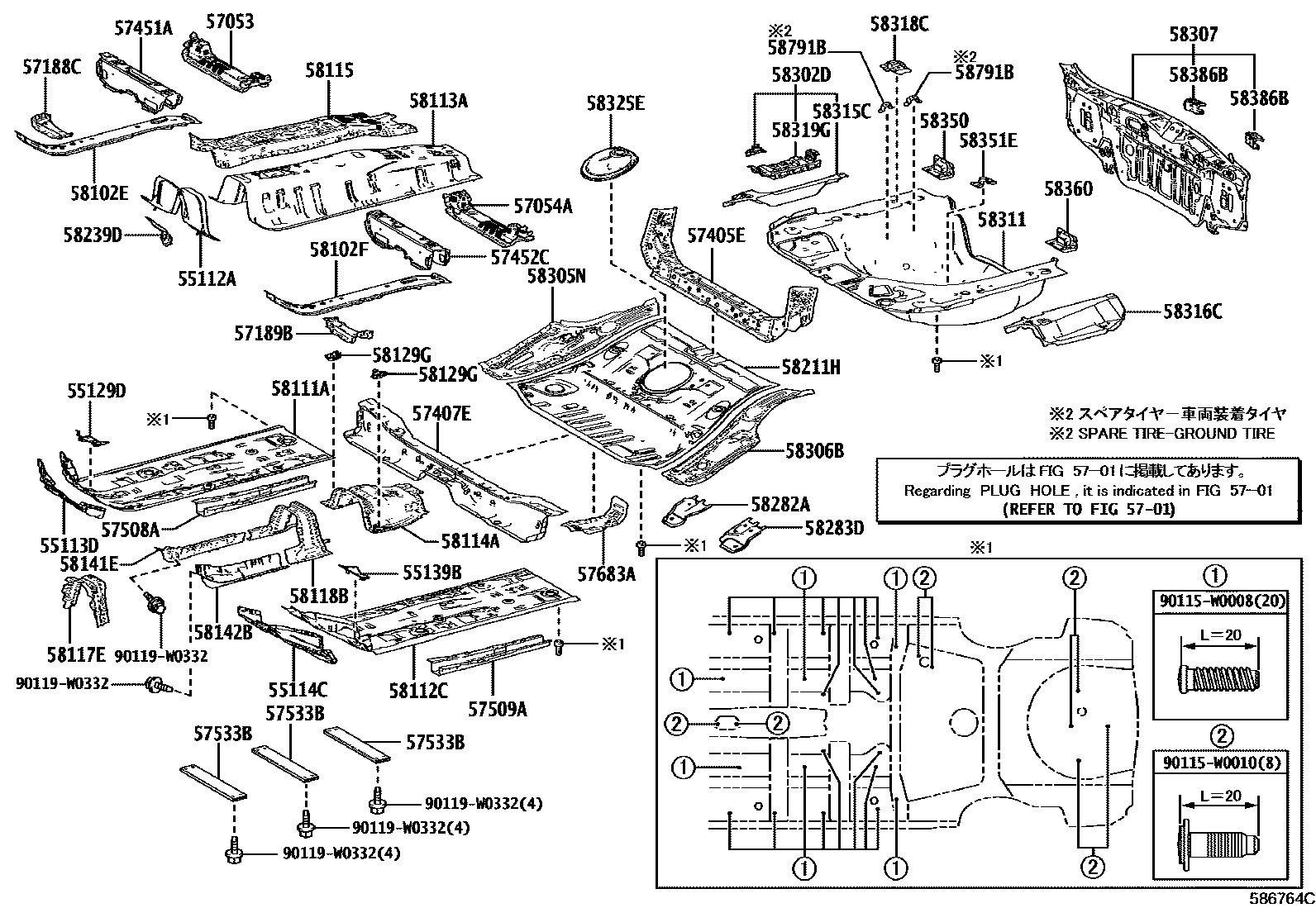

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 5 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55112A | No. 2 front panel | 55112-02030 |
| 55113D | lower right cowl | 55113-02040 |
| 55114C | Lower left cowl | 55114-02080 |
| 55129D | Right front panel hole cover | 55129-F4010 |
| 55139B | Left front panel hole cover | 55139-F4010 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-02100 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-02090 |
| 57188C | Right front longitudinal beam extension reinforcement | 57188-02080 |
| 57189B | Left front longitudinal beam extension reinforcement | 57189-02060 |
| 57405E | Center floor No. 2 beam sub-assembly | 57405-02040 |
| 57407E | Center floor beam sub-assembly | 57407-02240 · 57407-02250 |
| 57451A | Front floor right cross member | 57451-02250 |
| 57452C | Front floor left cross member | 57452-02190 |
| 57508A | Front floor right reinforcement sub-assembly | 57508-02050 · 57508-02060 |
| 57509A | Front floor left reinforcement sub-assembly | 57508-02050 · 57508-02060 |
| 57533B | Front floor center bracket | 57533-F4010 |
| 57655B | Rear floor beam No. 4 | 57655-02020 |
| 57683A | No. 1 fuel tank mounting bracket | 57683-F4020 |
| 58102E | Front floor right reinforcement sub-assembly | 58102-02190 |
| 58102F | Front floor left panel sub-assembly | 58102-02190 |
| 58111A | Front floor right bottom panel | 58111-02370 · 58111-02371 · 58111-02372 · 58111-02380 · 58111-02381 · 58111-02382 |
| 58112C | Front floor left bottom panel | 58112-02120 · 58112-02121 · 58112-02122 · 58112-02130 · 58112-02131 · 58112-02132 |
| 58113A | front floor center panel | 58113-02160 · 58113-02170 |
| 58114A | front floor reinforcement | 58114-02060 · 58114-02070 |
| 58115 | Front floor reinforcement | 58015-02250 · 58115-02060 |
| 58117E | Front floor sub-cover | 58117-02050 |
| 58118B | Front floor reinforcement No. 2 | 58118-02090 |
| 58129G | Front cross member to front panel beam reinforcement bracket | 58129-02030 |
| 58141E | Right front longitudinal beam to floor panel reinforcement | 58141-F4011 · 58141-F4012 |
| 58142B | Left front longitudinal beam to floor panel reinforcement | 58142-F4011 · 58142-F4012 |
| 58211H | central floor base | 58211-02540 · 58211-02550 |
| 58239D | Cable clip bracket | 58239-02040 |
| 58282A | Right No. 3 seat belt anchor to floor base | 58282-F4010 |
| 58283D | Left No. 3 seat belt anchor to floor base | 58283-02200 |
| 58302D | Rear floor front panel sub-assembly | 58302-02070 |
| 58305N | Rear floor to right side wall extension sub-assembly | 58305-02100 · 58305-02110 |
| 58306B | Rear floor to left side wall extension sub-assembly | 58306-02110 · 58306-02111 · 58306-02120 |
| 58307 | Body lower back panel sub-assembly | 58307-02480 · 58307-02490 |
| 58311 | rear floor pan | 58311-02360 · 58311-02370 · 58311-02380 |
| 58315C | Rear floor right side panel extension | 58315-02090 · 58315-02100 · 58315-02180 |
| 58316C | Rear floor left side panel extension | 58316-02050 · 58316-02060 |
| 58318C | Rear floor cross member bracket | 58318-02030 |
| 58319G | auxiliary floor | 58319-02060 |
| 58325E | Rear floor access hole cover | 58325-F4011 · 58325-F4021 |
| 58350 | Rear floor right reinforcement assembly | 58350-F4010 |
| 58351E | Spare tire clip bracket | 58351-02110 |
| 58355C | Rear bumper arm bracket | 58355-02100 |
| 58360 | Rear floor left reinforcement assembly | 58350-F4010 |
| 58385D | Rear bumper cover bracket | 58385-02240 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02010 · 58386-02190 |
| 58791B | jack bracket | 58791-02120 |
