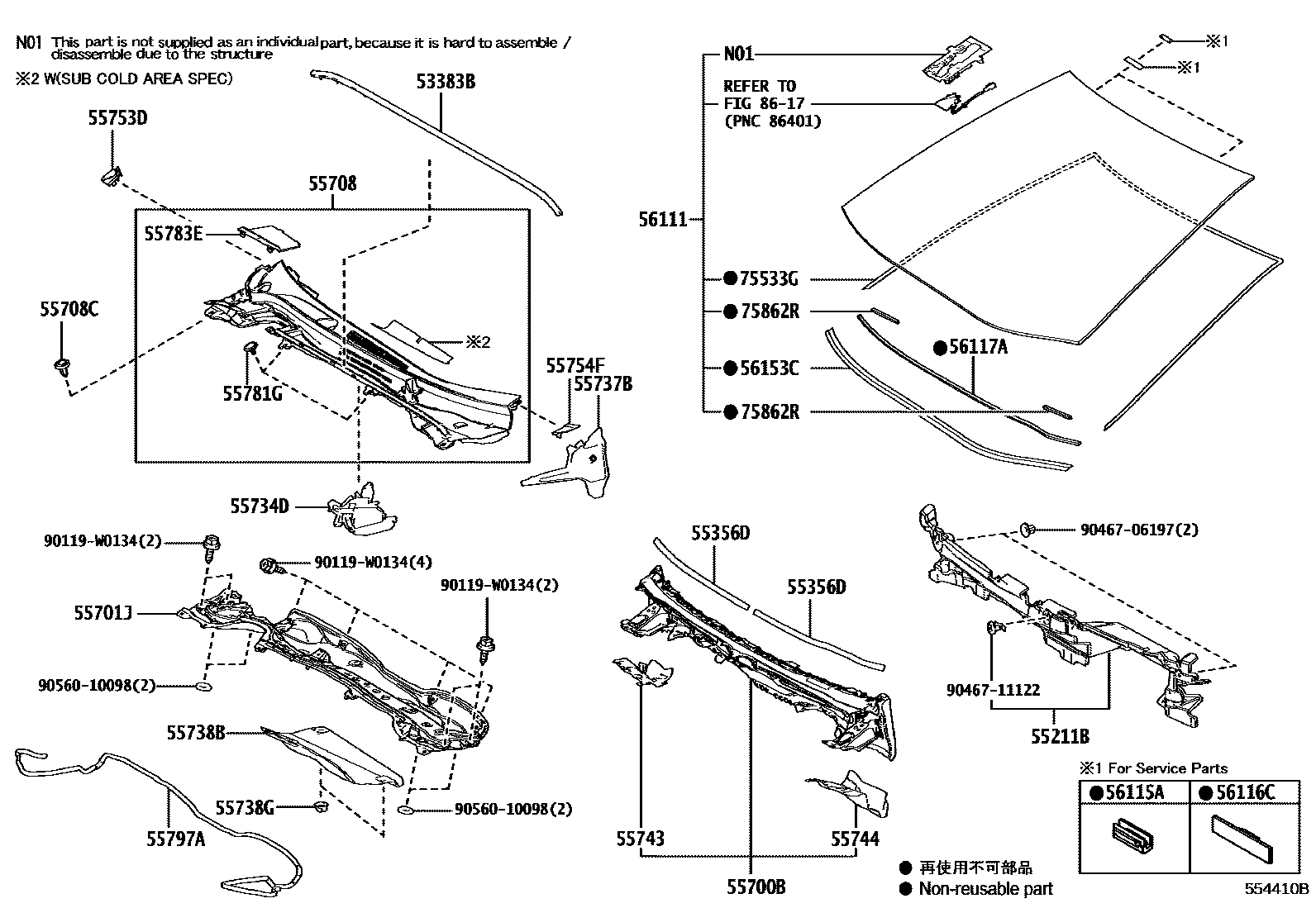

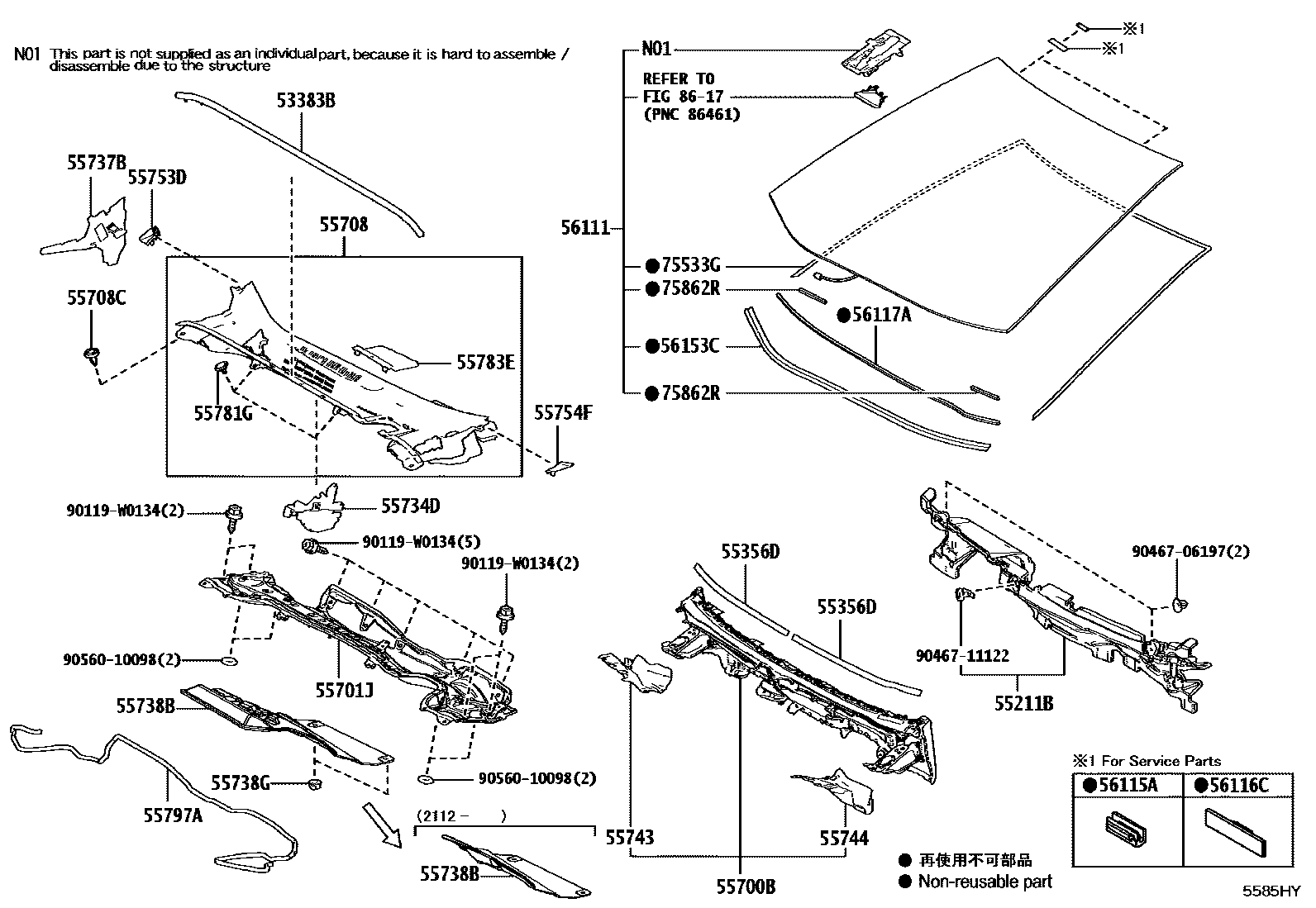

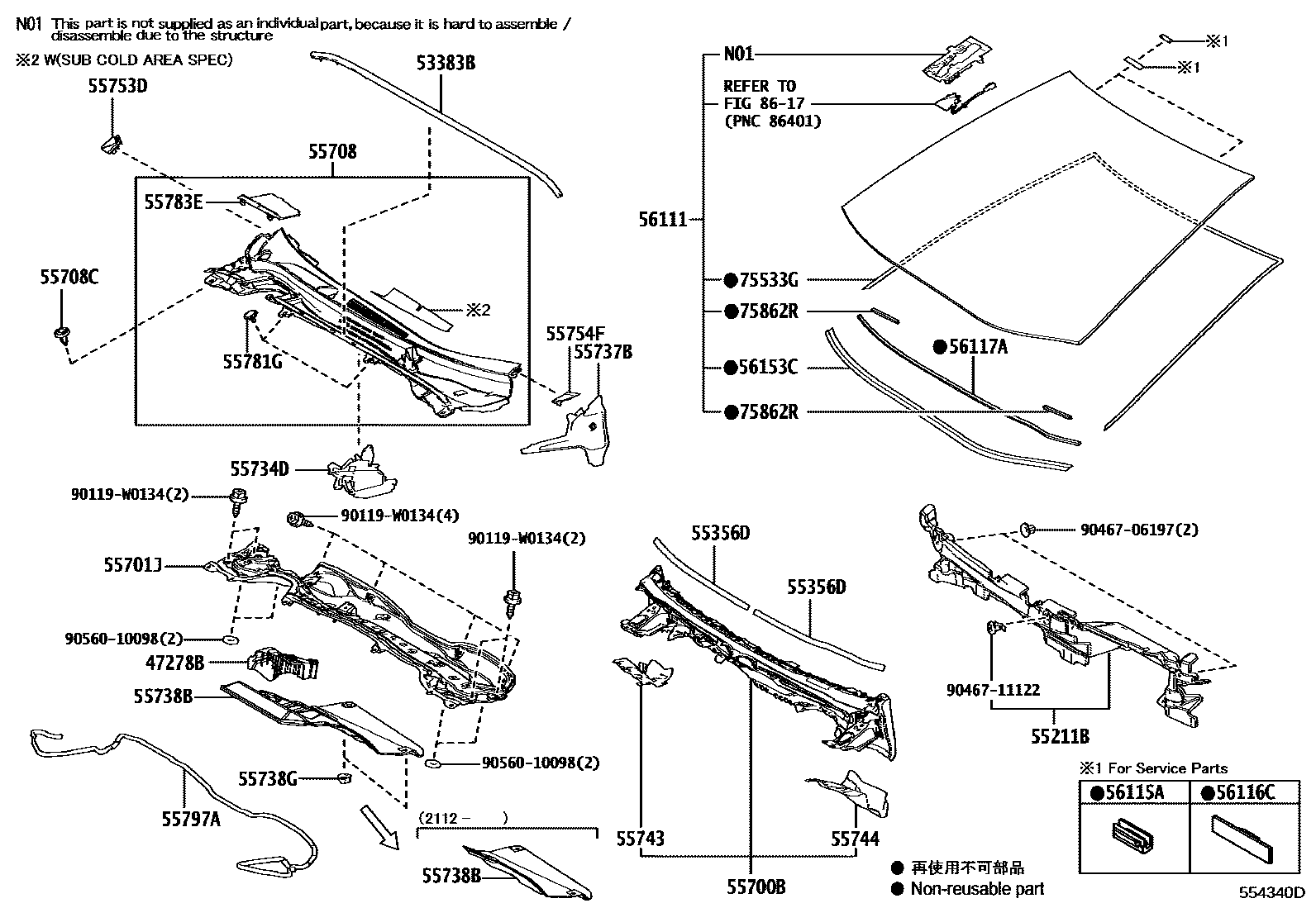

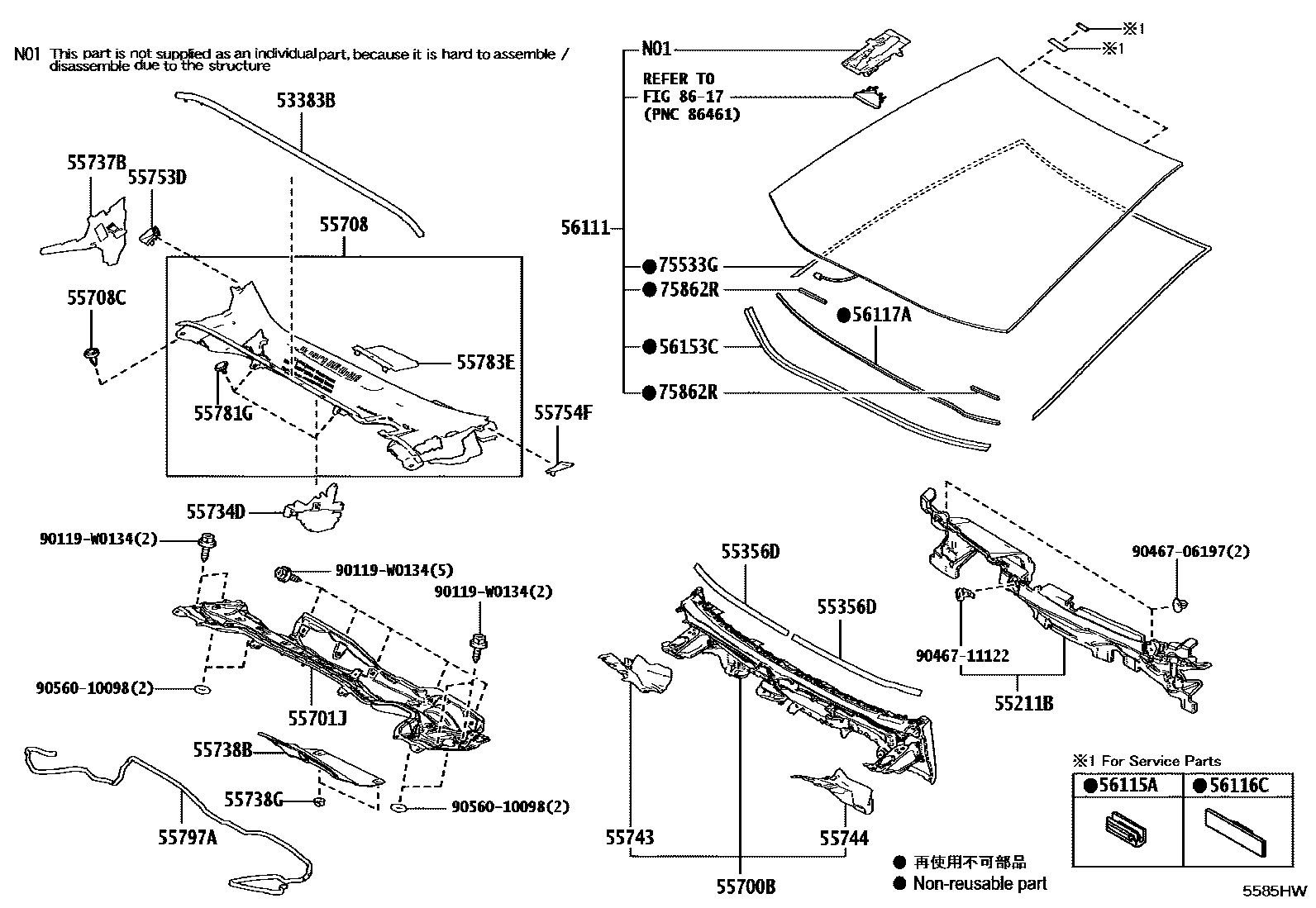

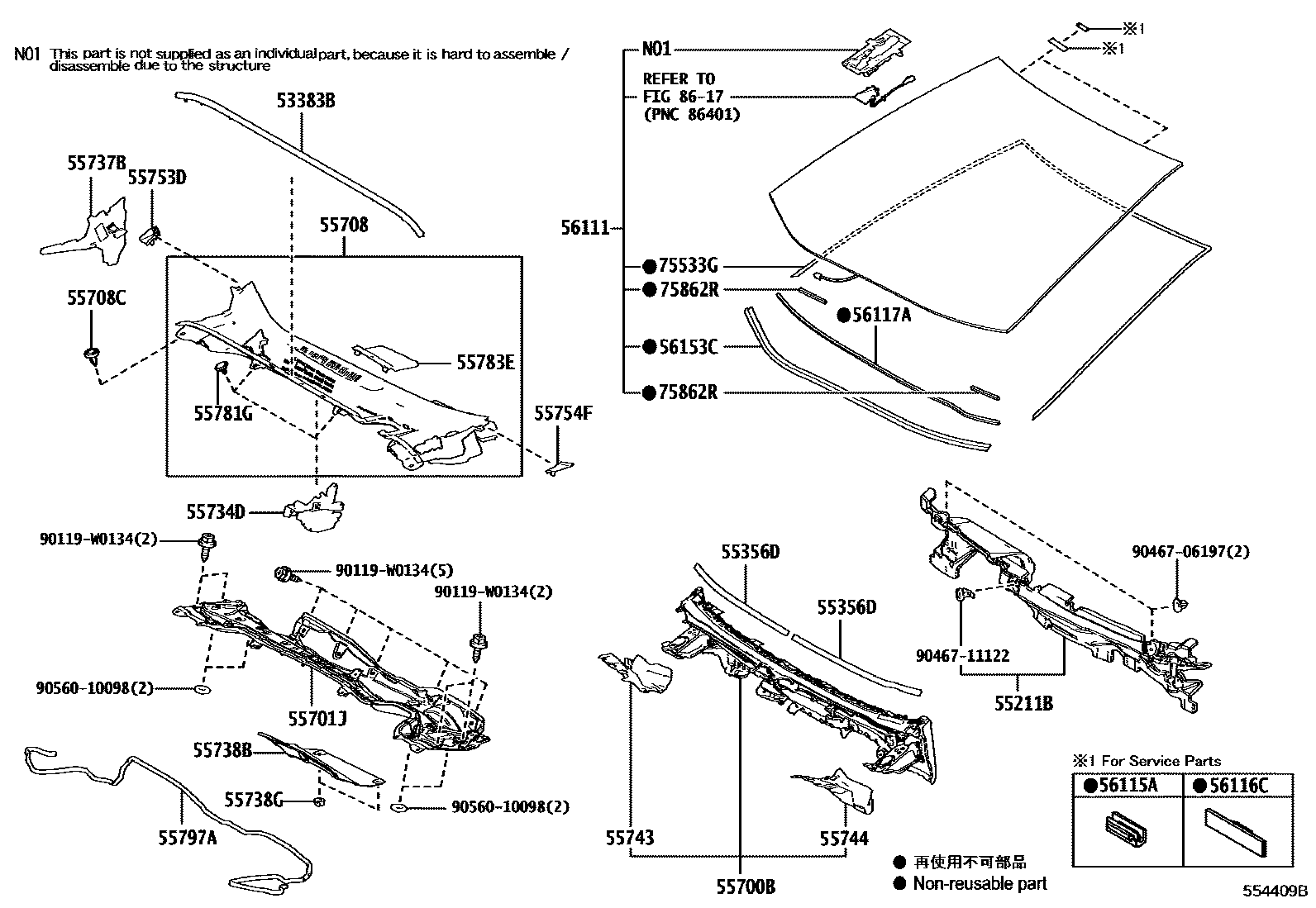

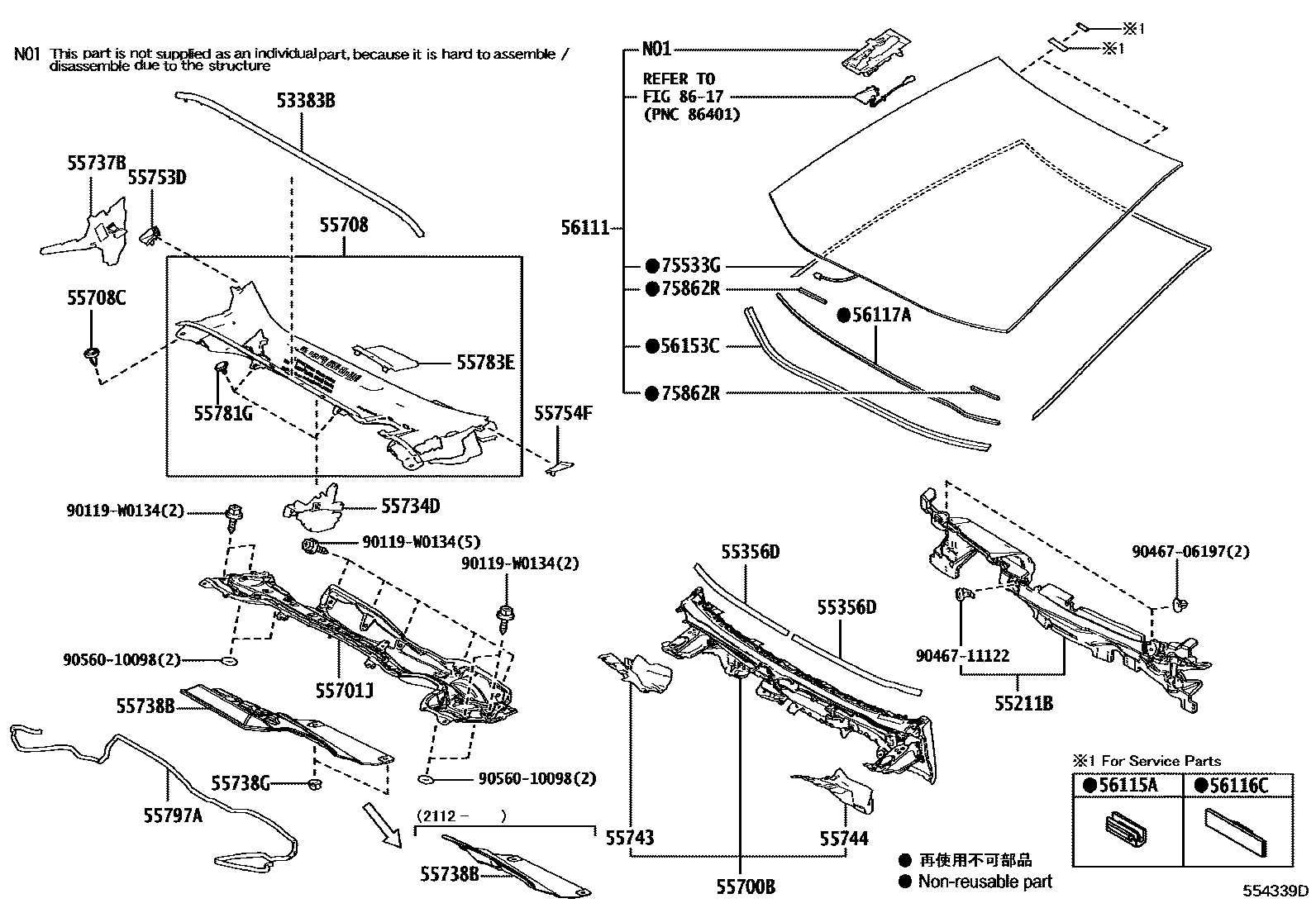

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 8 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47278B | brake master cylinder cover | 47278-12020 · 47278-12050 |
| 53383B | Engine cover to cowl upper cover seal | 53383-02260 · 53383-02340 |
| 55211B | Front panel silencer | 55211-02220 · 55211-02230 · 55211-02240 · 55211-02250 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-02520 |
| 55700B | Front apron assembly | 55700-02630 · 55700-02640 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-02540 · 55701-02550 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-02A10 · 55708-02A20 · 55708-02A50 · 55708-02A60 |
| 55708C | Ventilation grille clips on front apron | 90467-09242 |
| 55734D | Waterproof cover panel | 55734-02390 · 55734-02400 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02230 · 55737-02240 |
| 55738B | Front panel cover No. 1 protective piece | 55224-02180 · 55224-02190 · 55738-02040 · 55738-02050 |
| 55743 | Right front upper outer corner panel | 55743-02150 · 55743-02160 |
| 55744 | Left front upper outer corner panel | 55744-02120 · 55744-02130 |
| 55753D | Right front water pumping device guard | 55753-02150 |
| 55754F | Left front water pumping device guard | 55754-02160 |
| 55781G | Ventilation grille clips on front apron | 90467-07224 |
| 55783E | Ventilation grille on center cowl | 55783-02290 · 55783-02300 |
| 55797A | Front wall pumping device seal | 55797-02180 · 55797-02190 |
| 56111 | windshield | 56101-02N80 · 56101-02N81 · 56101-02P40 · 56101-02P41 · 56101-02Q00 · 56101-02Q01 · 56101-02Q10 · 56101-02Q11 · 56101-02Q20 · 56101-02Q21 · 56101-02Q60 · 56101-02Q61 · 56101-02Q70 · 56101-02Q71 · 56101-02Q80 · 56101-02Q81 · 56101-02R00 · 56101-02R01 · 56101-02R20 · 56101-02R21 · 56101-02R40 · 56101-02R41 · 56101-02R60 · 56101-02R61 · 56101-02R70 · 56101-02R71 · 56101-02R80 · 56101-02R81 · 56101-02R90 · 56101-02R91 · 56101-0ZA80 · 56101-0ZA90 · 56101-0ZB00 · 56101-0ZB10 · 56101-0ZB20 · 56101-0ZB30 · 56101-0ZB40 · 56101-0ZB50 · 56101-0ZB60 · 56101-0ZB70 · 56101-0ZB80 · 56101-0ZB90 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56153C | Front center window inner protective strip | 56153-12010 · 56153-12020 · 56153-12030 · 56153-12040 |
| 75533G | Windshield outer protective strip | 75533-02280 |
| 75862R | No. 2 door sill panel protective cover | 75862-24030 |
