Toyota COROLLA 仪表板和手套箱 — Figure 5501

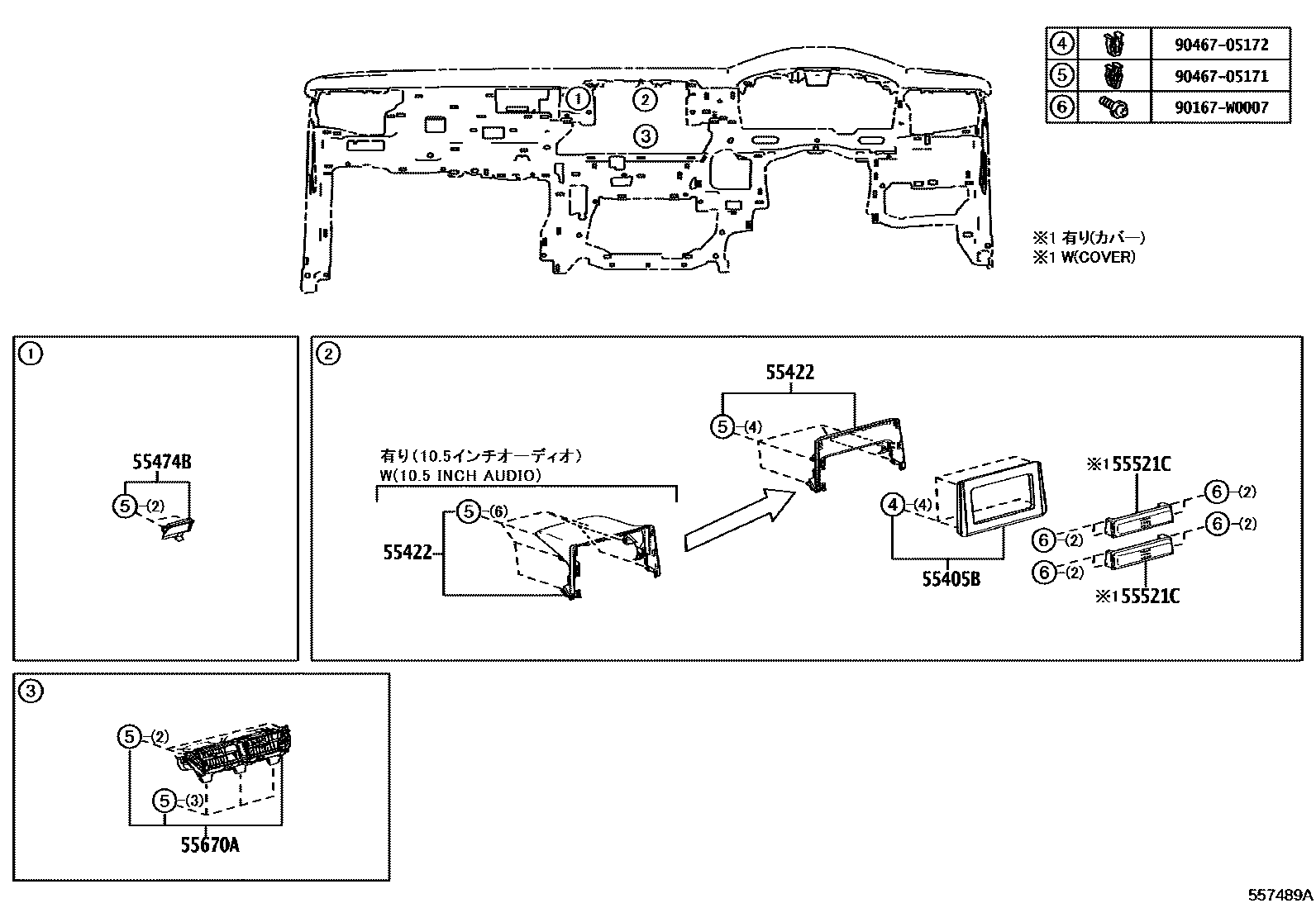

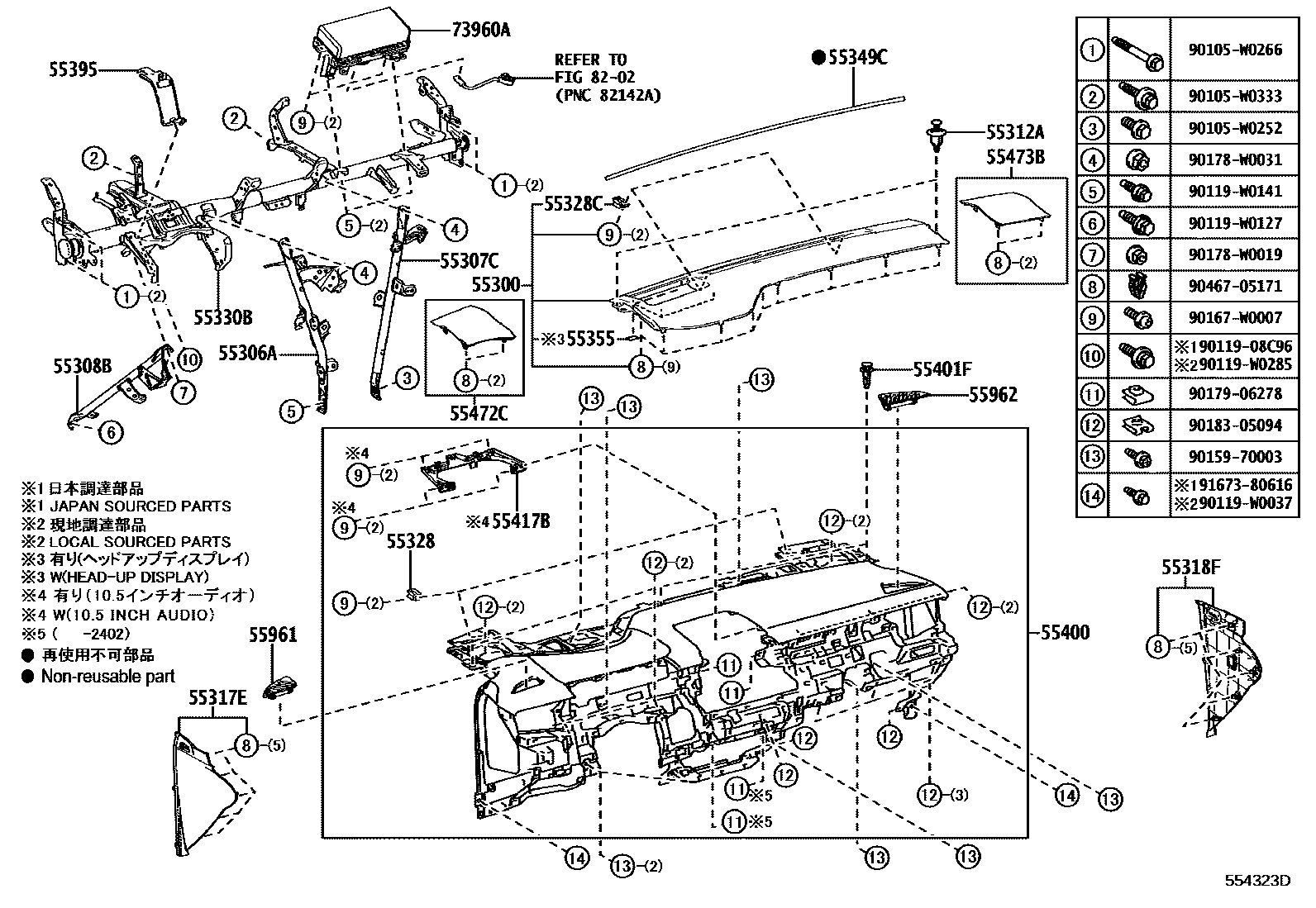

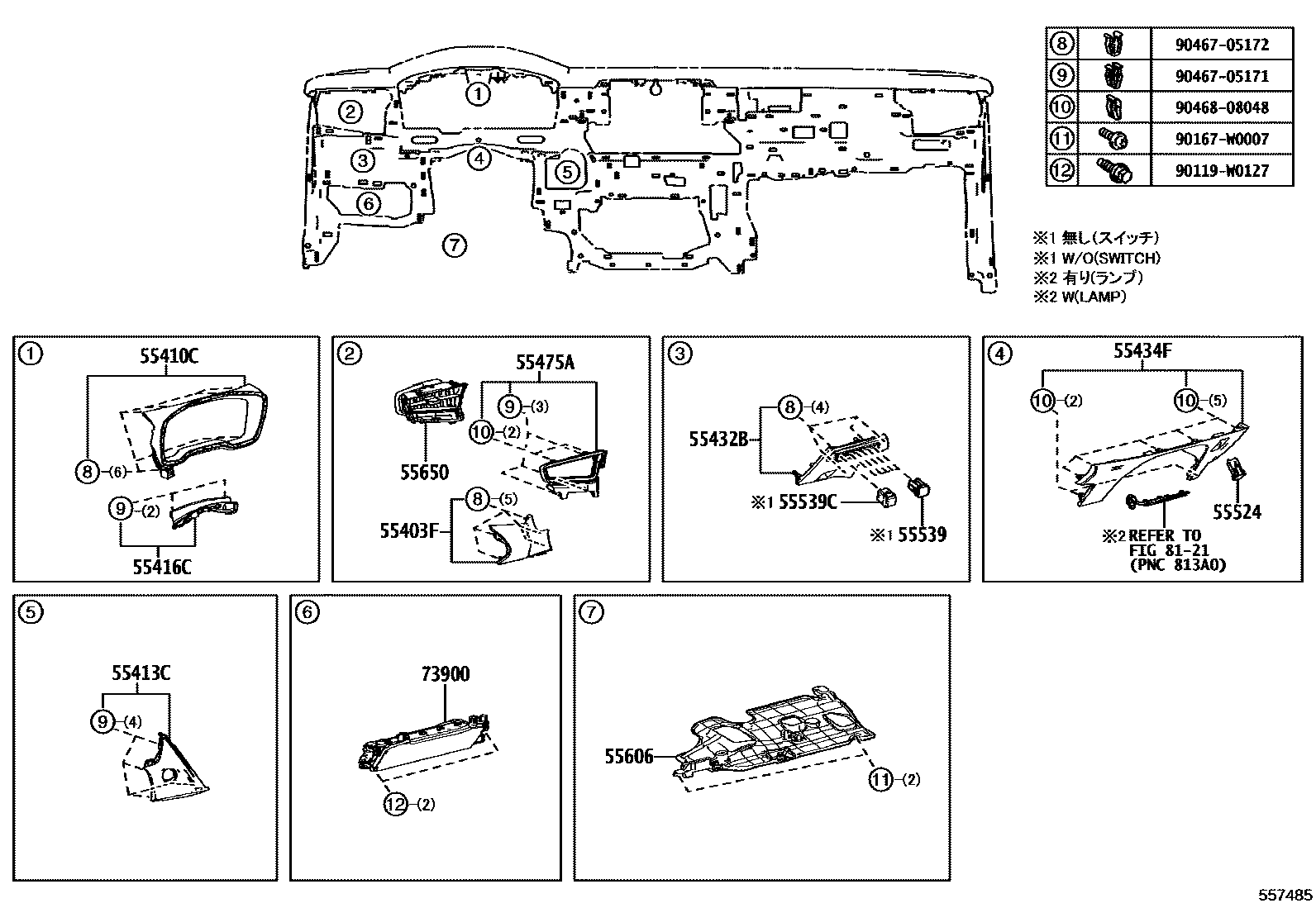

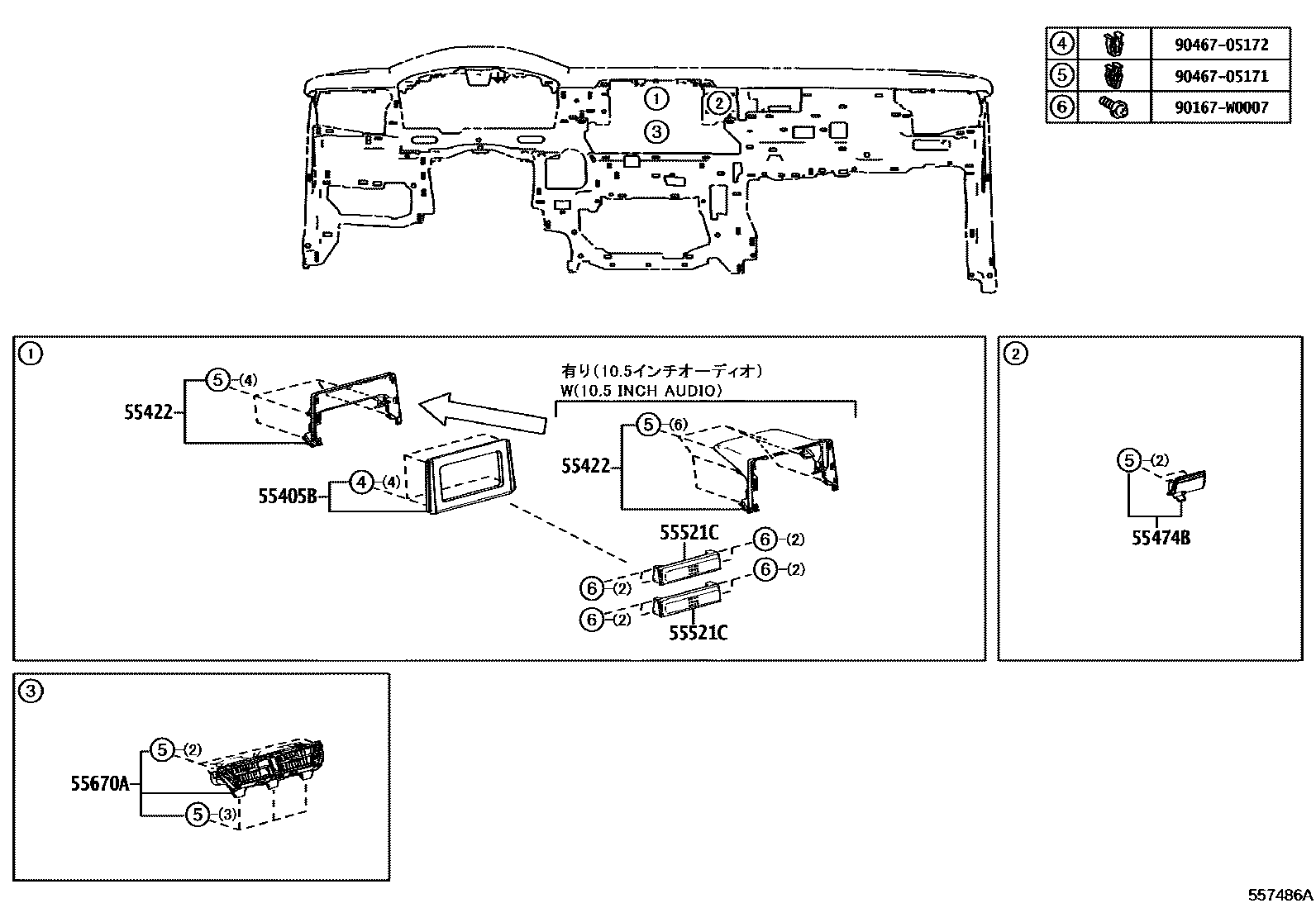

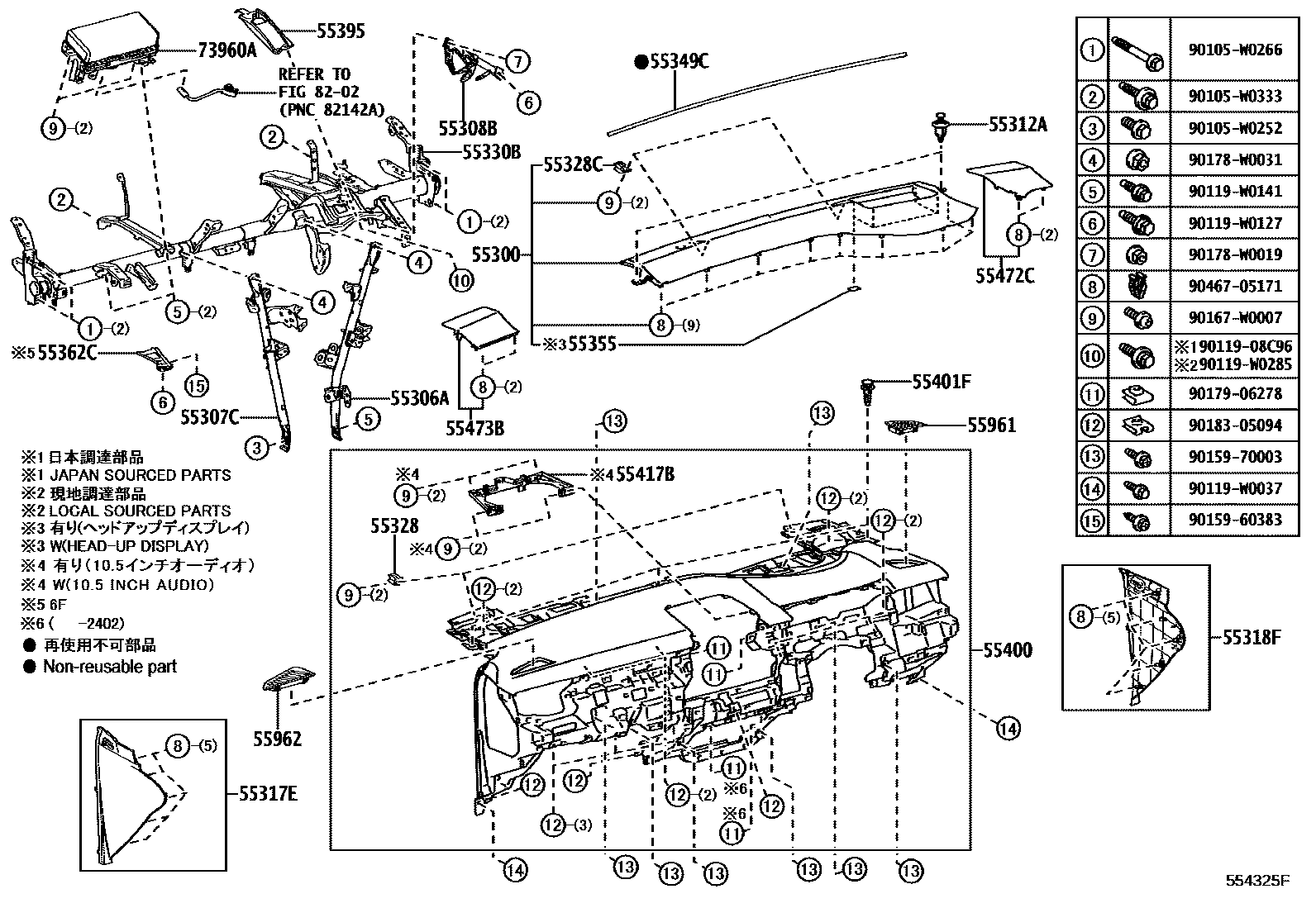

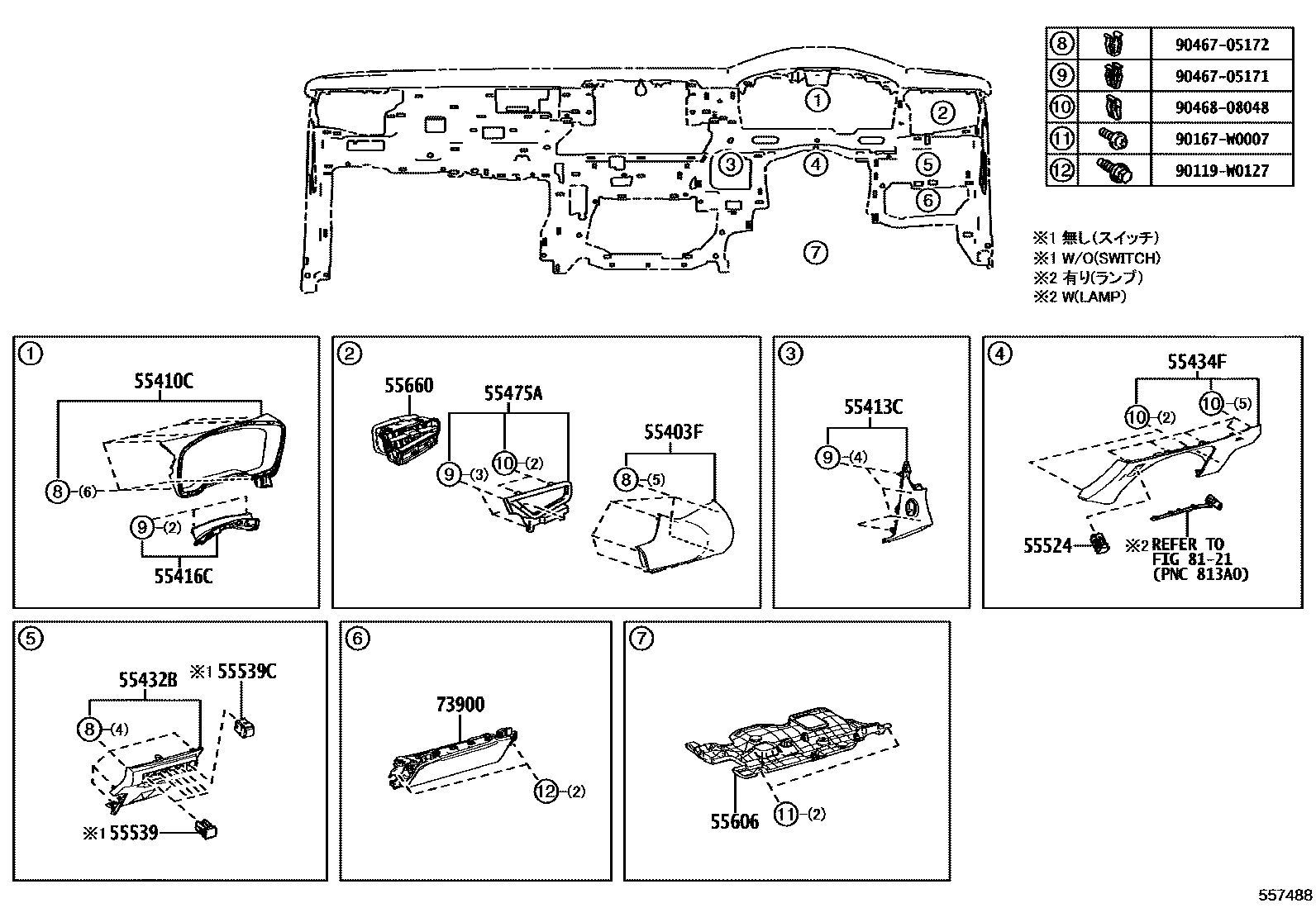

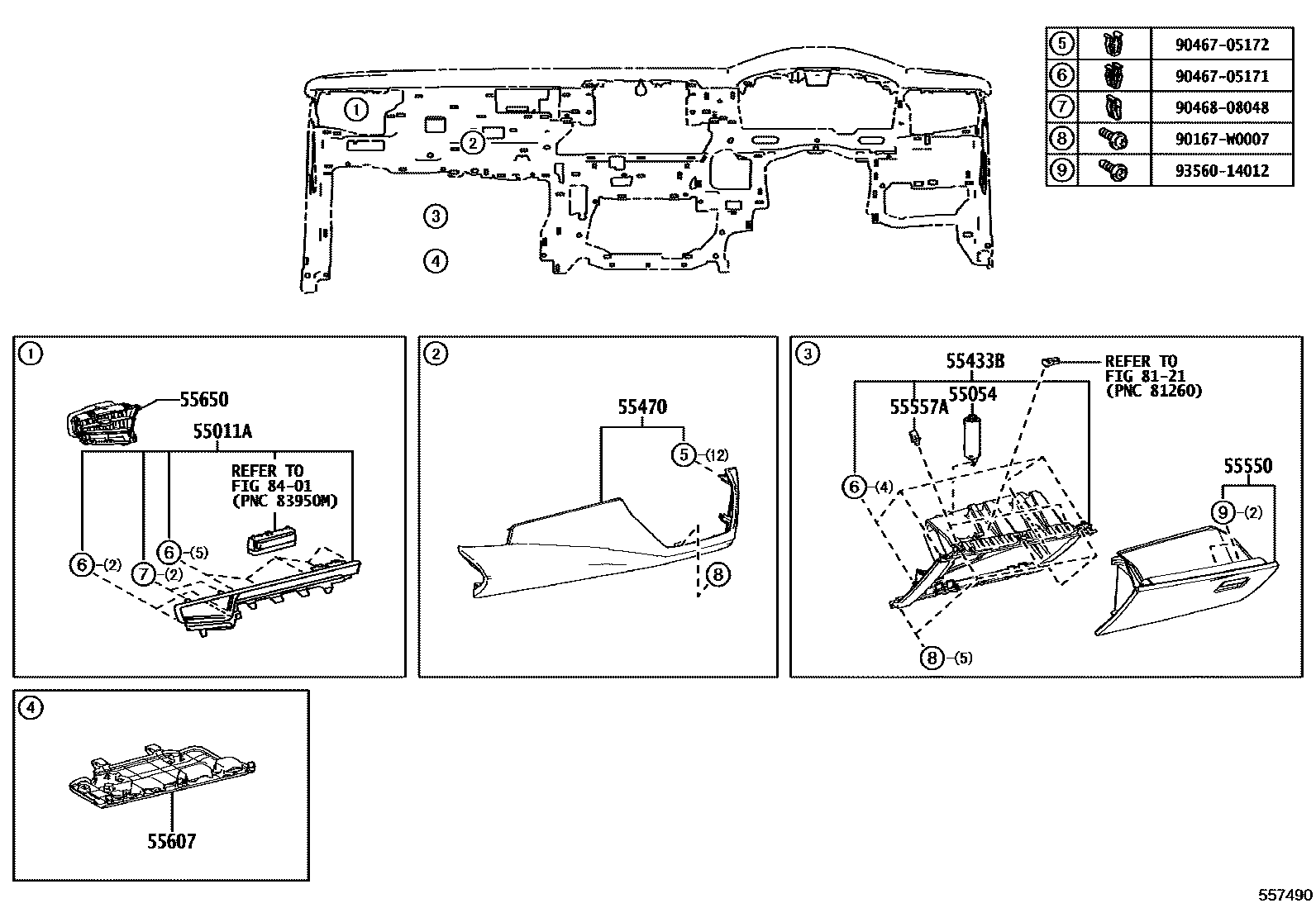

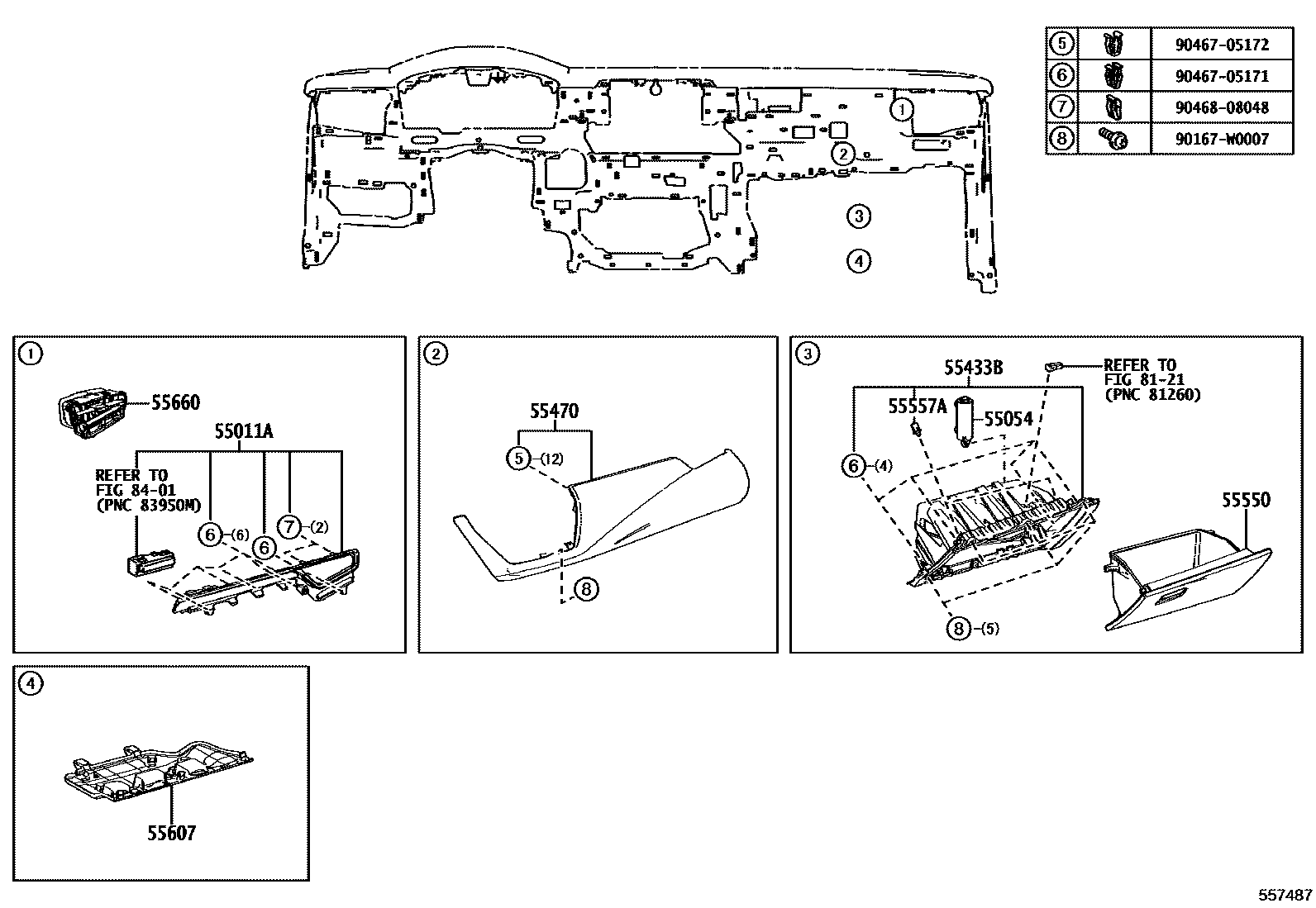

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 8 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02520 · 55306-02530 · 55306-02780 · 55306-02830 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02510 · 55307-02520 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-02150 · 55308-02160 |
| 55312A | Dashboard clip | 90467-07217 |
| 55328 | Instrument panel pin 1 | 55328-02890 |
| 55328C | Instrument panel pin 2 | 55328-02840 · 55328-12440 |
| 55330B | Instrument panel reinforcement assembly | 55330-02870 · 55330-02871 · 55330-02880 · 55330-02881 · 55330-02890 · 55330-02891 · 55330-02B90 · 55330-02B91 · 55330-02C00 · 55330-02C01 · 55330-02C10 · 55330-02C11 |
| 55349C | Dashboard cushion | 55349-02280 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02610 |
| 55362C | Parking brake mounting bracket | 55362-02080 |
| 55395 | Dashboard to pedal bracket | 55395-02050 · 55395-02060 |
| 55401F | Clip (for safety mat) | 52161-02030 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02D30 · 55405-02F00 · 55405-02F10 · 55405-02F11 · 55405-02J30 · 55405-02J40 |
| 55416C | Instrument cluster decorative panel fixings | 55416-02500 |
| 55417B | Radio tuner trim panel fixing | 55417-02040 |
| 55422 | Instrument decorative parts on dashboard | 55422-02720 · 55422-02760 · 55422-02A40 · 55422-02A50 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-02080 · 55474-02081 · 55474-02082 · 55474-02100 · 55474-02101 · 55474-02102 · 55474-02300 · 55474-02301 · 55474-02310 · 55474-02311 · 55474-02320 · 55474-02321 · 55474-02330 · 55474-02331 · 55474-02350 · 55474-02351 · 55474-02360 · 55474-02361 |
| 55521C | stereo system hole cover | 55521-05030 |
| 55557A | Glove box cover limit pad | 55557-52030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02270 · 55606-02280 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02300 · 55607-02310 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-02840 · 55650-02850 · 55650-02851 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-02510 · 55660-02520 · 55660-02521 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02380 |
