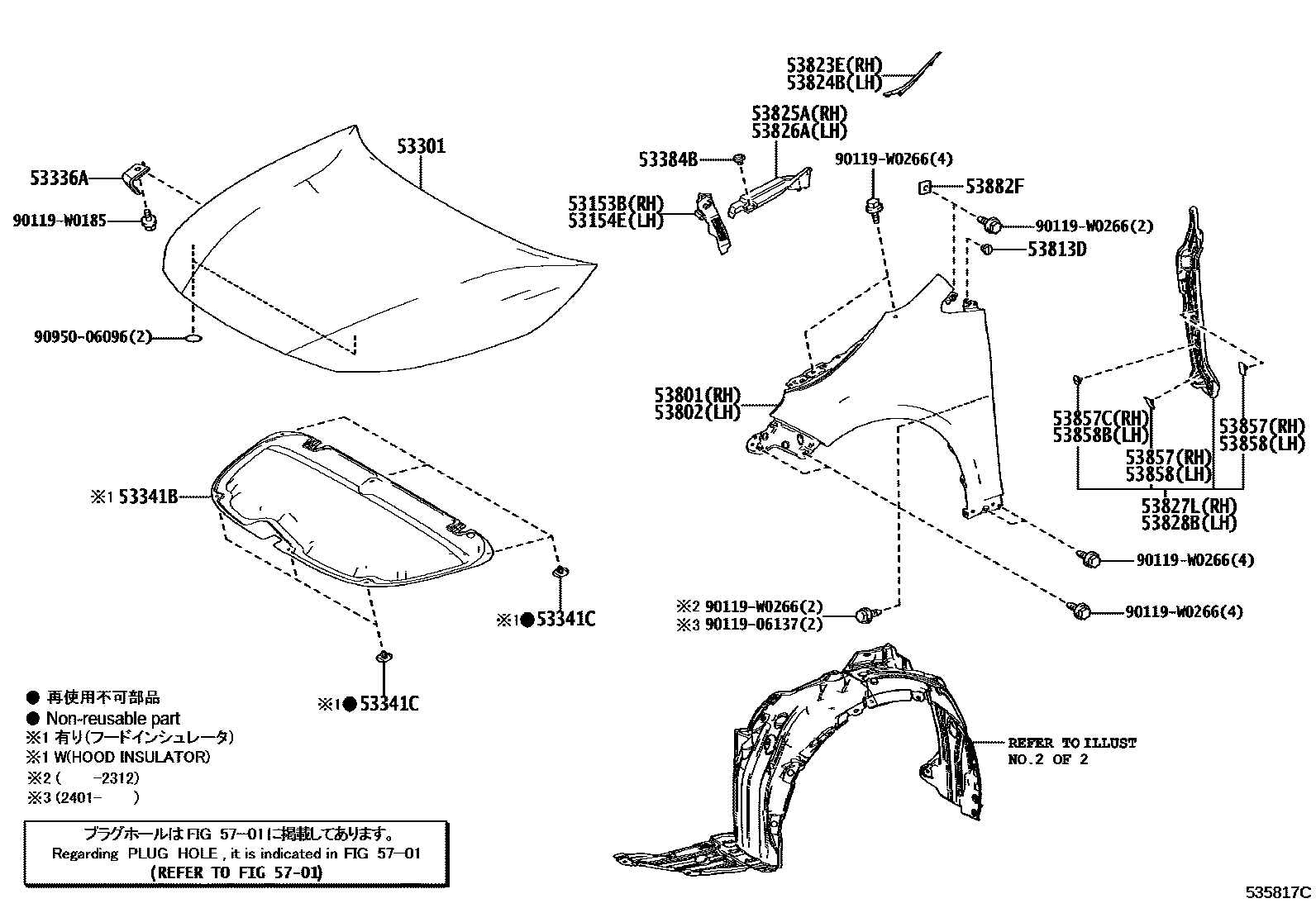

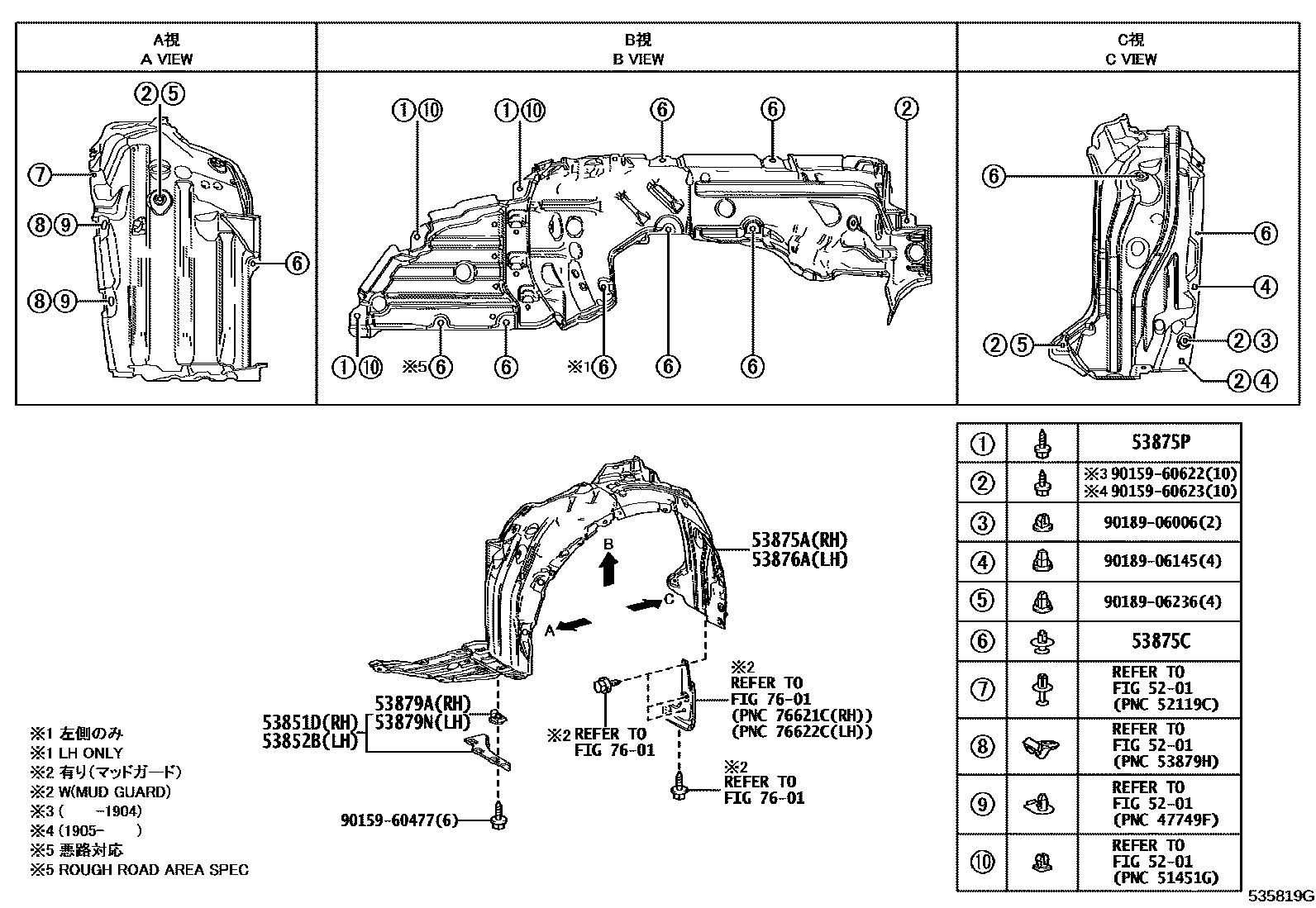

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153B | front side deflector | 53153-02100 |
| 53154E | No. 2 front side deflector | 53154-02100 |
| 53301 | Engine cover sub-assembly | 53301-02380 |
| 53336A | Engine cover strut bracket | 53336-02010 |
| 53341B | engine cover gasket | 53341-02390 |
| 53341C | Clip (for engine cover gasket) | 90467-W0003 |
| 53384B | Engine cover center cushion | 53384-78010 |
| 53801 | Right front fender sub-assembly | 53801-02210 |
| 53802 | Left front fender sub-assembly | 53802-02270 |
| 53813D | front fender extension | 53813-47040 |
| 53823E | No. 2 right front side panel protector | 53823-02190 |
| 53824B | No. 2 left front side panel protector | 53824-02190 |
| 53825A | Right front fender protection piece | 53825-02150 |
| 53826A | Protection piece on left front fender | 53826-02150 |
| 53827L | Right front fender side panel protector | 53827-02250 |
| 53828B | Left front fender side panel protector | 53828-02250 |
| 53851D | Right front fender outer panel pad | 53851-02220 |
| 53852B | Left front fender exterior panel pad | 53852-02200 |
| 53857 | Right front fender external panel fixing piece | 53857-02020 |
| 53857C | Right front fender external panel fixing piece | 53857-02040 |
| 53858 | Left front fender external panel fixing piece | 53857-02020 |
| 53858B | Left front fender external panel fixing piece | 53857-02040 |
| 53875A | Right front fender lining | 53875-02710 · 53875-02870 |
| 53875C | Front fender lining clip | 90467-07214 |
| 53875P | Screw No. 1 | 90159-W0026 |
| 53876A | Left front fender lining | 53876-02630 · 53876-02A20 |
| 53879A | Front fender lining fixing parts | 53879-47020 |
| 53879N | Left front fender lining fixing | 53879-47020 |
| 53882F | front fender seal | 53882-33060 |
