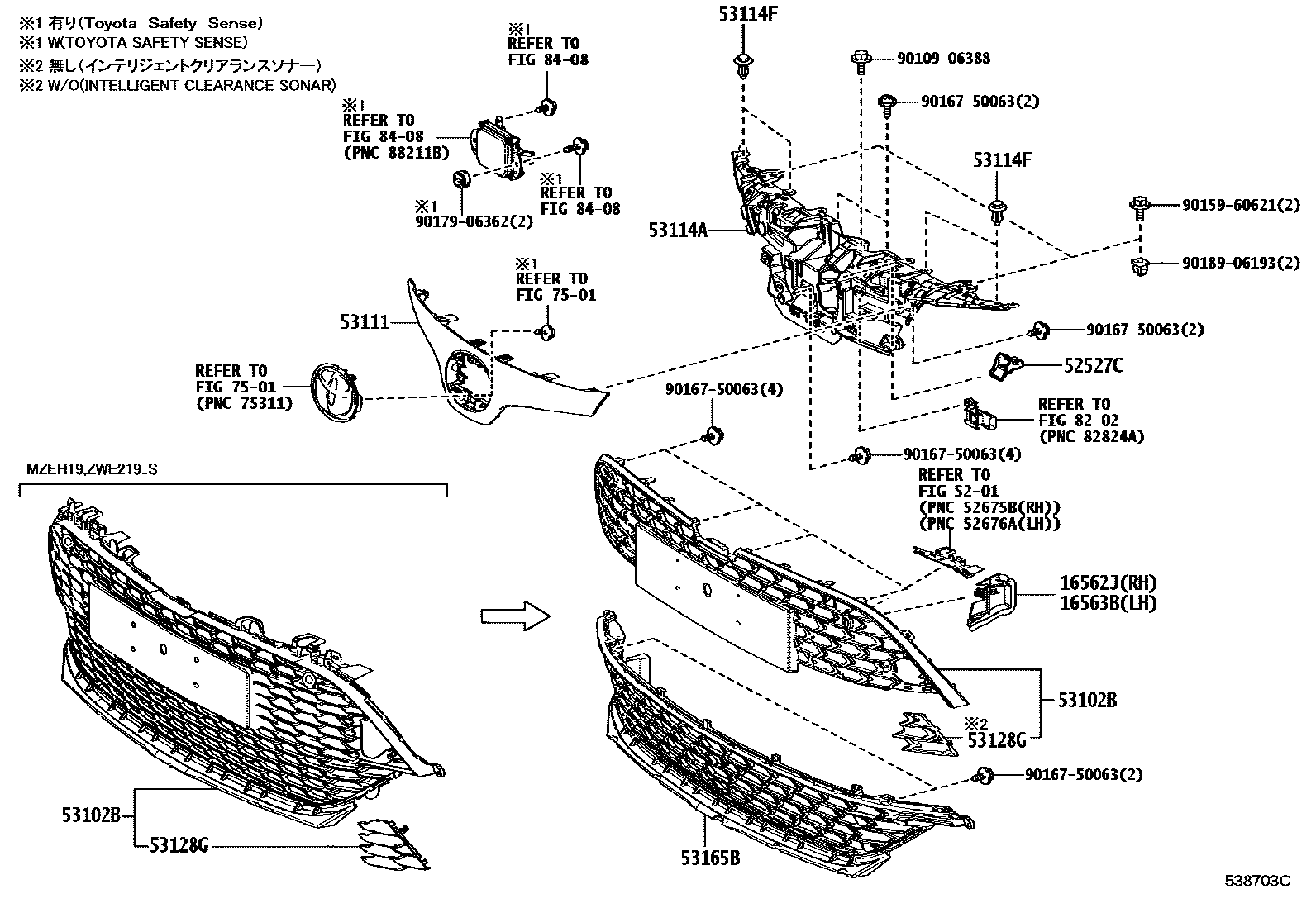

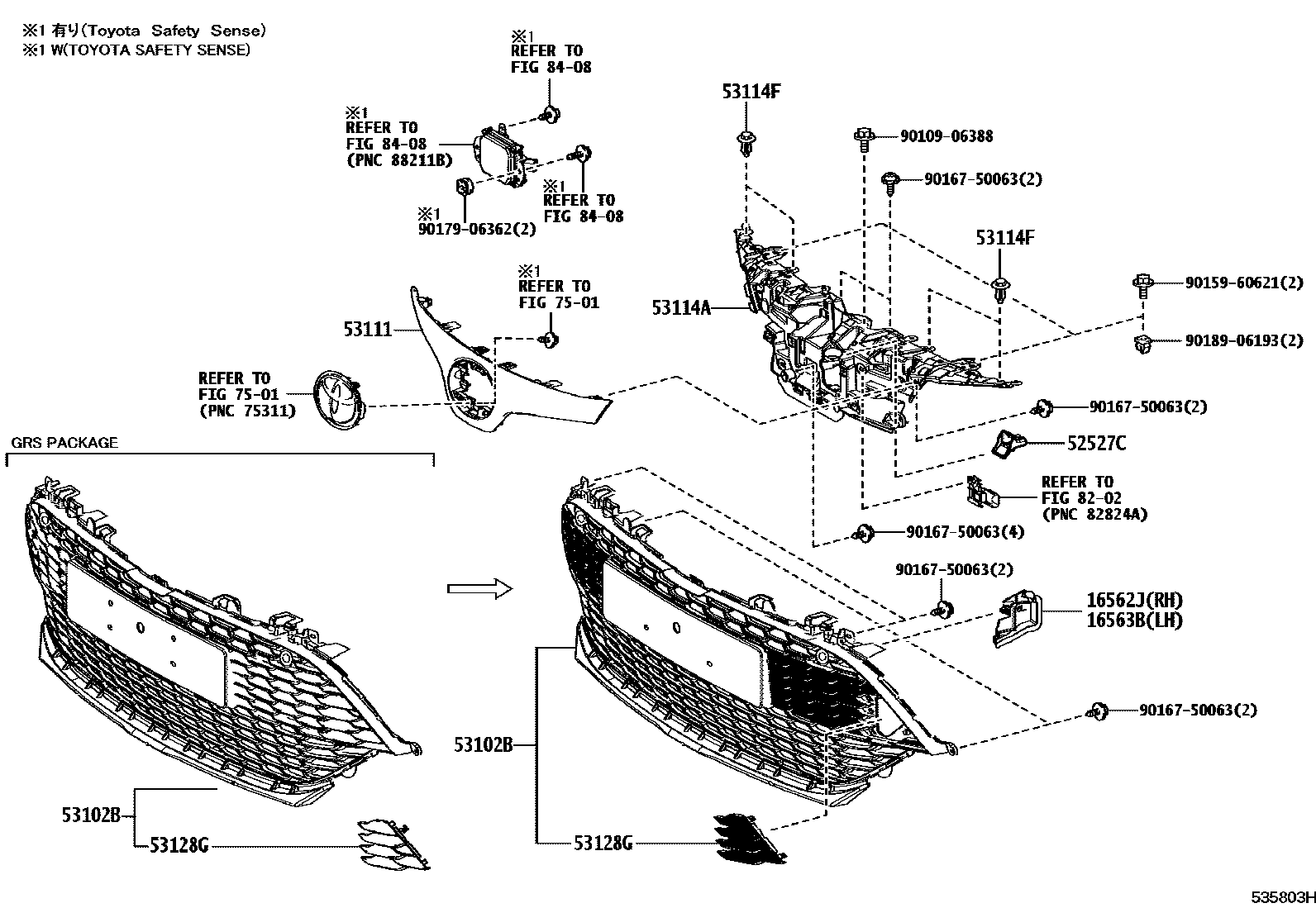

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16562J | Seal No. 2 (radiator to bracket) | 16562-0T040 |
| 16563B | Seal No. 3 (radiator to bracket) | 16563-0T040 |
| 52527C | Front bumper No. 2 lower fixing bracket | 52527-02050 |
| 53102B | Radiator lower grille sub-assembly | 53102-02370 · 53102-02450 · 53102-02460 · 53102-02650 · 53102-02750 · 53102-YP150 · 53102-YY060 · 53102-YY070 · 53102-YY090 |
| 53111 | radiator grille | 53111-02C80 · 53111-02C81 |
| 53114A | inner radiator grille | 53114-02530 |
| 53128G | Lower left radiator grille | 53128-02160 · 53128-02170 · 53128-02400 · 53128-YY020 |
| 53165B | Radiator center bracket | 53165-02160 |
