Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

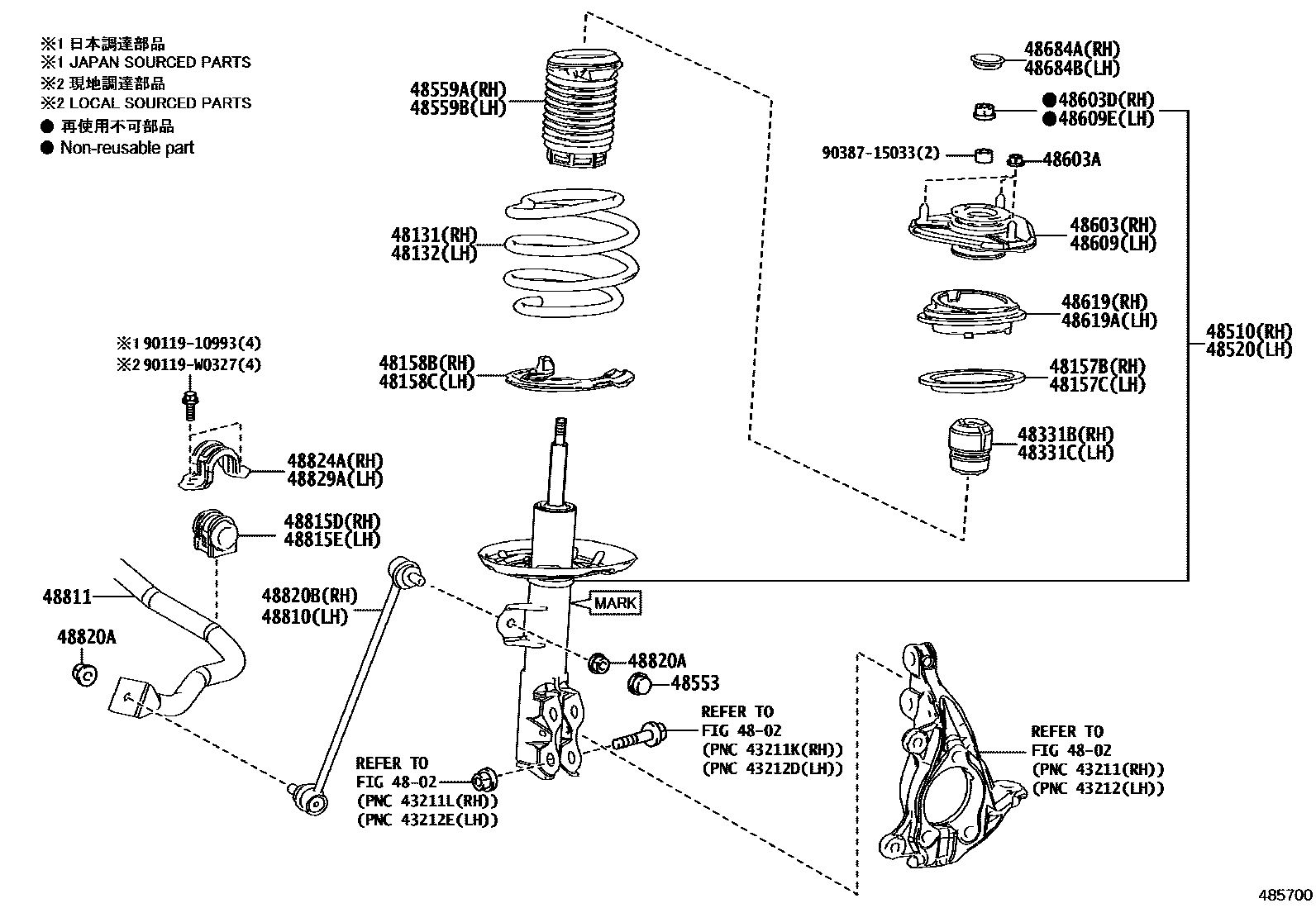

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0Z130 · 48131-0Z140 · 48131-0Z150 · 48131-0Z160 · 48131-0Z191 · 48131-0Z201 · 48131-0Z210 · 48131-0Z220 · 48131-0Z230 · 48131-0ZC90 · 48131-0ZD00 · 48131-0ZD10 · 48131-0ZD20 · 48131-0ZD30 · 48131-0ZD40 |
| 48132 | Left front coil spring | 48131-0Z130 · 48131-0Z140 · 48131-0Z150 · 48131-0Z160 · 48131-0Z191 · 48131-0Z201 · 48131-0Z210 · 48131-0Z220 · 48131-0Z230 · 48131-0ZC90 · 48131-0ZD00 · 48131-0ZD10 · 48131-0ZD20 · 48131-0ZD30 · 48131-0ZD40 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-F4010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-F4010 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-F4010 · 48158-F4050 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-F4010 · 48158-F4050 |
| 48331B | Right front spring buffer block | 48331-02170 · 48331-02180 |
| 48331C | Left front spring buffer block | 48331-02170 · 48331-02180 |
| 48510 | Right front shock absorber assembly | 48510-80A52 · 48510-8Z363 · 48510-8Z364 · 48510-8Z365 · 48510-8Z366 · 48510-8Z367 · 48510-8Z368 · 48510-8Z369 · 48510-8Z370 · 48510-8Z371 · 48510-8Z372 · 48510-8Z373 · 48510-8Z507 · 48510-8Z508 |
| 48520 | Left front shock absorber assembly | 48520-80612 · 48520-8Z217 · 48520-8Z218 · 48520-8Z219 · 48520-8Z220 · 48520-8Z221 · 48520-8Z222 · 48520-8Z223 · 48520-8Z224 · 48520-8Z225 · 48520-8Z244 · 48520-8Z245 · 48520-8Z348 · 48520-8Z349 |
| 48553 | Damper upper cover | 48553-52030 |
| 48559A | Right front shock absorber No. 1 dust cover | 48559-F4010 · 48559-F4011 |
| 48559B | Left front shock absorber No. 1 dust cover | 48559-F4010 · 48559-F4011 |
| 48603 | Right front suspension bearing sub-assembly | 48609-F4010 |
| 48603A | Nut (for front suspension mount) | 90178-10029 |
| 48603D | Nut (for front mount to right front shock absorber) | 90177-14005 |
| 48609 | Left front suspension bearing sub-assembly | 48609-F4010 |
| 48609E | Nut (for front mount to left front shock absorber) | 90177-14005 |
| 48619 | Bearing installed on the right sliding column | 48619-F4010 |
| 48619A | Bearing installed on the left sliding column | 48619-F4010 |
| 48684A | Right front suspension support dust cover | 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-52010 |
| 48810 | Left front stabilizer bar link assembly | 48820-47040 |
| 48811 | front stabilizer bar | 48811-02350 · 48811-02351 · 48811-02360 · 48811-02530 |
| 48815D | Right front stabilizer bar bushing | 48815-02380 · 48815-02520 · 48815-02580 |
| 48815E | Left front stabilizer bar bushing | 48815-02380 · 48815-02520 · 48815-02580 |
| 48820A | Nut (for front stabilizer bar link) | 90178-W0051 · 94151-21241 |
| 48820B | Right front stabilizer bar link assembly | 48820-47040 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-F4010 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-F4010 |
