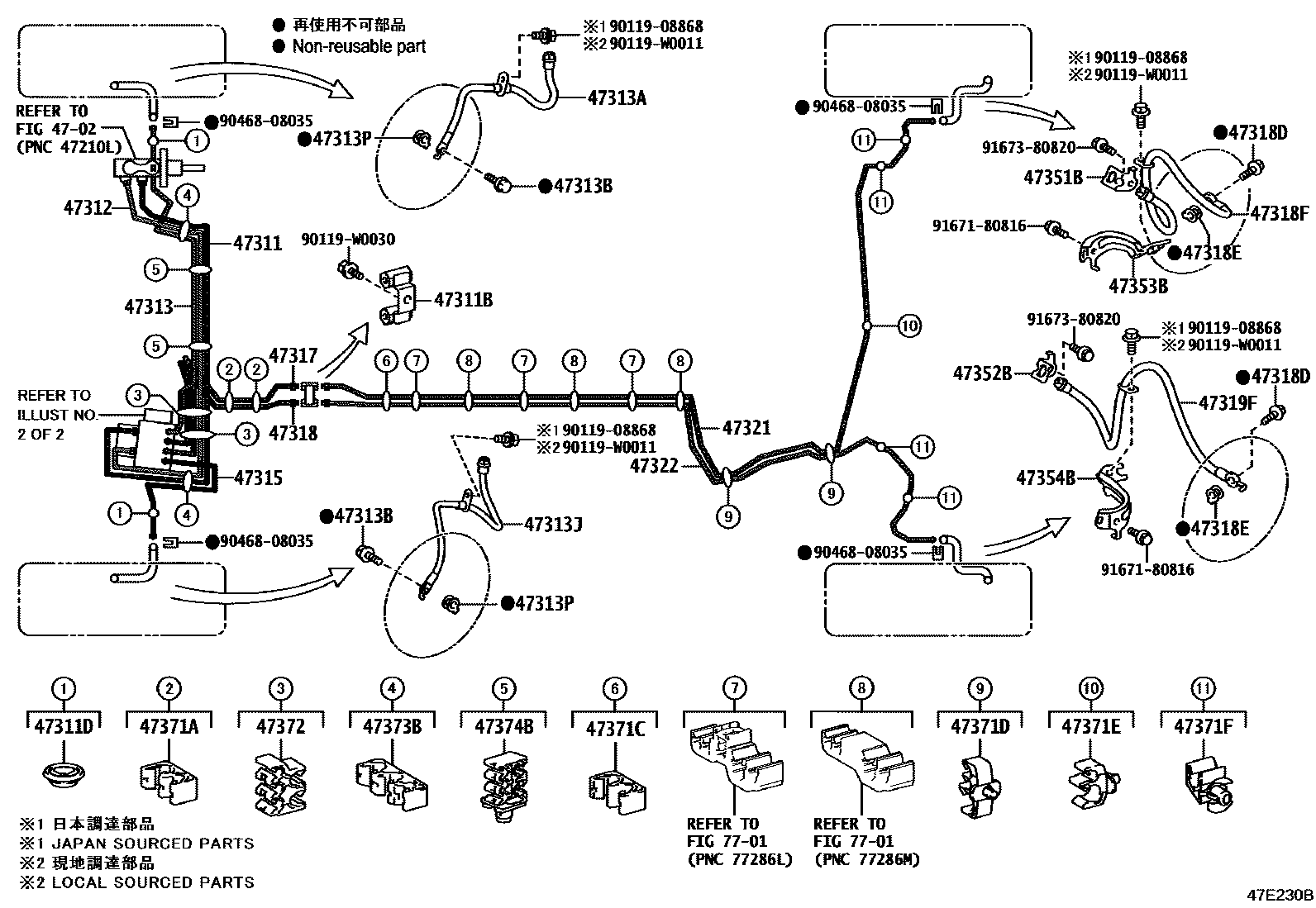

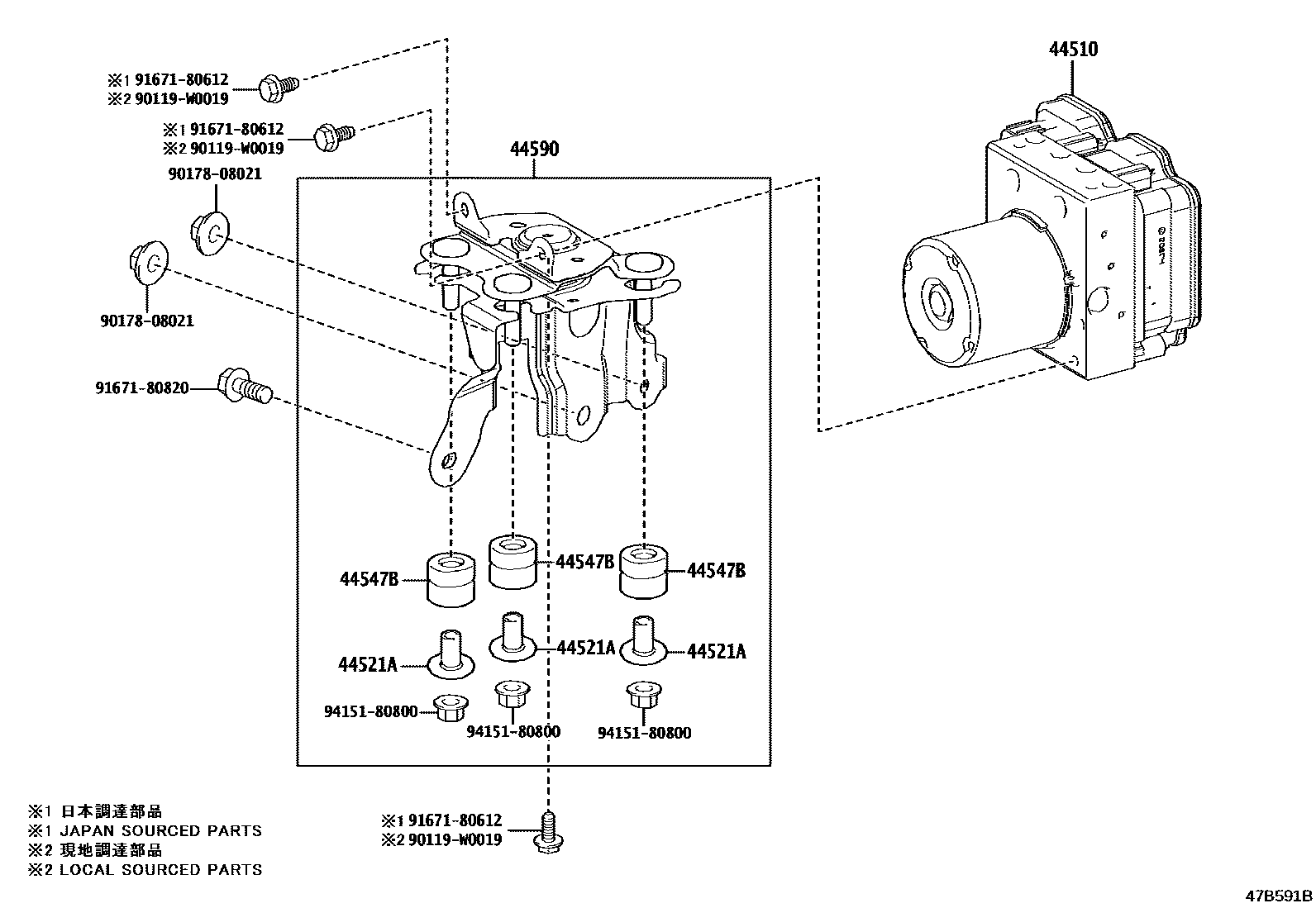

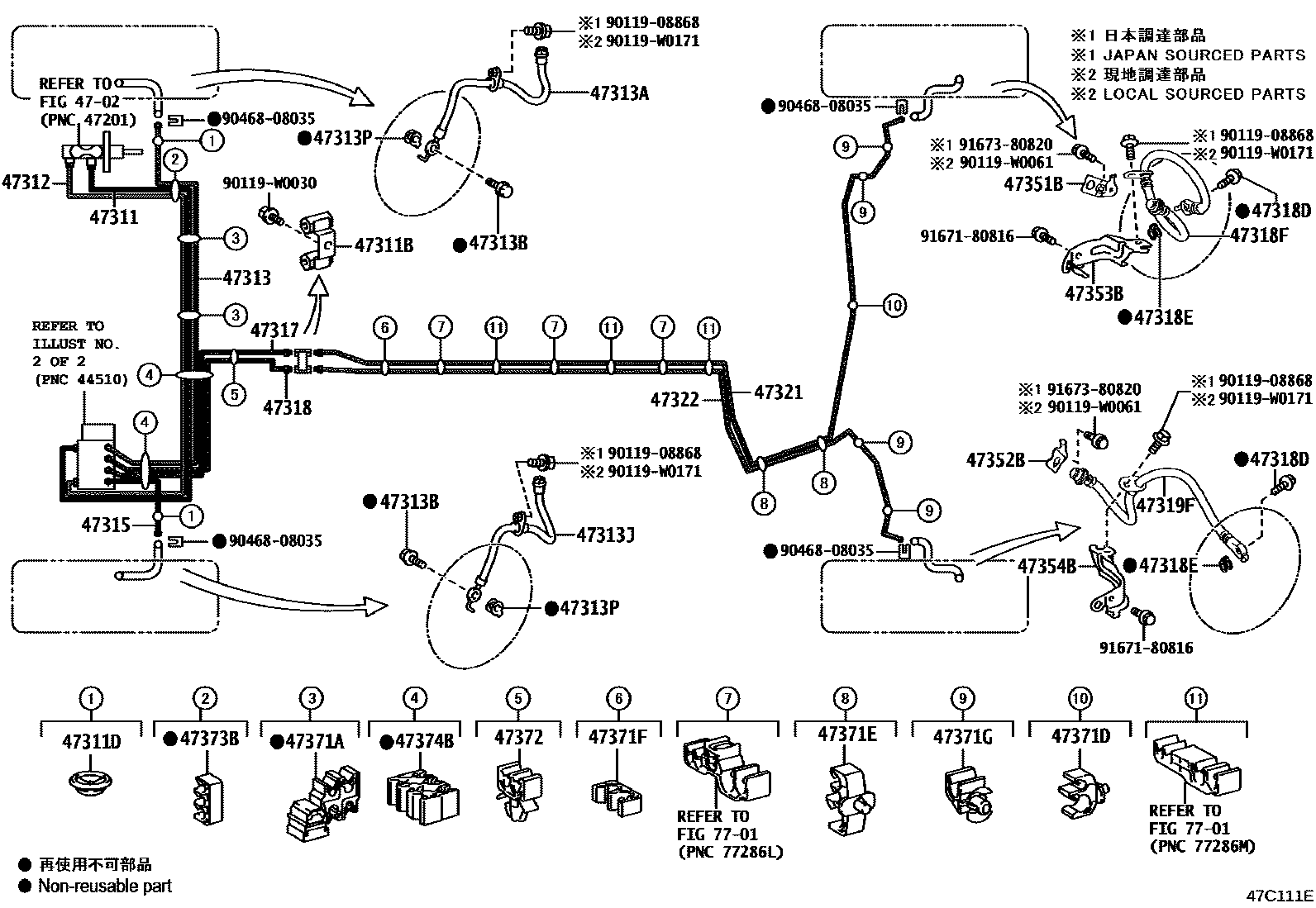

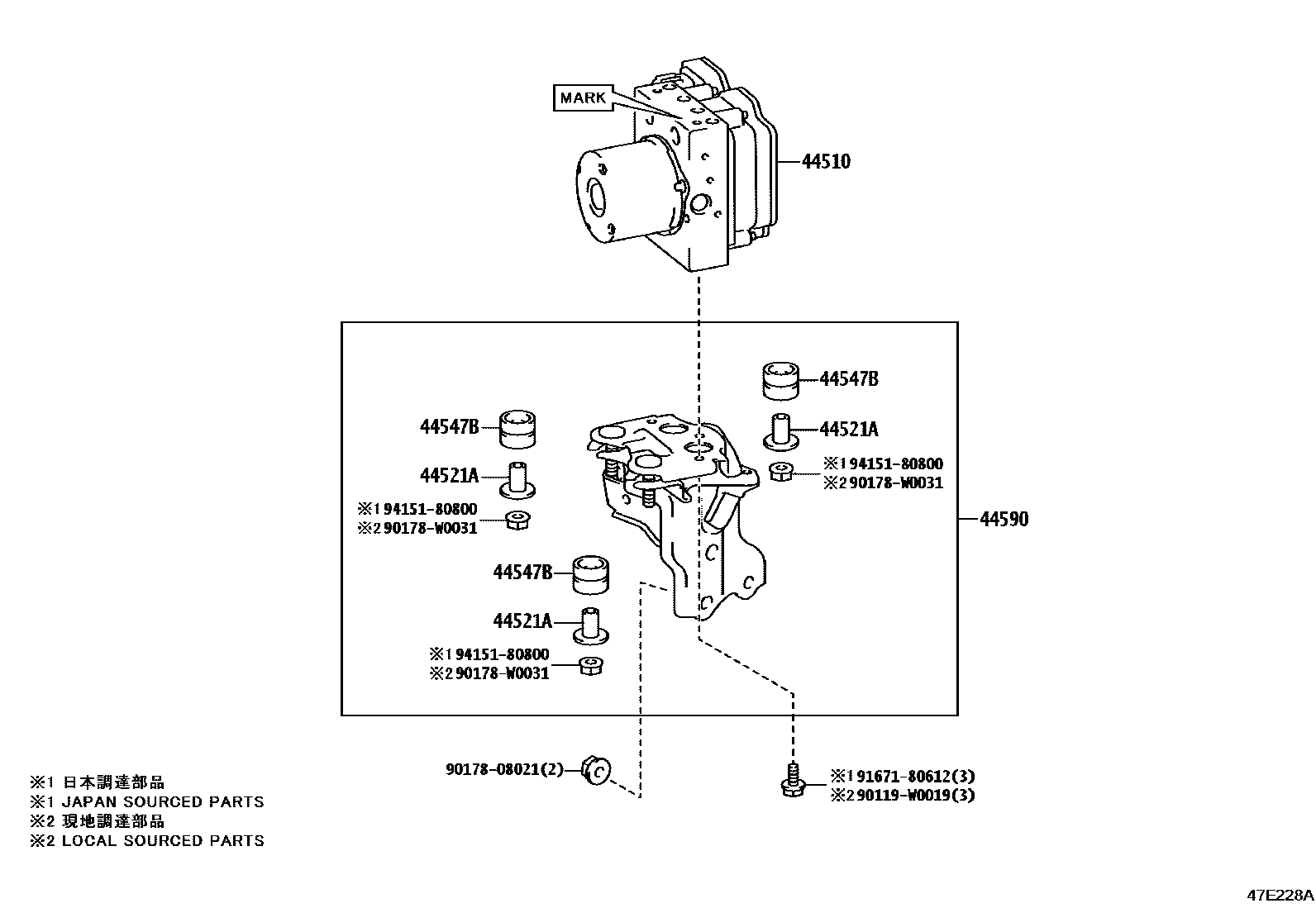

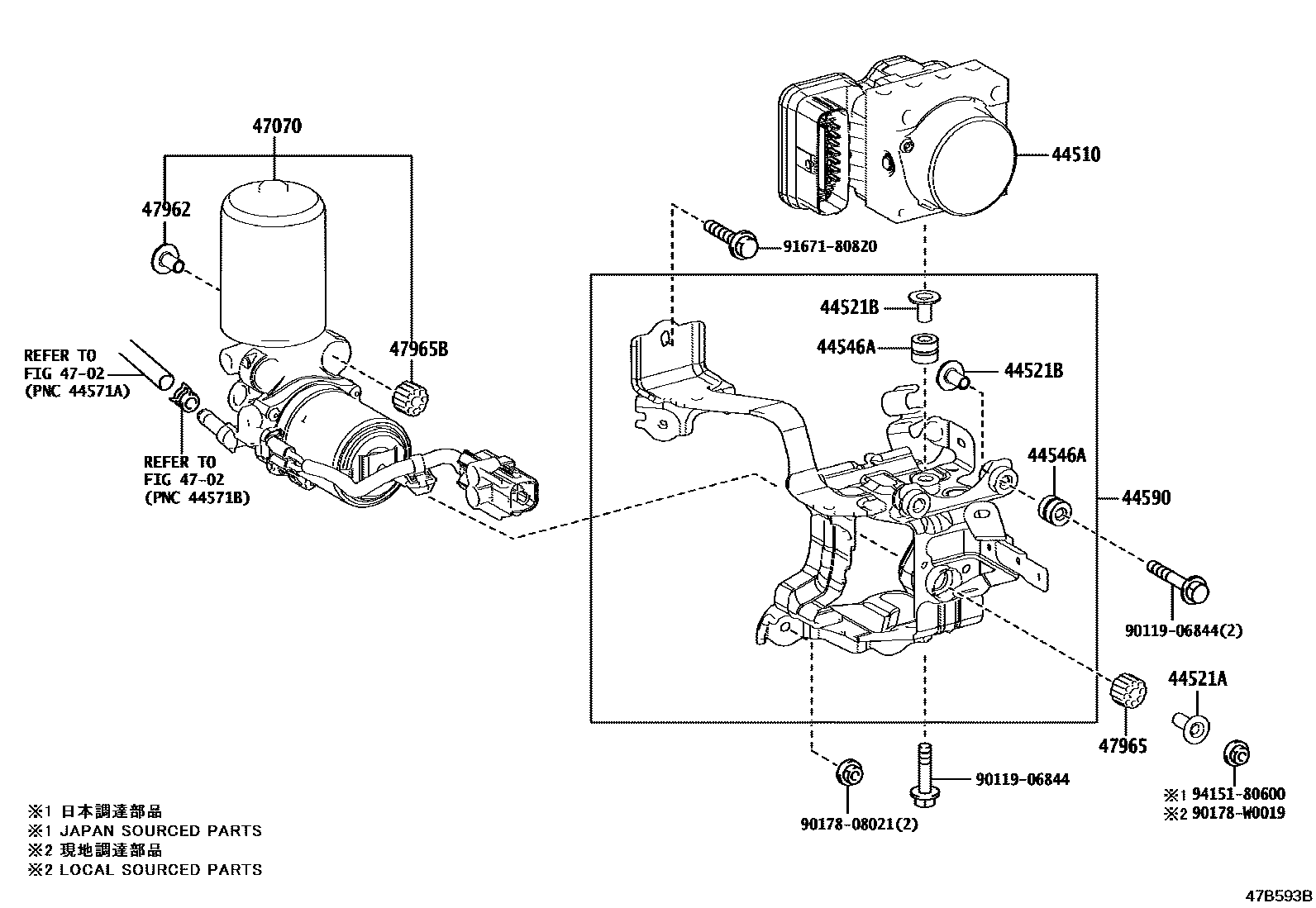

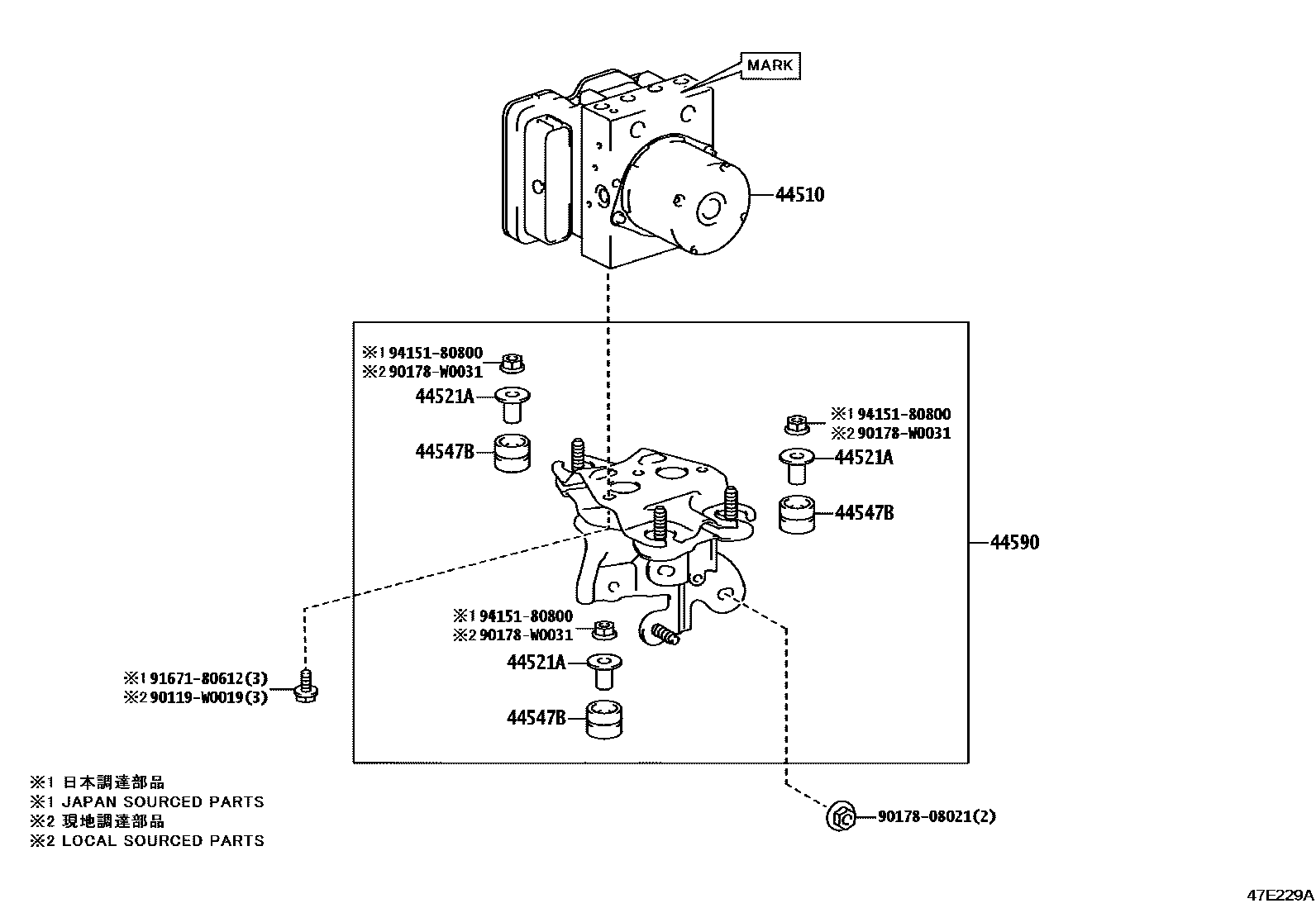

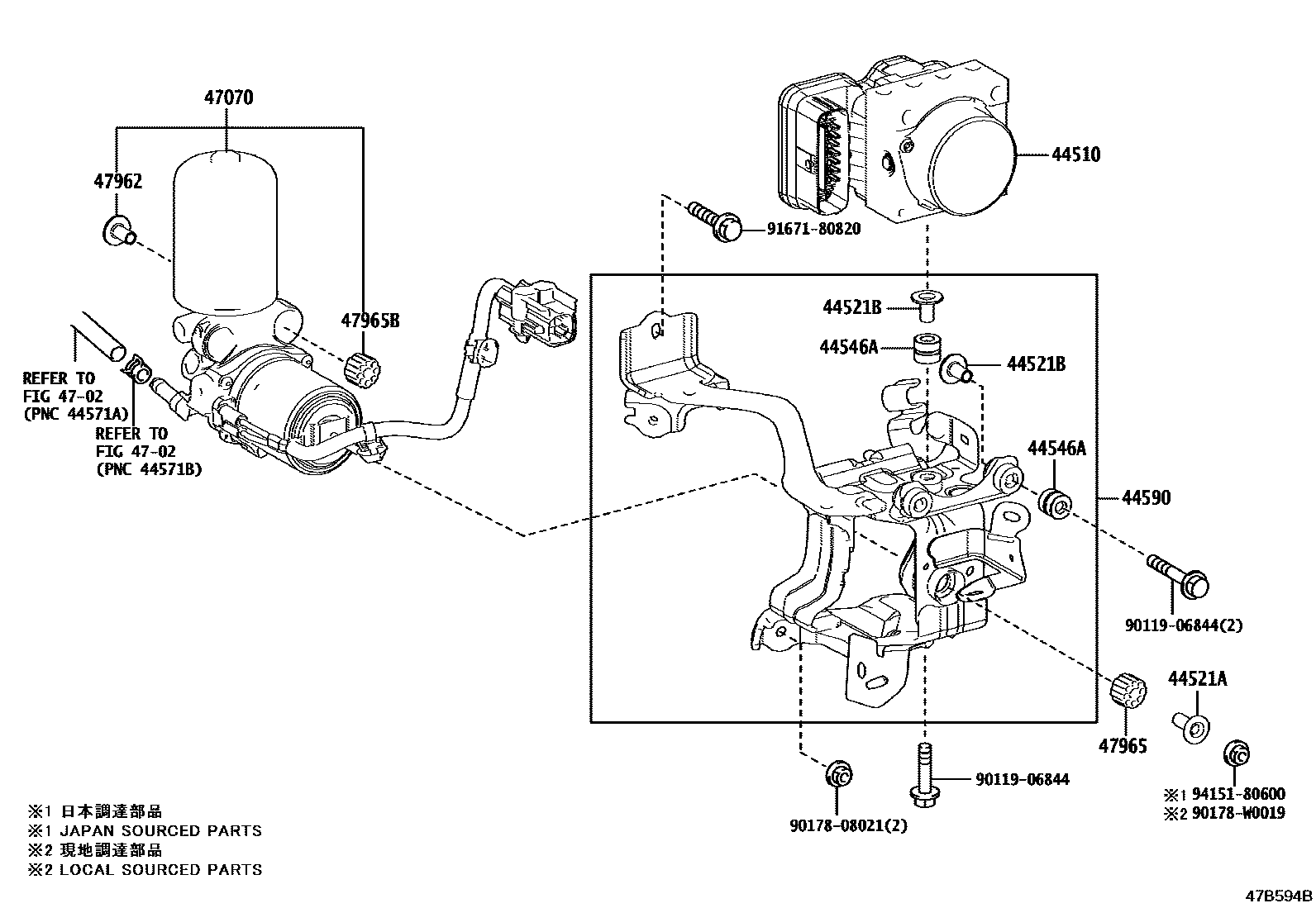

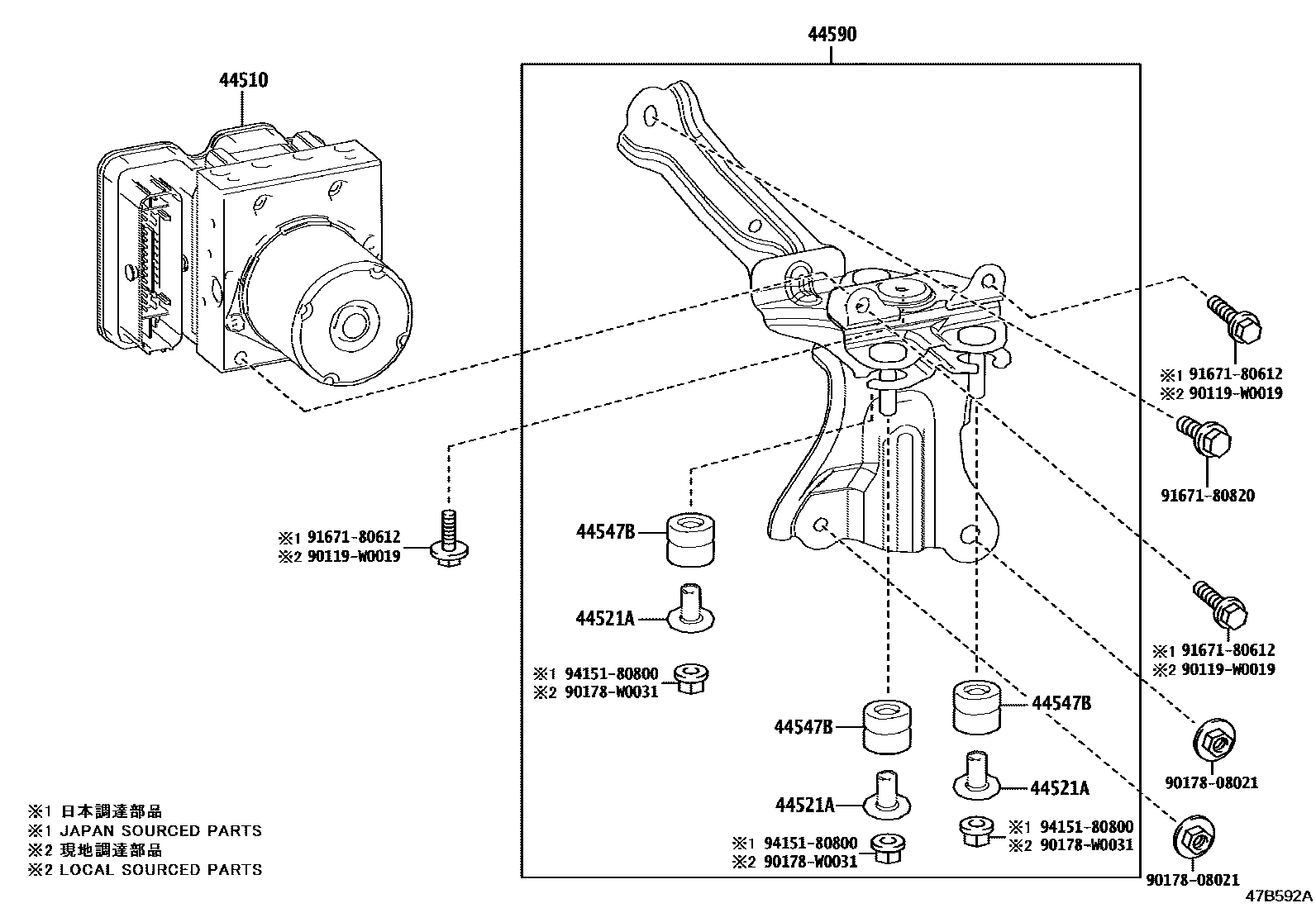

Toyota COROLLA 制动配管和卡箍 — Figure 4708

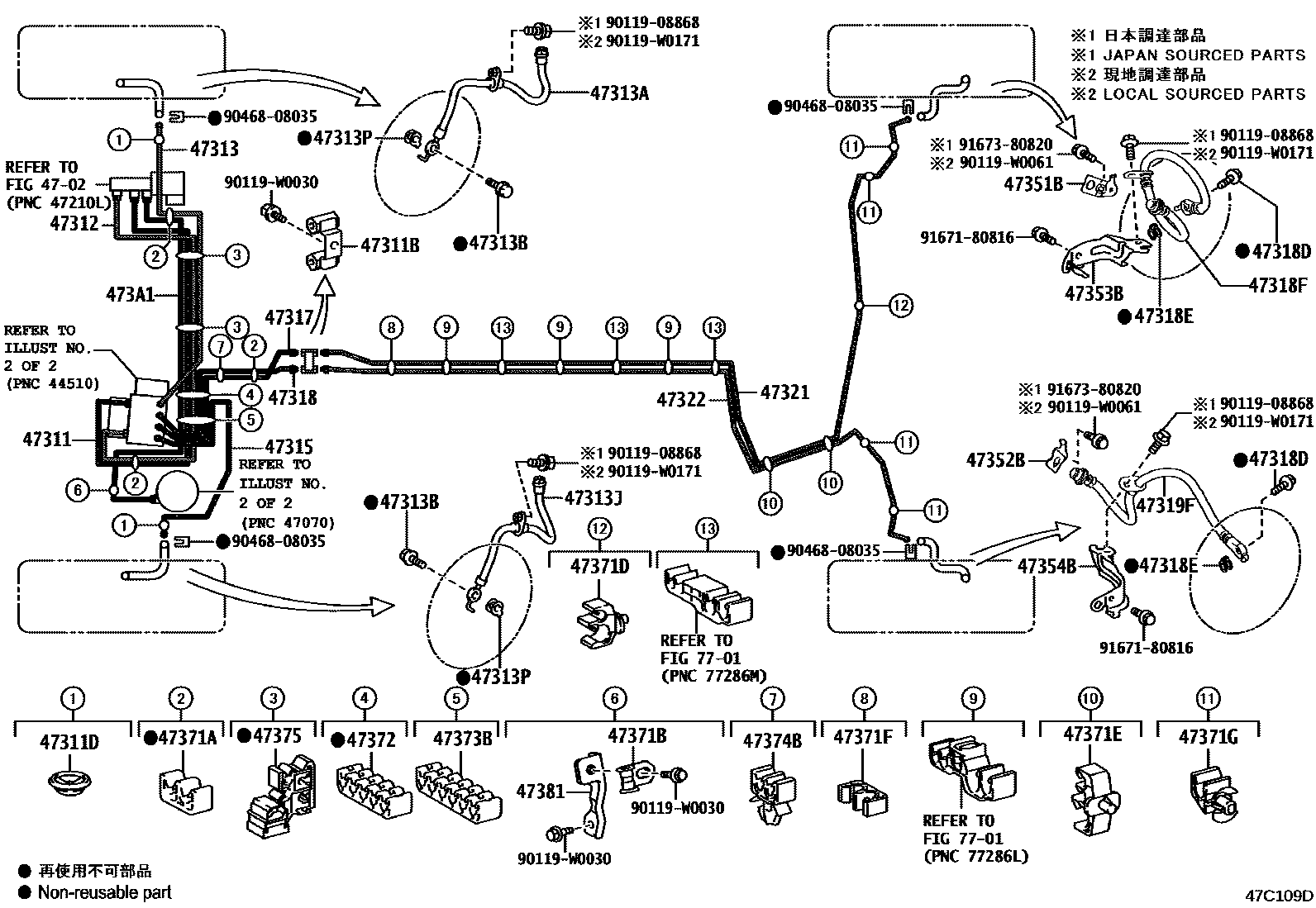

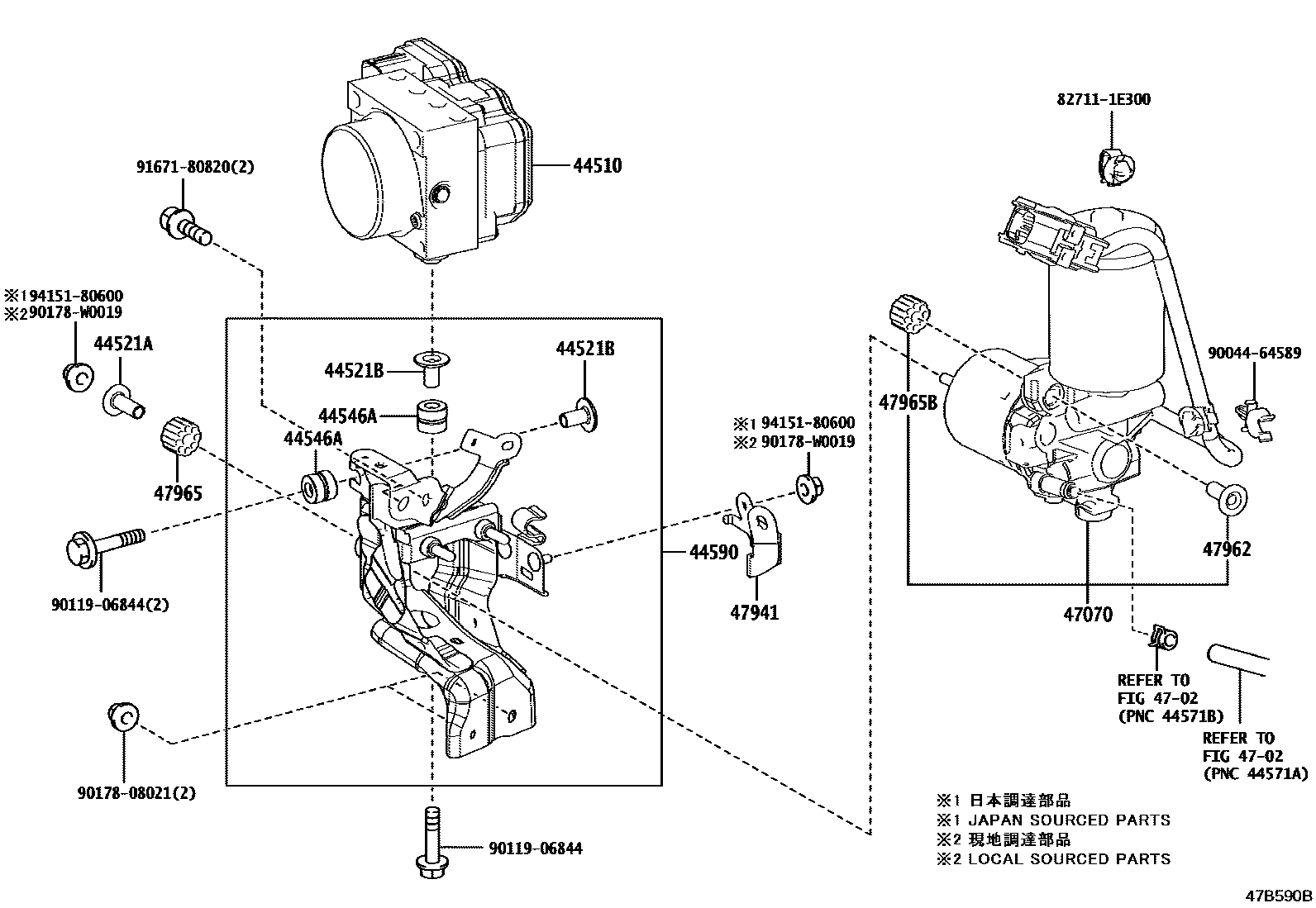

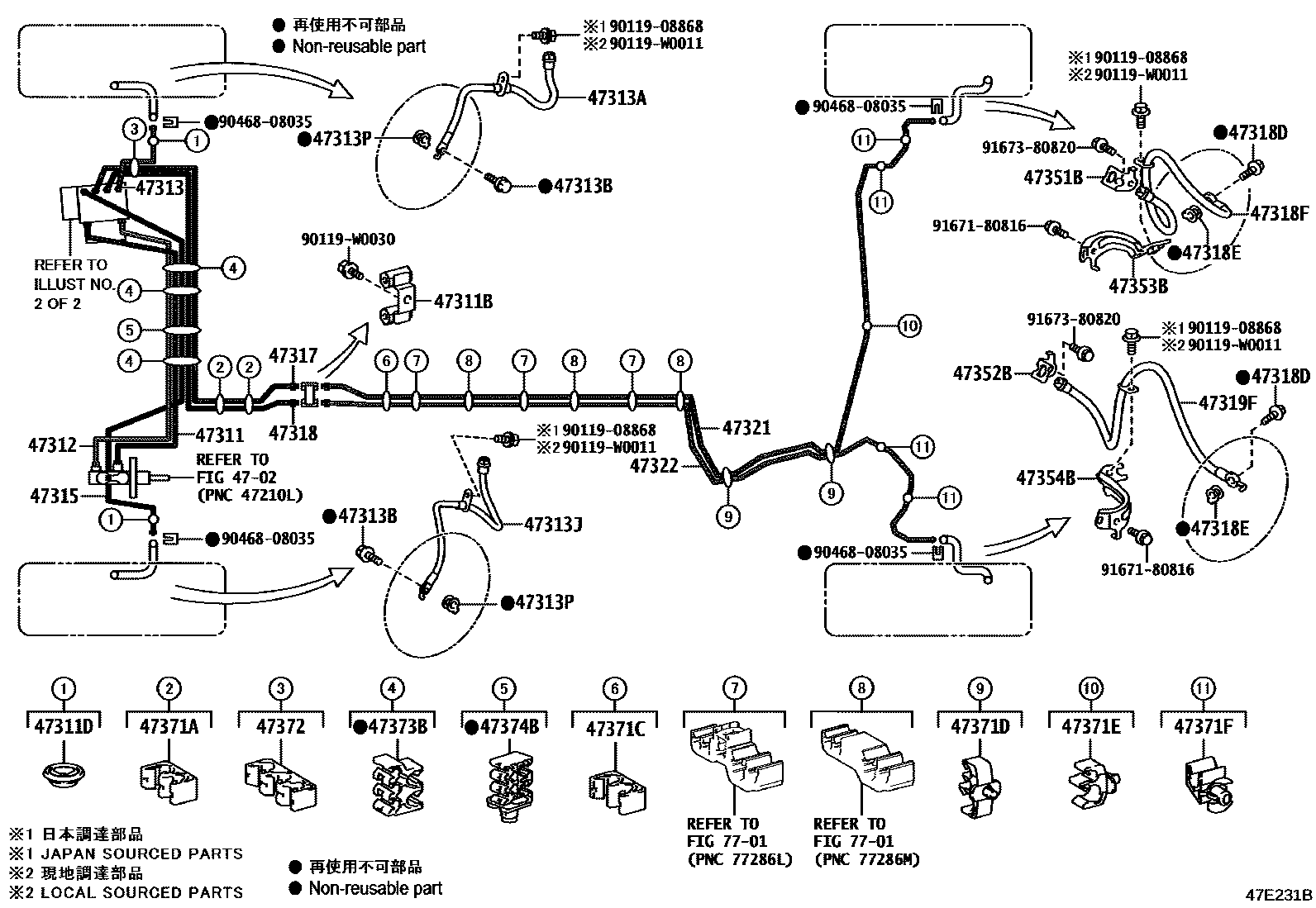

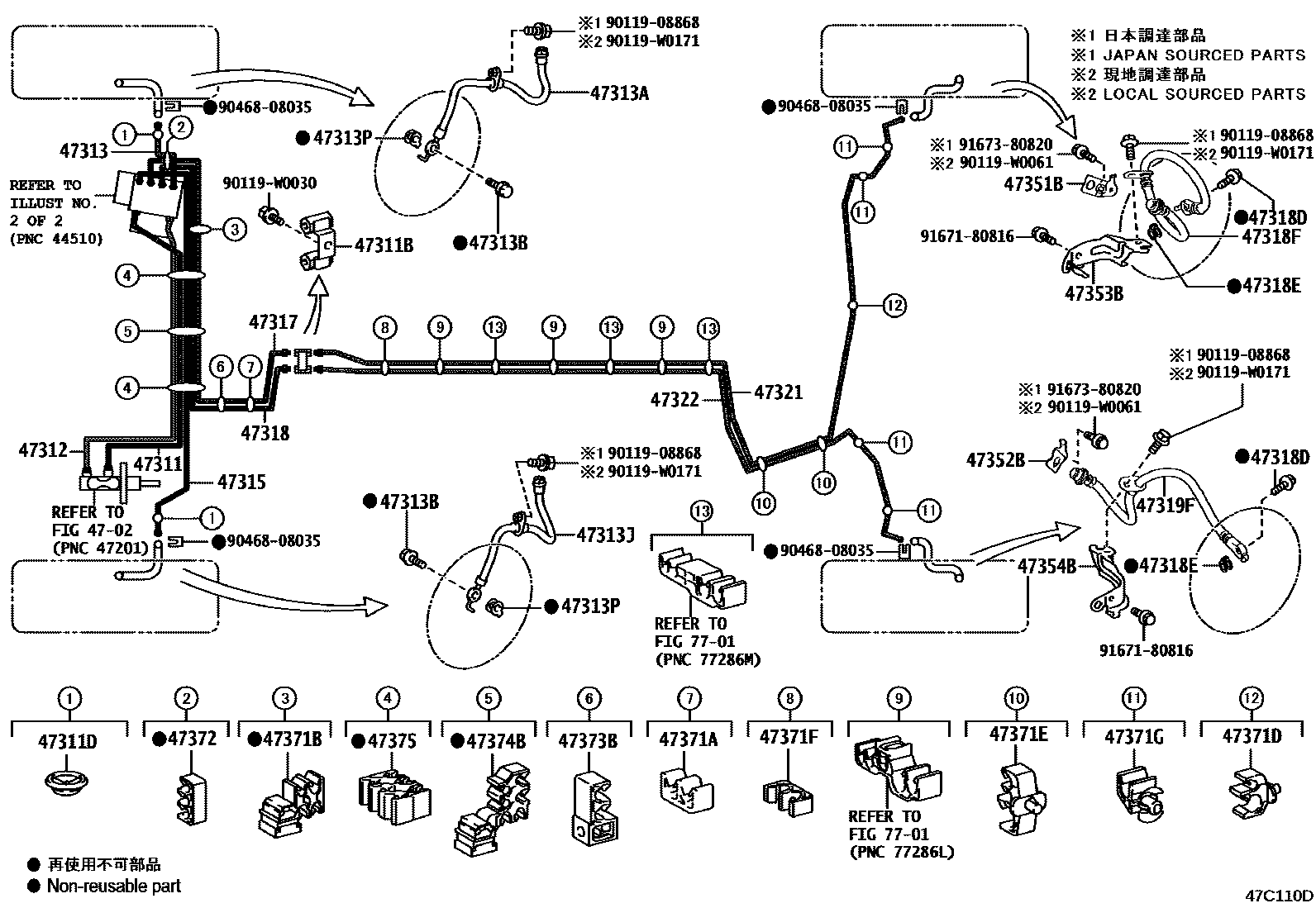

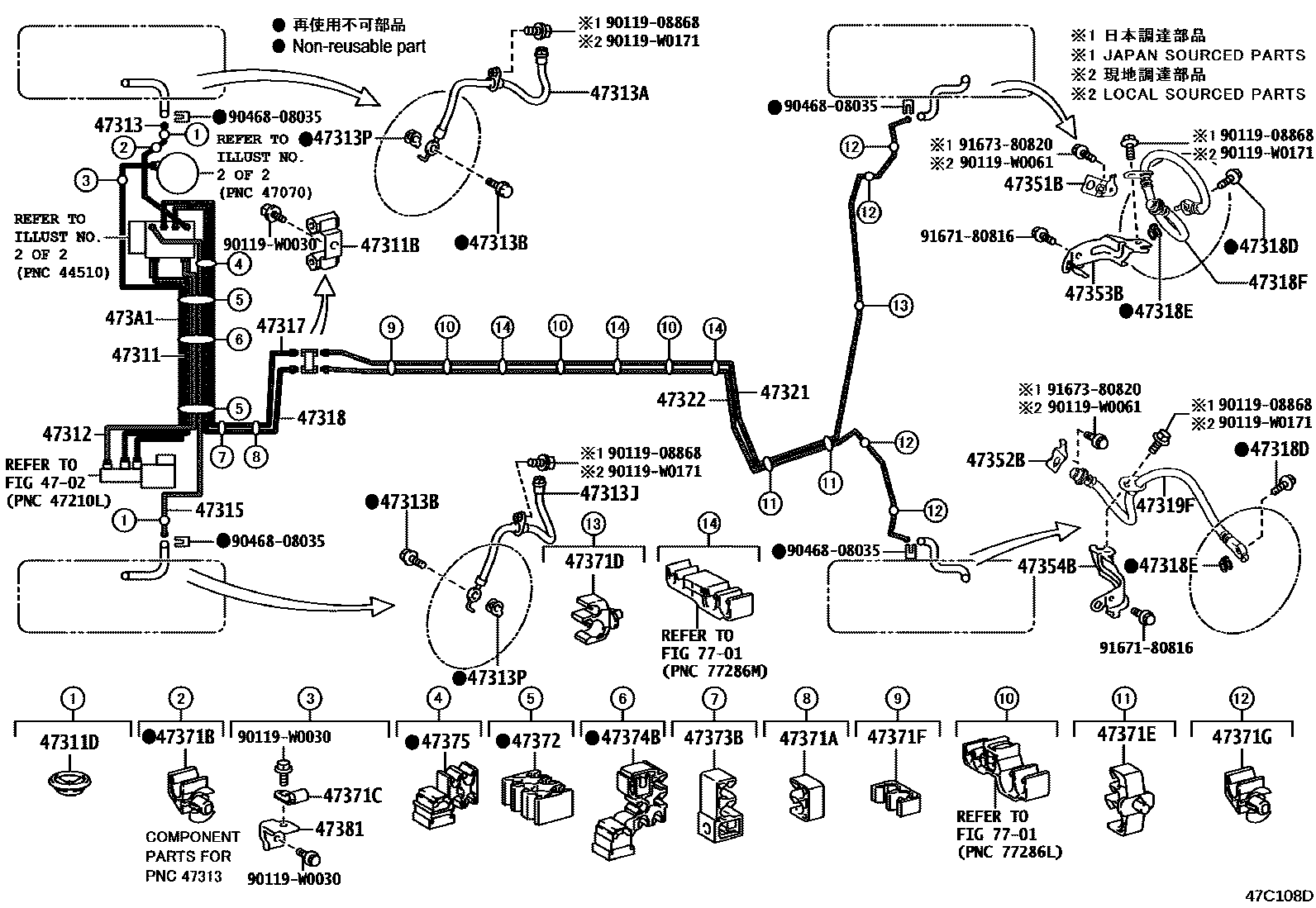

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 13 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-02C70 · 44050-02C90 · 44050-02D00 · 44050-02D20 · 44050-02K70 · 44050-02K71 · 44050-02K80 · 44050-02K81 · 44050-02K90 · 44050-02K91 · 44050-02L00 · 44050-02L01 · 44050-02N70 · 44050-02N71 · 44050-02N80 · 44050-02N81 · 44050-02N90 · 44050-02N91 · 44050-02P00 · 44050-02P01 · 44050-12E70 |
| 44521A | No. 1 brake actuator housing collar | 44521-02040 · 44521-33020 · 44521-47010 |
| 44521B | No. 2 brake actuator housing collar | 44521-0D020 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-02420 · 44590-02500 · 44590-02620 · 44590-02680 · 44590-12240 · 44590-F4030 · 44590-F4040 · 44590-F4080 |
| 47070 | Brake booster pump assembly | 47070-12040 · 47070-47090 · 47070-47100 |
| 47311 | No. 1 front brake pipe | 47311-02E20 · 47311-02E40 · 47311-02E50 · 47311-02E70 · 47311-02G70 · 47311-02G80 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-02C60 · 47312-02C80 · 47312-02C90 · 47312-02D10 · 47312-02F30 · 47312-02F40 |
| 47313 | No. 3 front brake pipe | 47313-02F00 · 47313-02F20 · 47313-02F30 · 47313-02F50 · 47313-02J00 · 47313-02J10 |
| 47313A | No. 1 front flexible hose | 90947-W2066 · 90947-W2076 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-W2067 · 90947-W2077 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-02460 · 47315-02480 · 47315-02490 · 47315-02510 · 47315-02700 · 47315-02710 |
| 47317 | No. 7 front brake pipe | 47317-02D90 · 47317-02E10 · 47317-02E20 · 47317-02E40 · 47317-02G00 · 47317-02G10 |
| 47318 | No. 8 front brake pipe | 47318-02E10 · 47318-02E30 · 47318-02E40 · 47318-02E60 · 47318-02G20 · 47318-02G30 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-W2052 |
| 47319F | Left rear flexible hose | 90947-W2053 |
| 47321 | No. 1 rear brake pipe | 47321-02640 · 47321-02650 |
| 47322 | No. 2 rear brake pipe | 47322-02640 · 47322-02650 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-F4020 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-F4020 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-02170 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-02170 |
| 47371A | No. 1 brake pipe clamp | 90949-01D91 · 90949-01E30 |
| 47371B | No. 6 brake pipe clamp | 90461-10854 · 90949-01E10 · 90949-01E51 |
| 47371C | No. 7 brake pipe clamp | 90461-10854 · 90464-00904 |
| 47371D | No. 8 brake pipe clamp | 77285-12170 · 77286-12230 |
| 47371E | No. 9 brake pipe clamp | 77285-12170 · 77286-12230 |
| 47371F | No. 10 brake pipe clamp | 90464-00904 · 90949-01E10 |
| 47371G | No. 11 brake pipe clamp | 90949-01E10 |
| 47372 | No. 2 brake pipe clamp | 90949-01D92 · 90949-01D99 · 90949-01E15 · 90949-01E34 · 90949-01E40 |
| 47373B | No. 3 brake pipe clamp | 90949-01E17 · 90949-01E33 · 90949-01E40 · 90949-01E43 |
| 47374B | No. 4 brake pipe clamp | 90949-01E34 · 90949-01E42 · 90949-01E44 · 90949-01E50 · 90949-01E79 |
| 47375 | No. 5 brake pipe clamp | 90949-01E44 · 90949-01E49 · 90949-01E51 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-F4010 · 47381-F4020 |
| 473A1 | Pipe from accumulator to brake master cylinder | 473A1-02030 · 473A1-02040 |
| 47941 | No. 1 brake power bracket | 47941-F4010 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47965B | No. 2 brake booster pump bushing | 47965-30010 |
